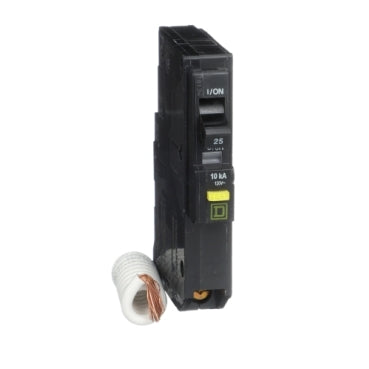

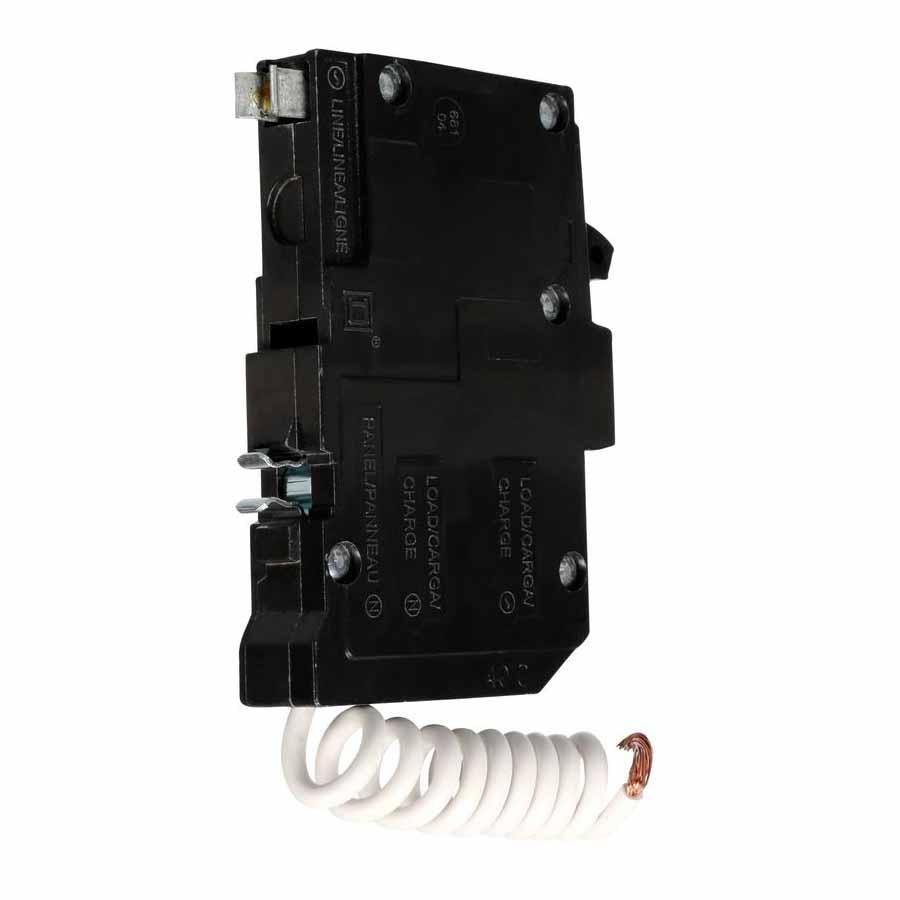

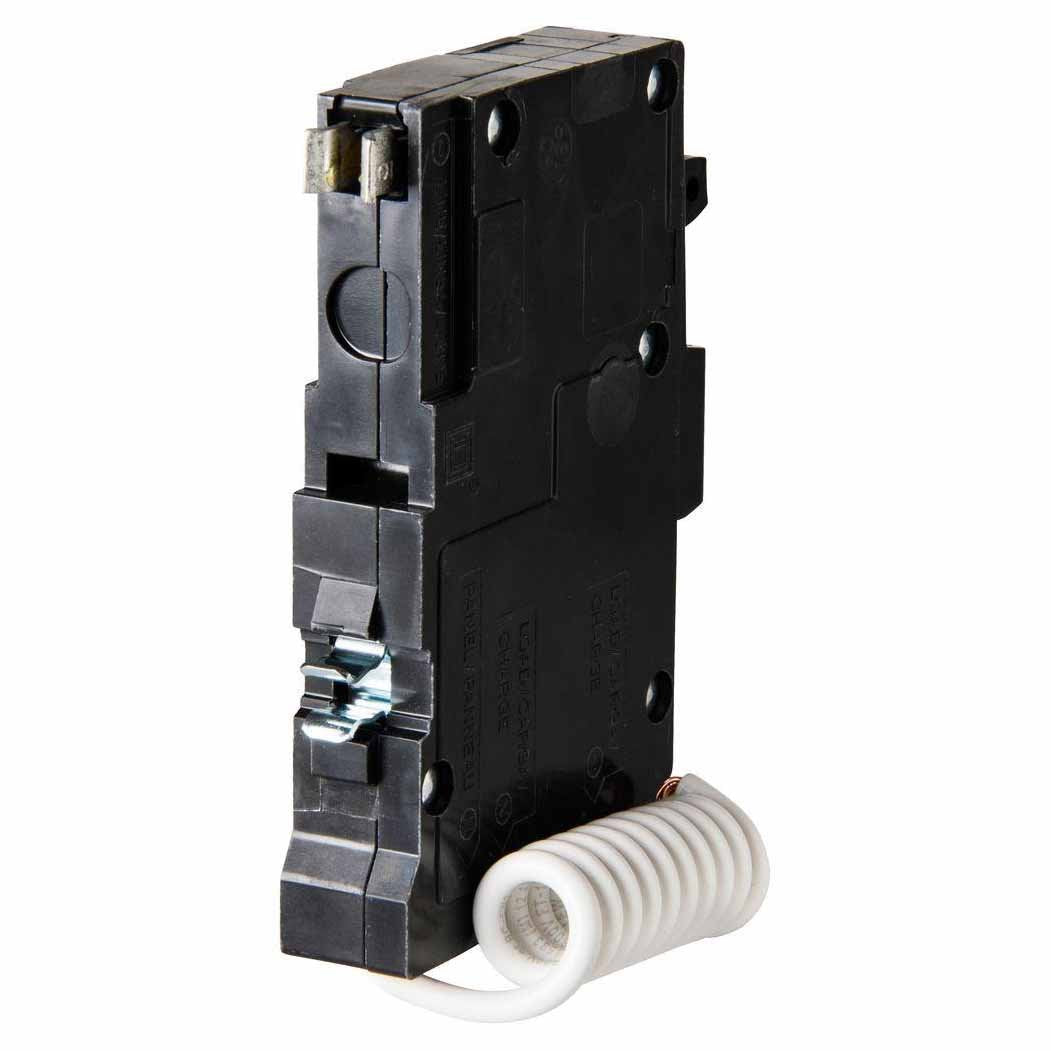

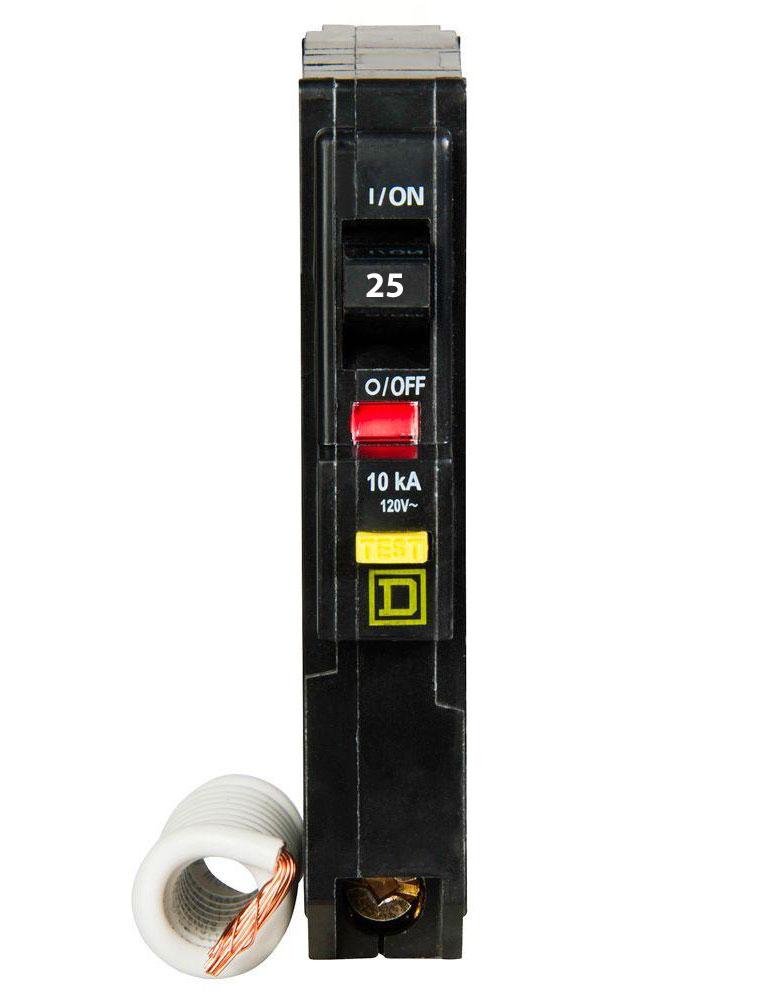

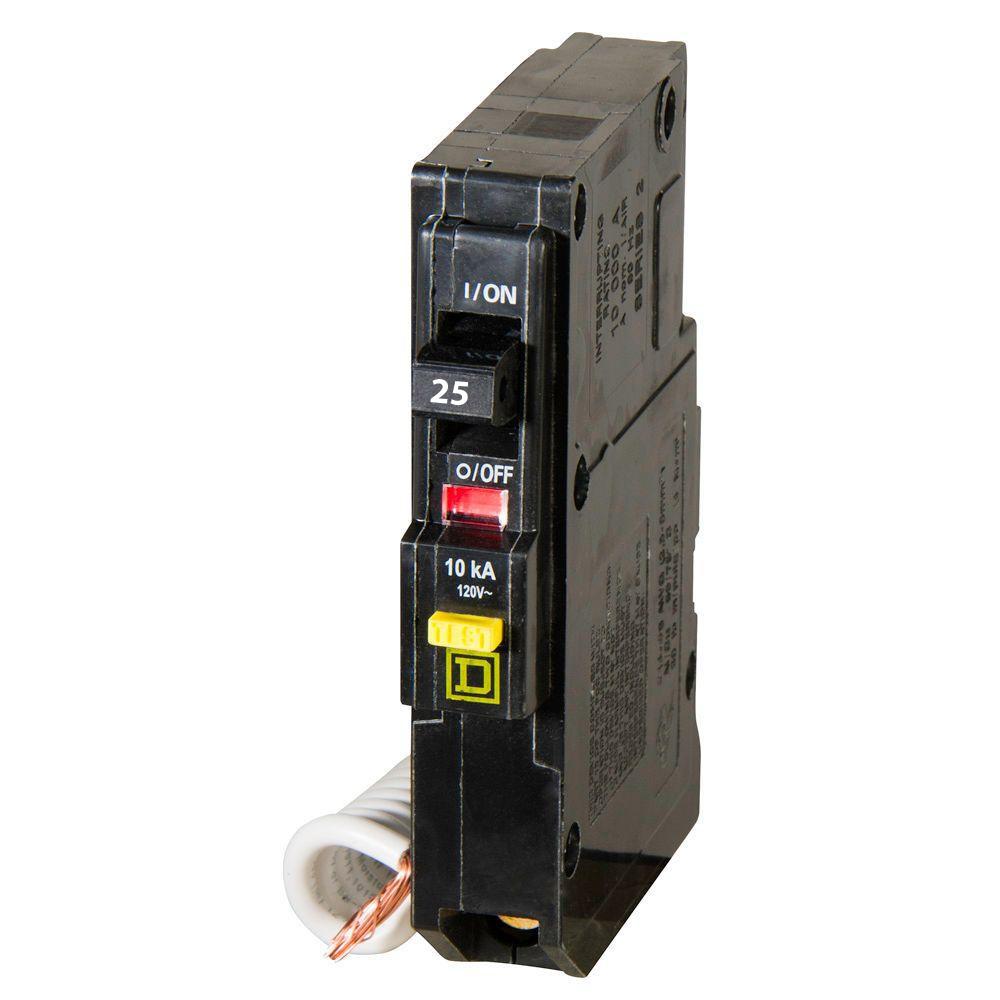

Square D QO125GFI Circuit Breaker | QO Series QO-GF 120/240 VACV 25A

Product Description:
The Square D QO125GFI is a 1-pole, 25 amp molded case circuit breaker with a 120/240VAC rating. It features a 10kA AIC rating at 120V and includes thermal magnetic protection. This GFCI breaker is part of the QO Series and uses a plug-in connection for easy installation.

Key Features:
✔ Part Number: QO125GFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO-GF
✔ Voltage: 120/240 VAC
✔ Amperage: 25
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Certification: CSA Certified, UL Listed
✔ UPC
