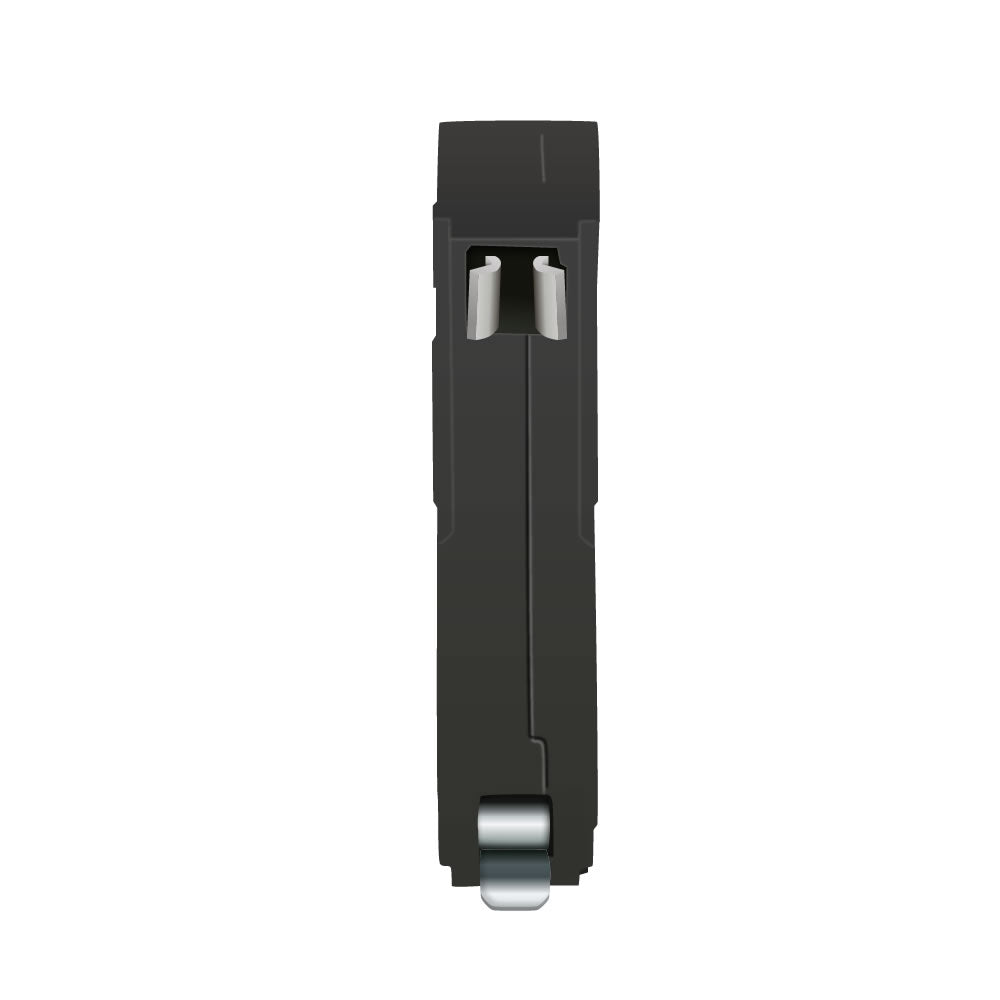

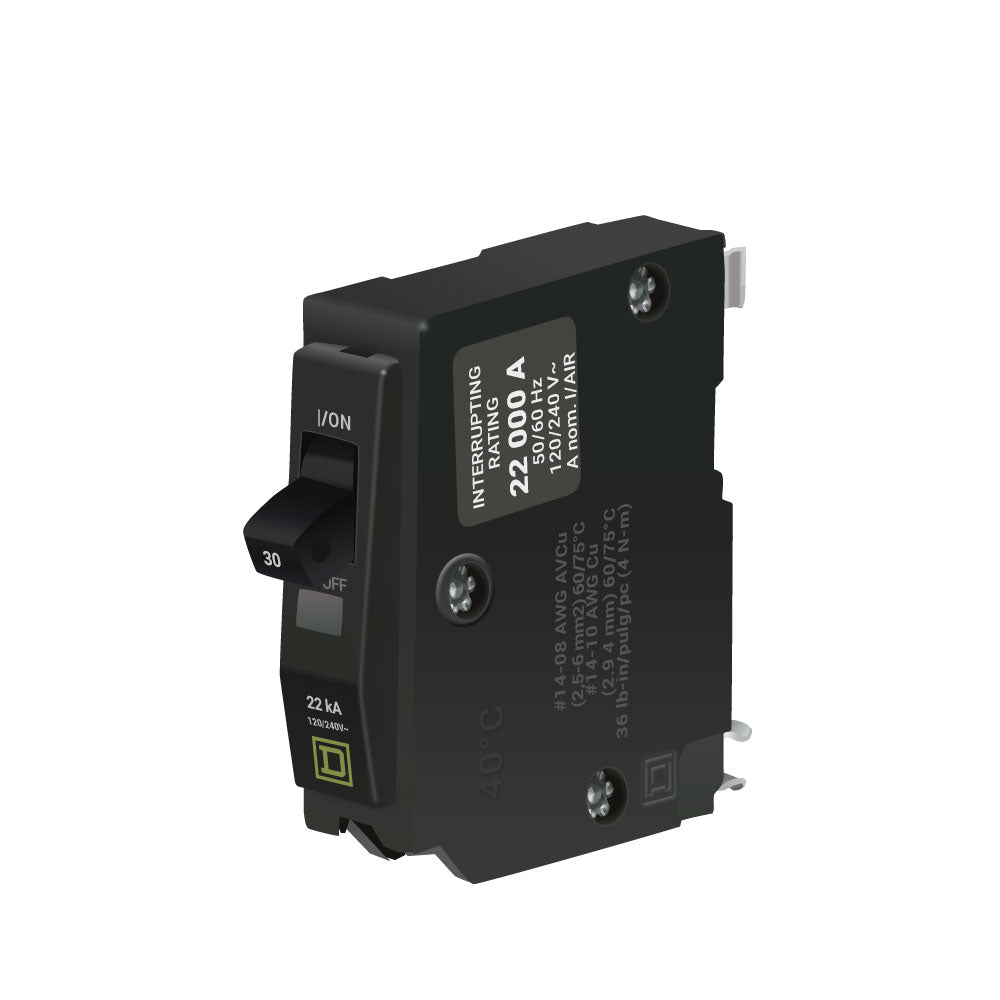

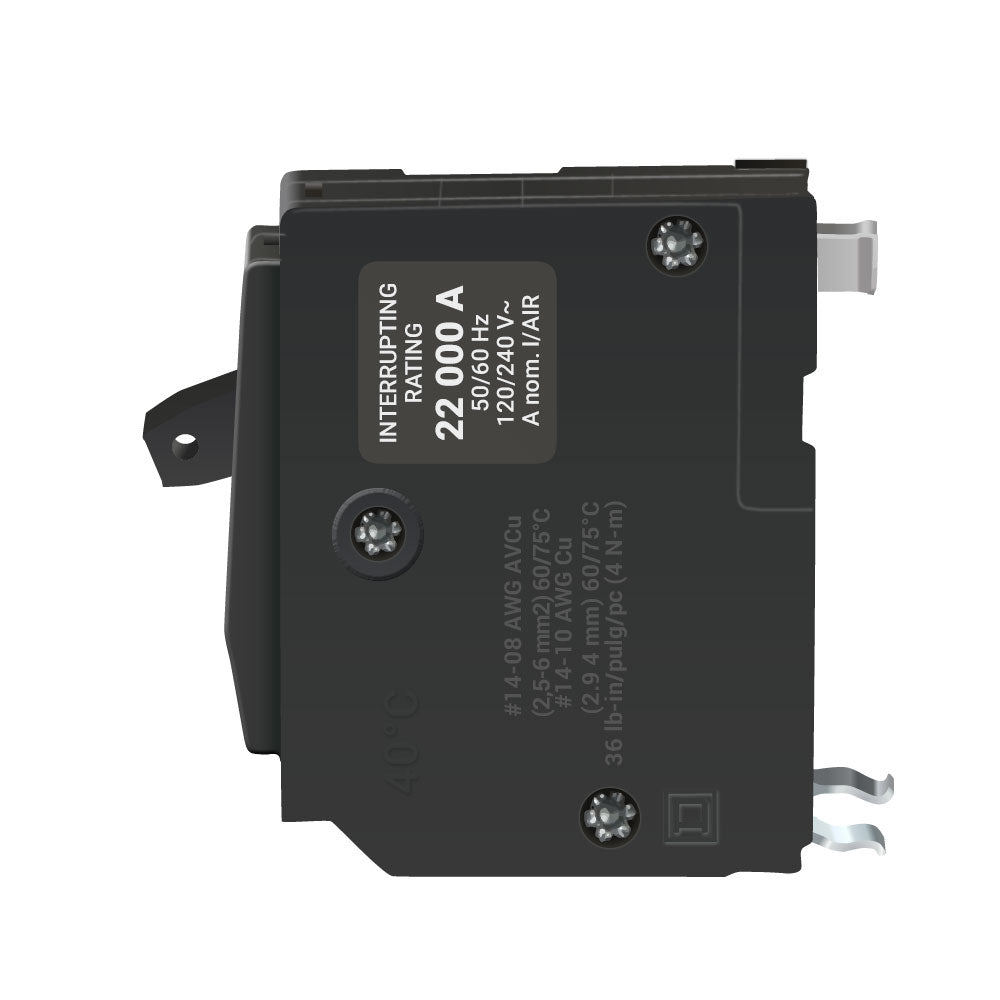

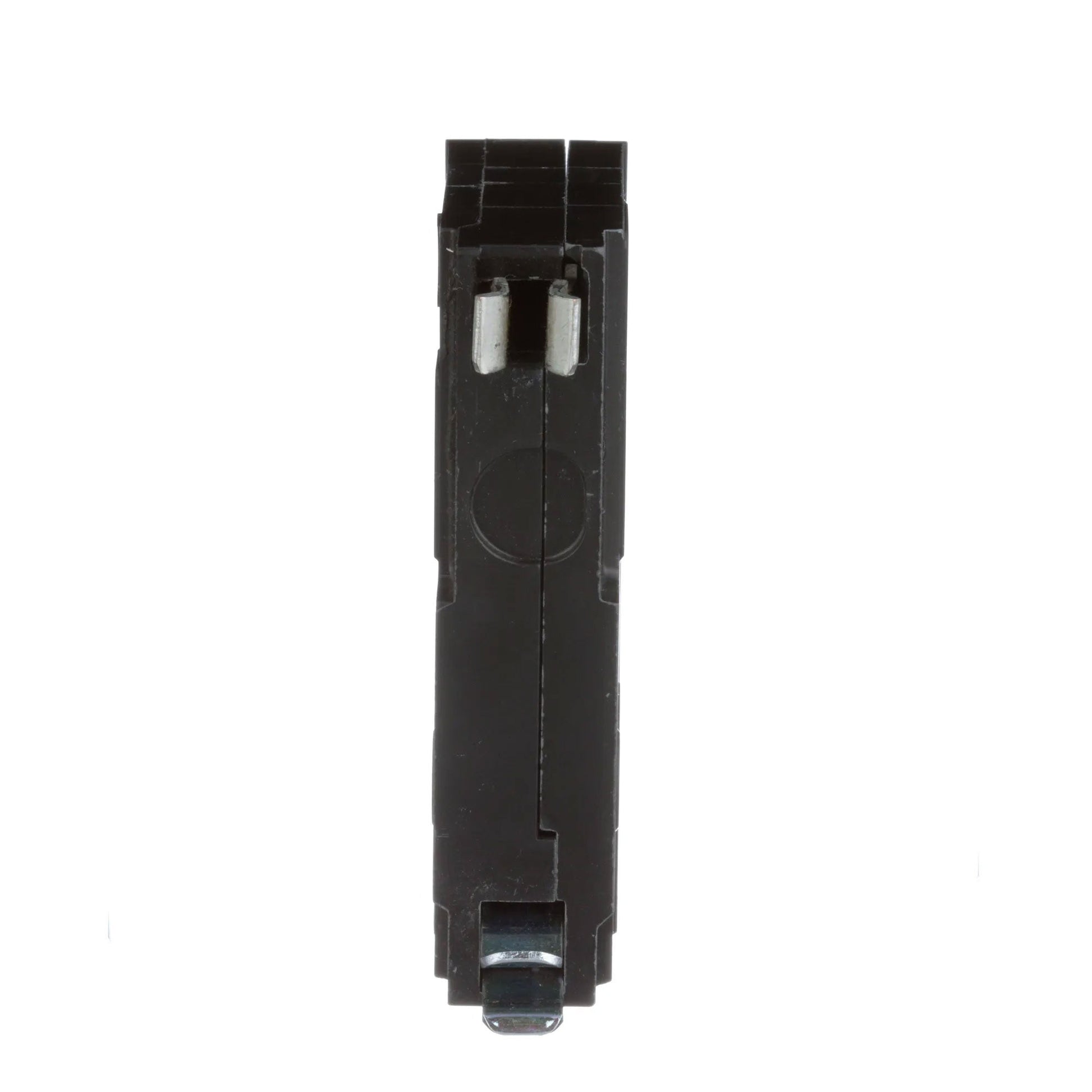

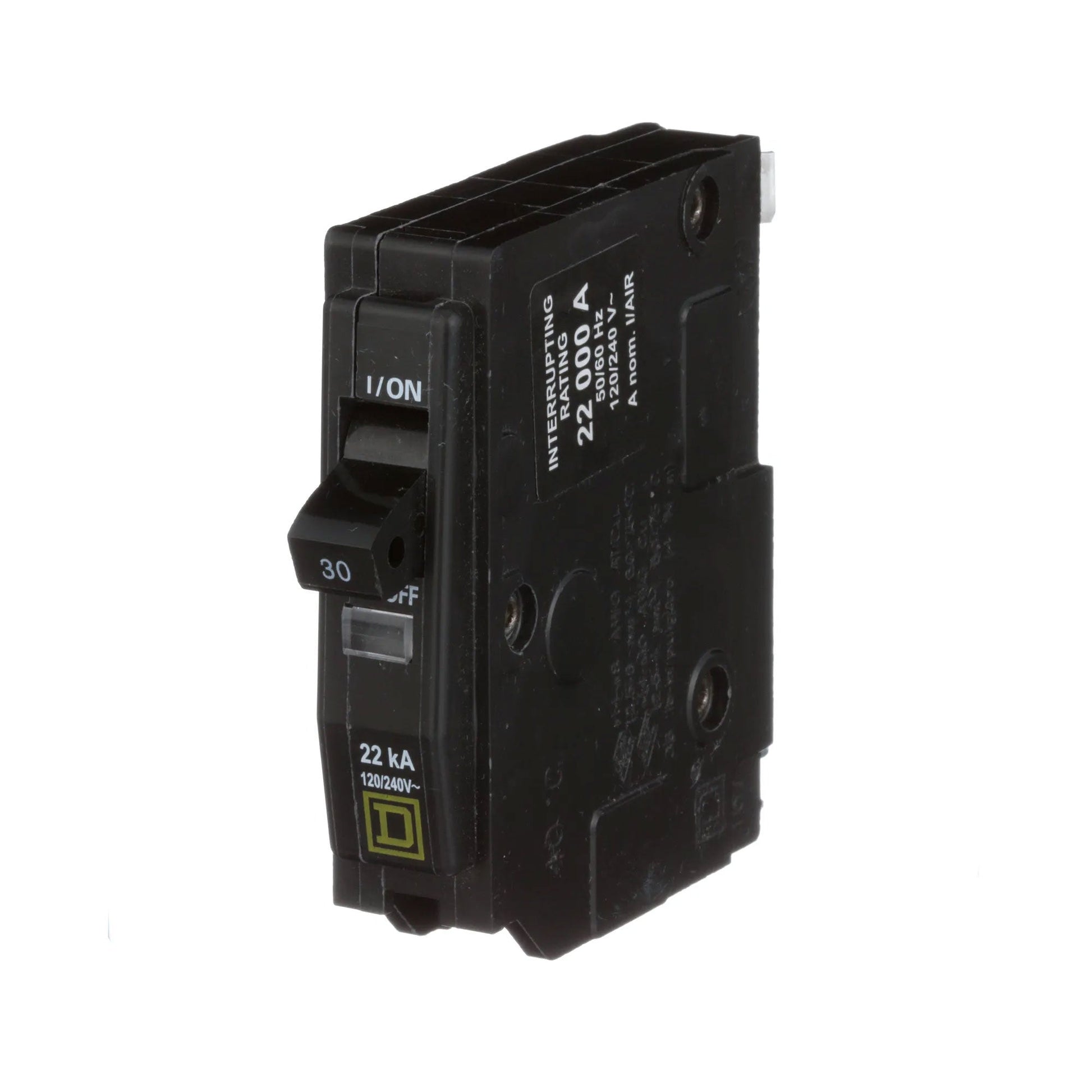

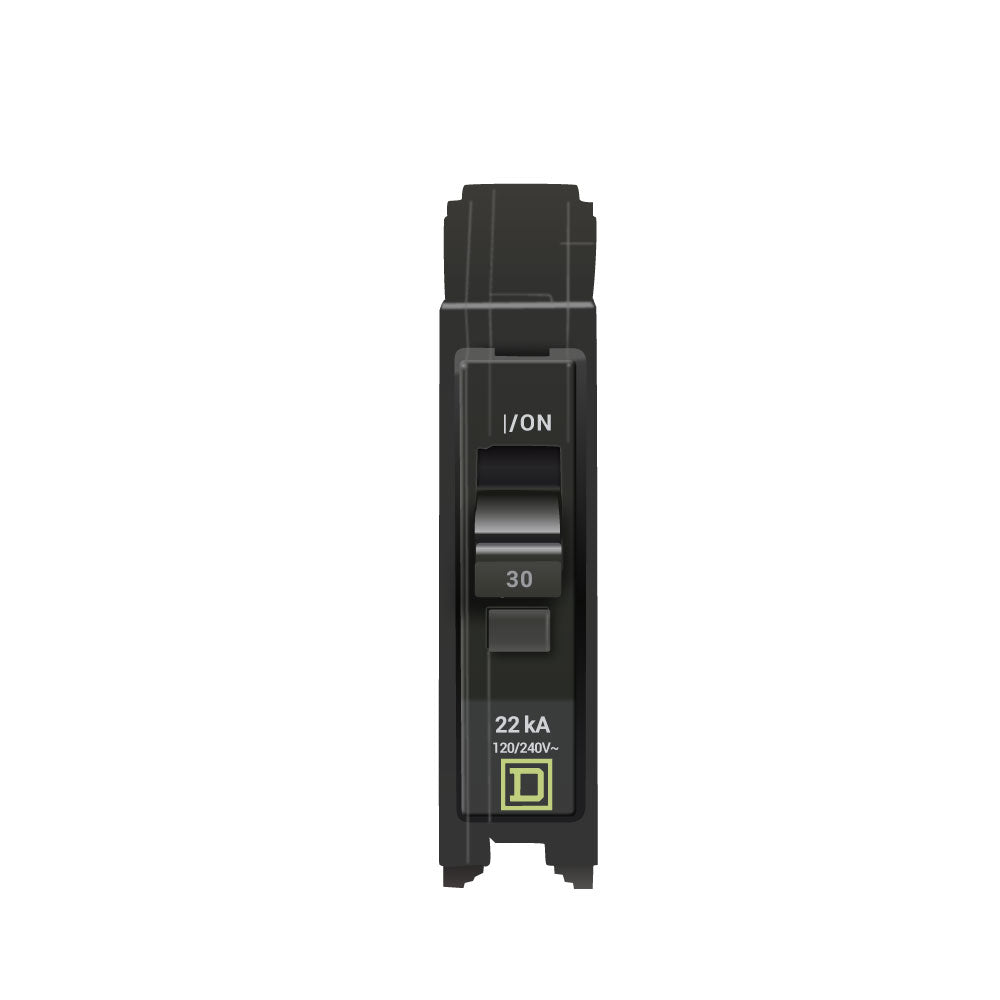

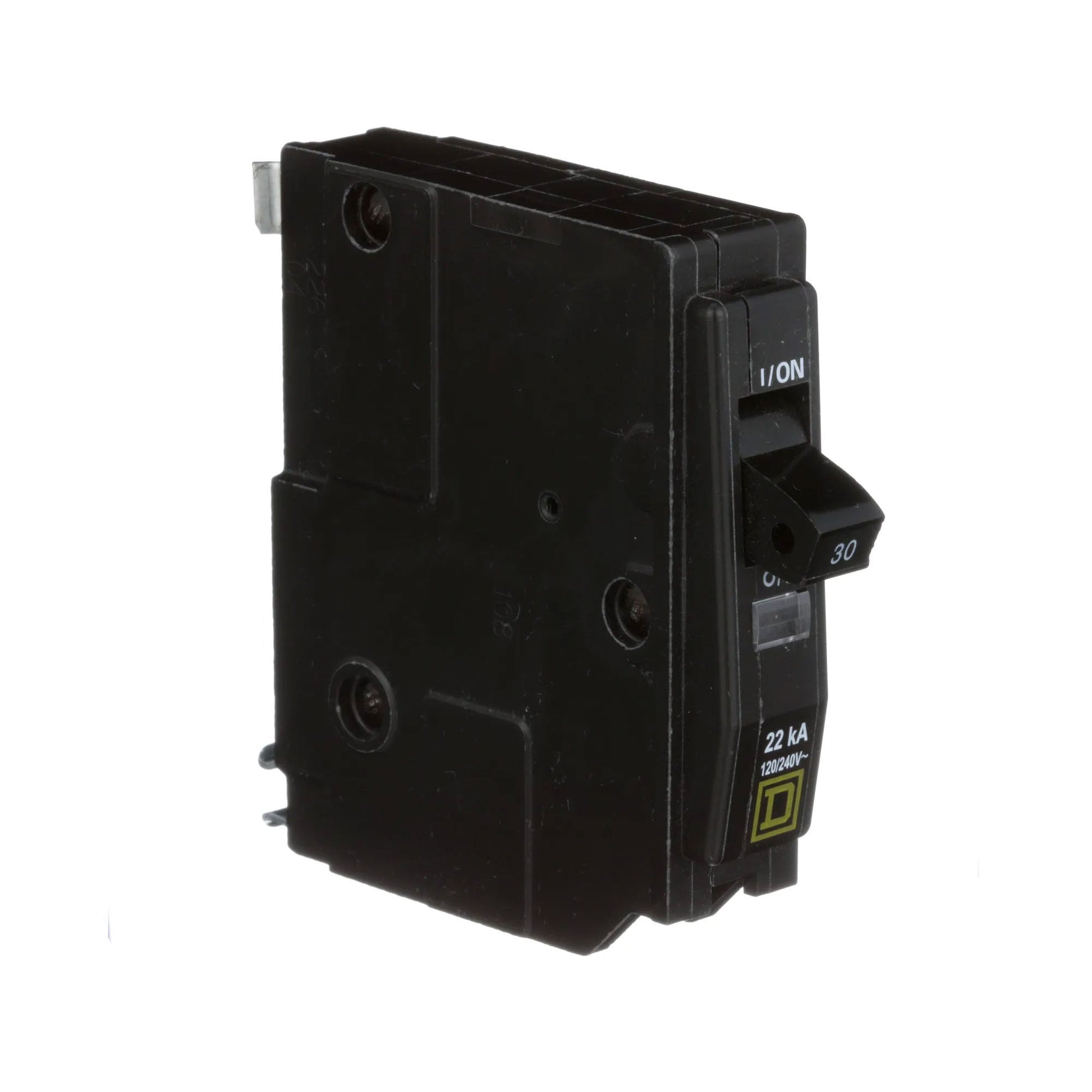

Square D QO130VH Circuit Breaker 120/240V 30A 1P 10kA@240V Plug-In QO Series

Product Description:
The Square D QO130VH is a Molded Case Circuit Breaker from the QO Series family. It is a 1 pole, 30 amp breaker rated for 120/240 volts with a 10kA@240V AIC rating. This model uses a plug-in connection and provides thermal magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: QO130VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901371809
✔ GTIN: 00785901371809
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 3 in x 2.99 in
✔ Weight: 0.29
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: UL Listed
