Product Description:

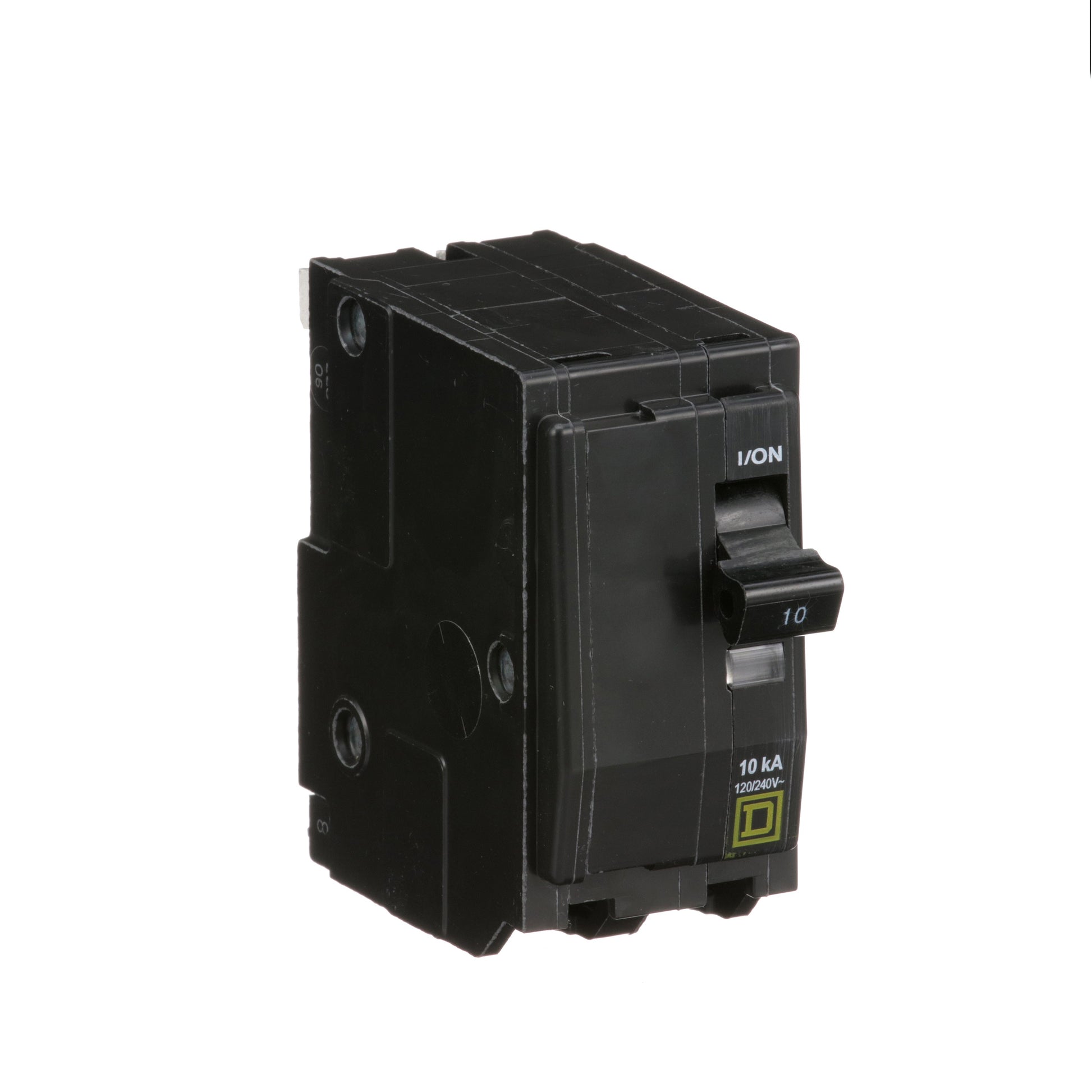

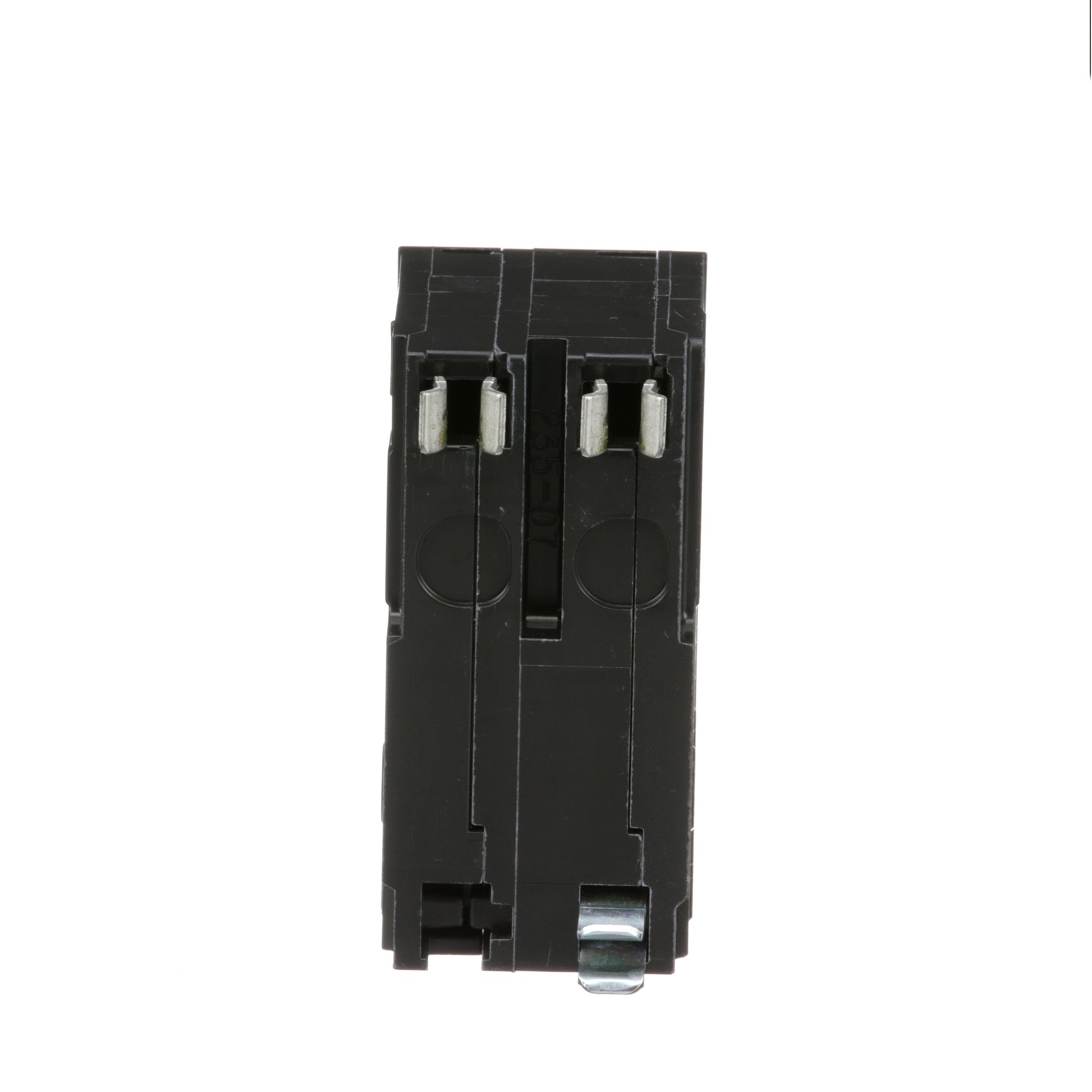

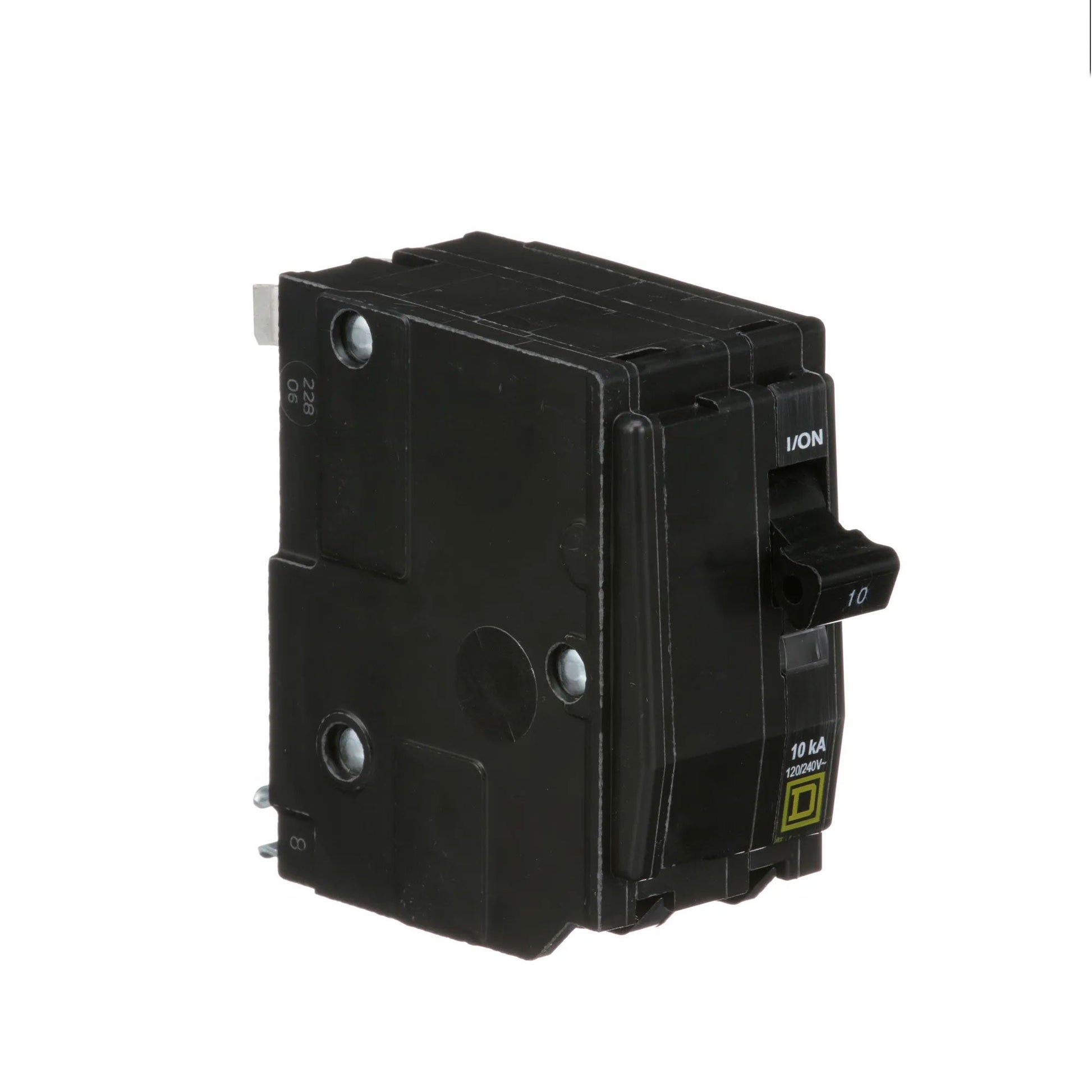

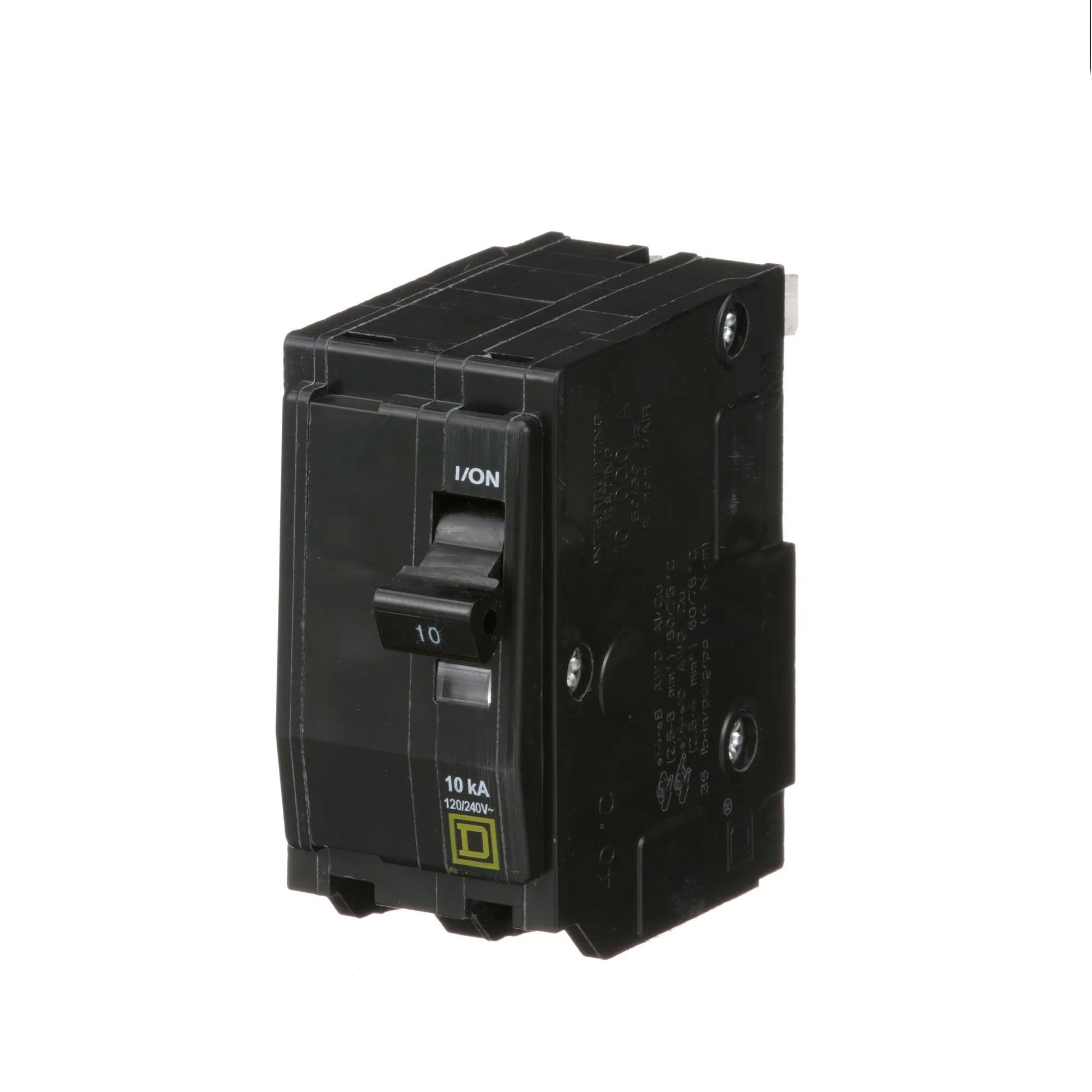

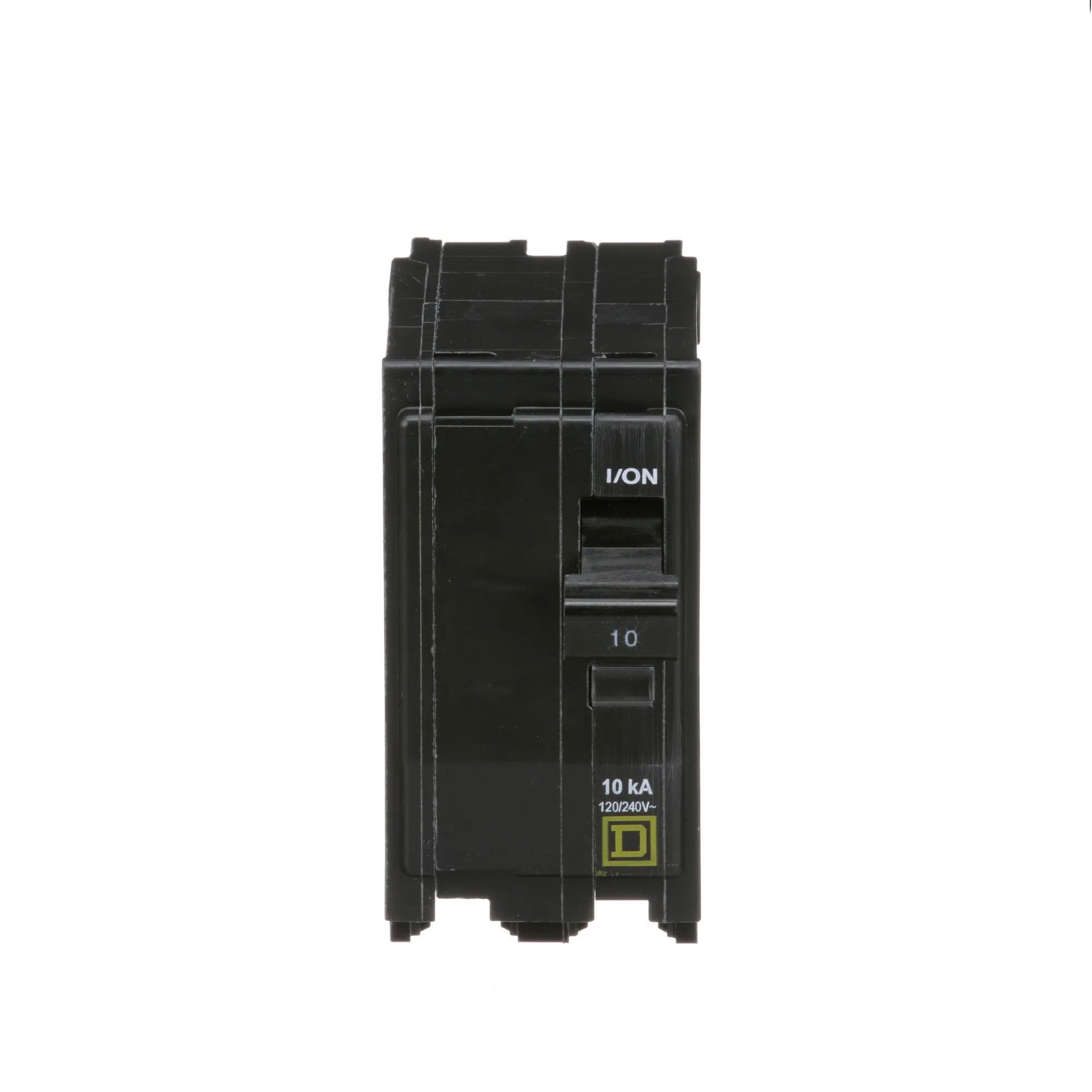

The Square D QO210 is a 2-pole molded case circuit breaker from the QO Series. It operates at 120/240 VAC with a 10A rating and a 10kA@240V AIC rating. This breaker features thermal magnetic protection and a plug-in connection. It is compatible with QO load centers and NQ panelboards.
Key Features:
✔ Part Number: QO210
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240 VAC
✔ Amperage: 10A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ Wire Size: 14 to 8 AWG (Aluminum/Copper), 14 to 10 AWG (Copper)
✔ Temp Rating: 104°F (Min/Max)
✔ Certification: UL Listed, CSA Certified
✔ UPC: 785901205609
