Product Description:

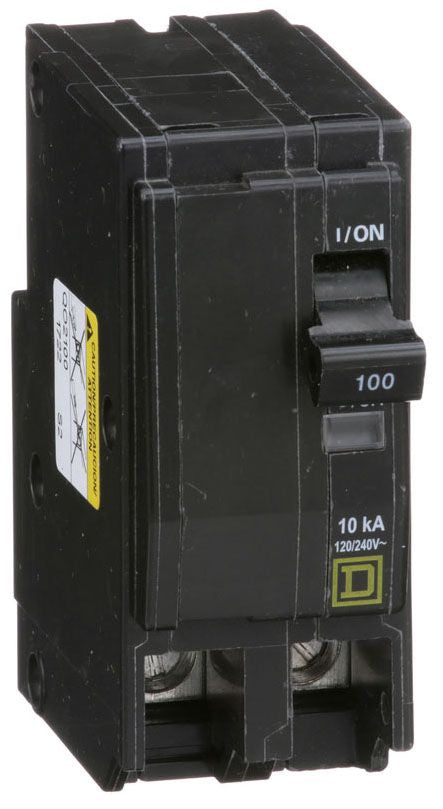

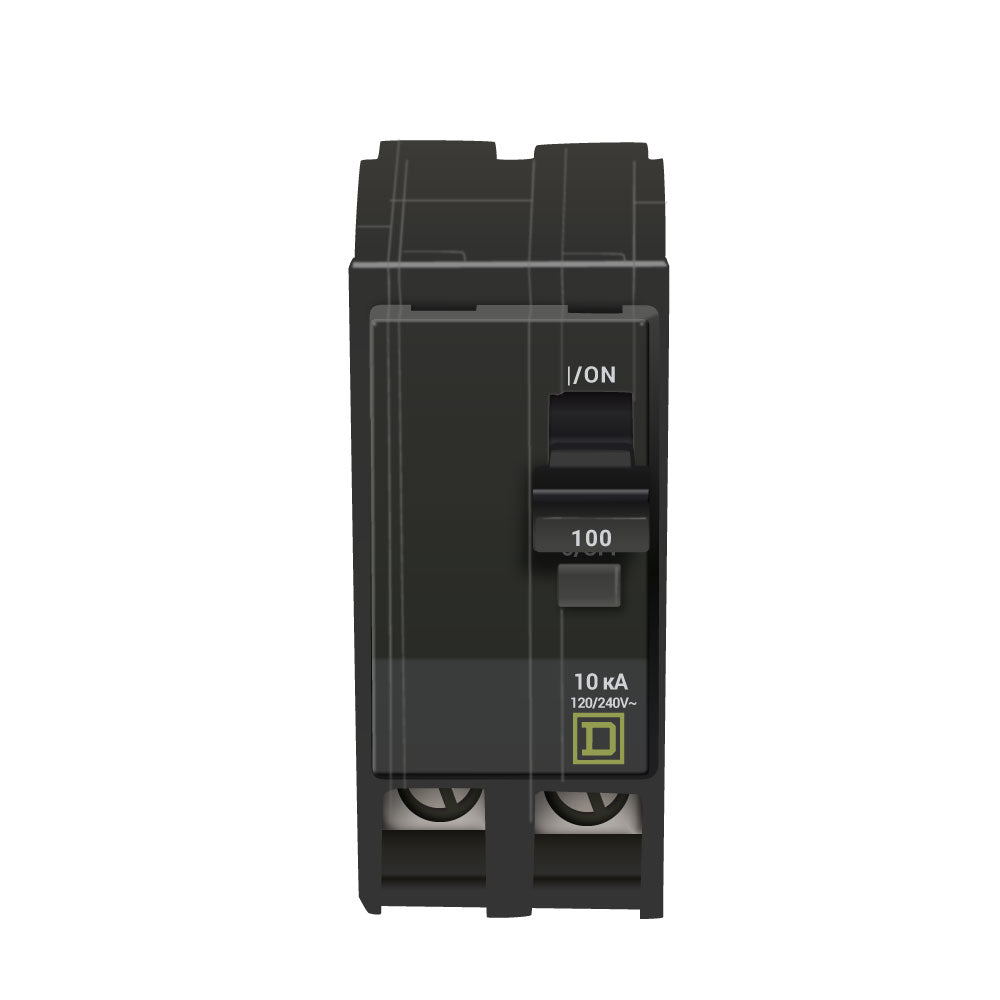

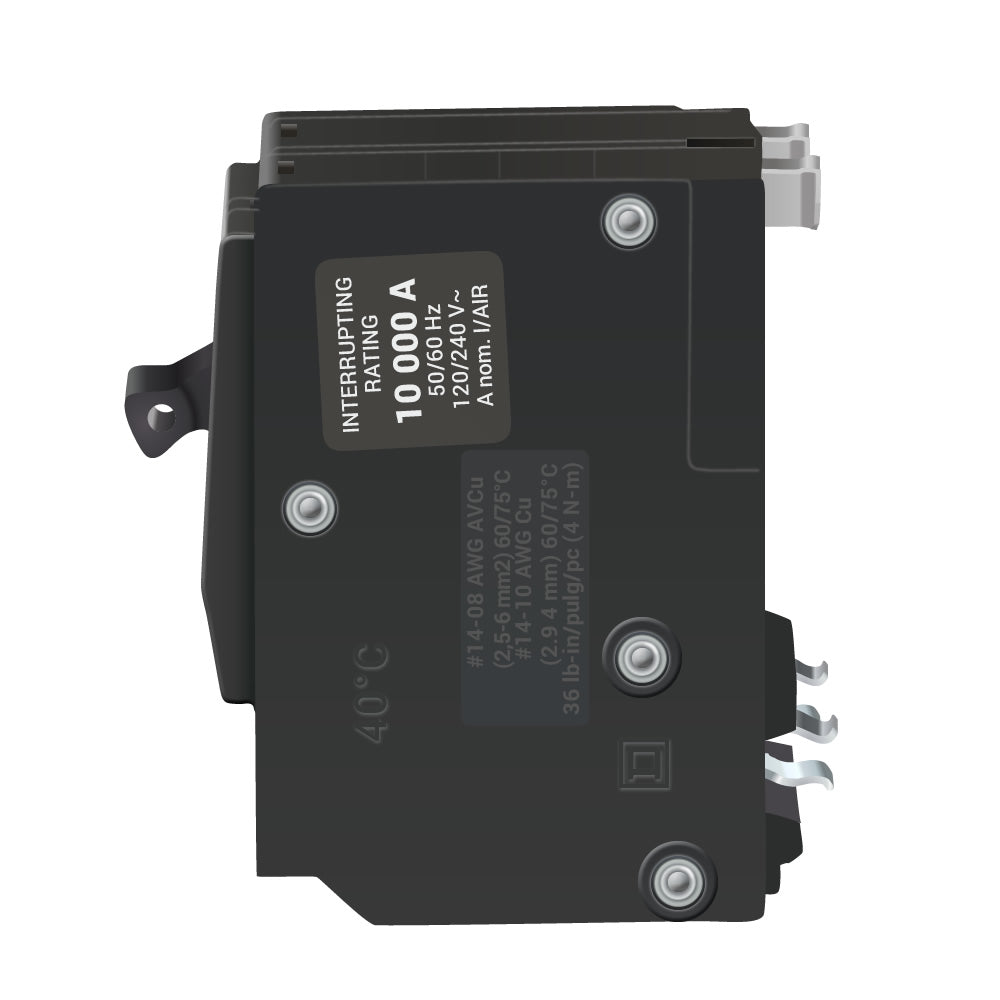

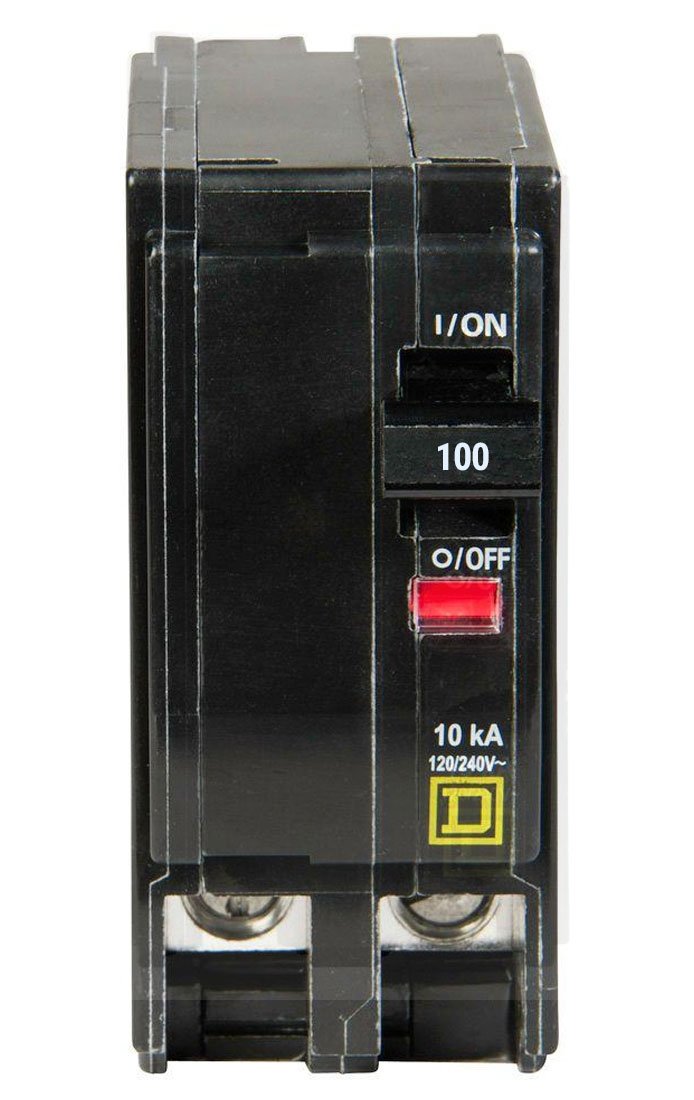

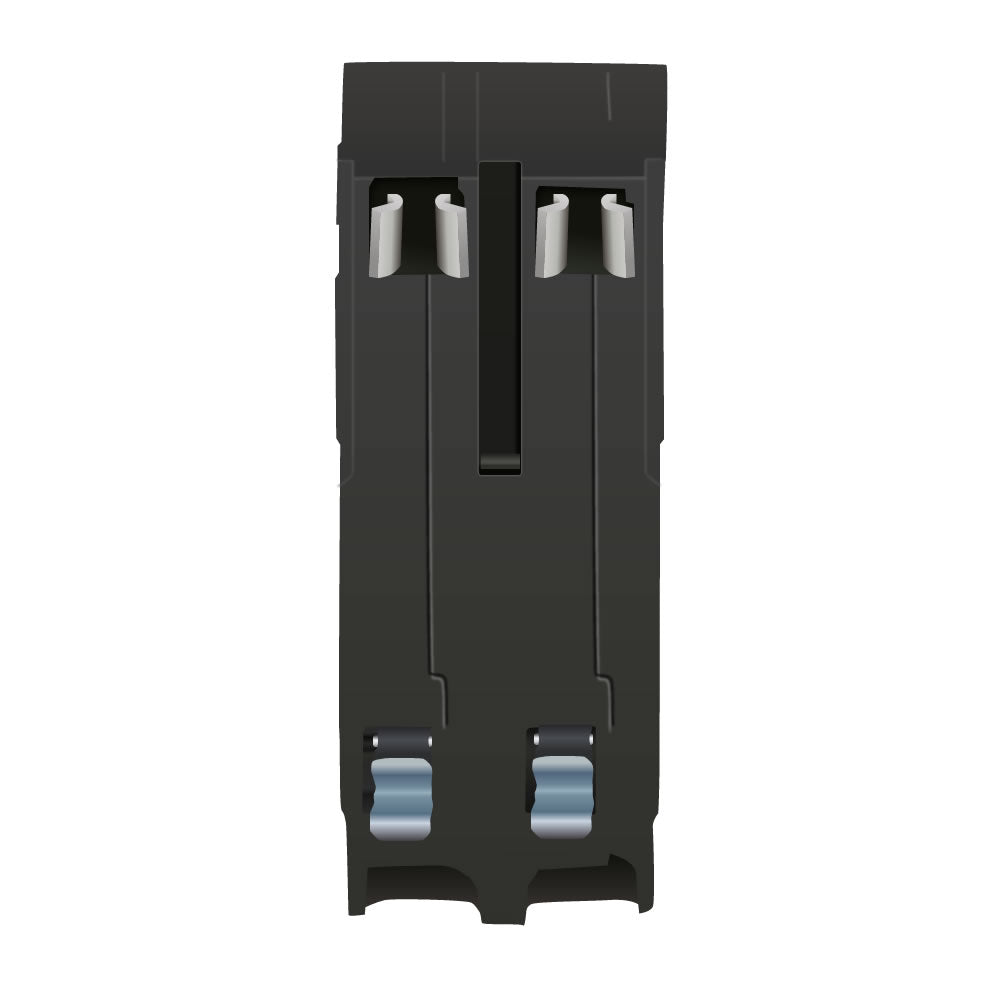

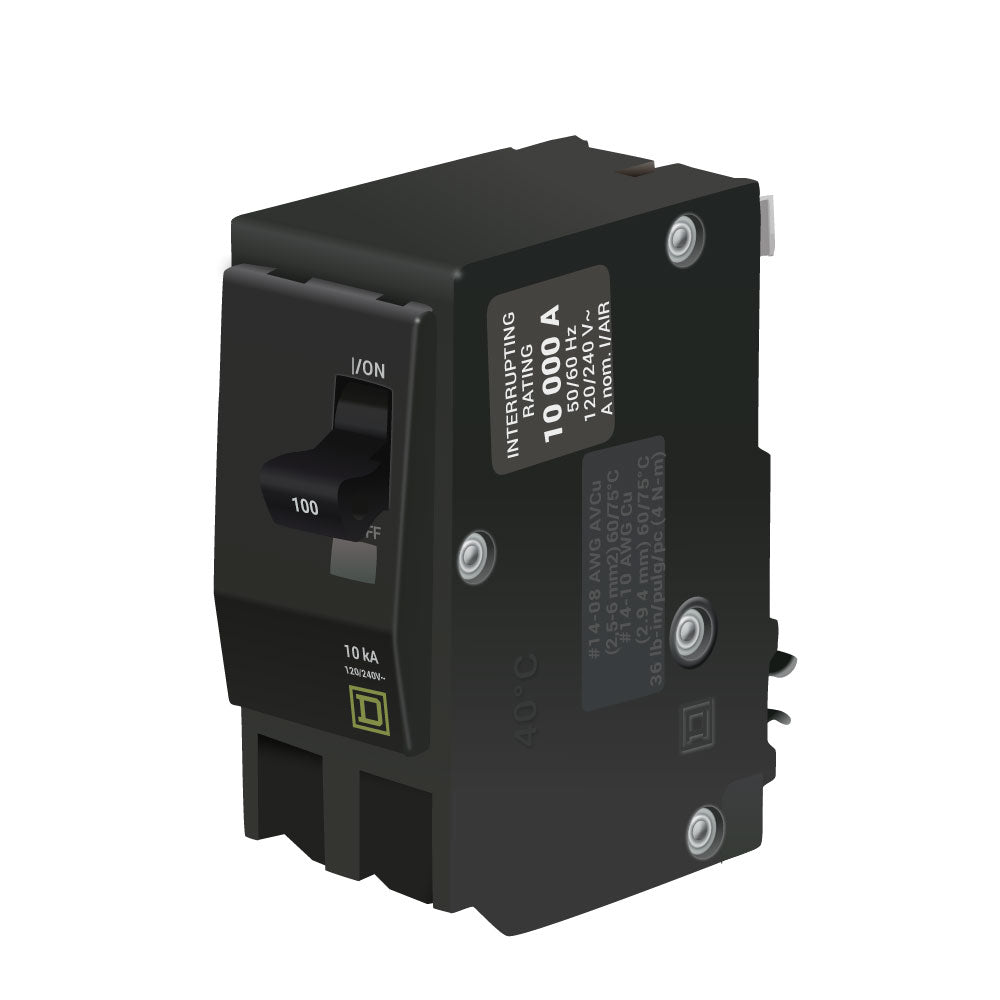

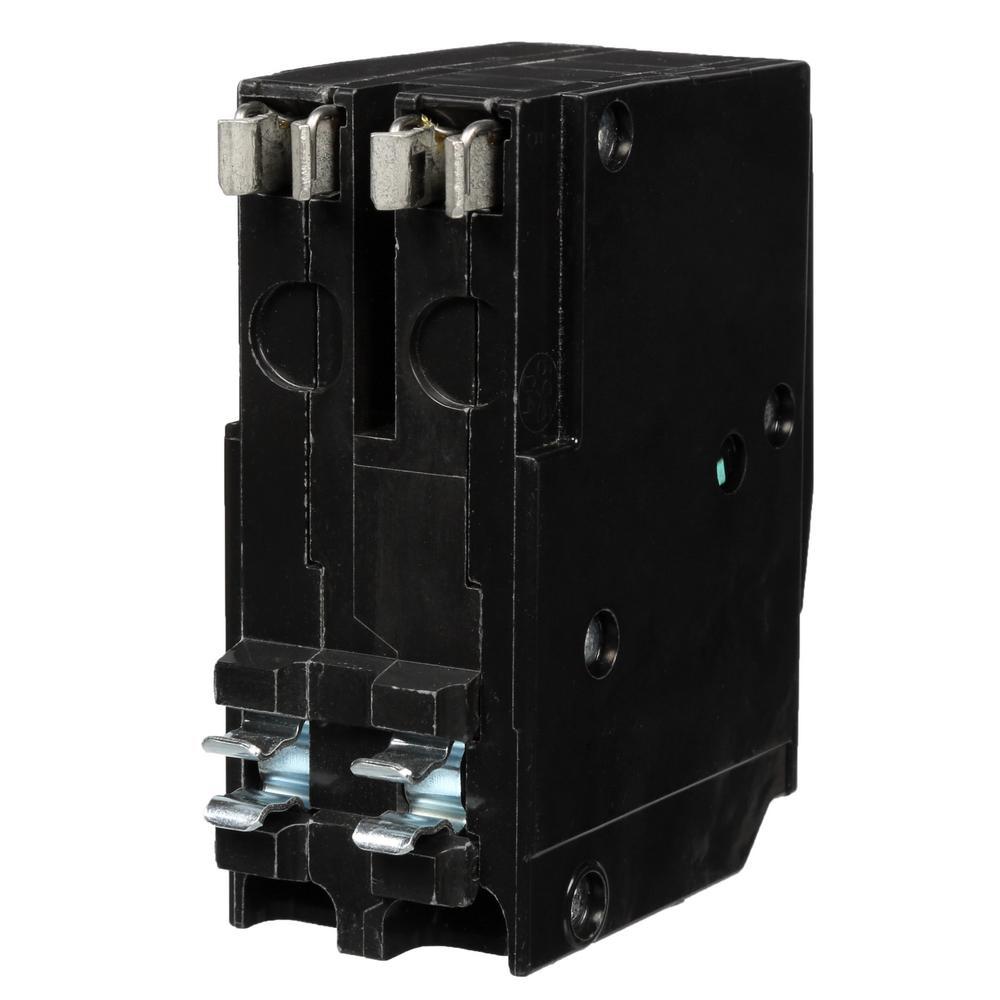

The Square D QO2100 is a Molded Case Circuit Breaker from the QO Series family. It is a 2-pole, 100 amp breaker with a voltage rating of 120/240 VAC and an AIC rating of 10kA@240V. This breaker features Plug-In connection and Thermal Magnetic protection for reliable performance. It is compatible with QO Load Centers and NQ Panelboards.
Key Features:
✔ Part Number: QO2100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240 VAC
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 78590150130
✔ GTIN: 00785901501305
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.5 in x 3.5 in
✔ Weight: 0.71 lb
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: HACR, UL Listed
✔ Wire Size: 4 To 2/0 Awg (Aluminum/Copper)
