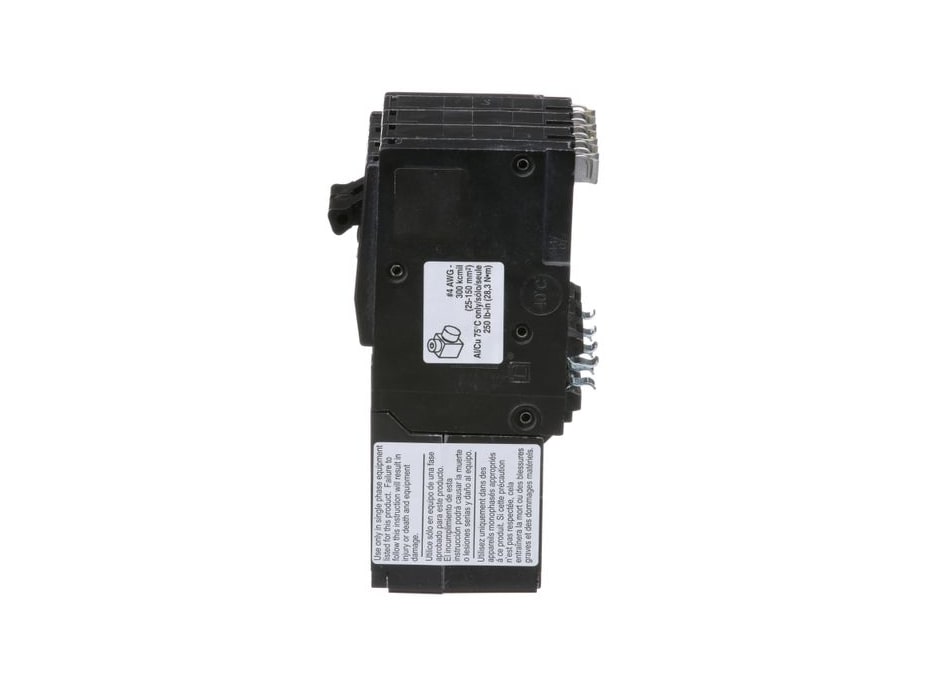

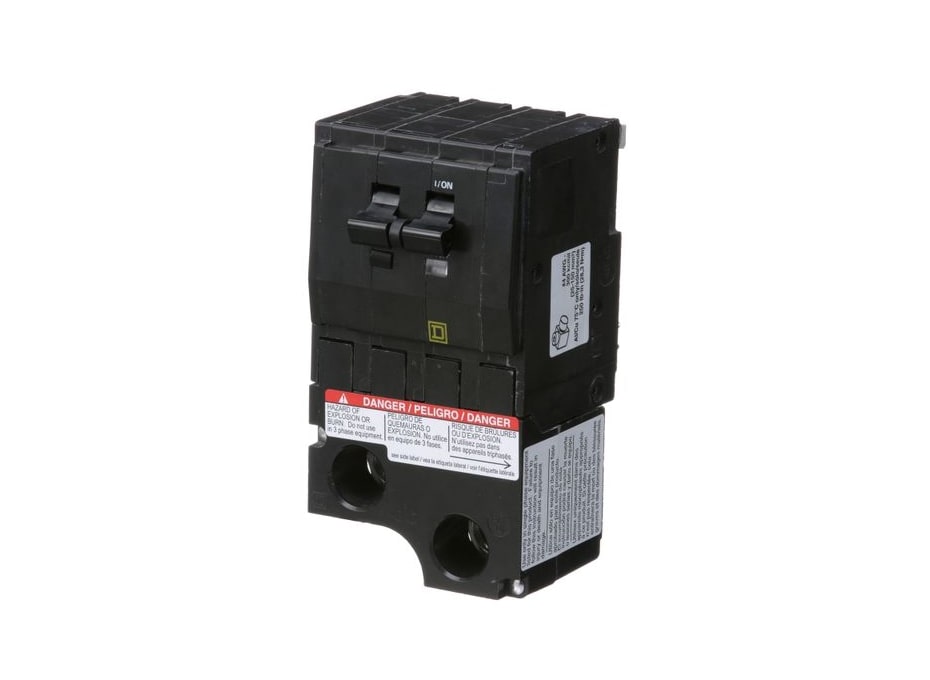

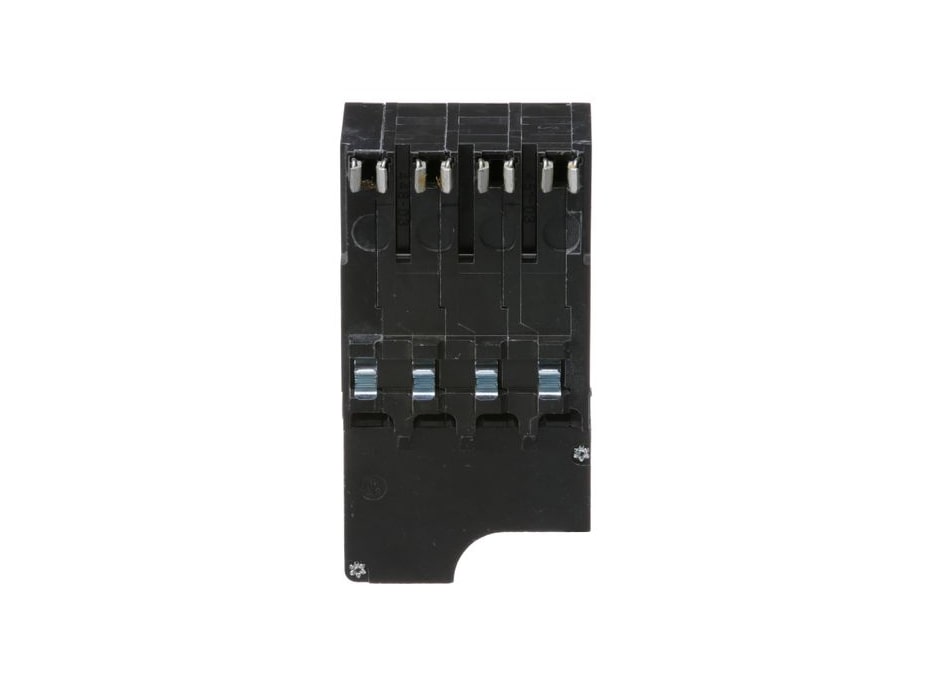

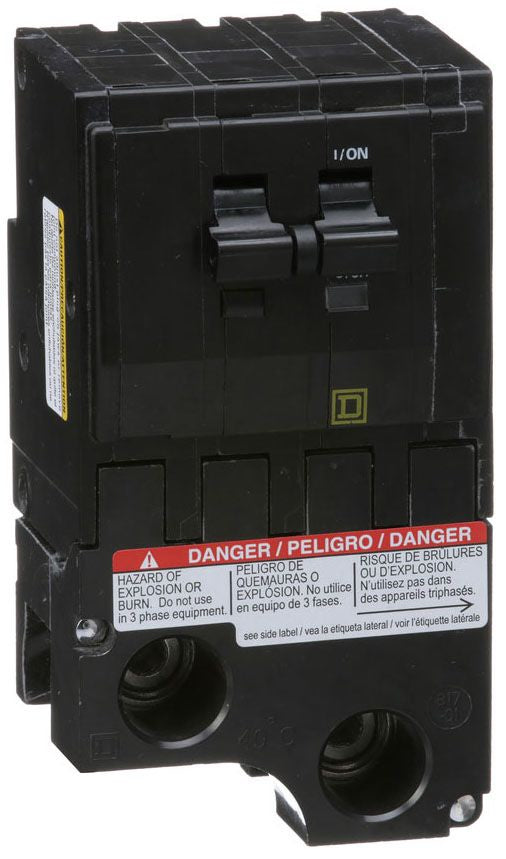

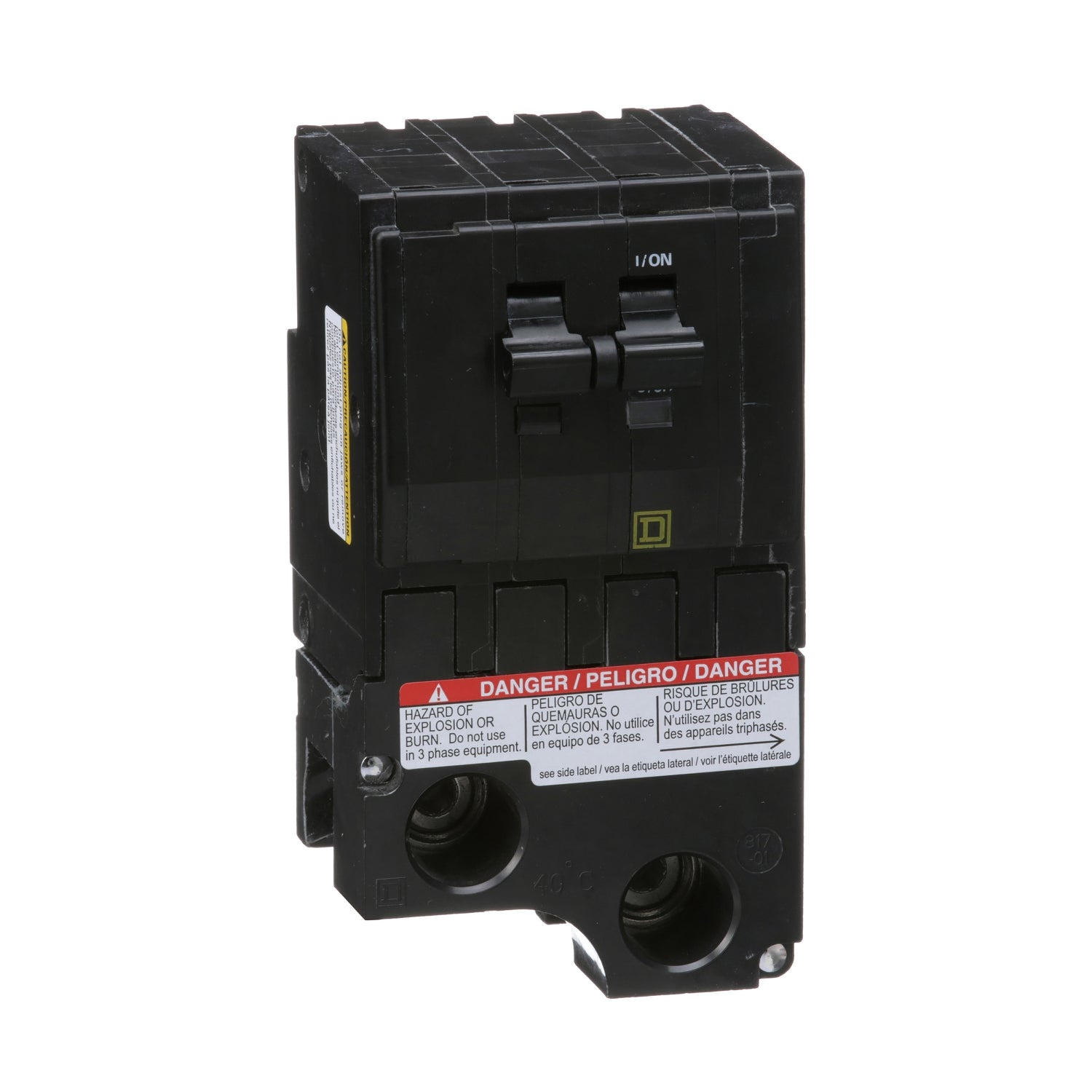

Square D QO2150VH Circuit Breaker 120/240V 150A 2P 22kA@120V Plug-In QO Series

Product Description:
The Square D QO2150VH is a Molded Case Circuit Breaker designed for reliable electrical protection. It is a 2-pole, 150 amp breaker rated for 120/240 Volt systems with an AIC rating of 22kA@120V. This model features Plug-In connections and Thermal Magnetic protection for enhanced safety and performance.

Key Features:
✔ Part Number: QO2150VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 150
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 300 MCM
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901463887
✔ GTIN: 00785901463887
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 5.72 in x 5.71 in
✔ Weight: 1.25
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: UL Listed
