Product Description:

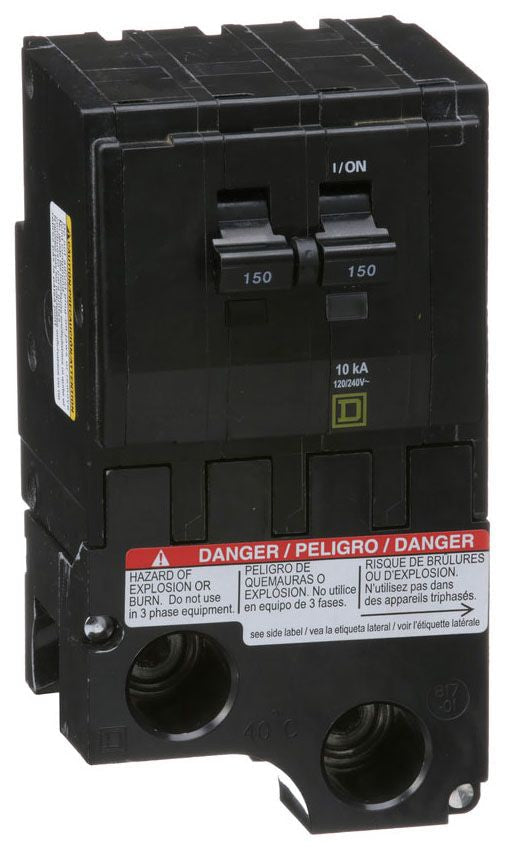

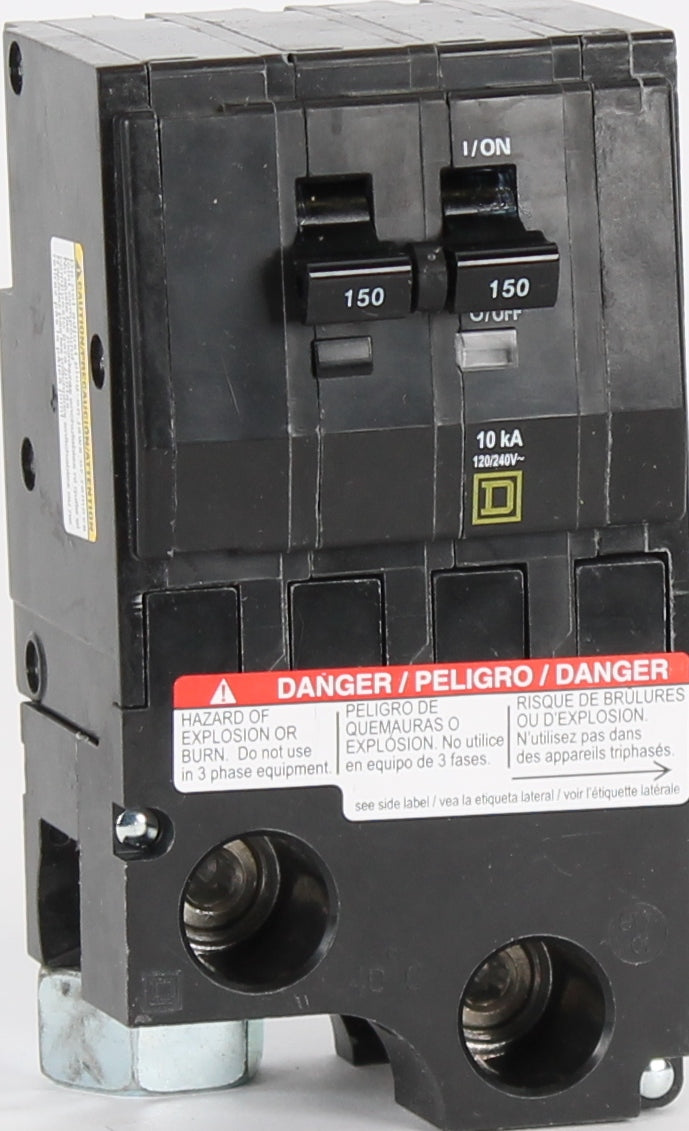

The Square D QO2150 is a 2-pole molded case circuit breaker with a 150A rating and 120/240VAC voltage. It features a plug-in connection, thermal magnetic protection, and a 10kA@240V AIC rating. Designed for QO Series load centers and NQ panelboards, it supports wire sizes from 4 AWG to 300 Kcmil. This breaker is CSA certified, HACR, and UL listed.
Key Features:
✔ Part Number: QO2150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240 VAC
✔ Amperage: 150A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 1/0 AWG, Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Temp Rating: Min. 104°
