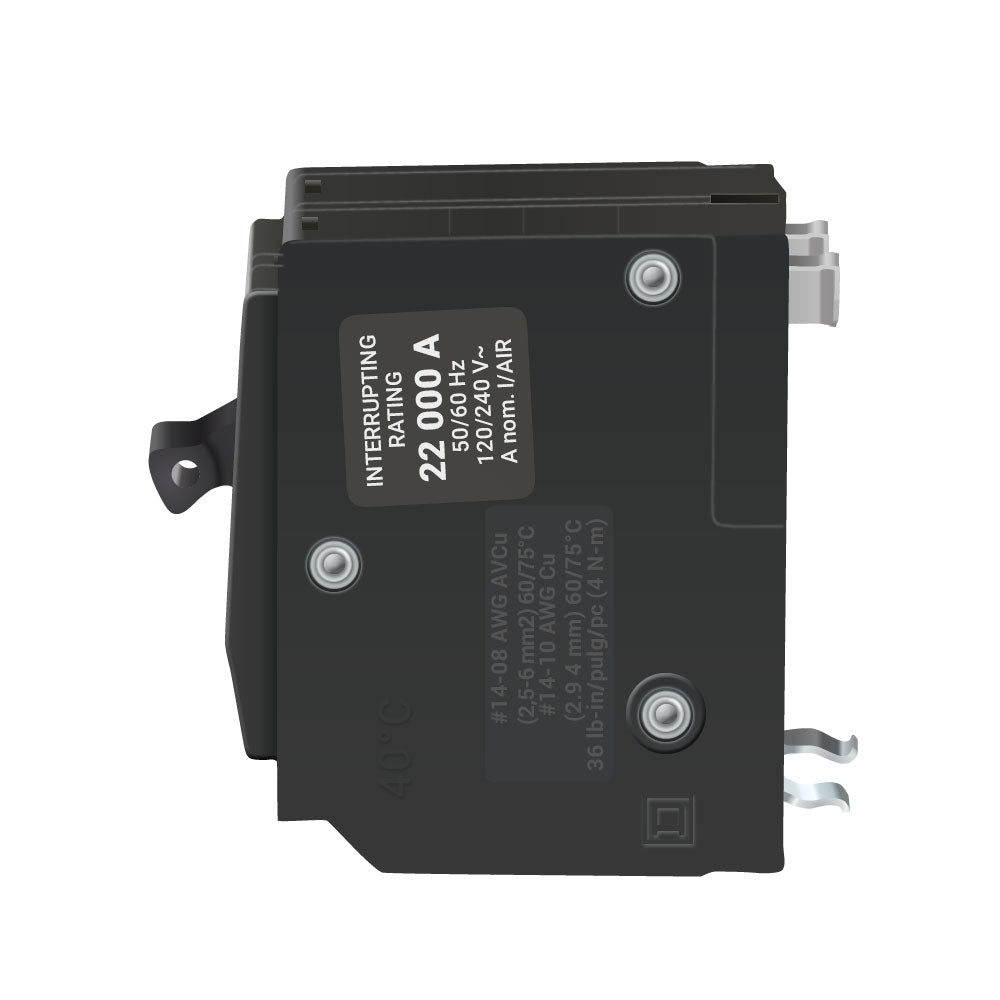

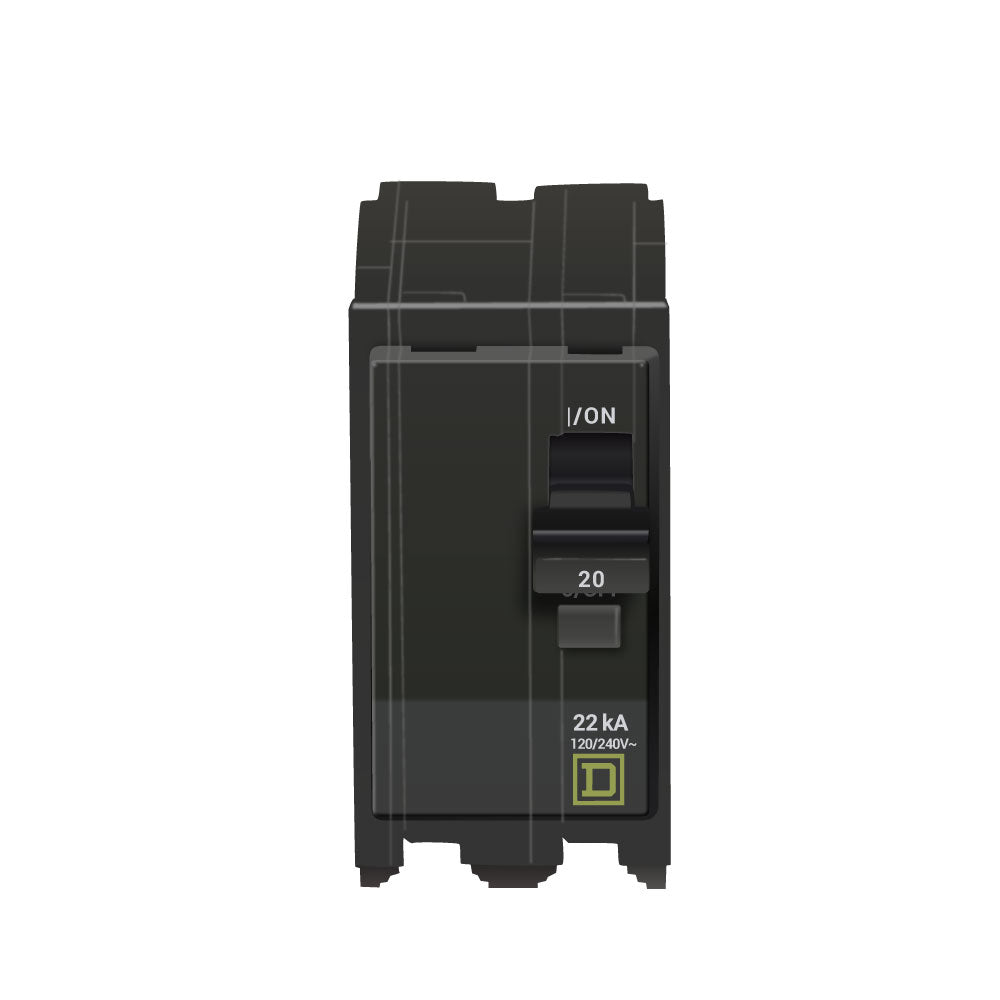

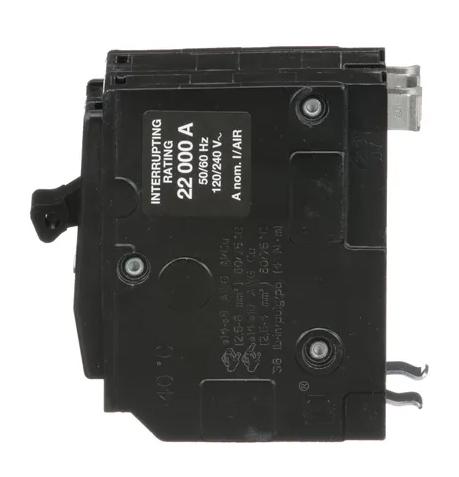

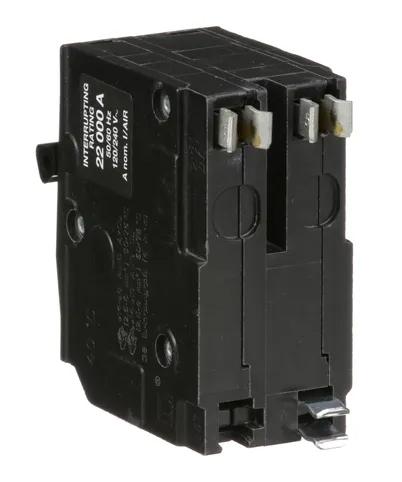

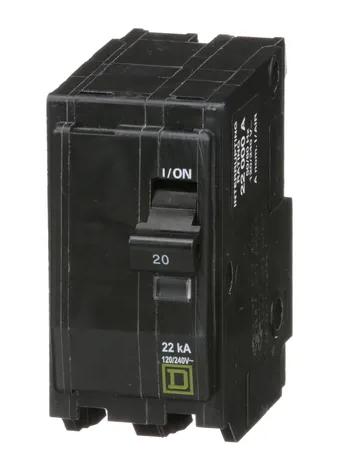

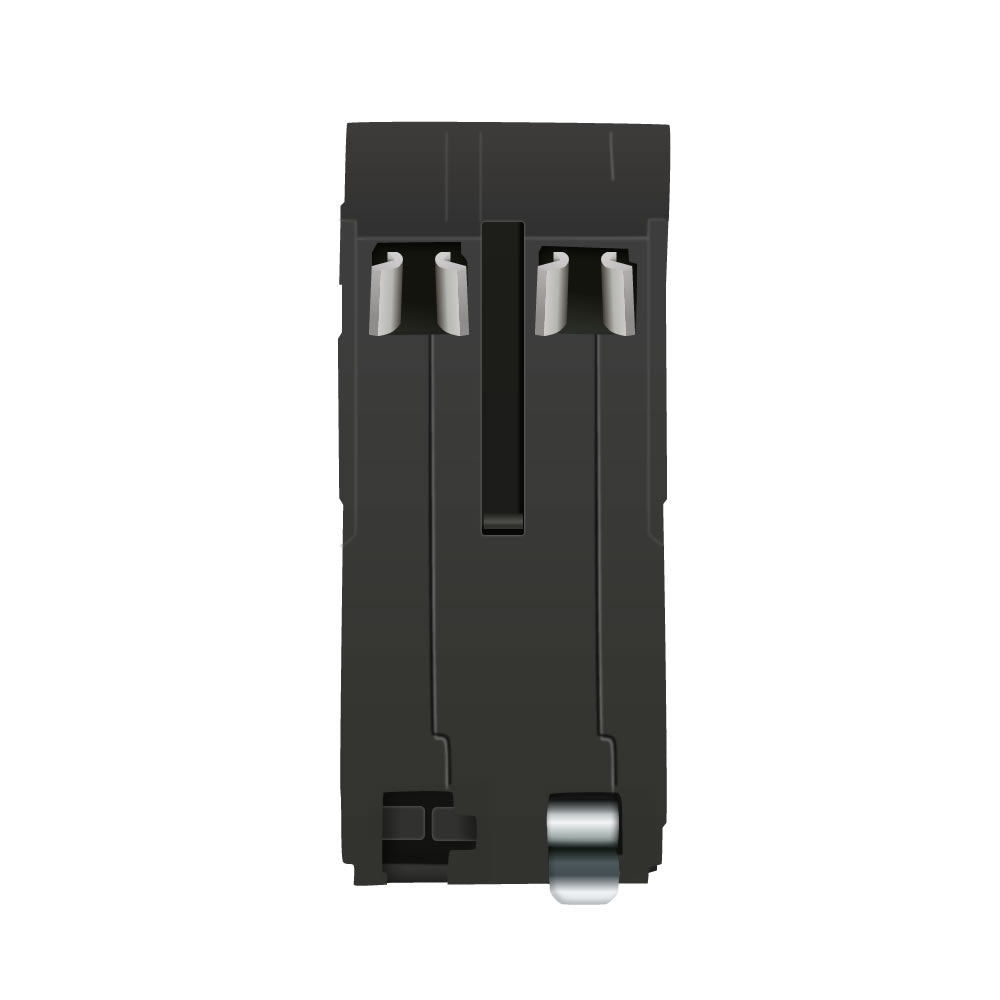

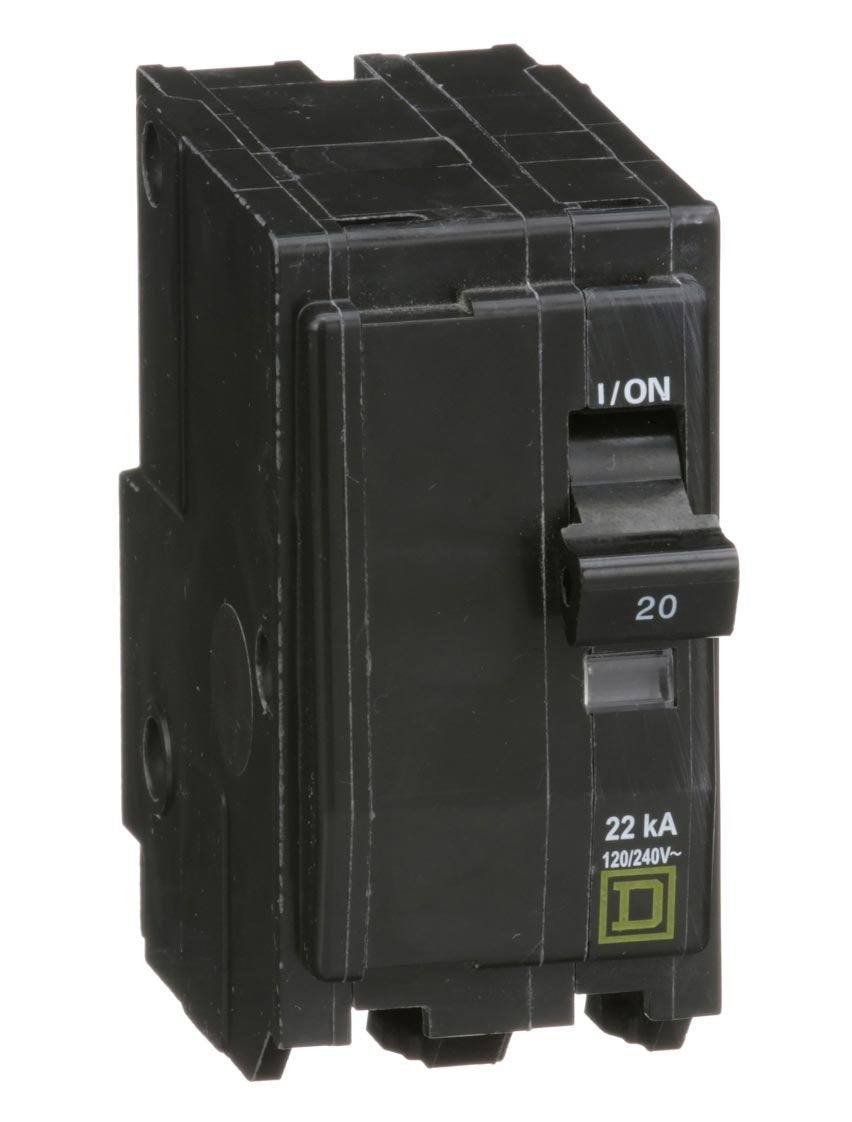

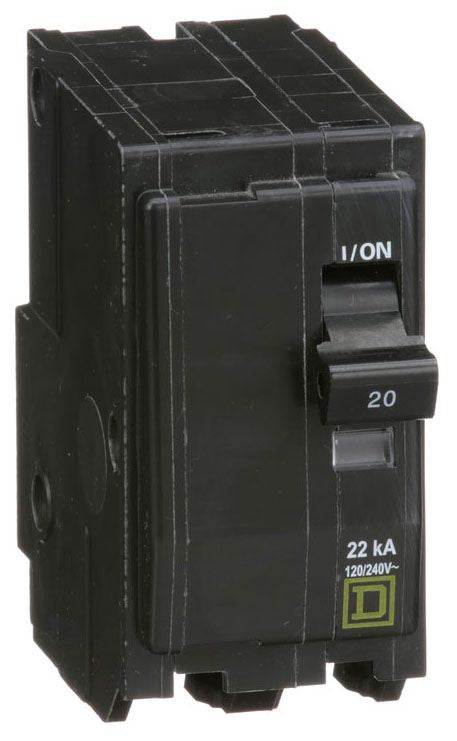

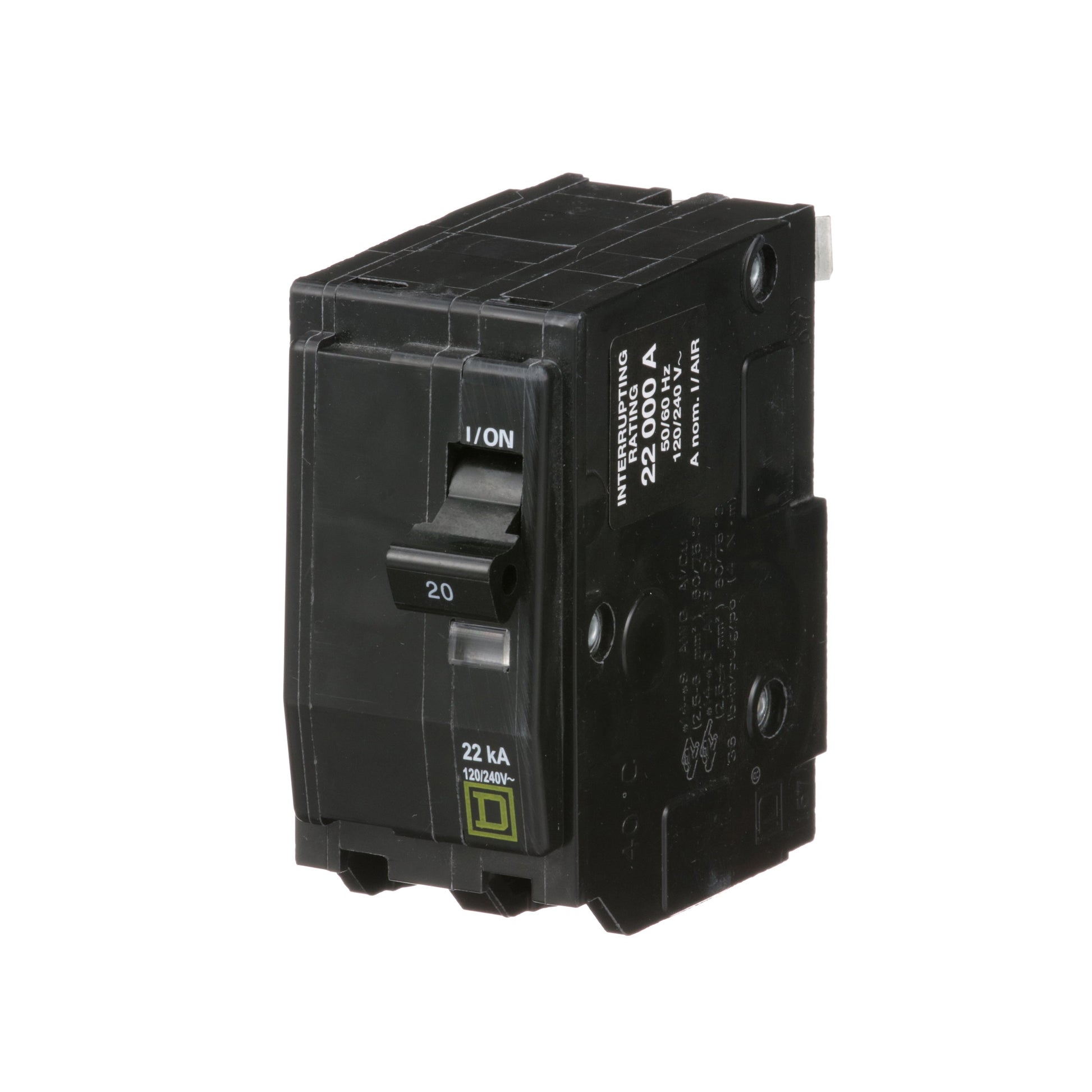

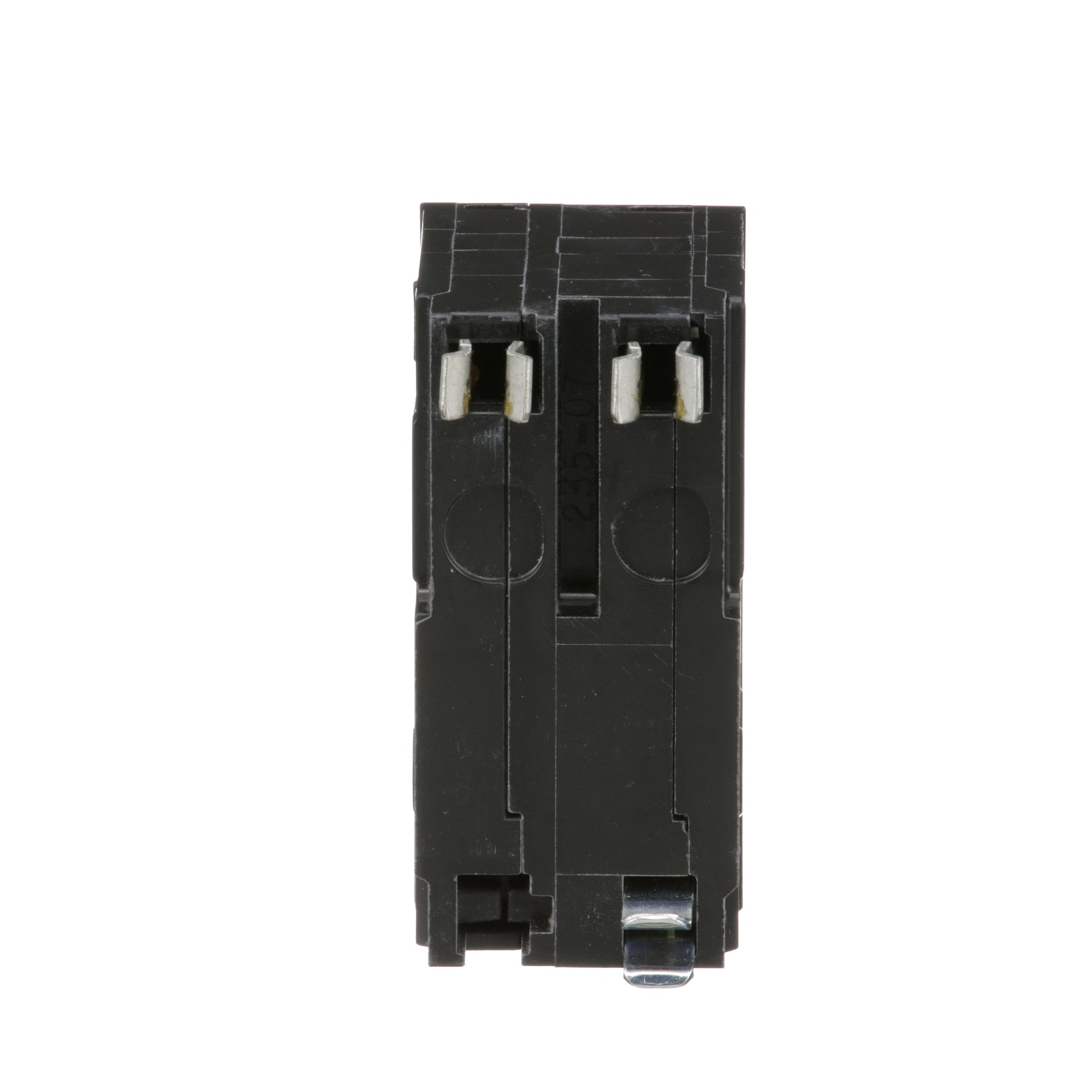

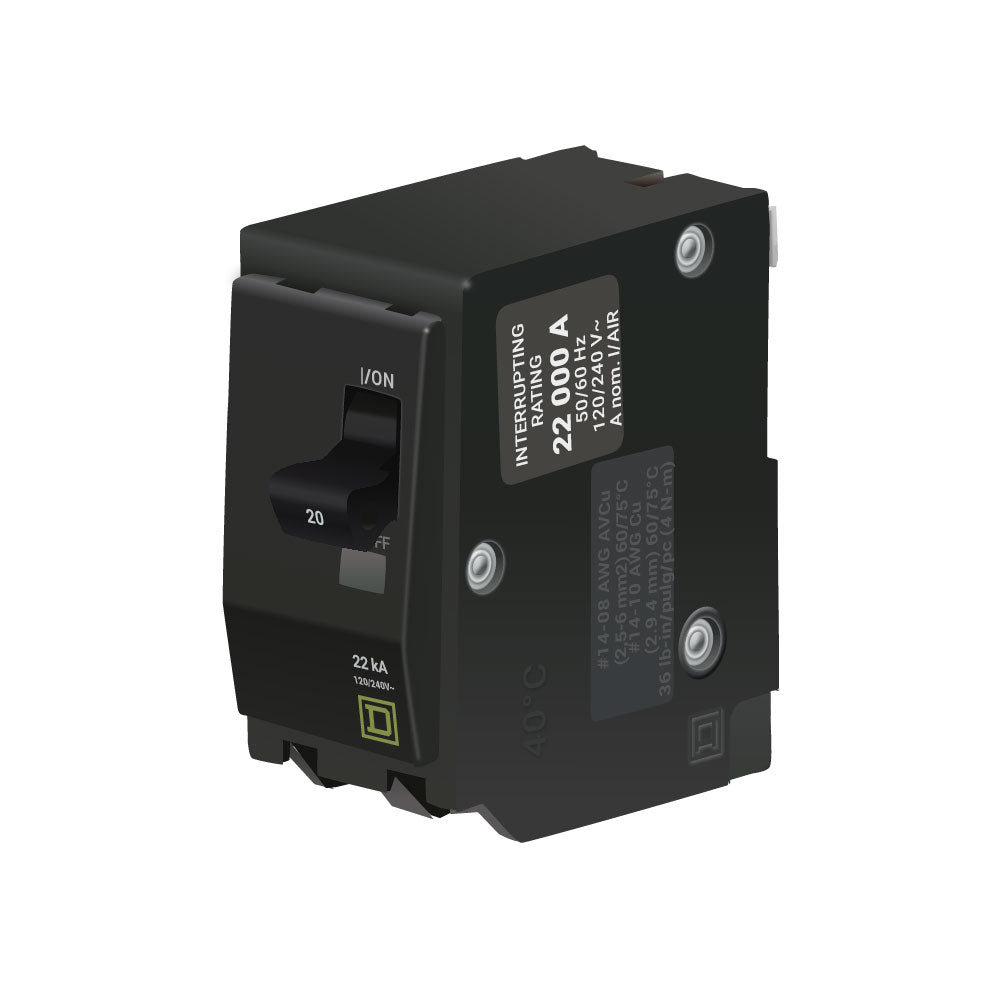

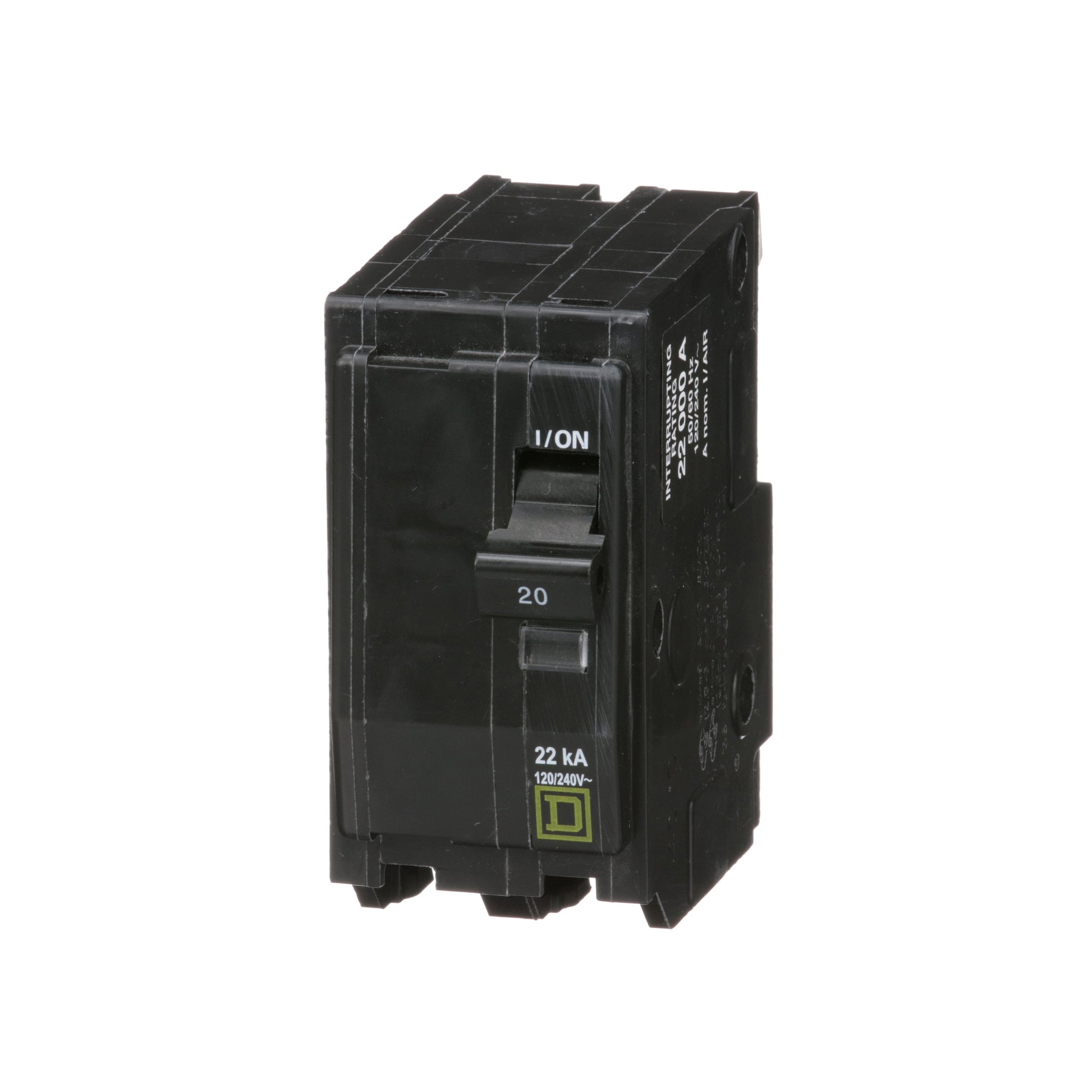

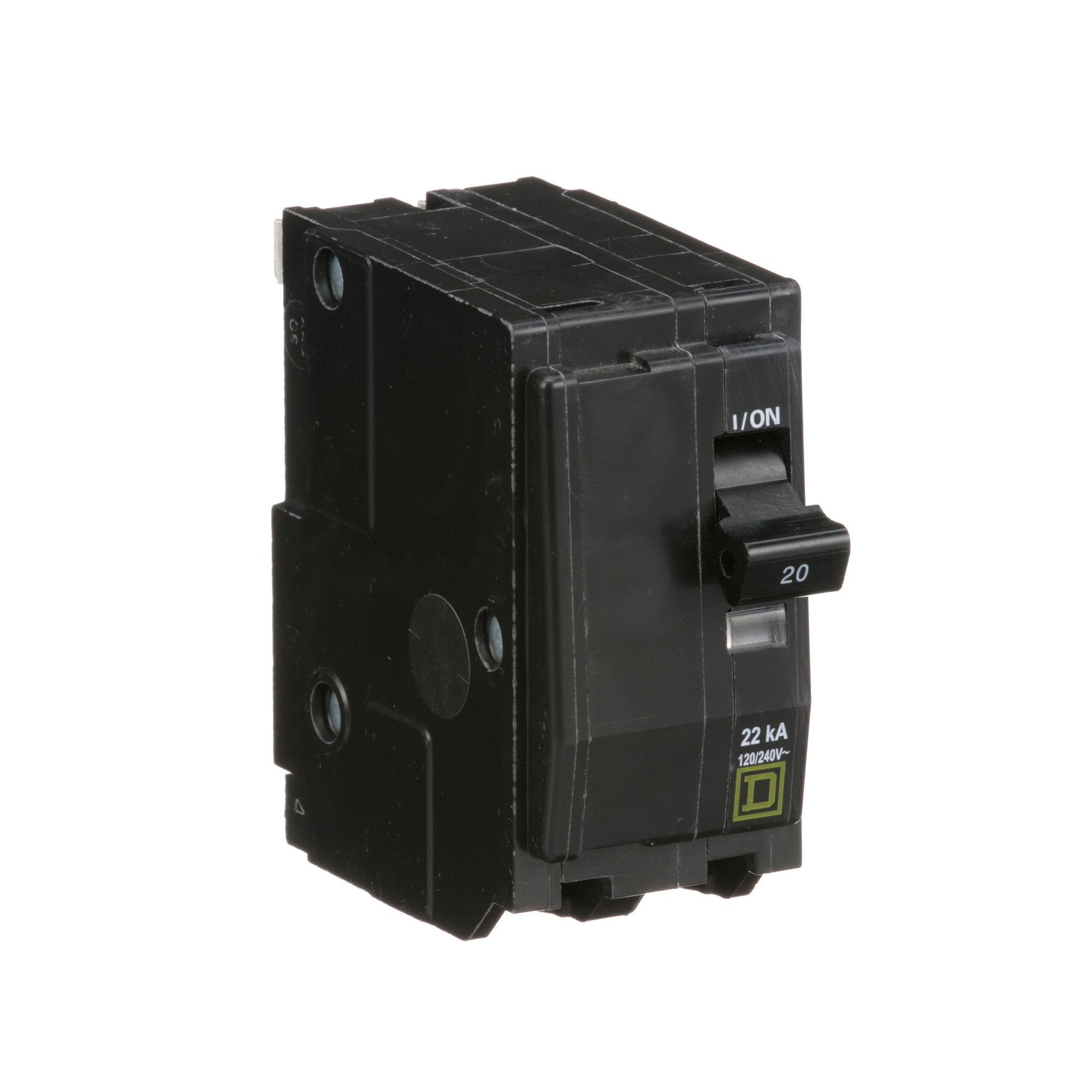

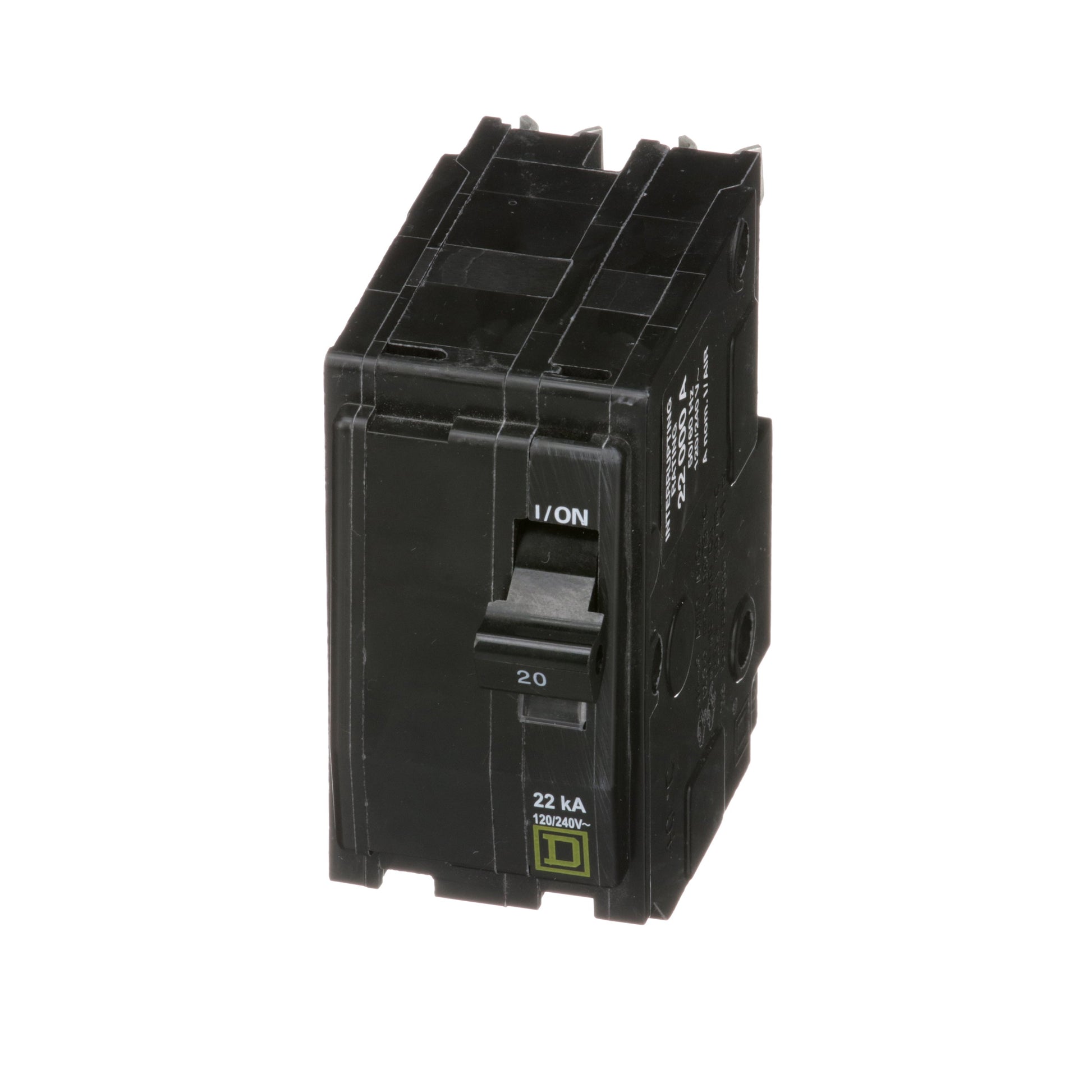

Square D QO220VH Circuit Breaker 120/240V 20A 2Pole 22kA@120V Plug-In QO Series

Product Description:
The Square D QO220VH is a 2-pole molded case circuit breaker designed for 120/240V applications with a 20-amp rating. It features thermal magnetic protection and a plug-in connection for easy installation. This high interrupting capacity breaker is suitable for use in QO load centers and NQ panelboards. It is CSA certified and UL listed for safety and compliance.

Key Features:
✔ Part Number: QO220VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901371823
✔ GTIN: 00785901371823
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3 in x 2.99 in
✔ Weight: 1
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: UL Listed
