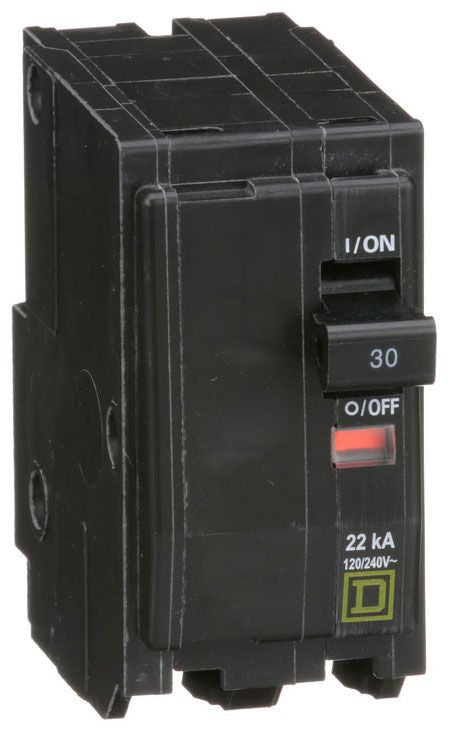

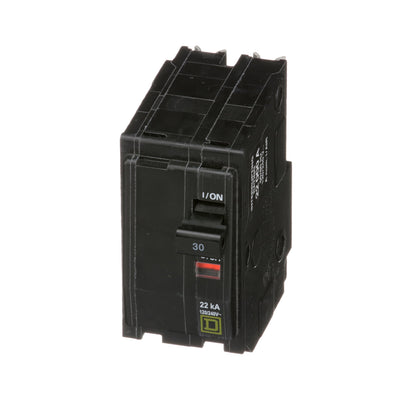

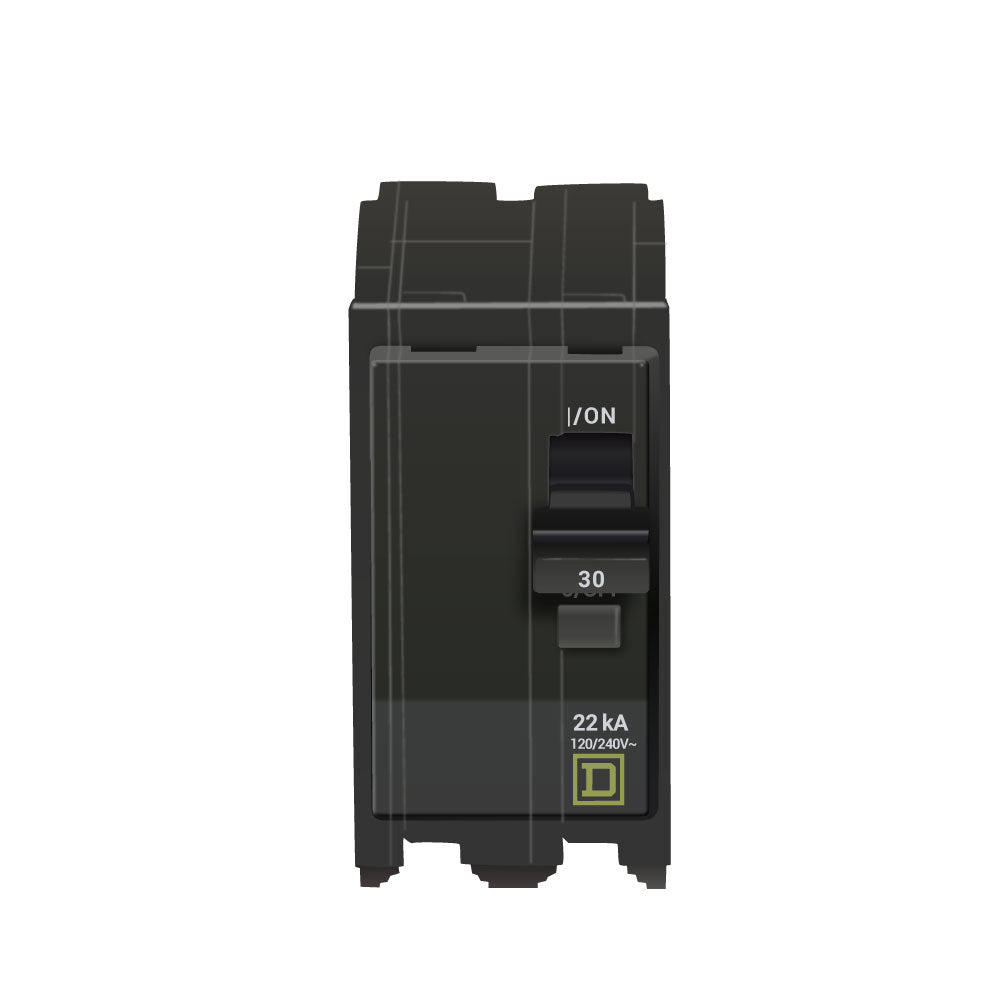

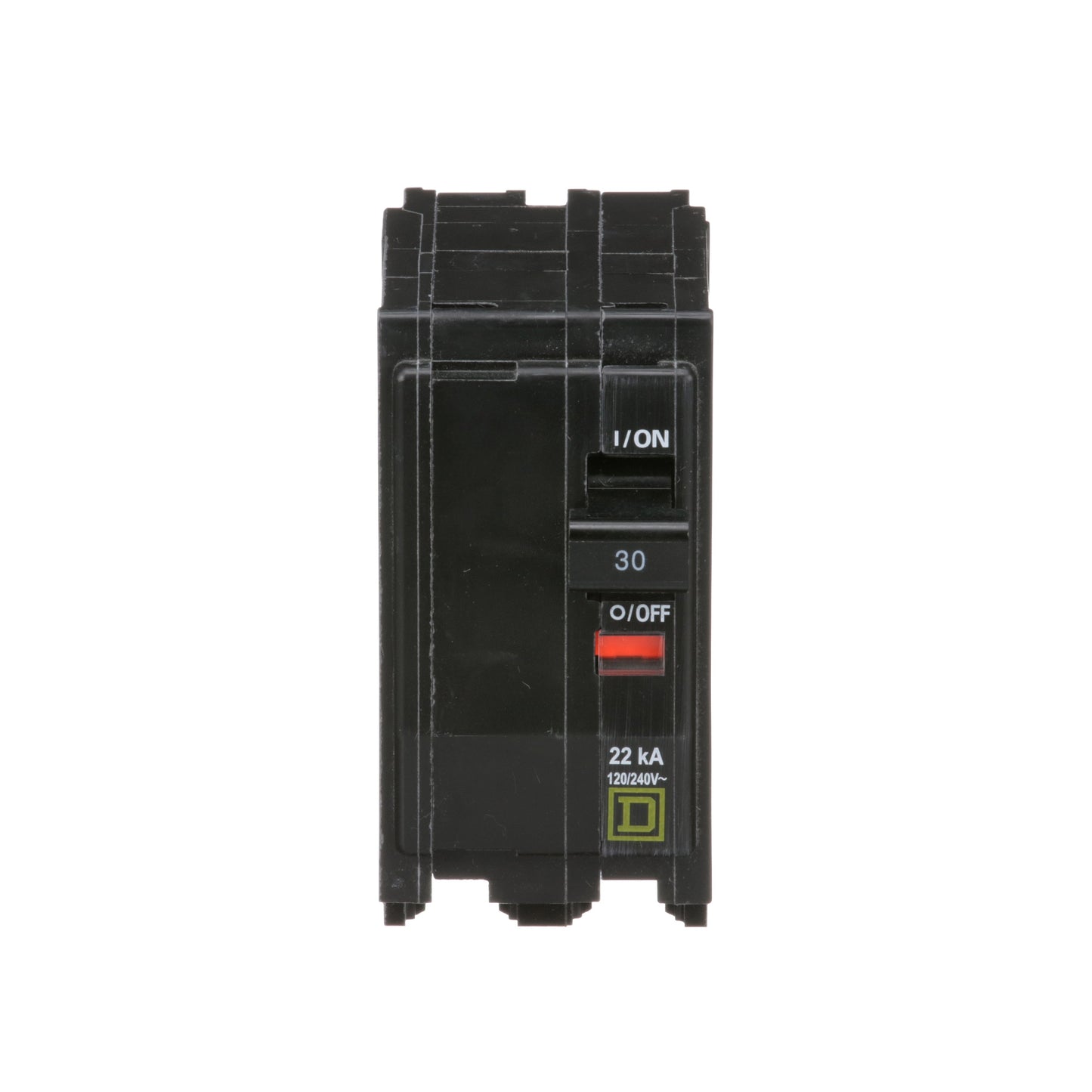

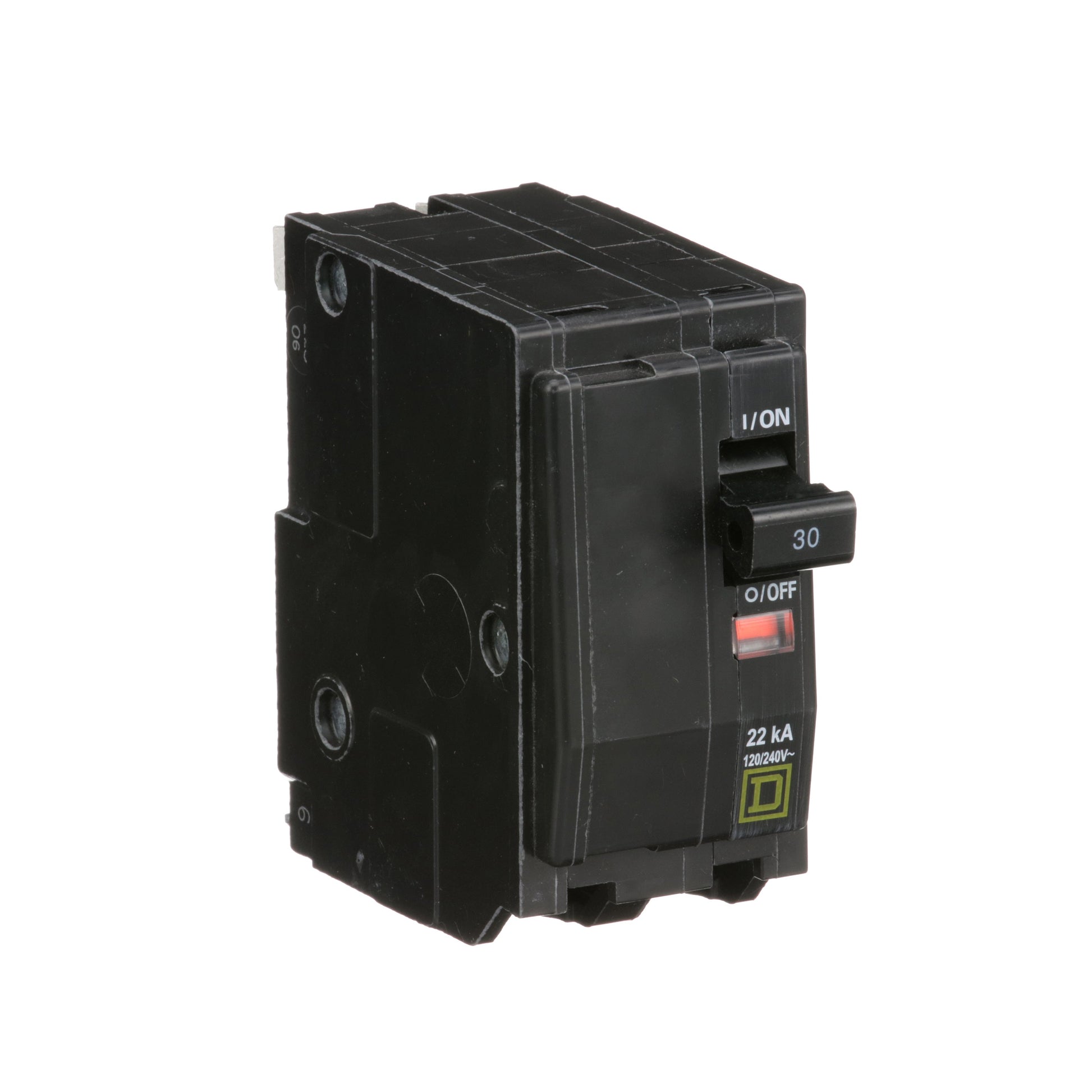

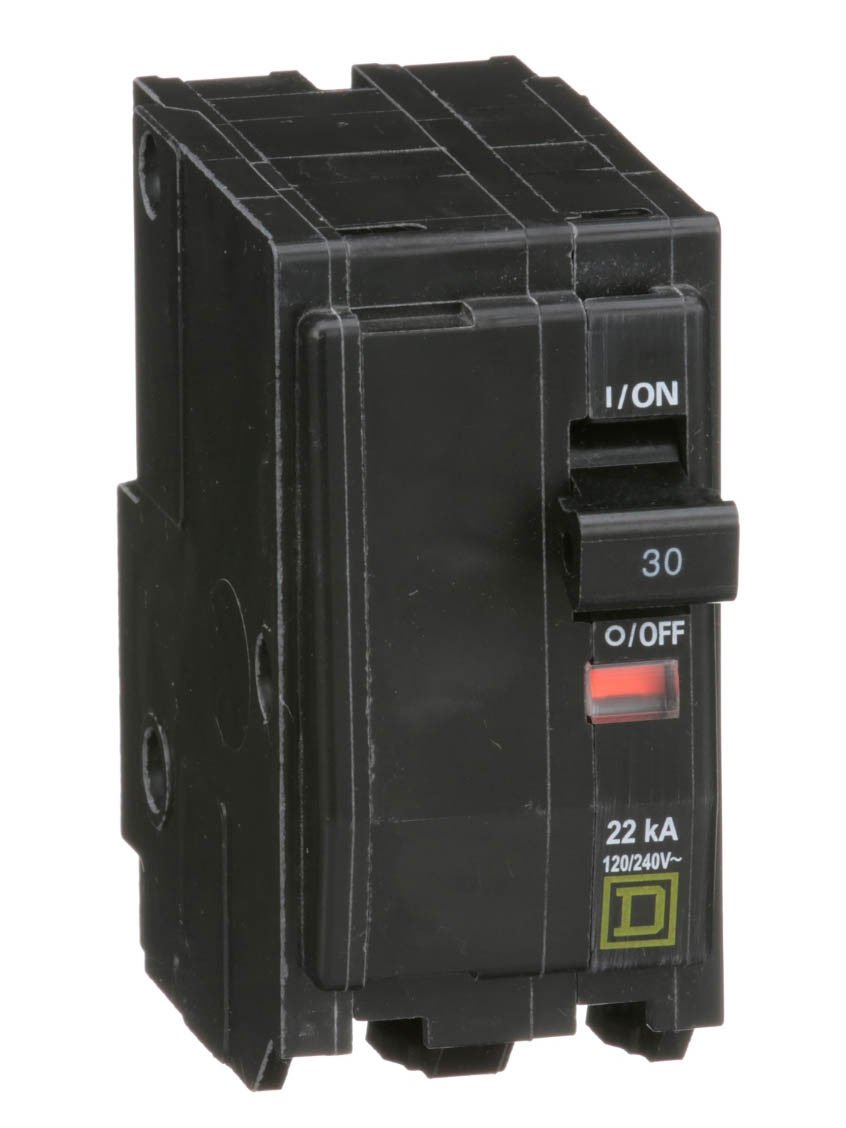

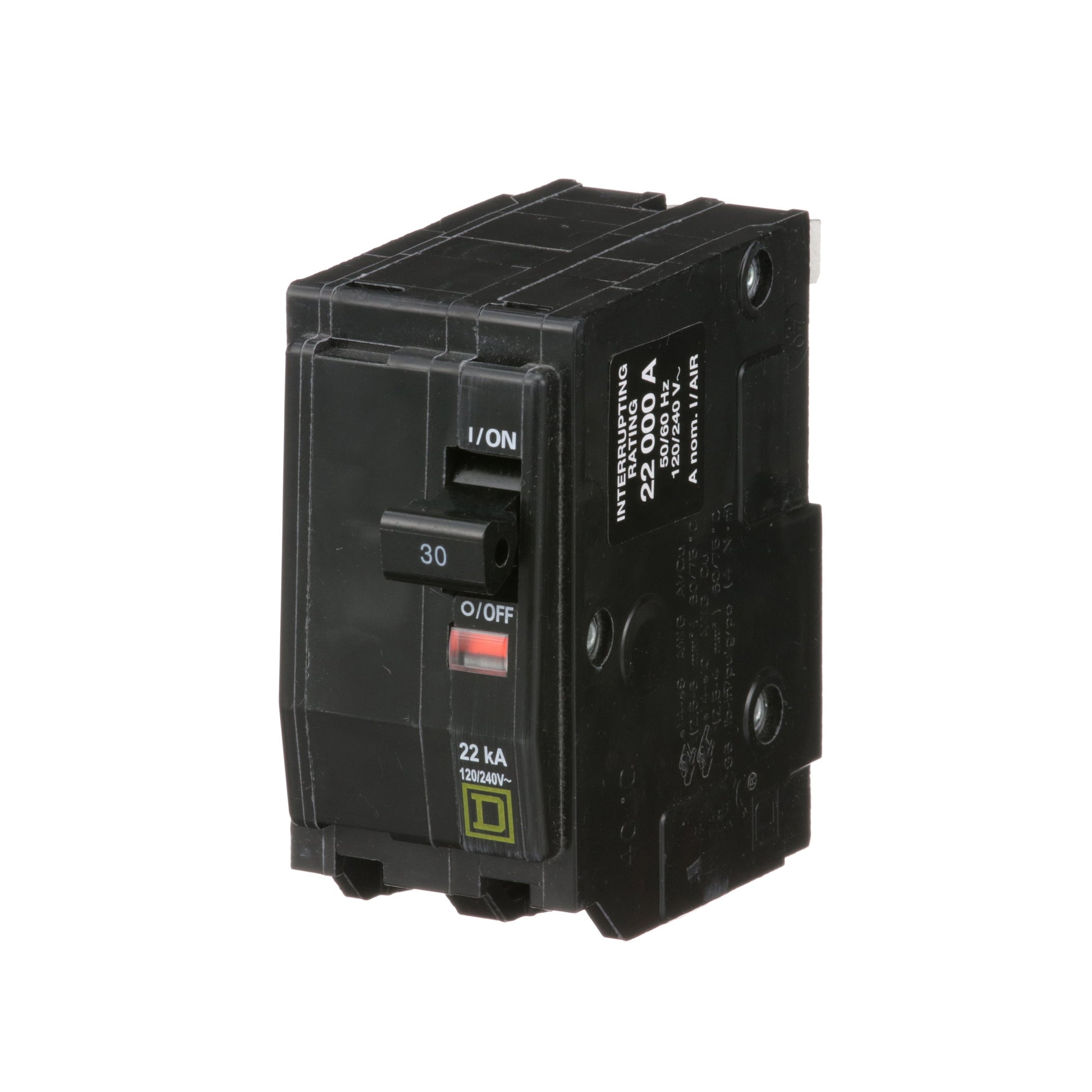

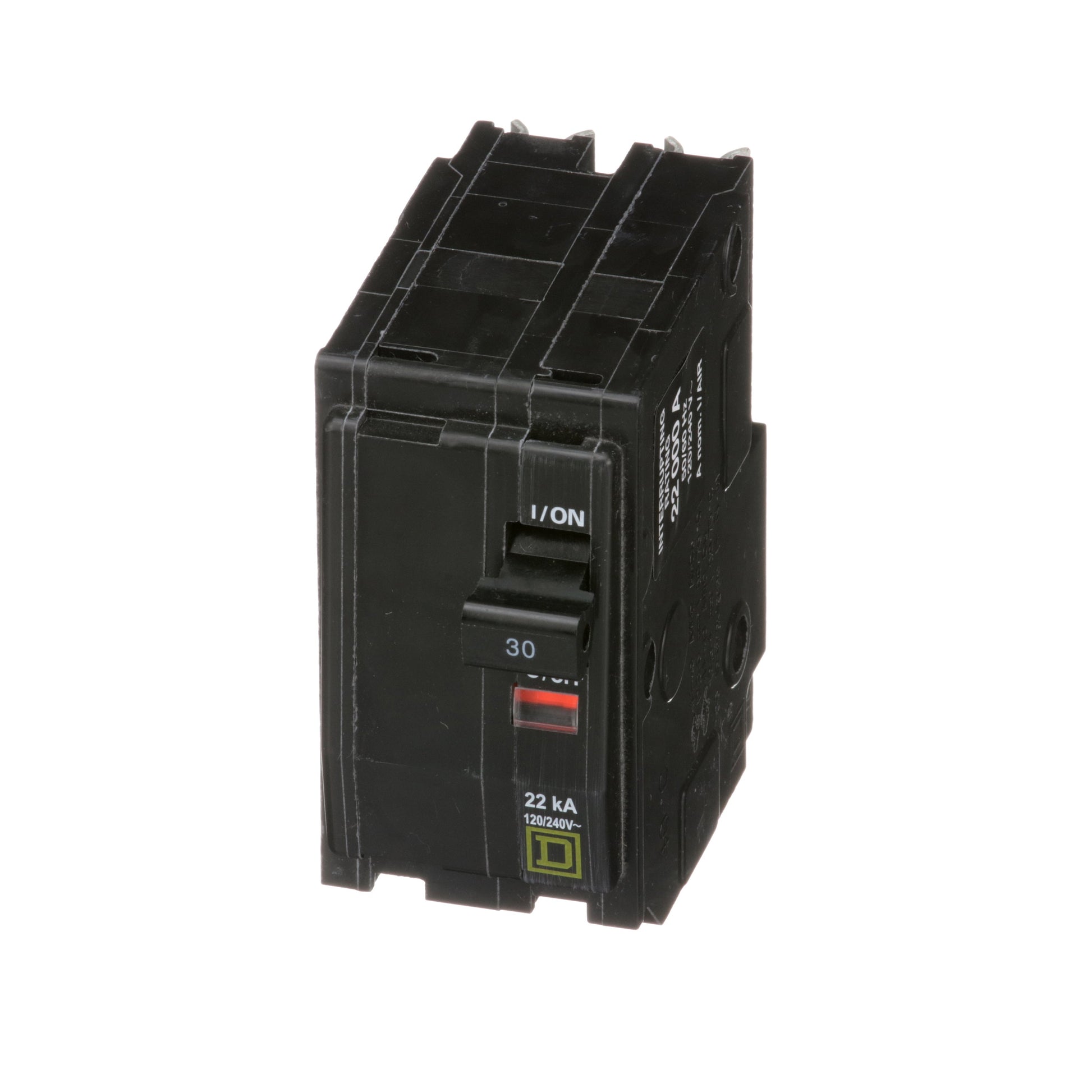

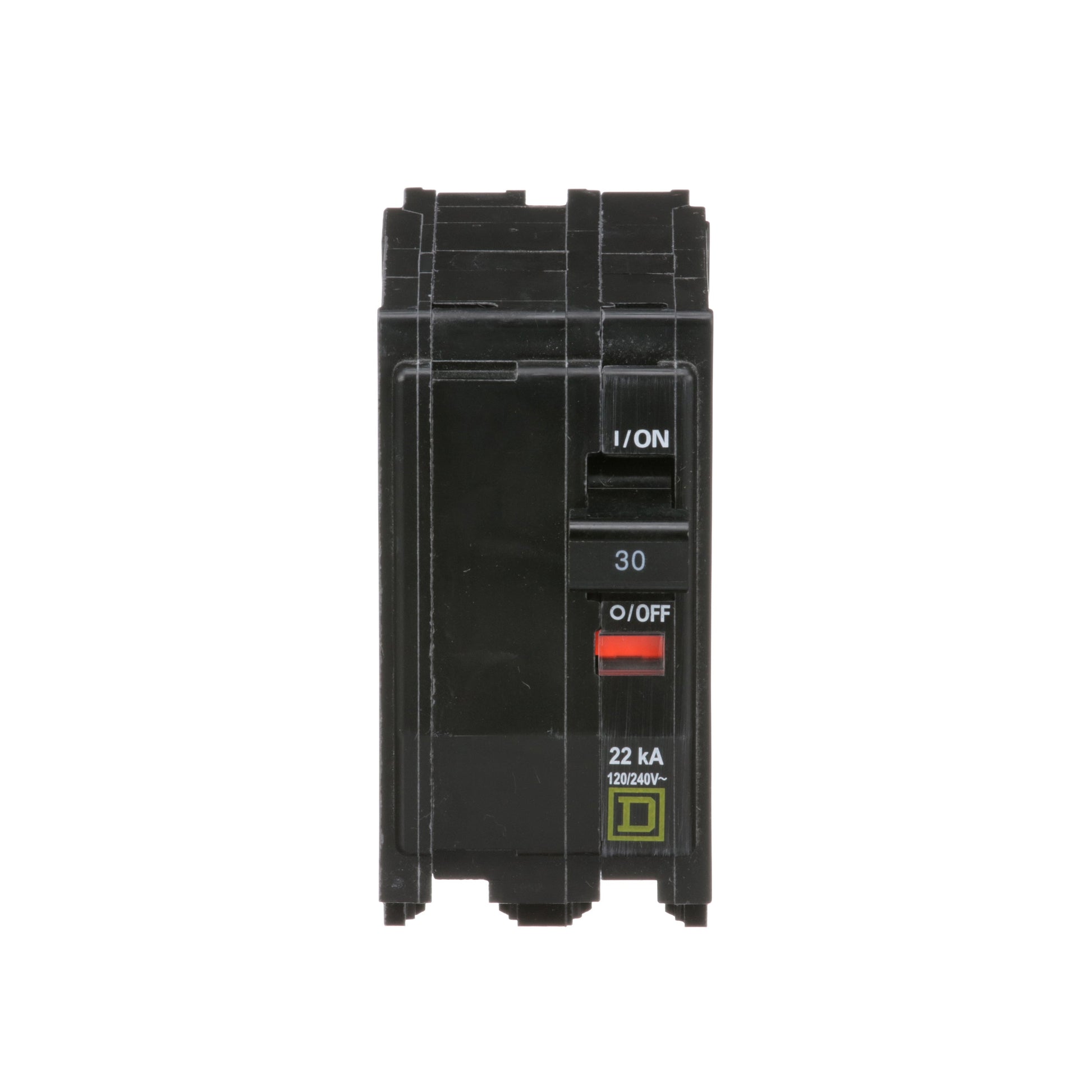

Square D QO230VH Circuit Breaker 120/240V 30A 2P 22kA@120V Plug-In QO Series

Product Description:
The Square D QO230VH is a 2-pole molded case circuit breaker designed for 120/240V electrical systems. It offers a 30 amp rating and features thermal magnetic protection for reliable performance. This plug-in breaker is compatible with QO load centers and NQ panelboards. It meets UL and CSA standards for safety and quality.

Key Features:
✔ Part Number: QO230VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901371847
✔ GTIN: 00785901371847
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3 in x 2.99 in
✔ Weight: 0.58
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: AWG 14 to AWG 8 Copper/Aluminum
