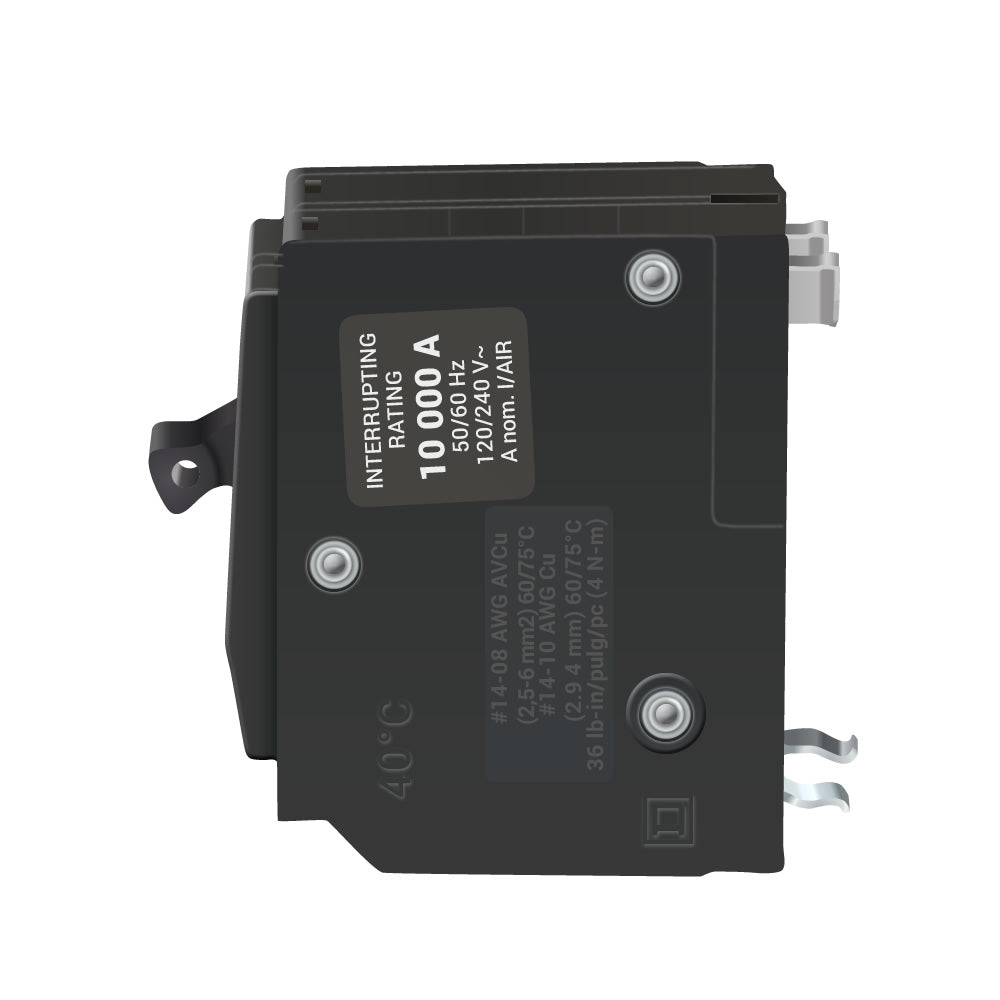

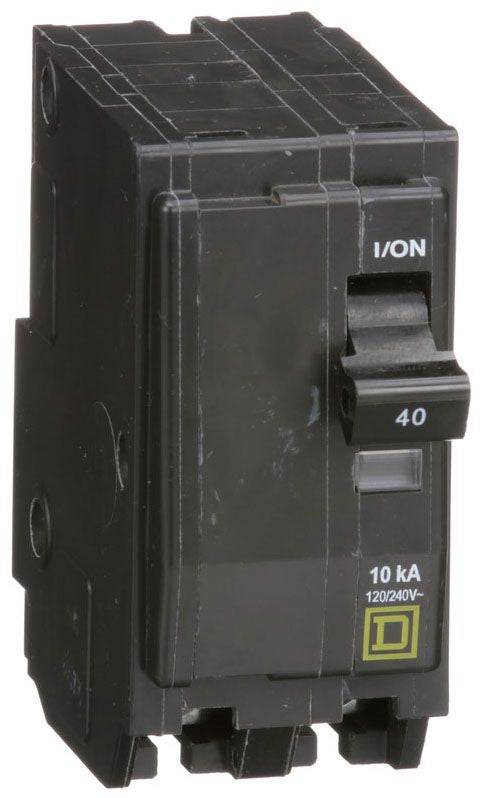

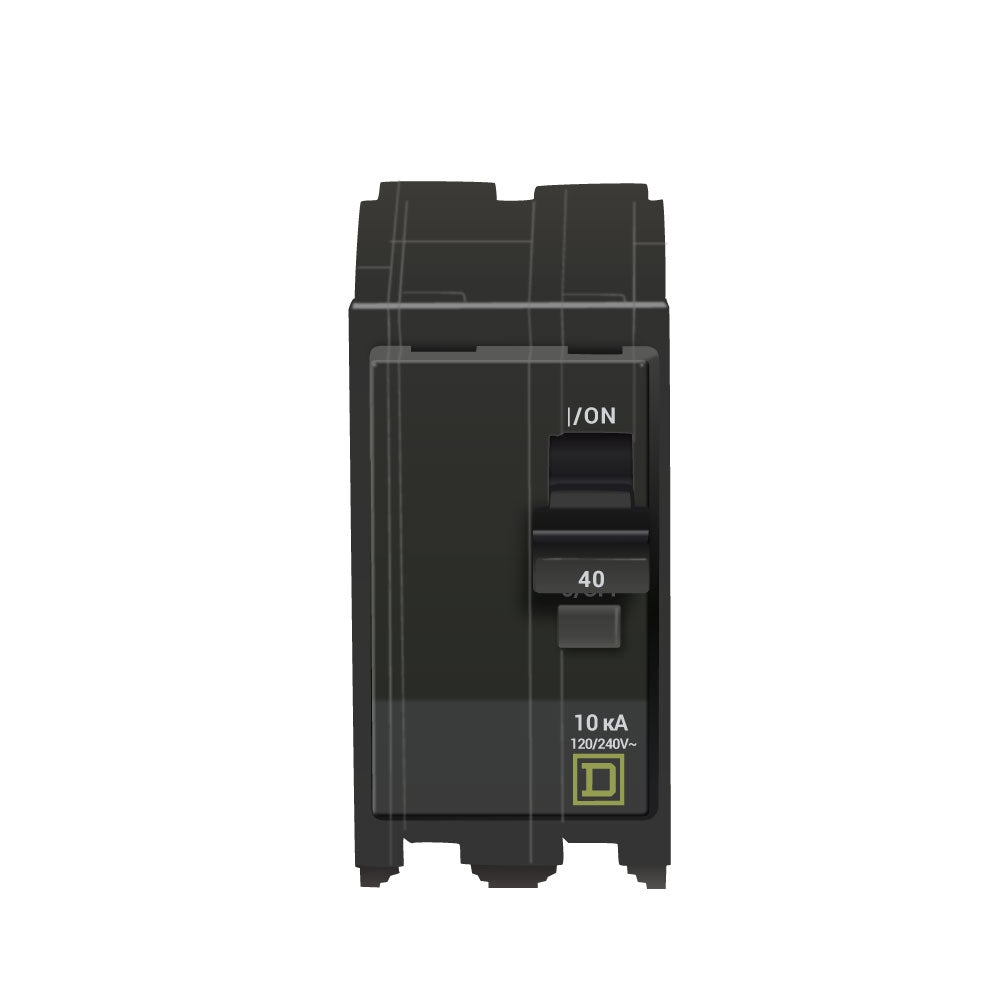

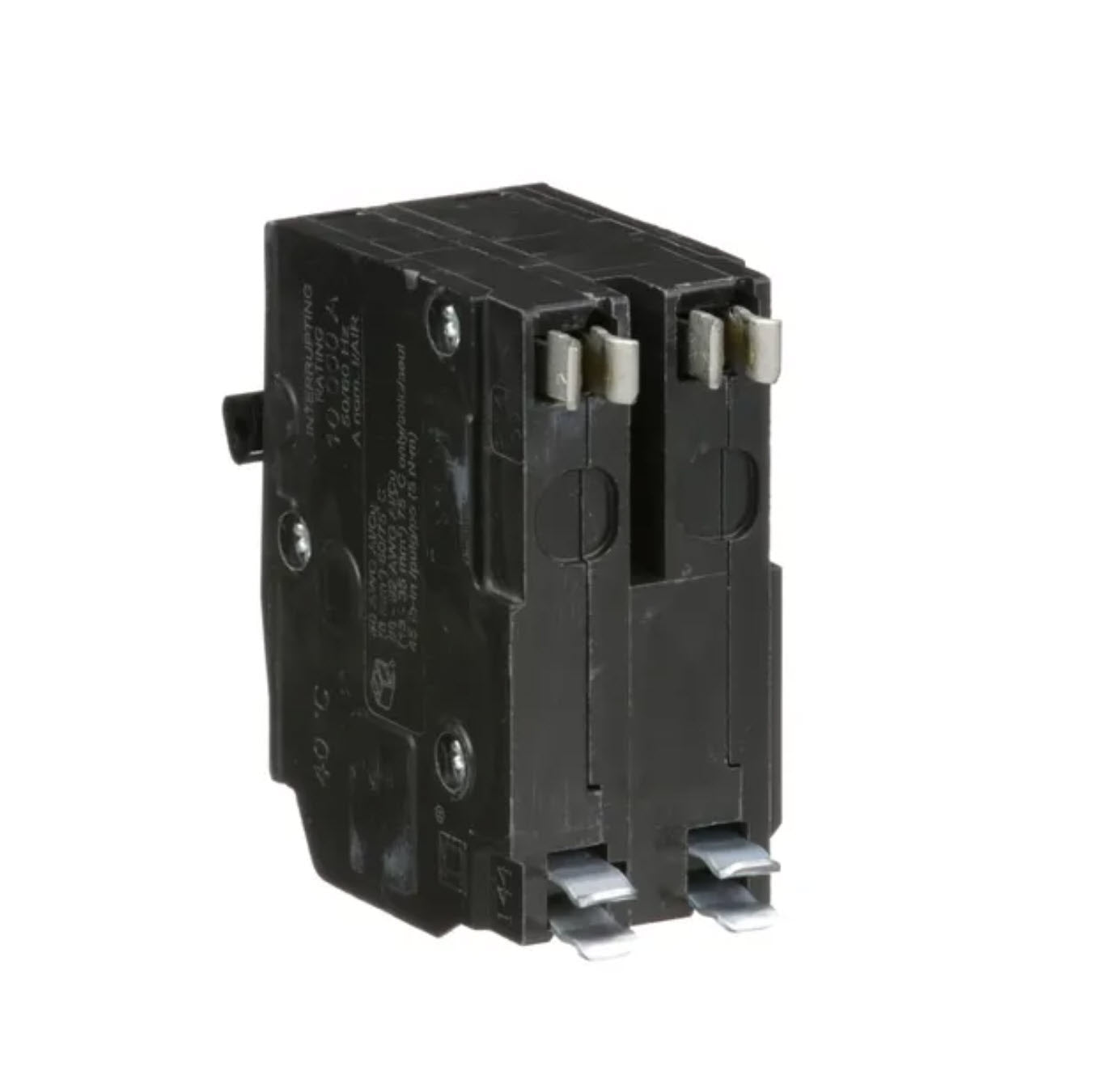

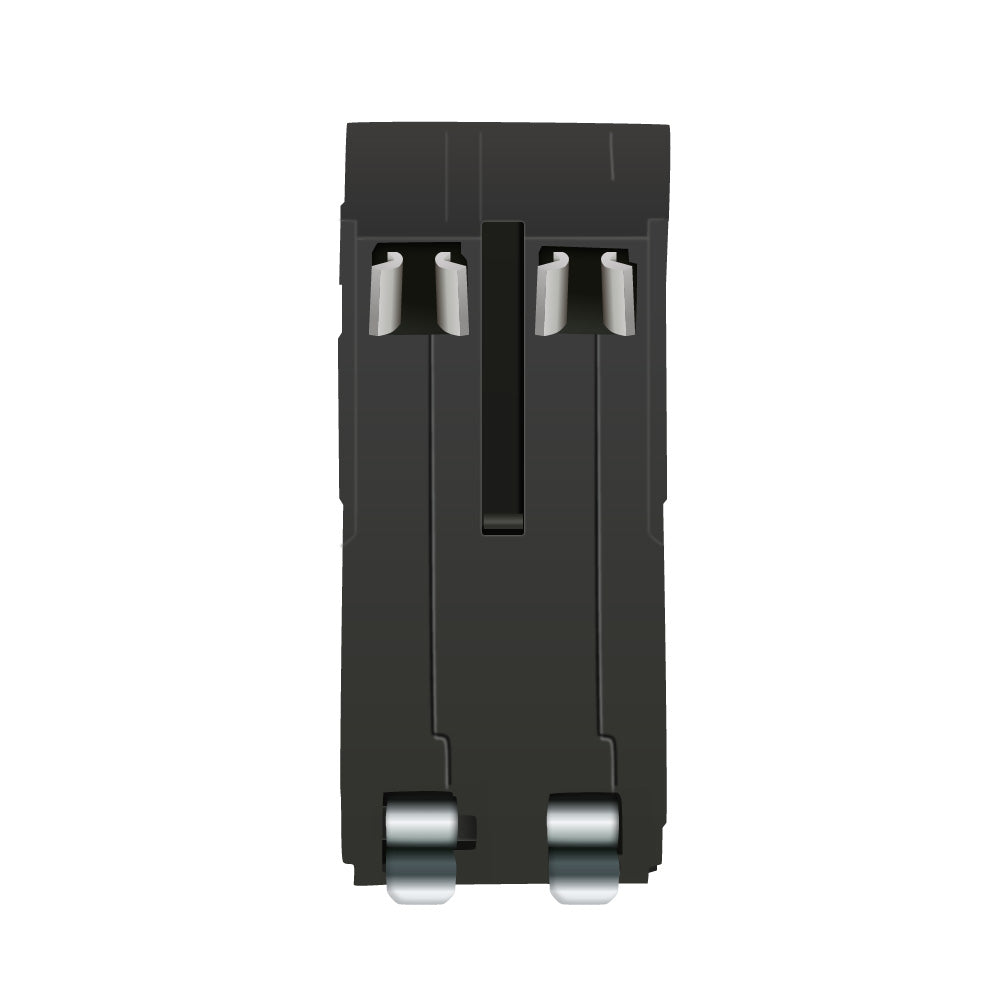

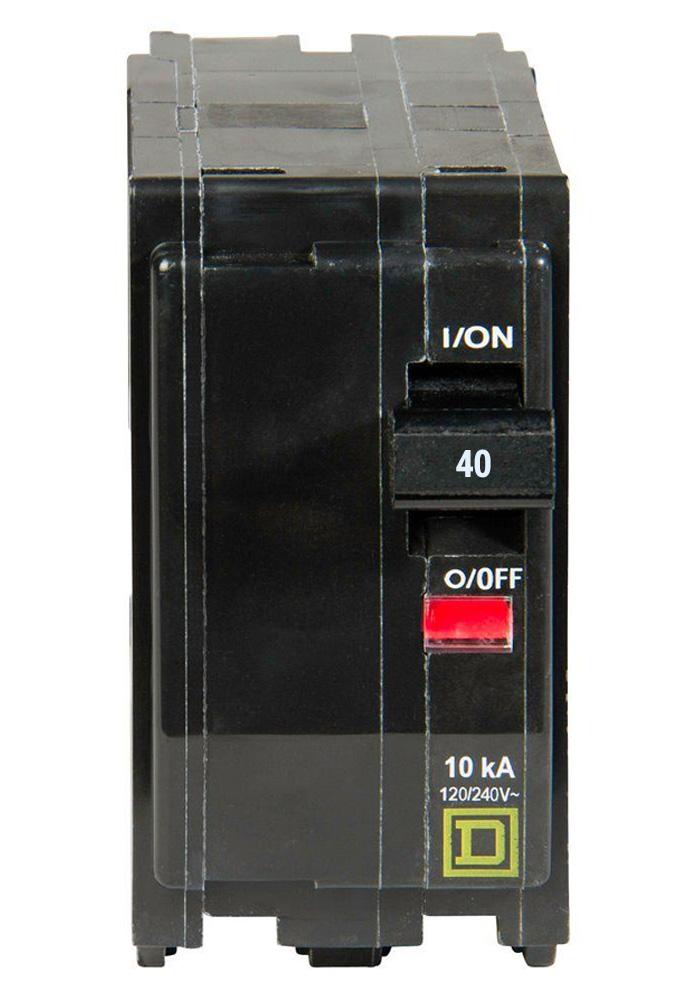

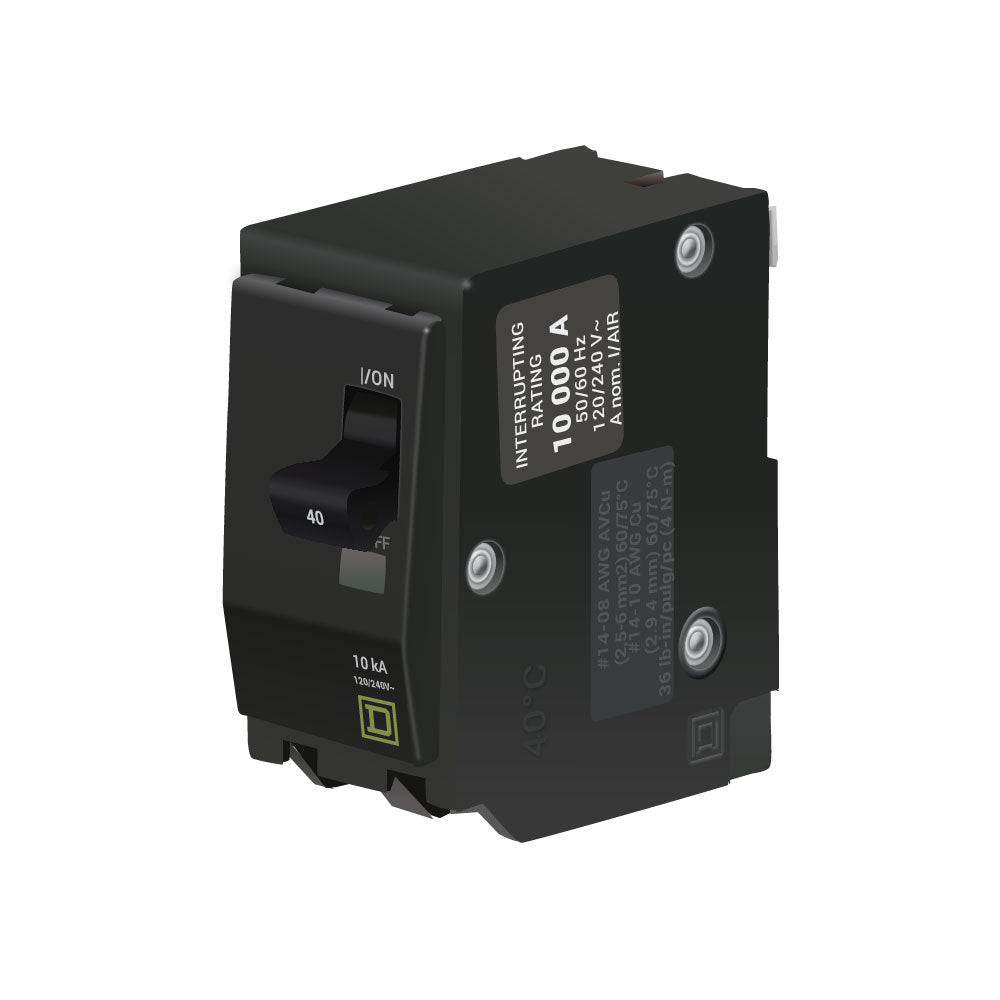

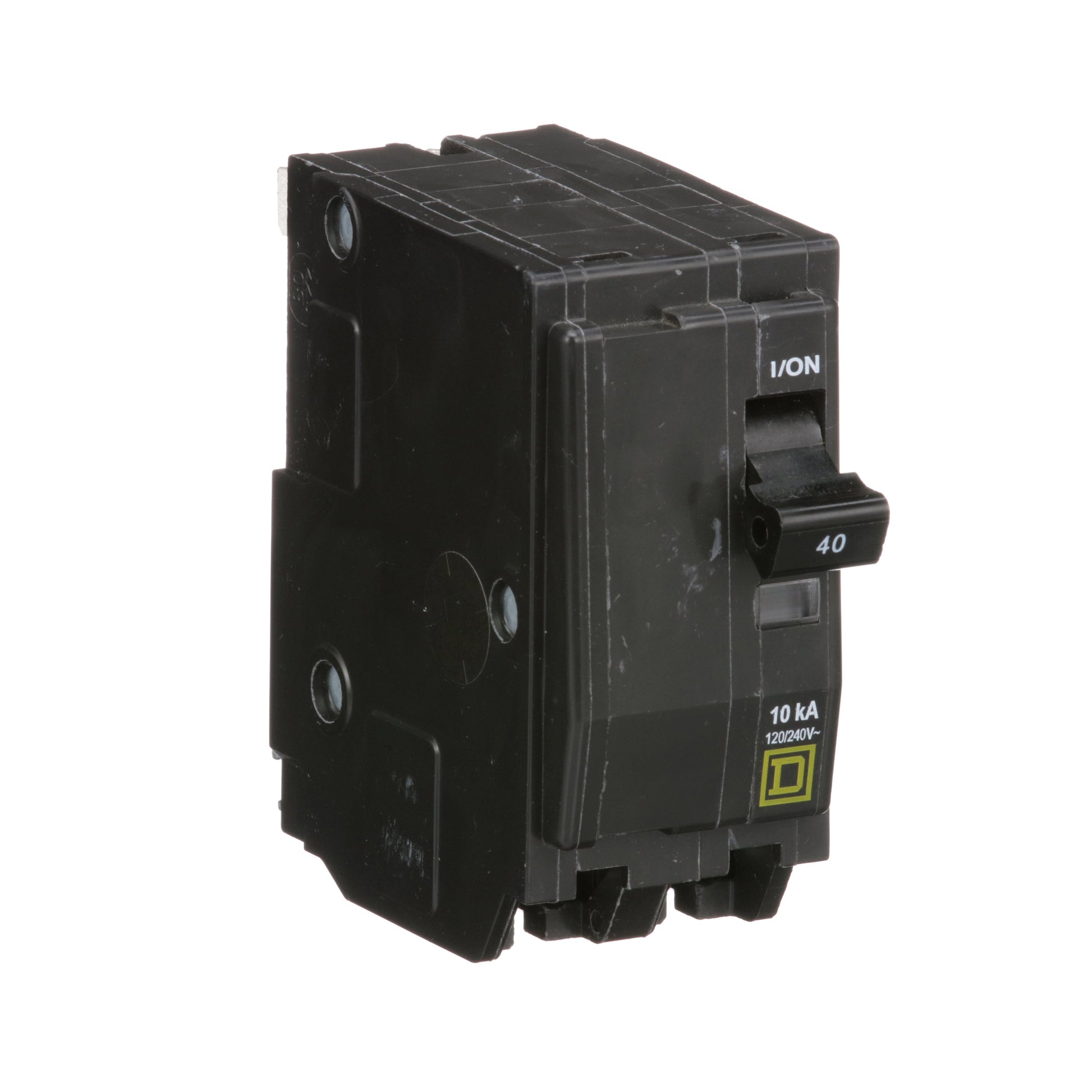

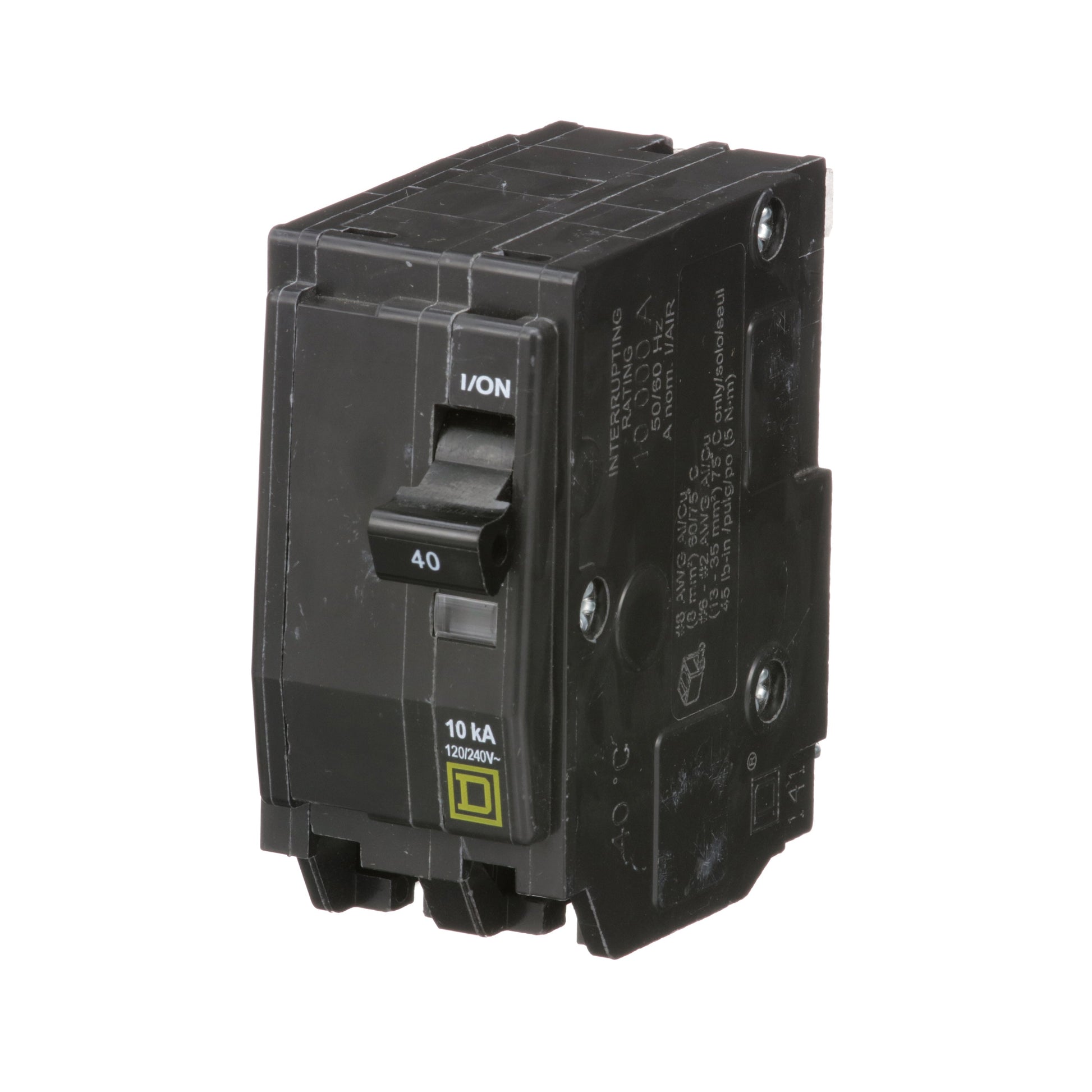

Square D QO240 Circuit Breaker | 120/240V 40A 2P 10kA@240V QO Series
Square D QO240 Circuit Breaker | 120/240V 40A 2P 10kA@240V QO Series
Price:
Sale
Sold out
Regular price
$22.72 USD
Regular price
$67.00 USD
Sale price
$22.72 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Square D QO240 is a molded case circuit breaker from the QO Series family. It is a 2-pole, 40 amp breaker rated for 120/240 volts with a 10kA interrupting capacity at 240V. This plug-in breaker provides thermal magnetic protection and is designed for use in QO load centers and NQ panelboards.
Key Features:
✔ Part Number: QO240
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 40
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Protection: Thermal Magnetic
✔ Frame Size: 100A/QO
✔ Wire Size: 8 To 2 Awg (Aluminum/Copper)
✔ Certification: HACR, UL Listed
✔ Standards: CSA Certified, HACR, UL Listed
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ UPC: 785901400486
✔ GTIN: 78590140048600
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.12 in x 3.11 in
✔ Weight: 0.55 lb
The Square D QO240 is a molded case circuit breaker from the QO Series family. It is a 2-pole, 40 amp breaker rated for 120/240 volts with a 10kA interrupting capacity at 240V. This plug-in breaker provides thermal magnetic protection and is designed for use in QO load centers and NQ panelboards.
Key Features:
✔ Part Number: QO240
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 40
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Protection: Thermal Magnetic
✔ Frame Size: 100A/QO
✔ Wire Size: 8 To 2 Awg (Aluminum/Copper)
✔ Certification: HACR, UL Listed
✔ Standards: CSA Certified, HACR, UL Listed
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ UPC: 785901400486
✔ GTIN: 78590140048600
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.12 in x 3.11 in
✔ Weight: 0.55 lb
