Product Description:

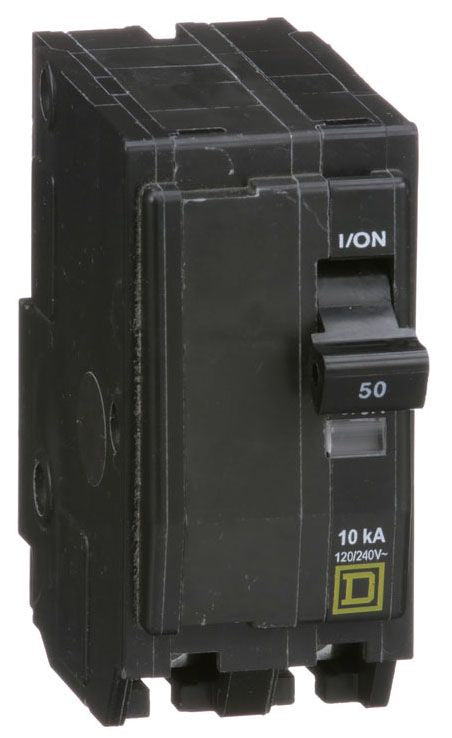

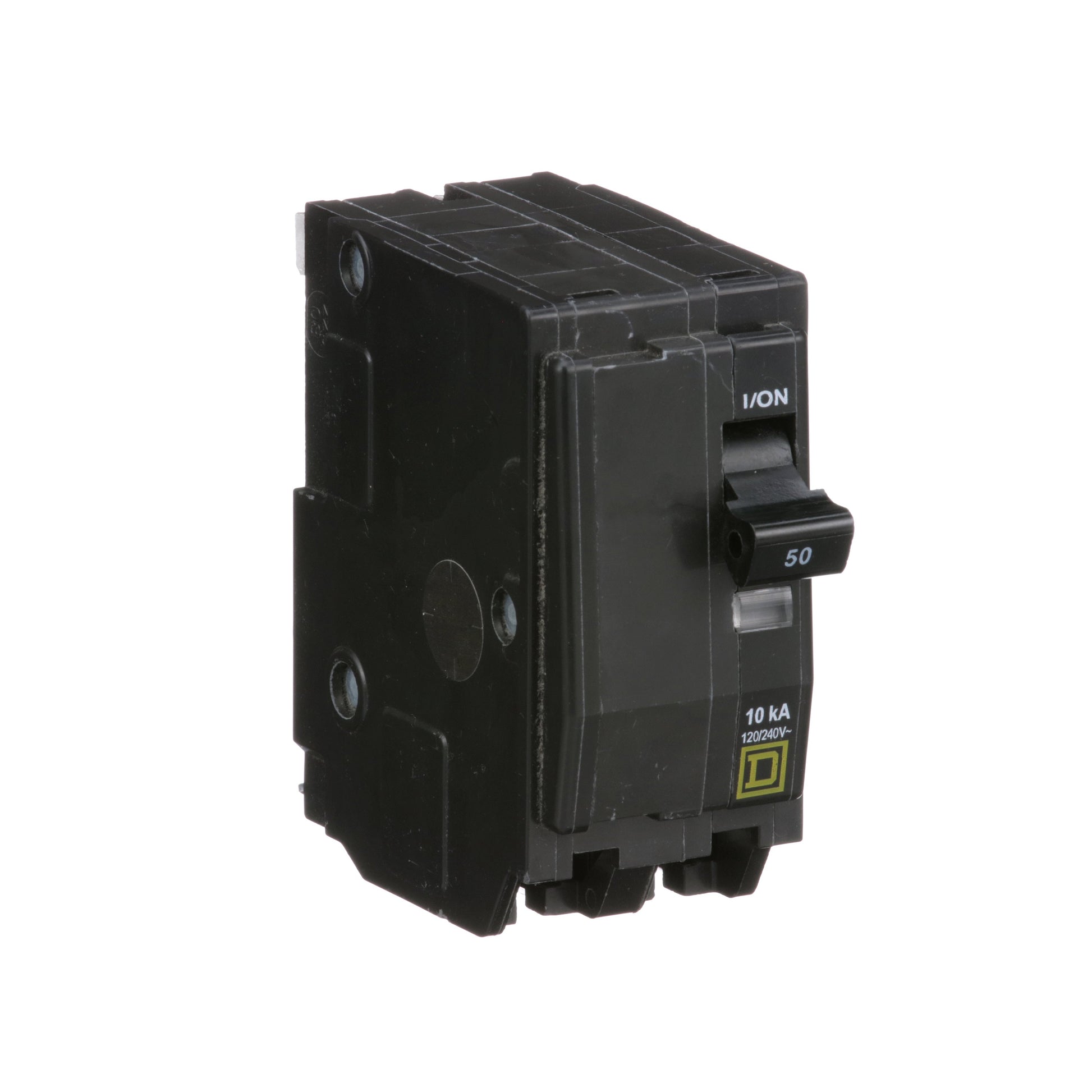

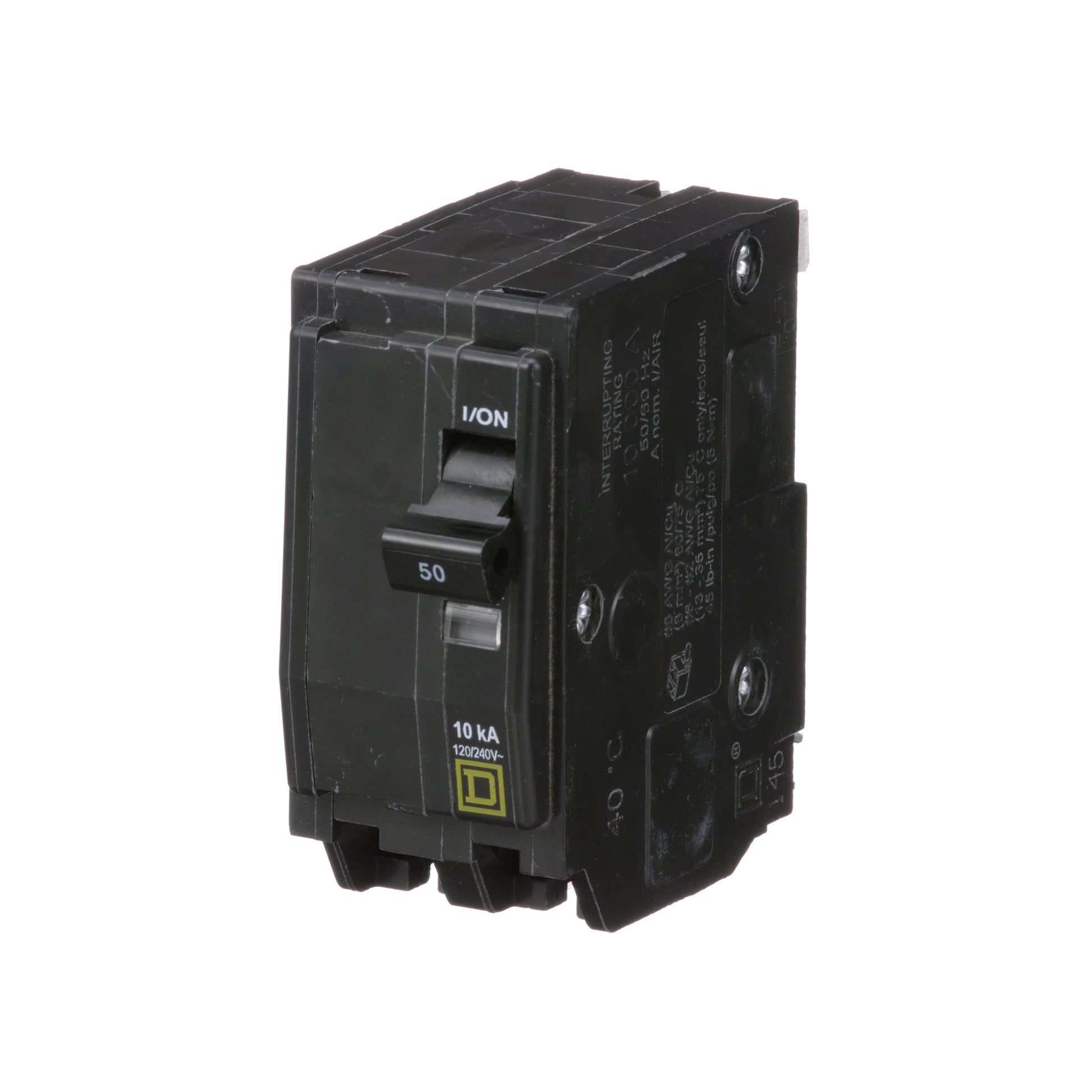

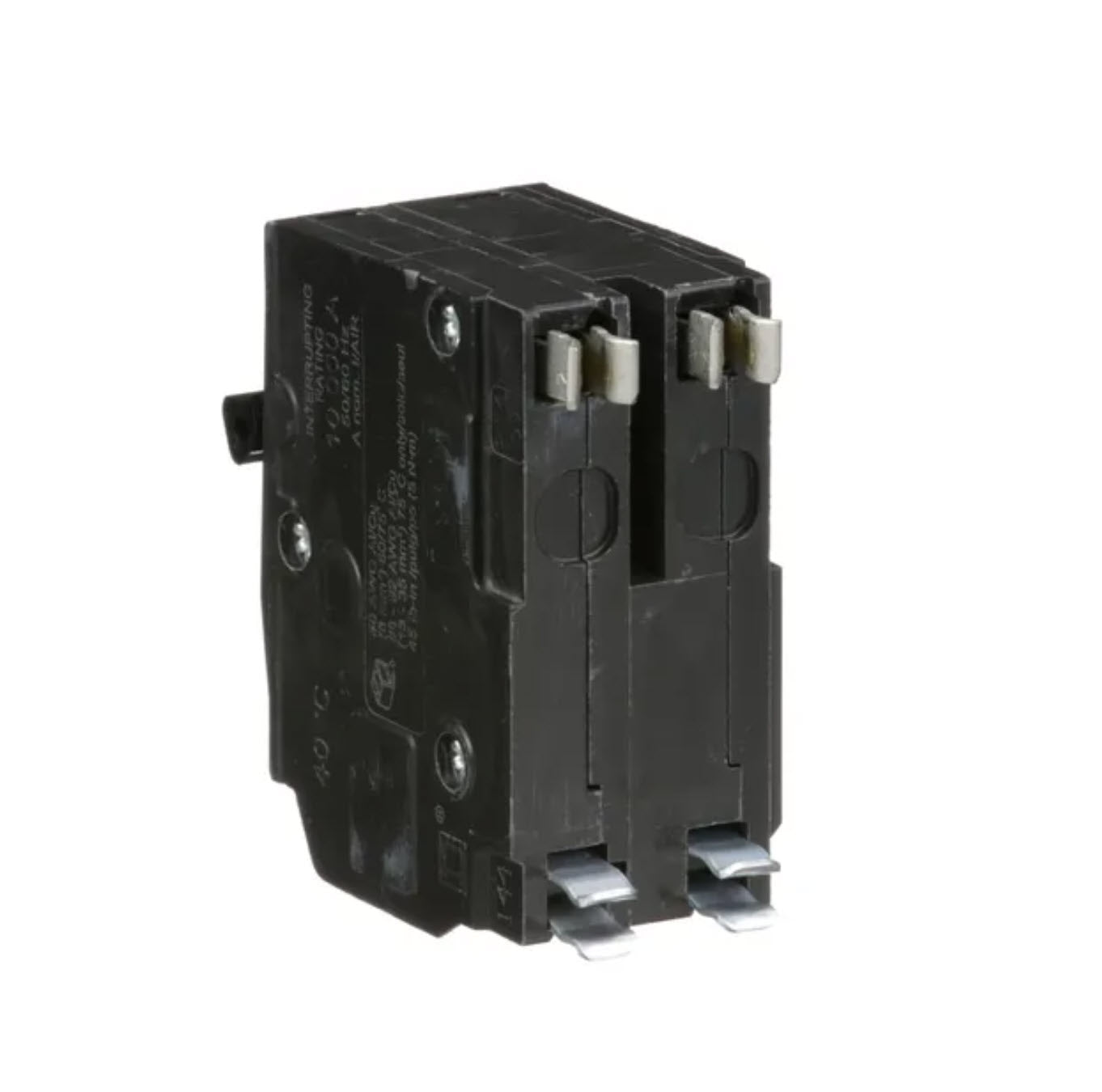

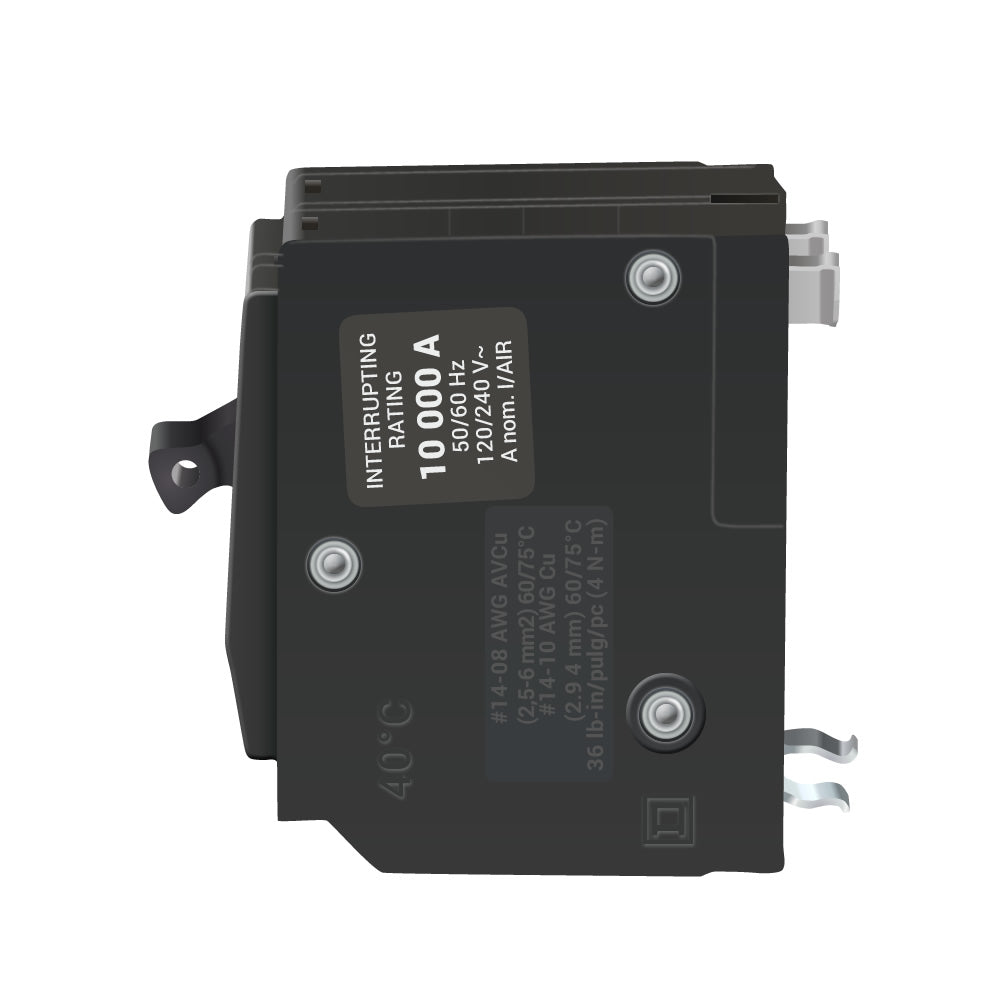

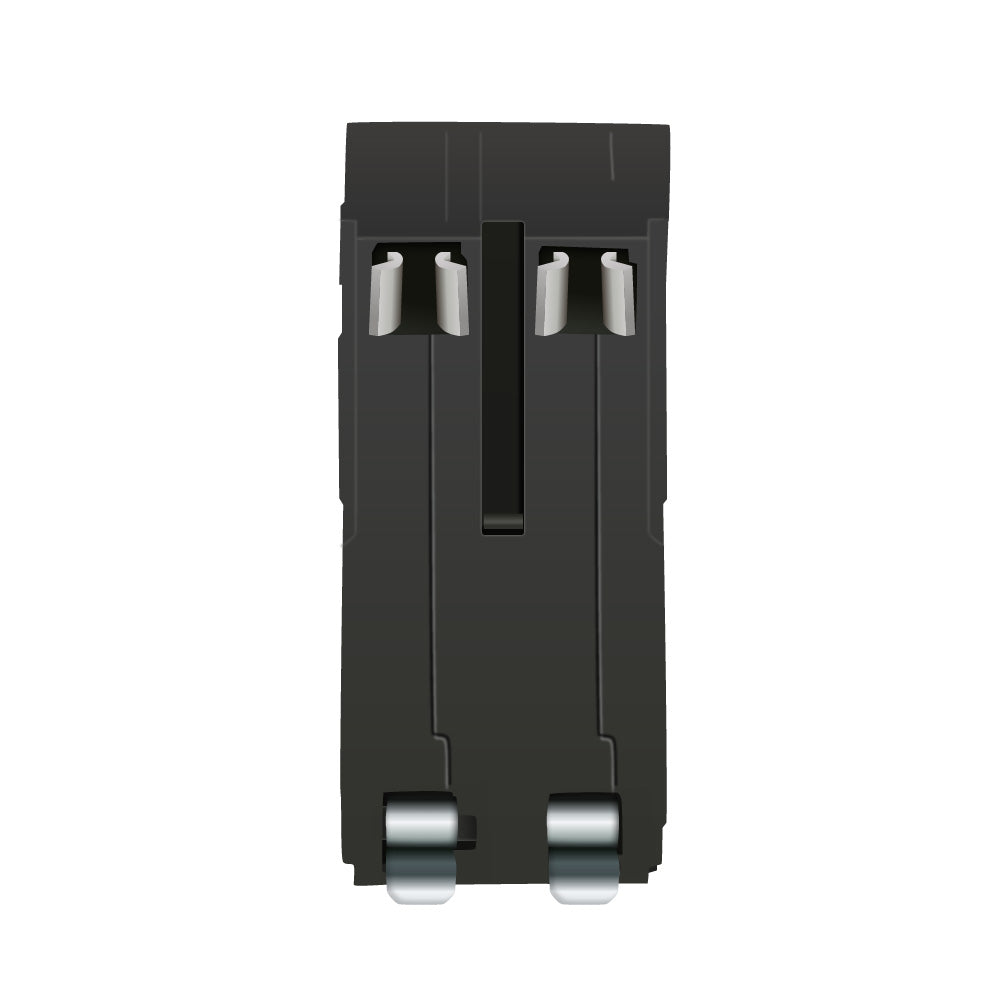

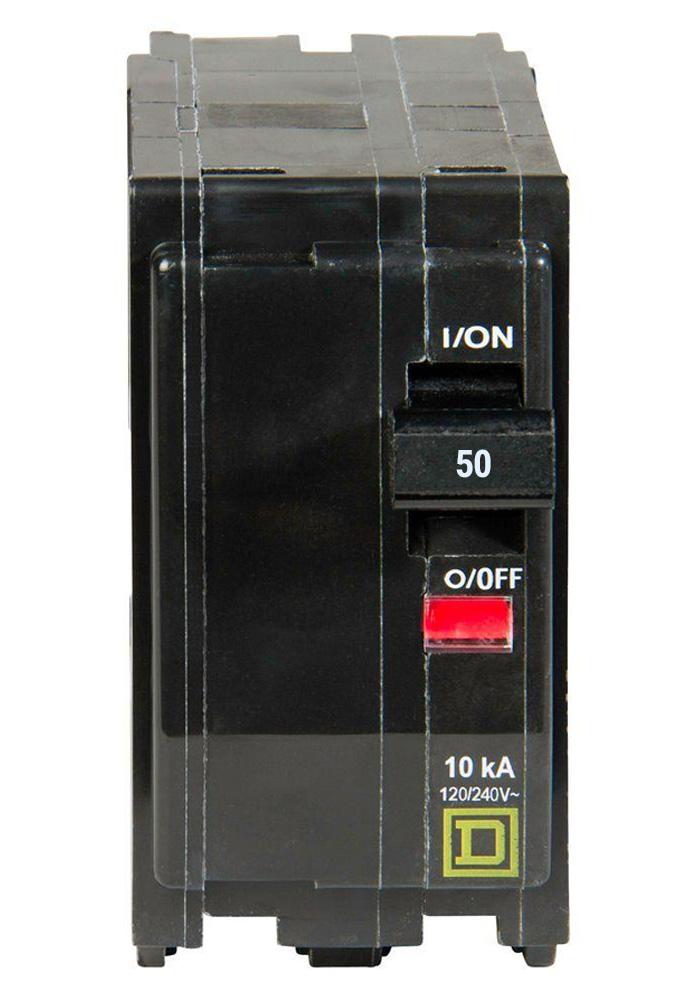

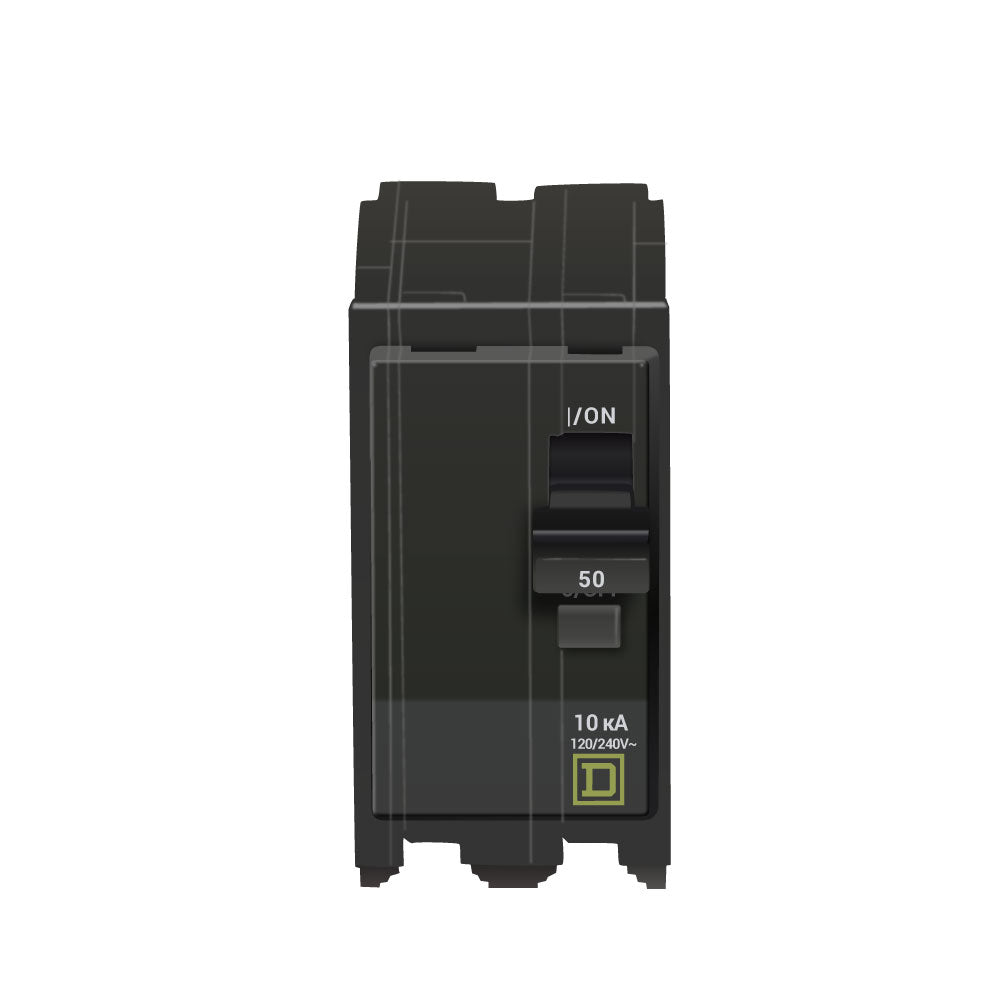

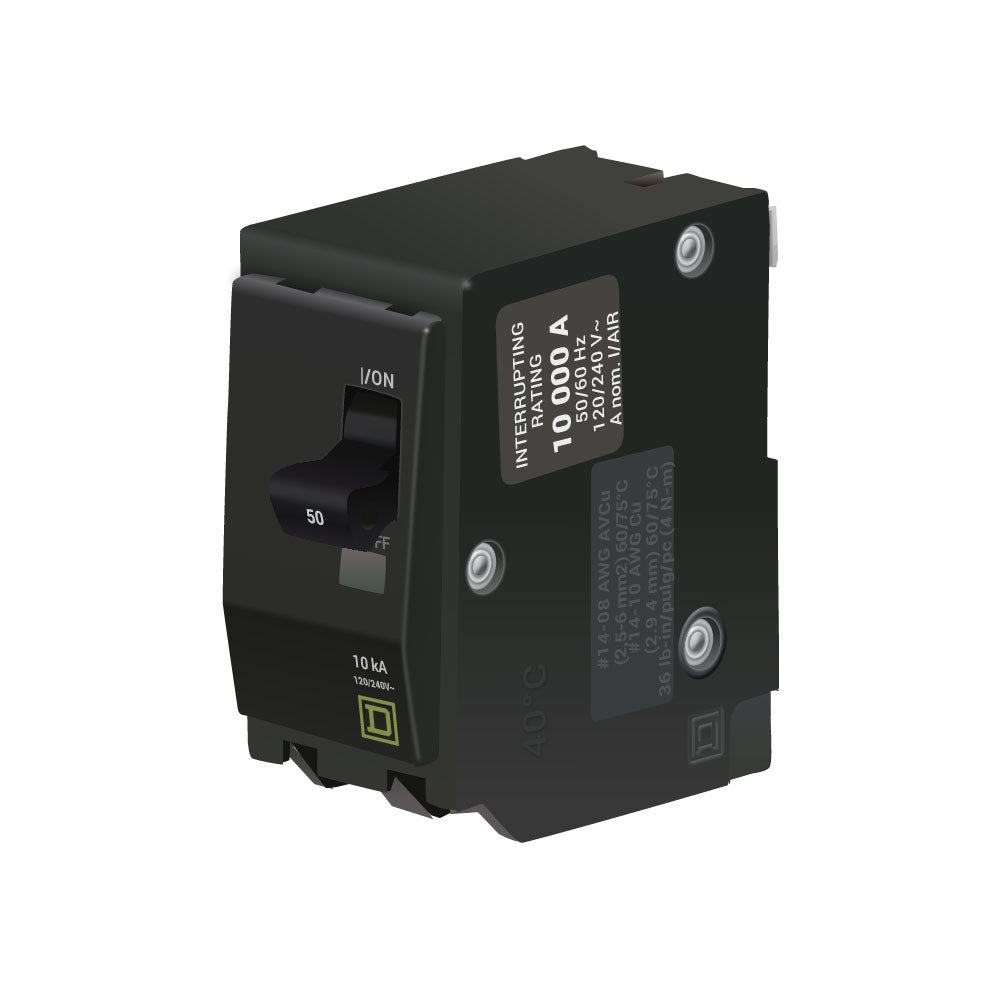

The Square D QO250 is a Molded Case Circuit Breaker from the QO Series family. It is a 2-pole, 50 amp breaker with a 120/240 VAC rating and 10kA@240V AIC rating. This plug-in breaker features thermal magnetic protection and is compatible with QO Load Centers and NQ Panelboards. It meets CSA, HACR, and UL standards for safety and performance.
Key Features:
✔ Part Number: QO250
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240 VAC
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901400523
✔ GTIN: 00785901400523
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.12 in x 3.11 in
✔ Weight: 0.55
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: HACR, UL Listed
✔ Wire Size: 8 To 2 Awg (Aluminum/Copper)
