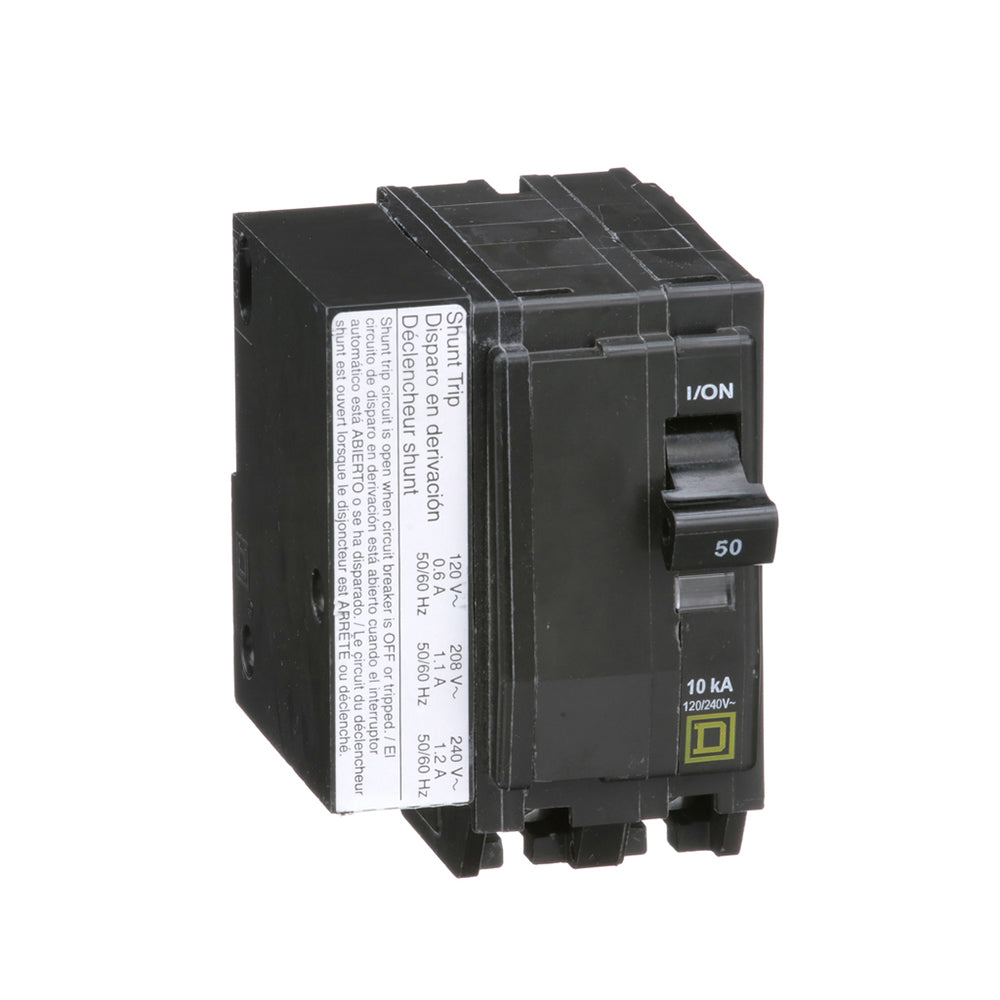

Square D QO2501021 Circuit Breaker | 120/240V 50A 2P 10kA@240V Plug-In QO Series

Product Description:
The Square D QO2501021 is a molded case circuit breaker designed for reliable electrical protection. It is a 2-pole, 50 amp breaker rated for 120/240V systems with a 10kA interrupting capacity. This plug-in style breaker features thermal magnetic protection for both overload and short-circuit conditions. It is compatible with QO load centers and NQ panelboards.

Key Features:
✔ Part Number: QO2501021
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 50
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ Wire Size: Min. 8 AWG Max. 2 AWG
✔ Breaker Type: Shunt Trip
✔ Certification: UL Listed
✔ UPC: 785901494010
✔ GTIN: 00785901494010
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 3.12 in x 3.11 in
✔ Weight: 430.91 lb
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, UL Listed
