Product Description:

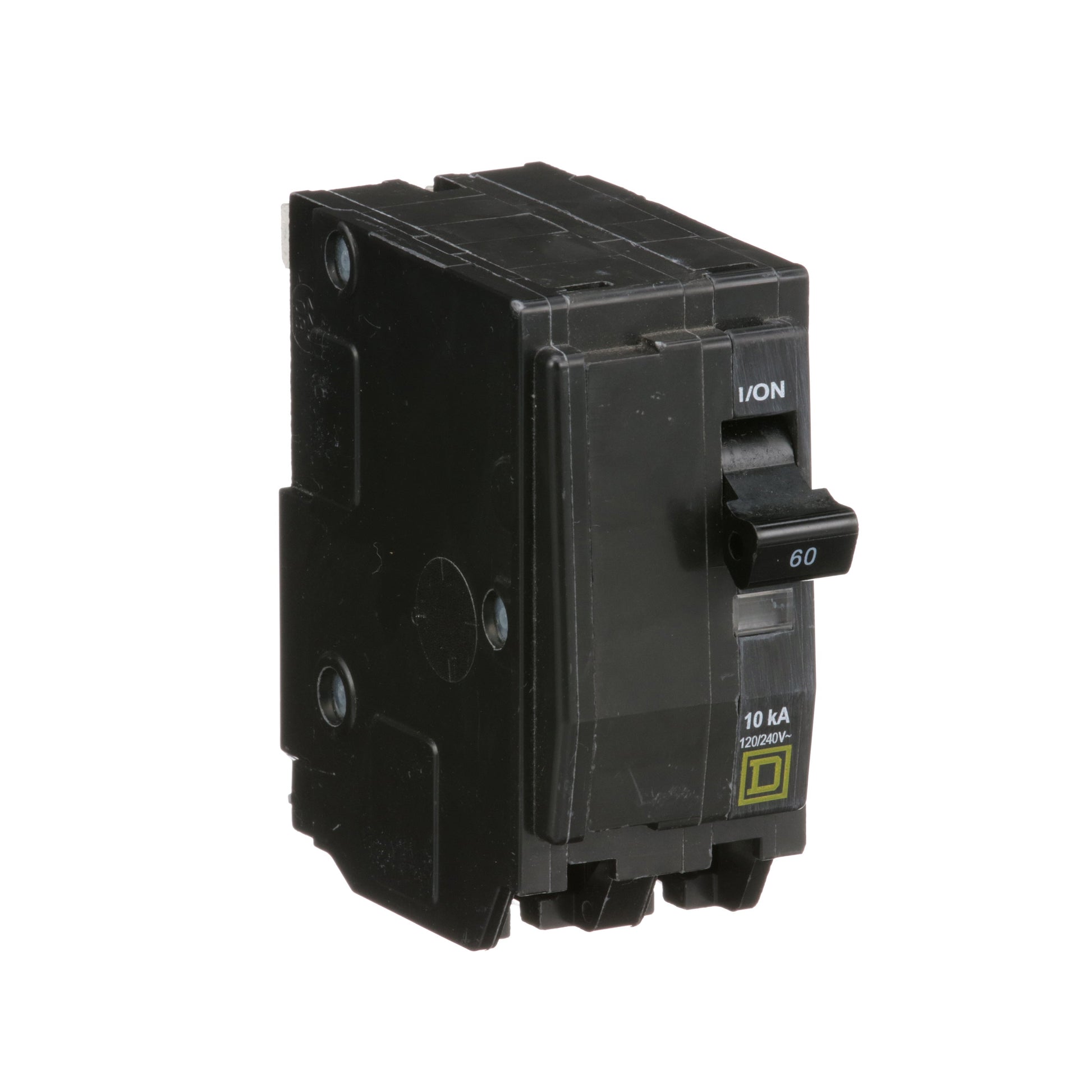

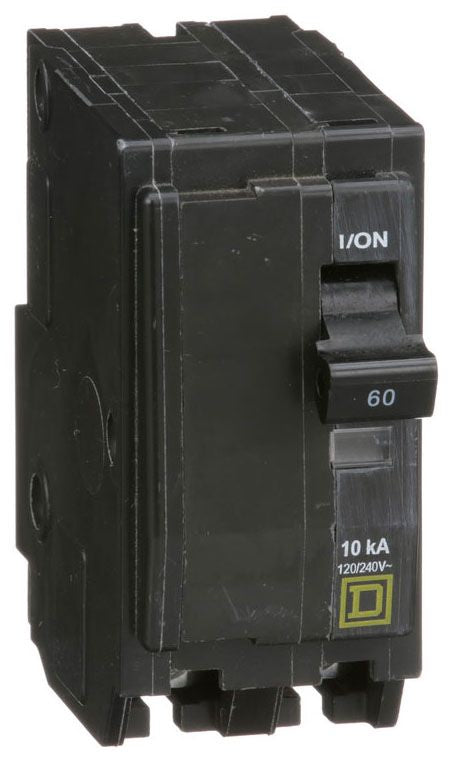

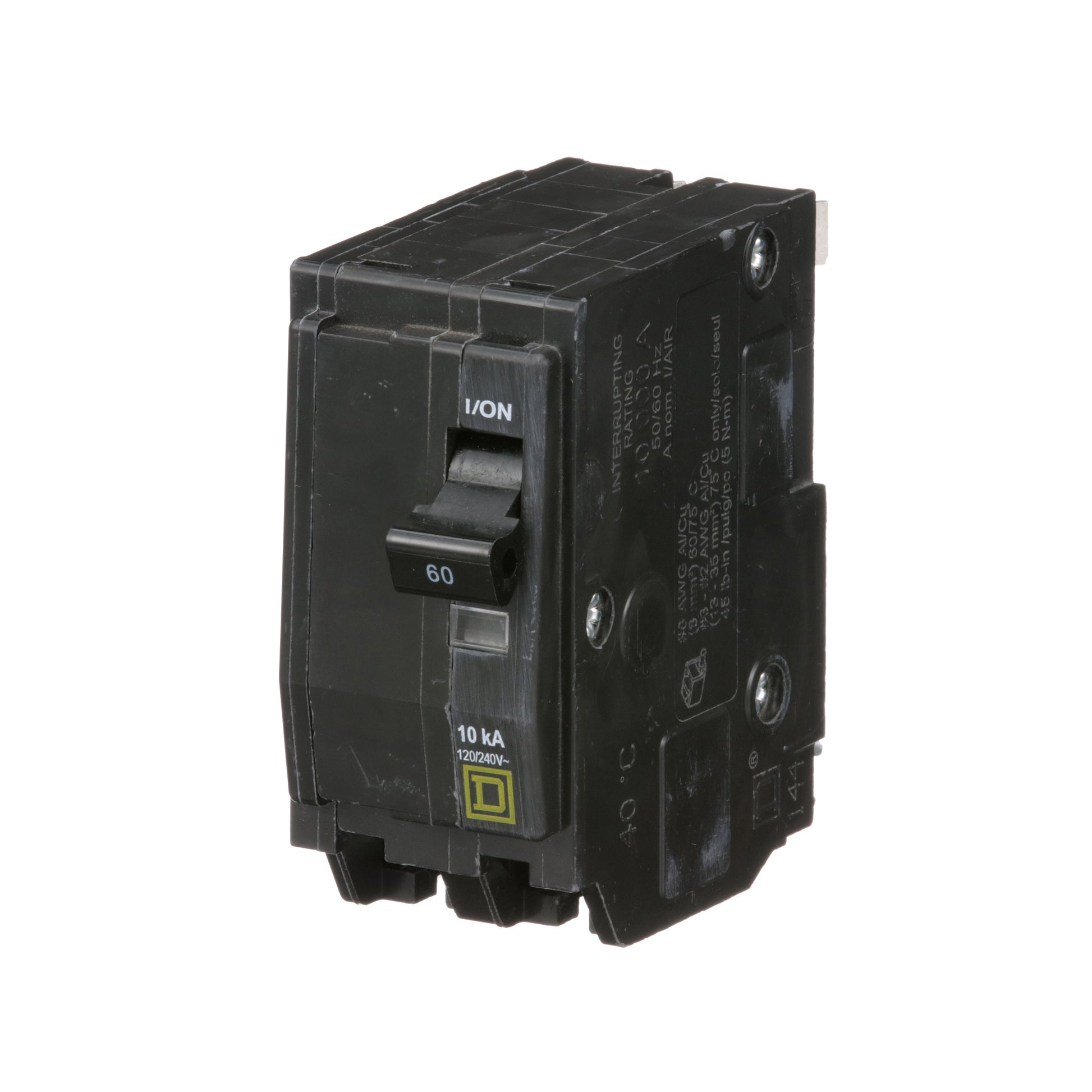

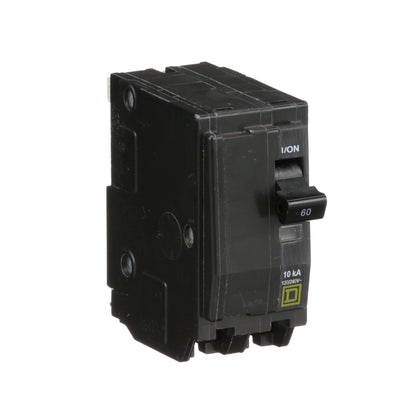

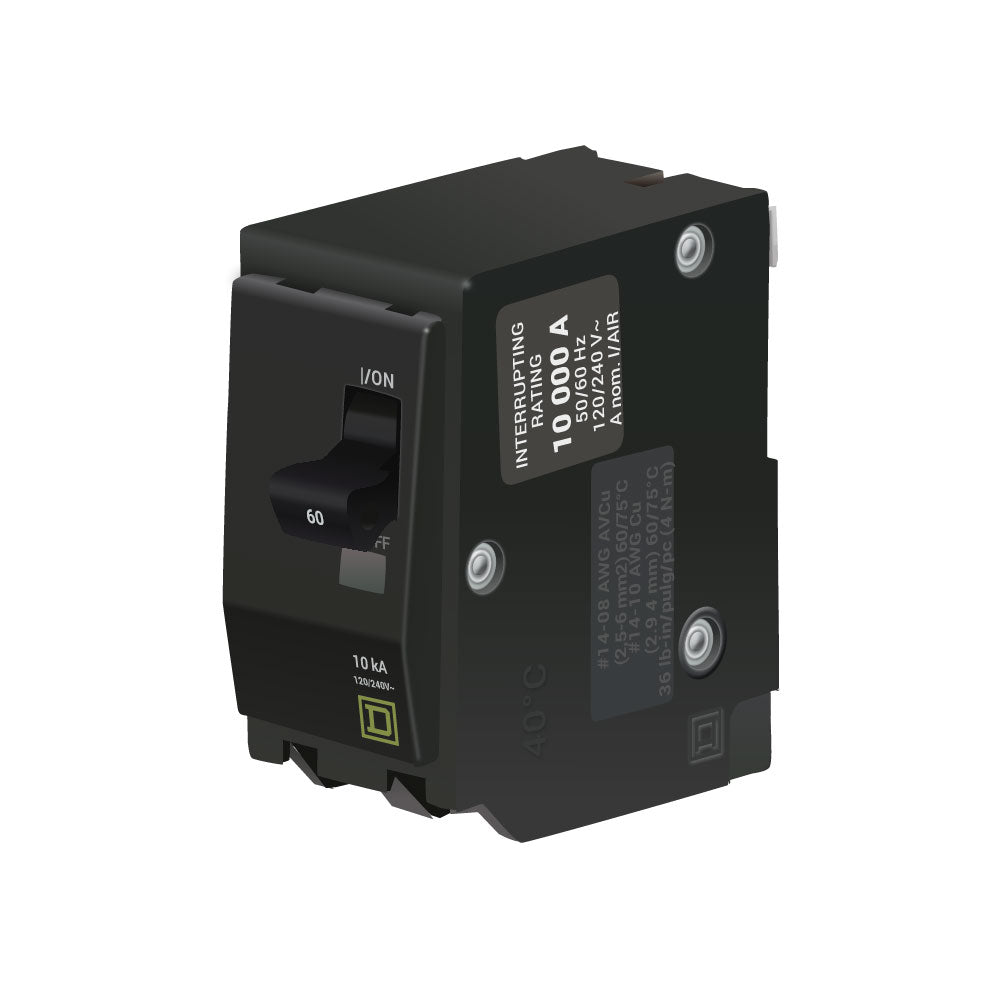

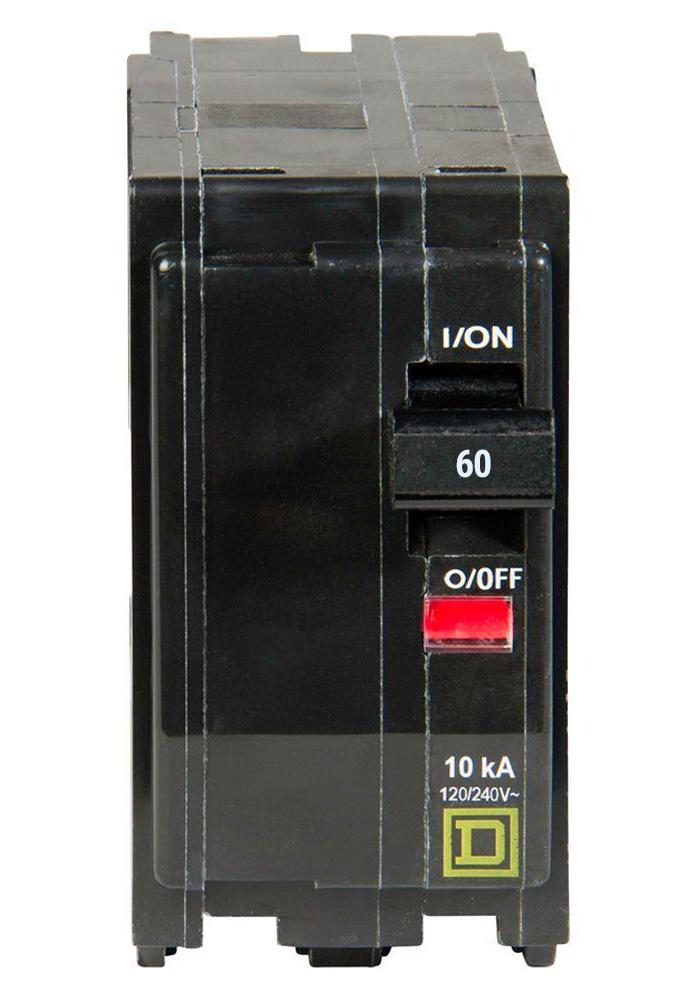

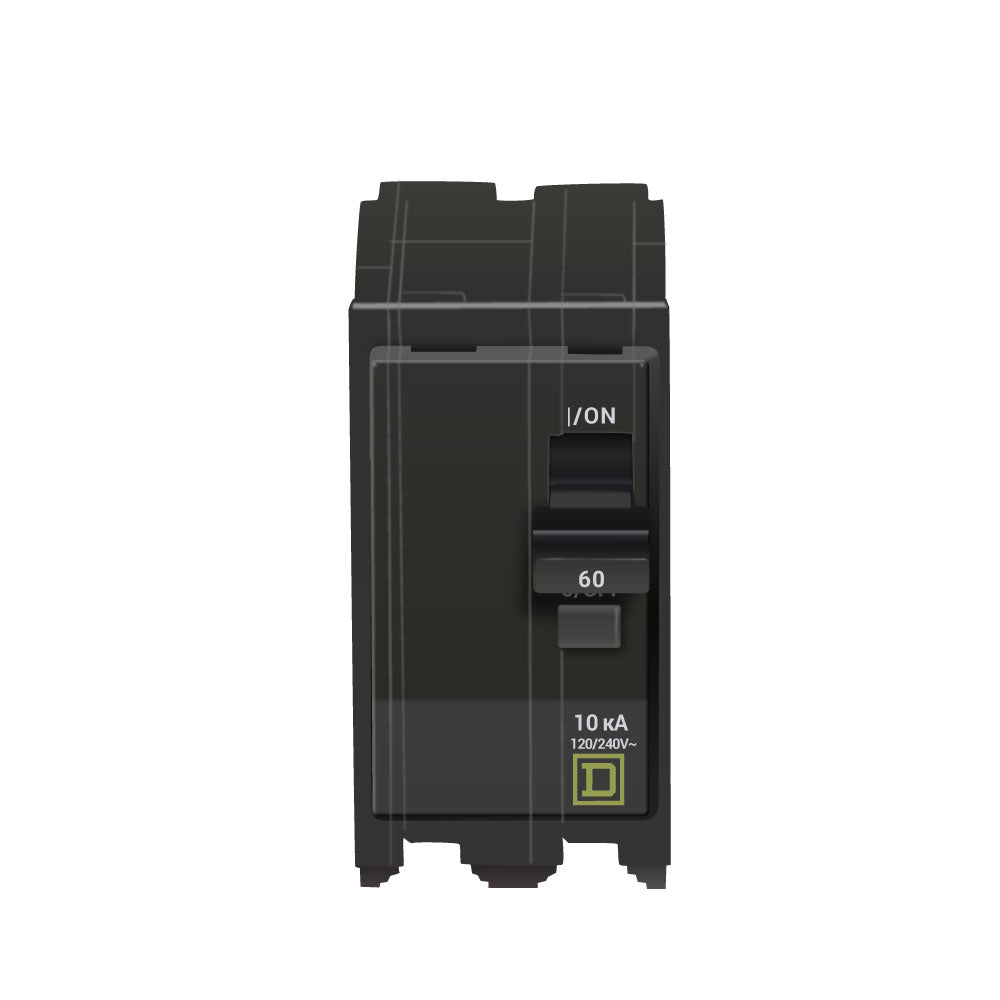

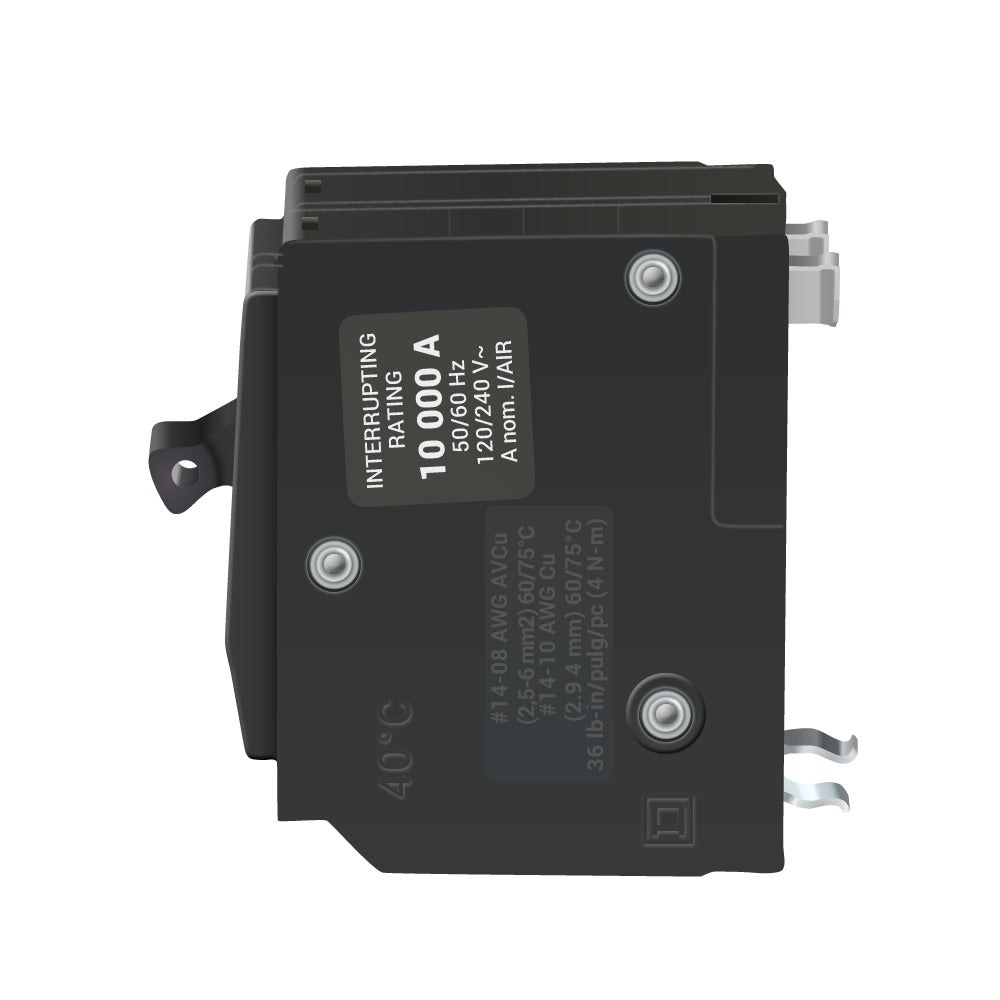

The Square D QO260 is a 2-pole molded case circuit breaker from the QO Series. It operates at 120/240 VAC with a 60 amp rating and a 10kA@240V AIC rating. This breaker features thermal magnetic protection and a plug-in connection. It is compatible with QO load centers and NQ panelboards.
Key Features:
✔ Part Number: QO260
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240 VAC
✔ Amperage: 60
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V

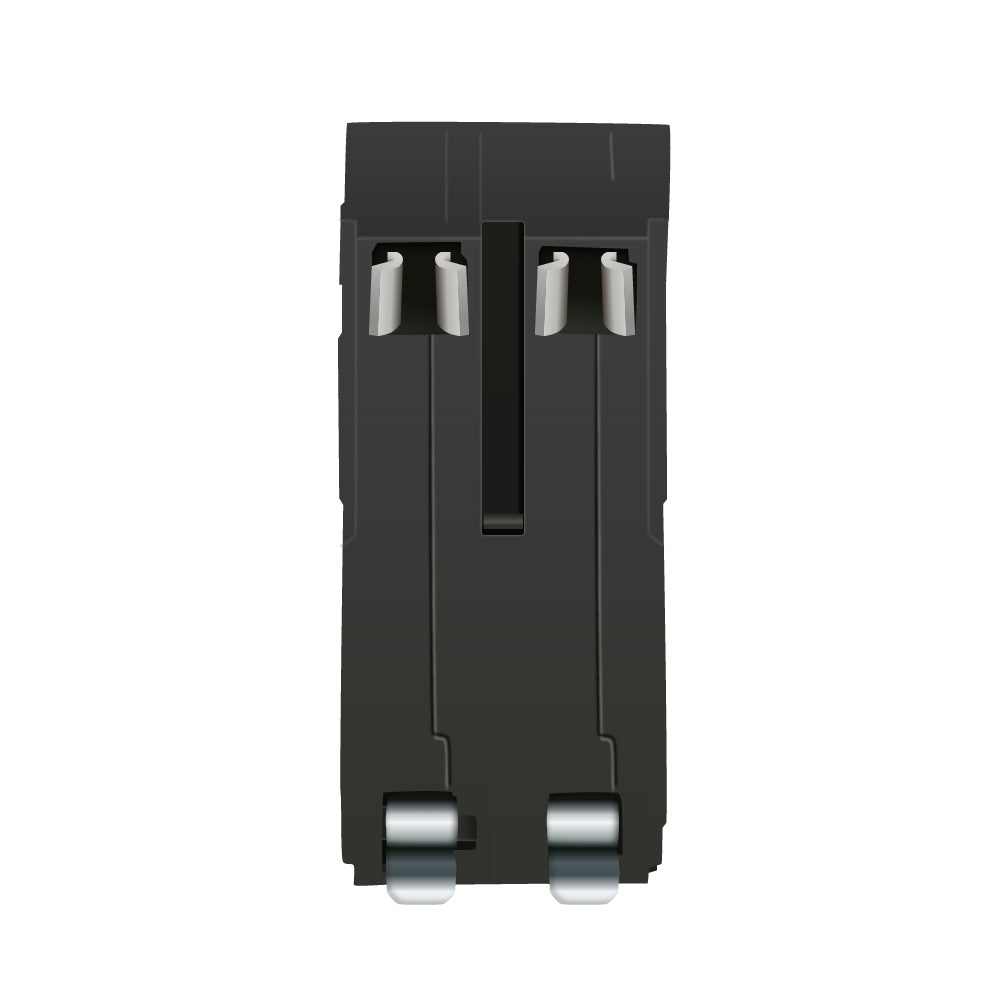

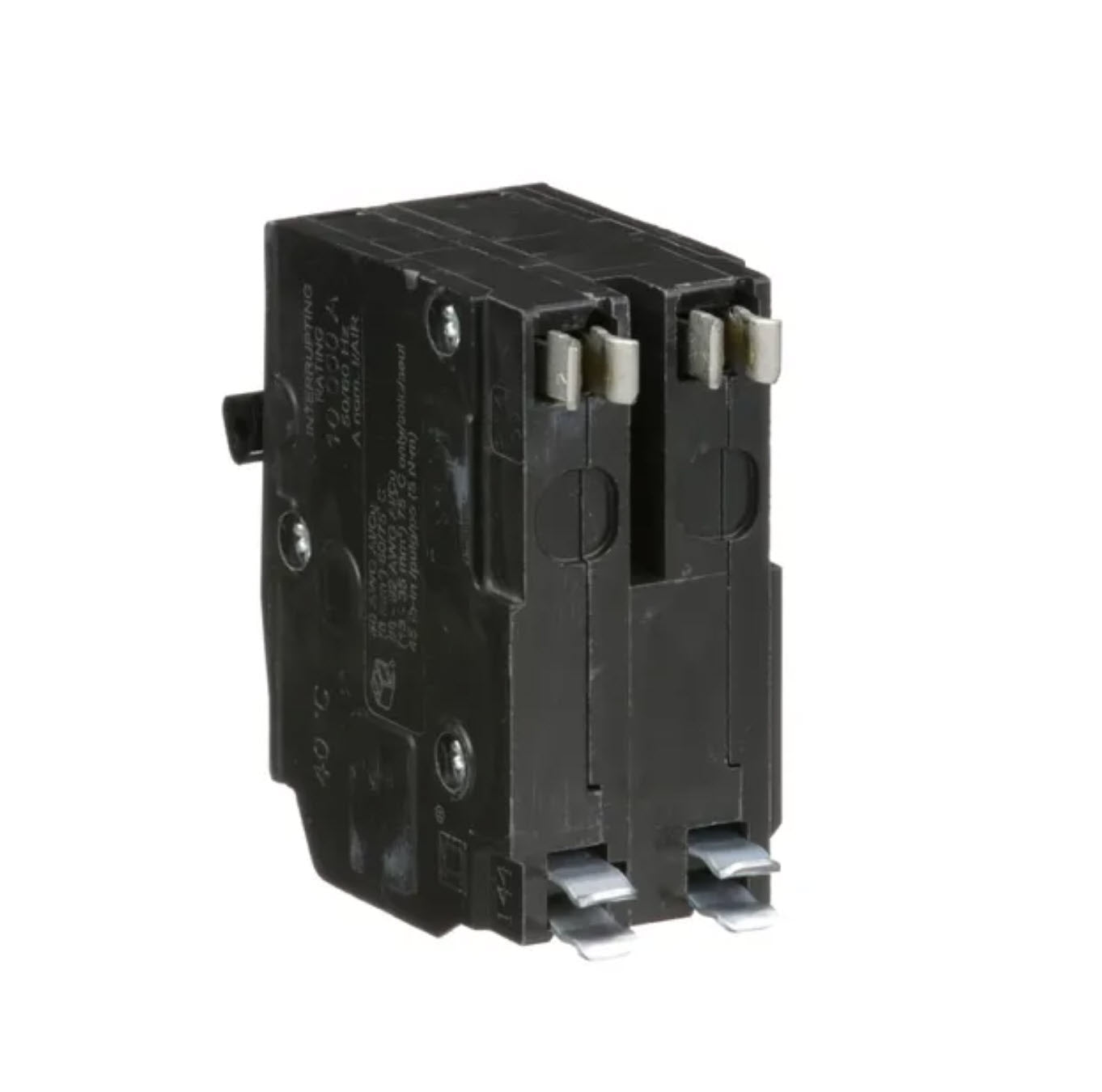

✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 1/0 AWG, Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Temp Rating: Min. 104°F, Max. 104°F
✔ Certification: CSA Certified, HACR, UL Listed
✔
