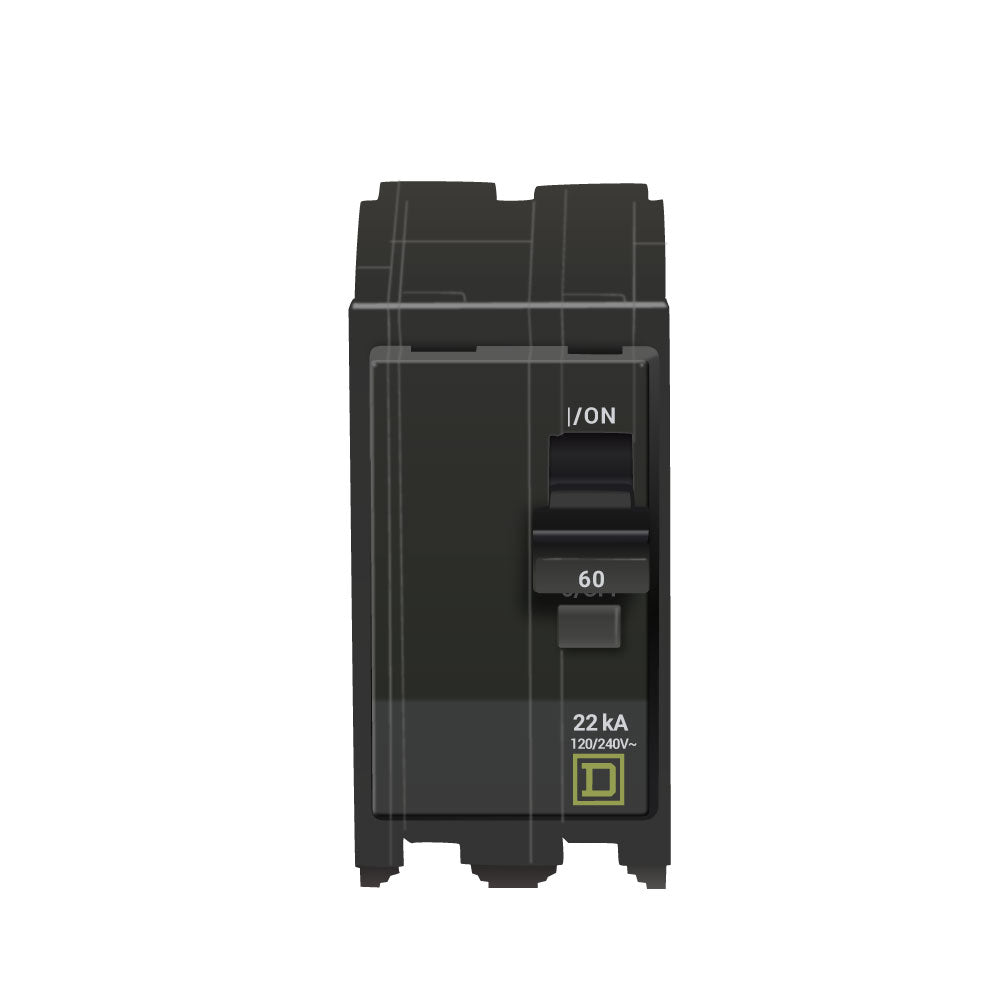

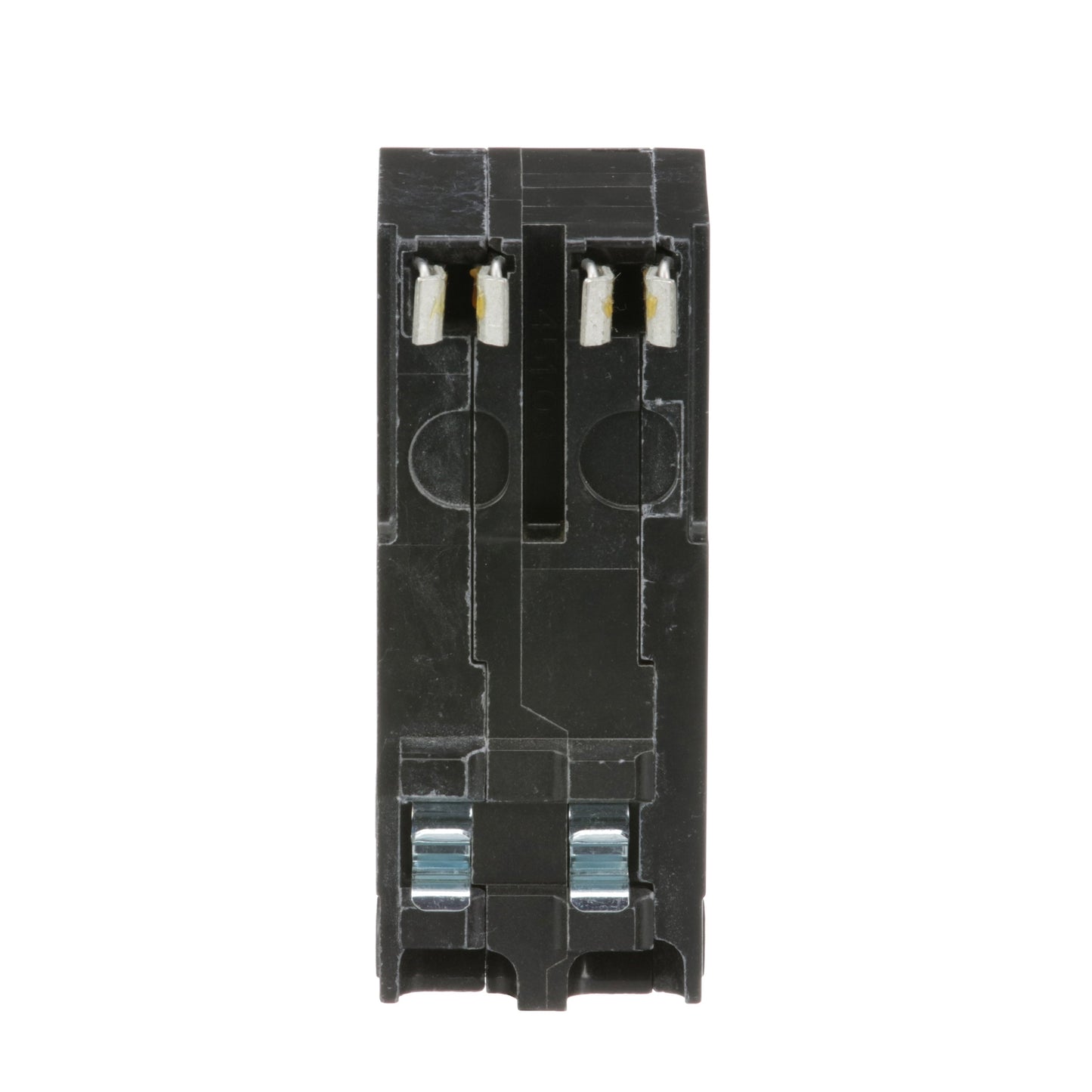

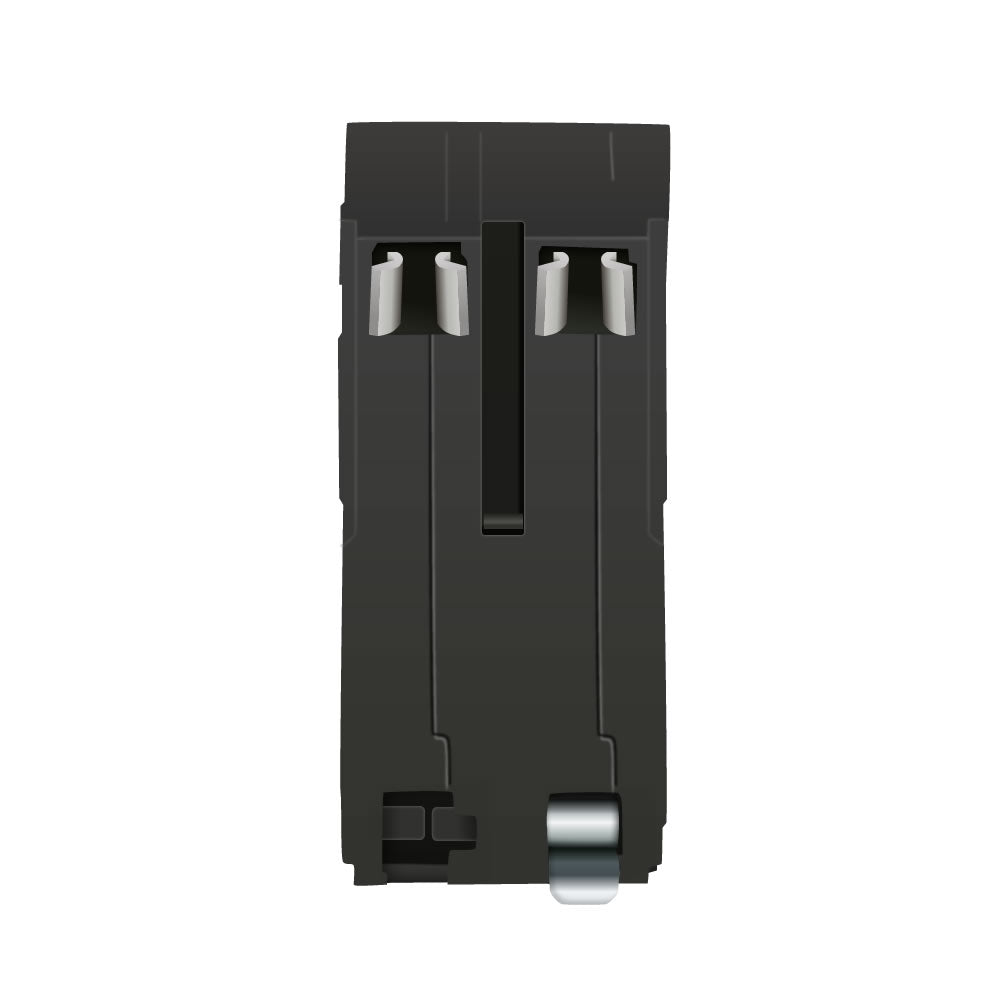

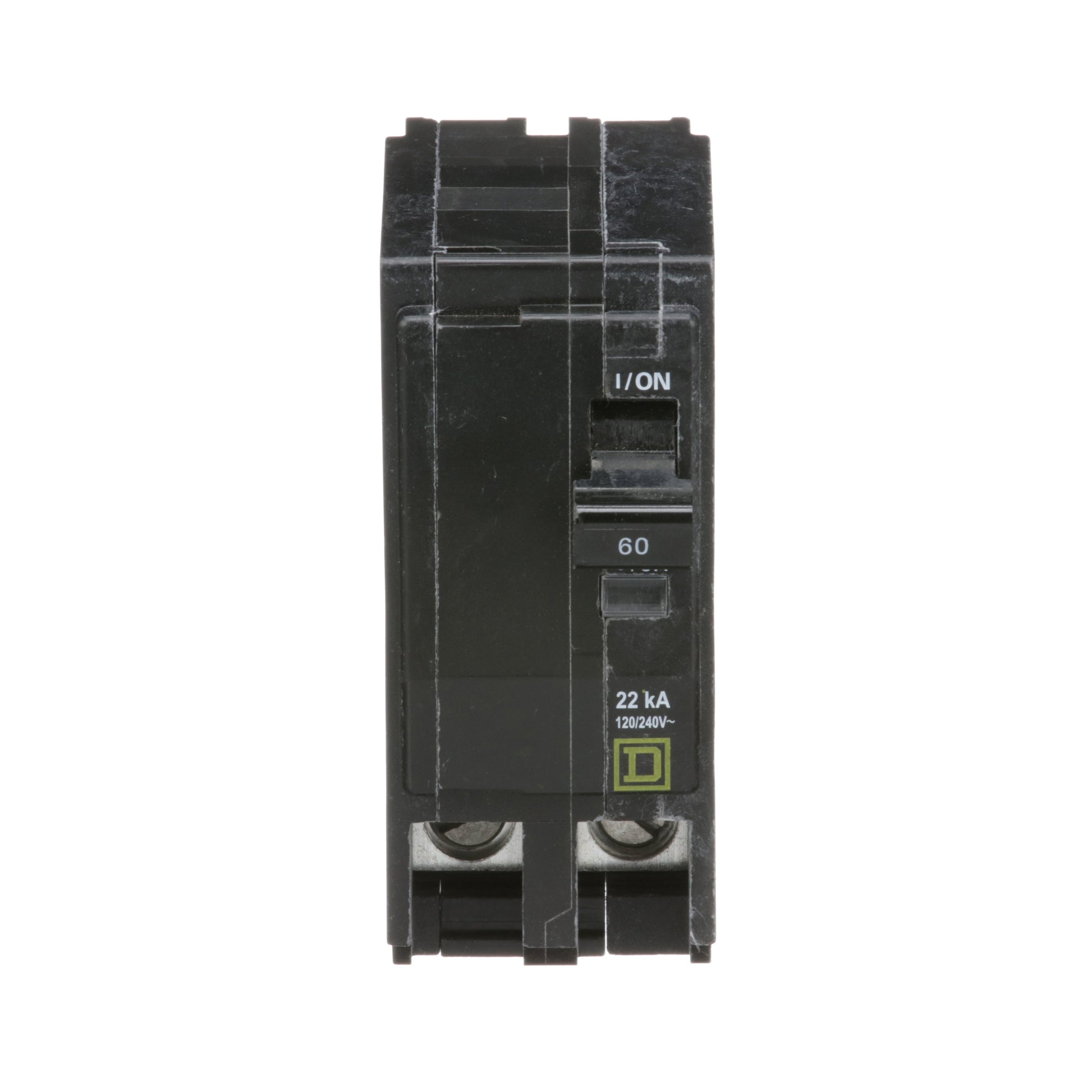

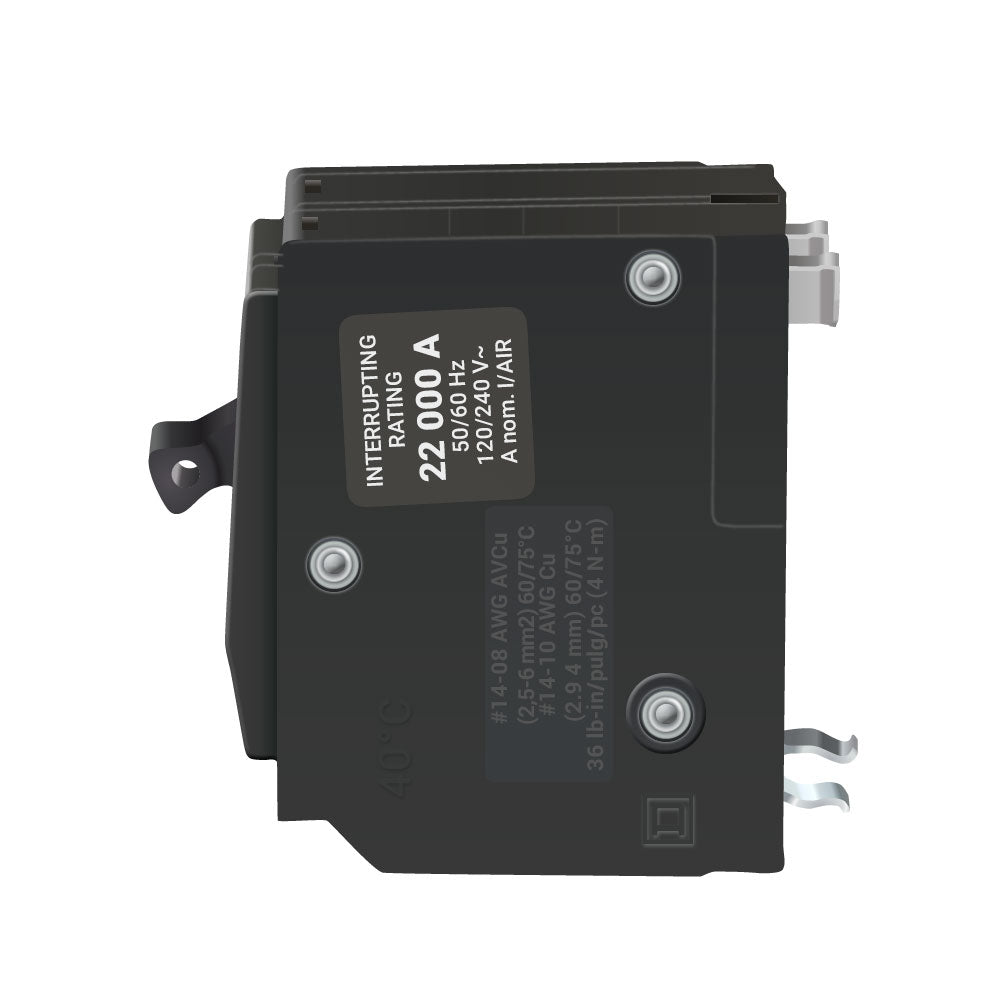

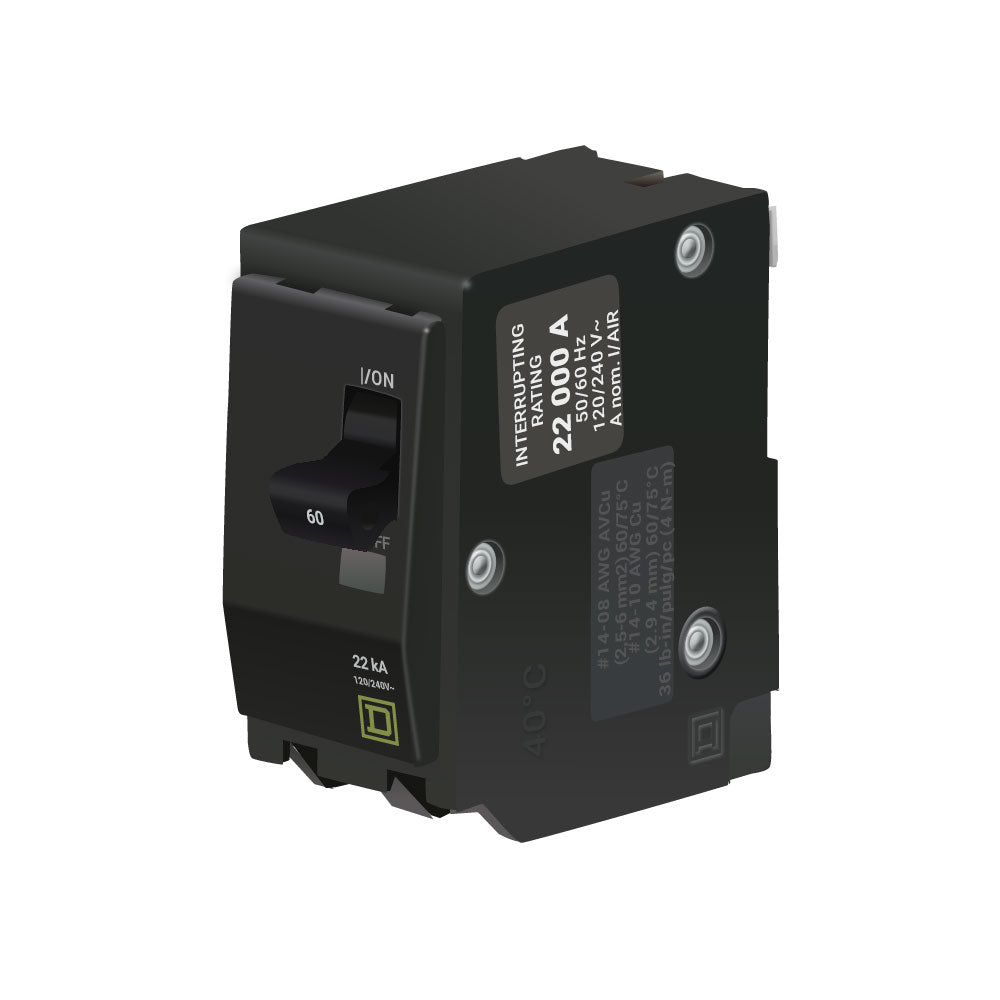

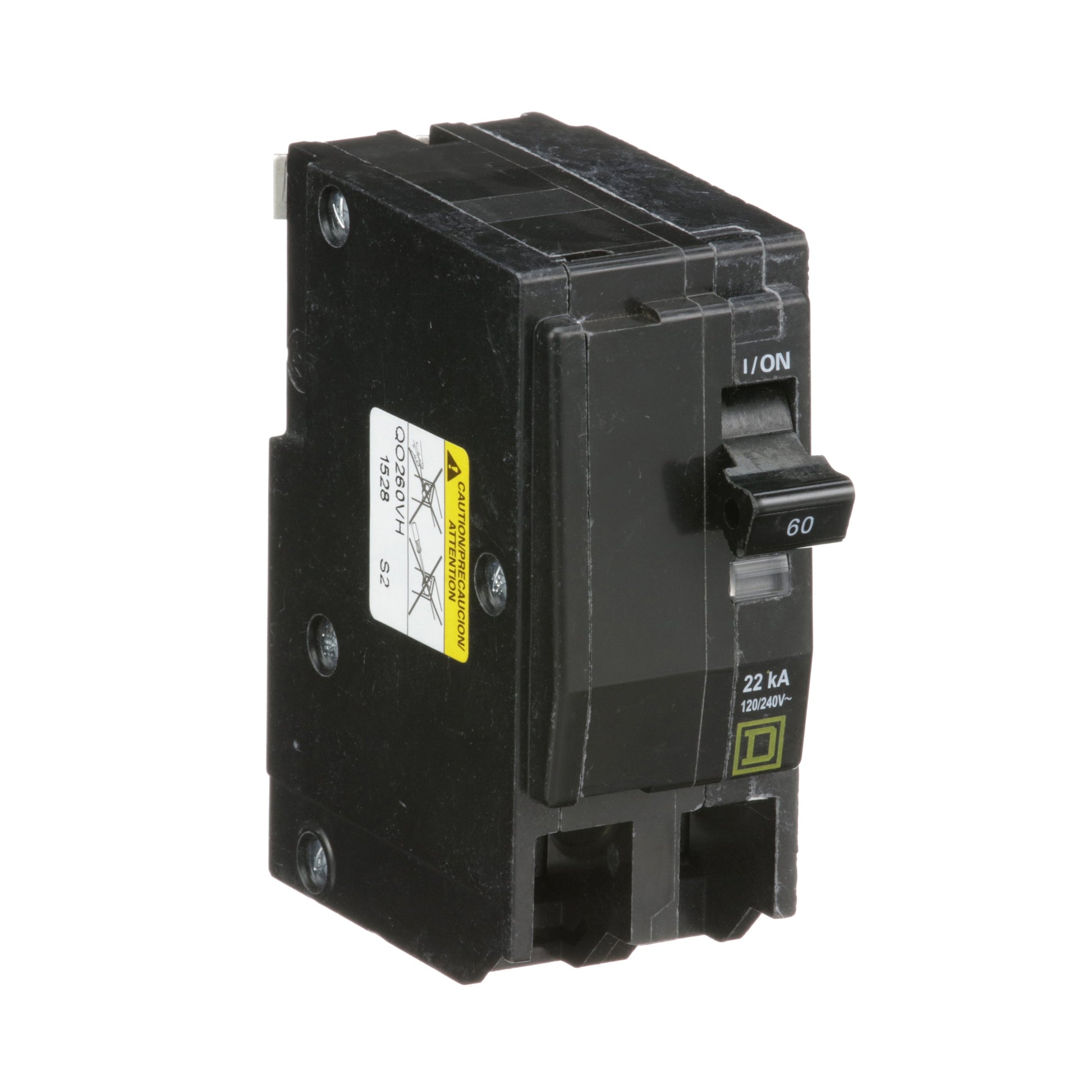

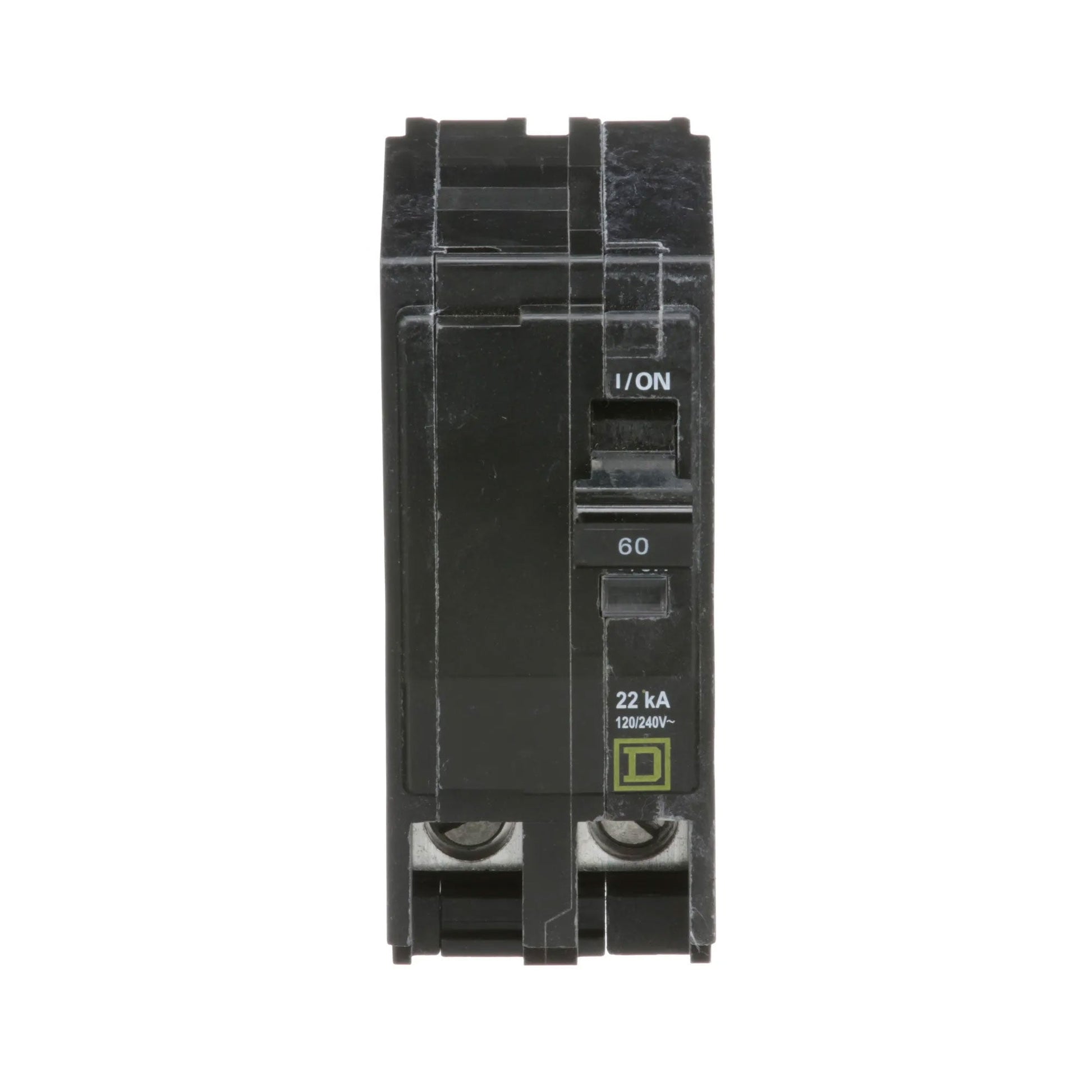

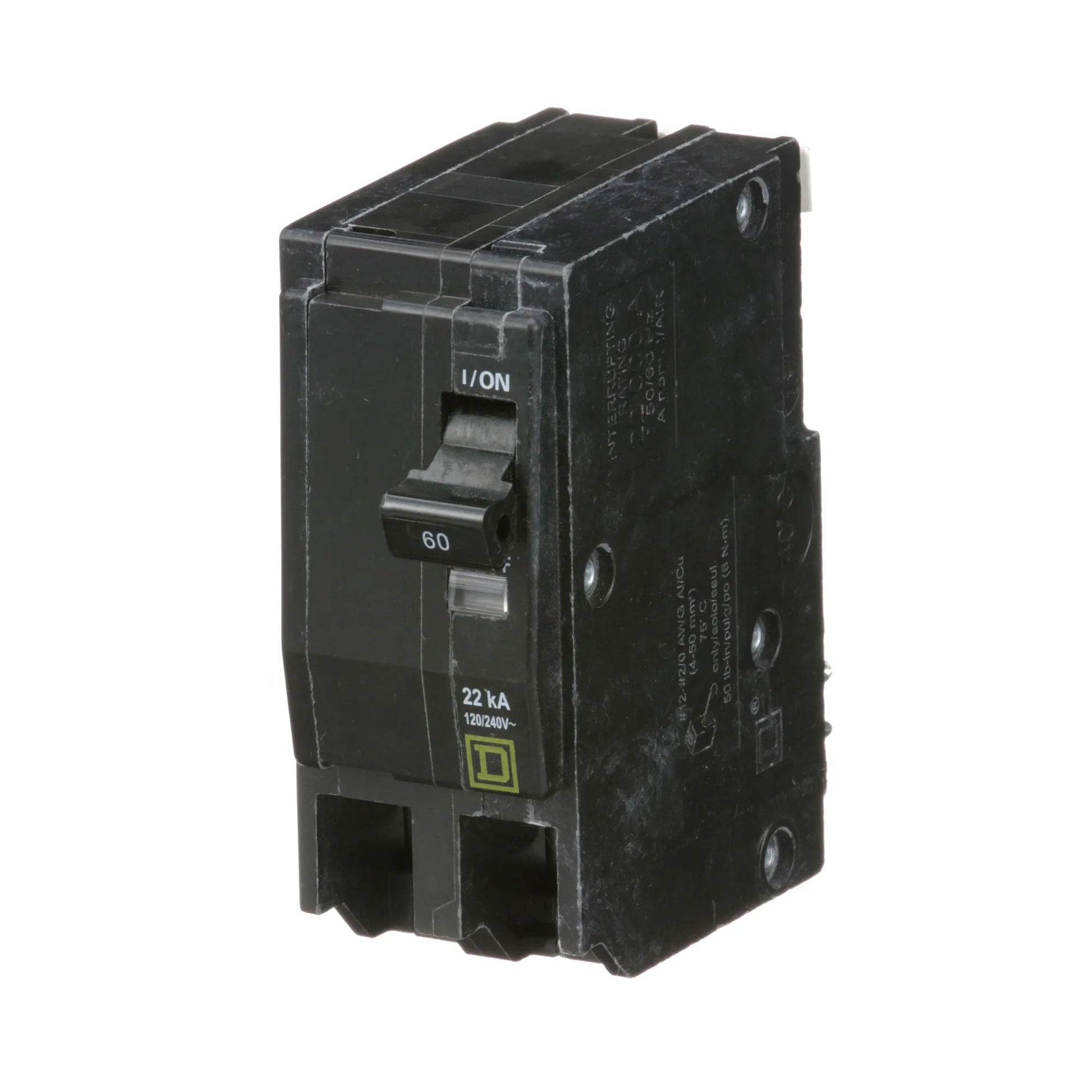

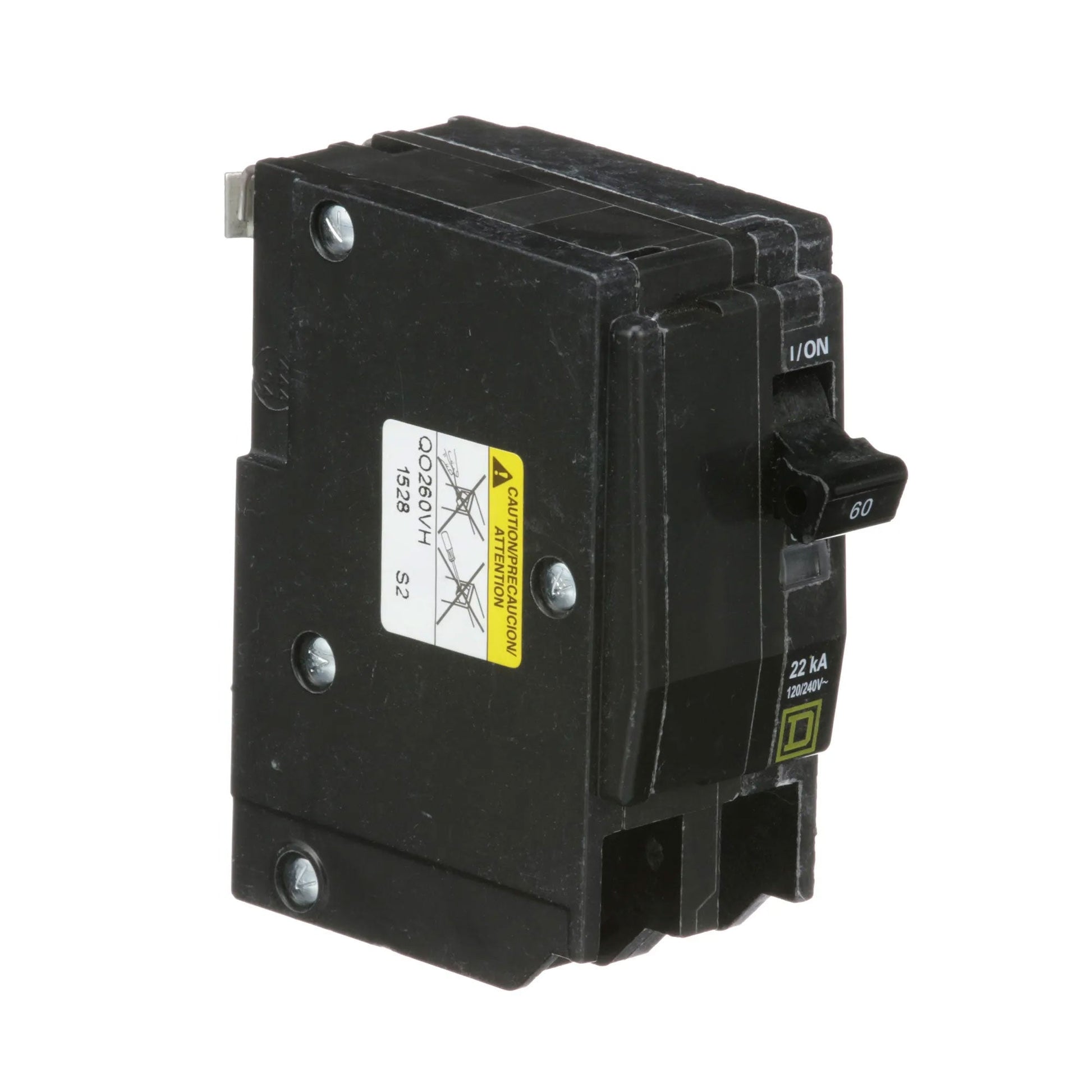

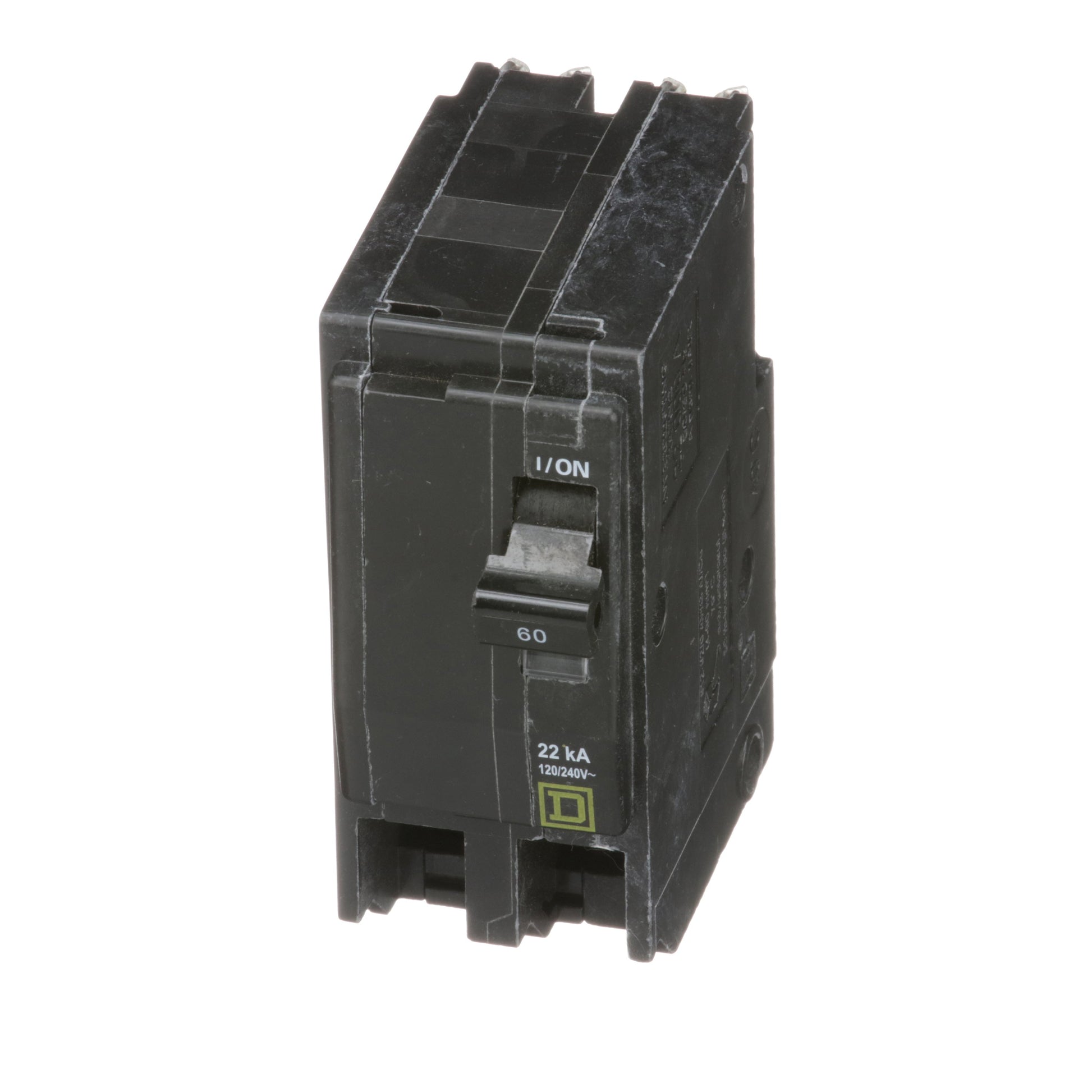

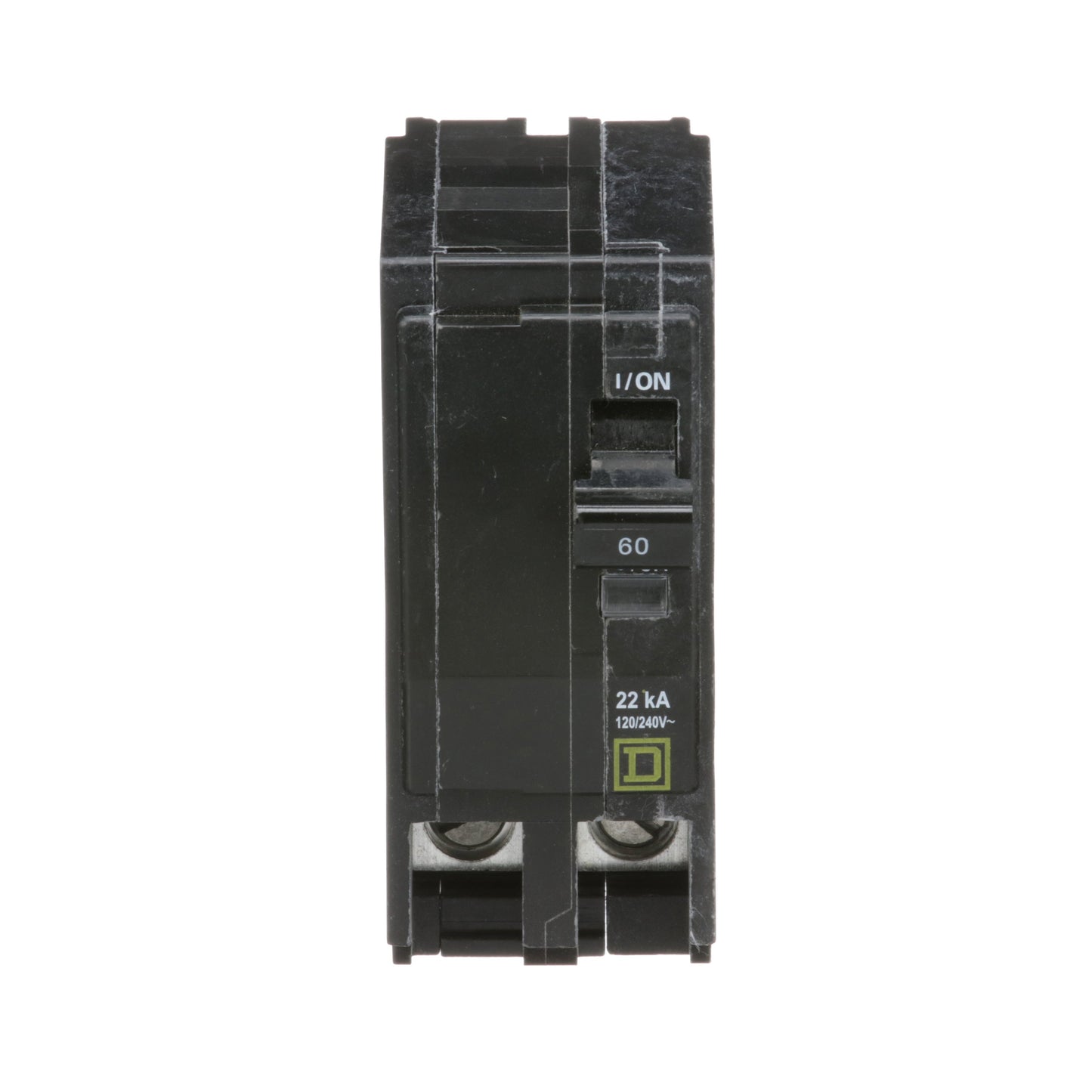

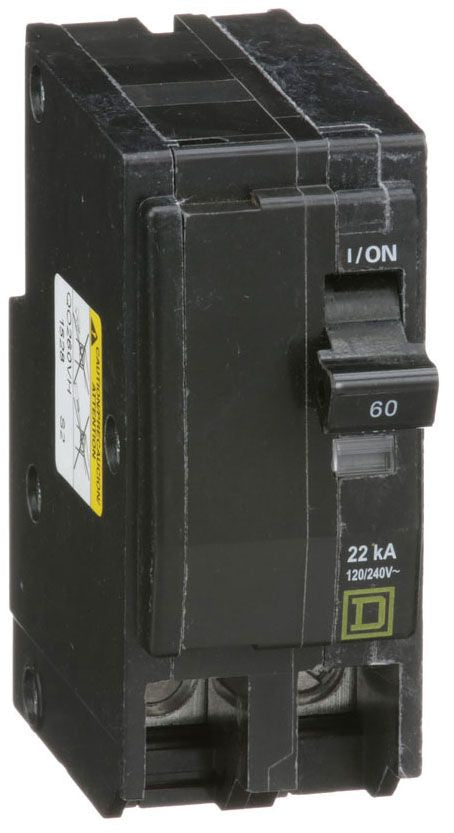

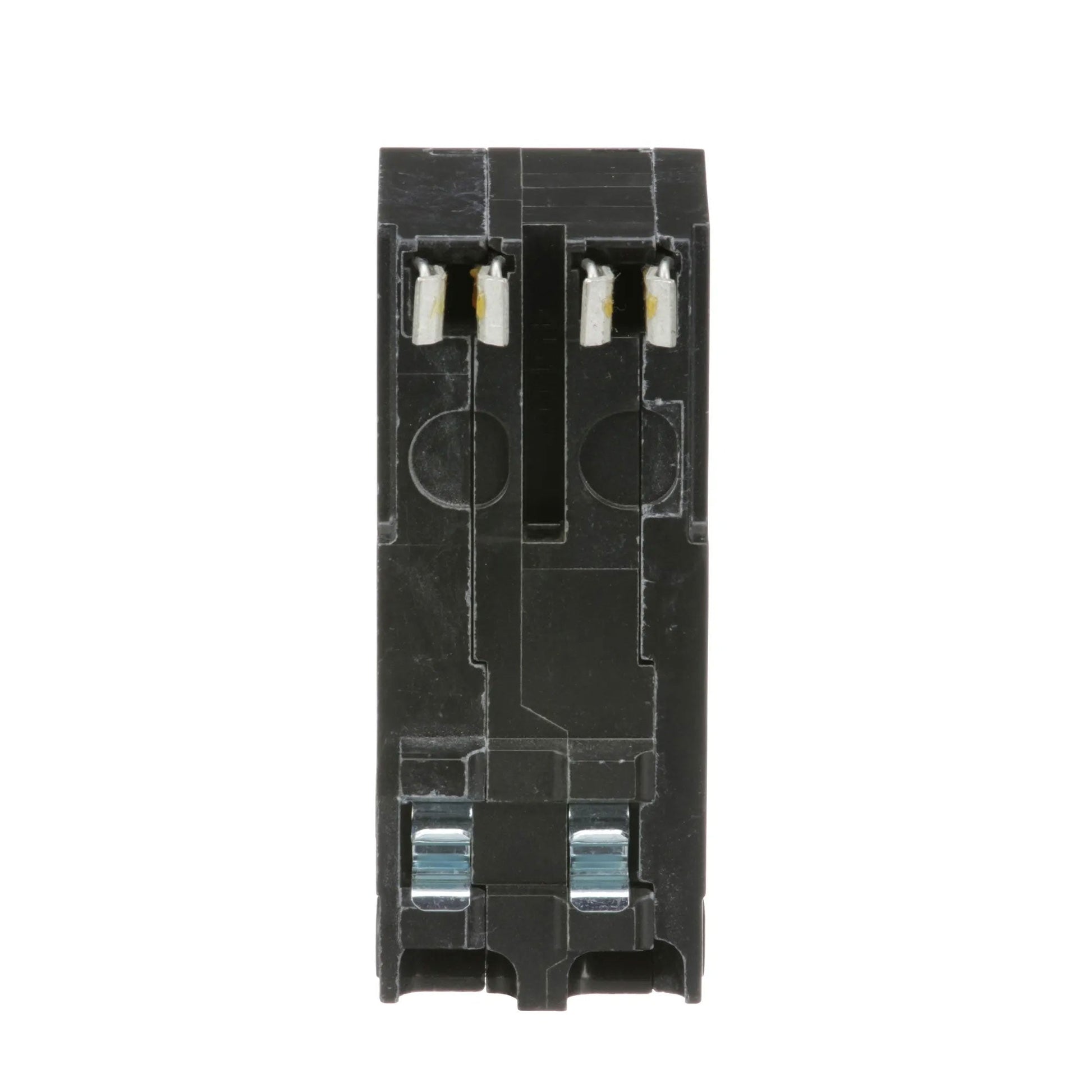

Square D QO260VH Circuit Breaker 120/240V 60A 2P 22kA@120V Plug-In QO Series

Product Description:
The Square D QO260VH is a molded case circuit breaker designed for reliable electrical protection. It is a 2-pole, 60 amp breaker rated for 120/240 volts with a 22kA interrupting capacity. This thermal magnetic breaker features a plug-in connection for easy installation in compatible panels.

Key Features:
✔ Part Number: QO260VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 60
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901054979
✔ GTIN: 00785901054979
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.12 in x 3.11 in
✔ Weight: 0.7
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
