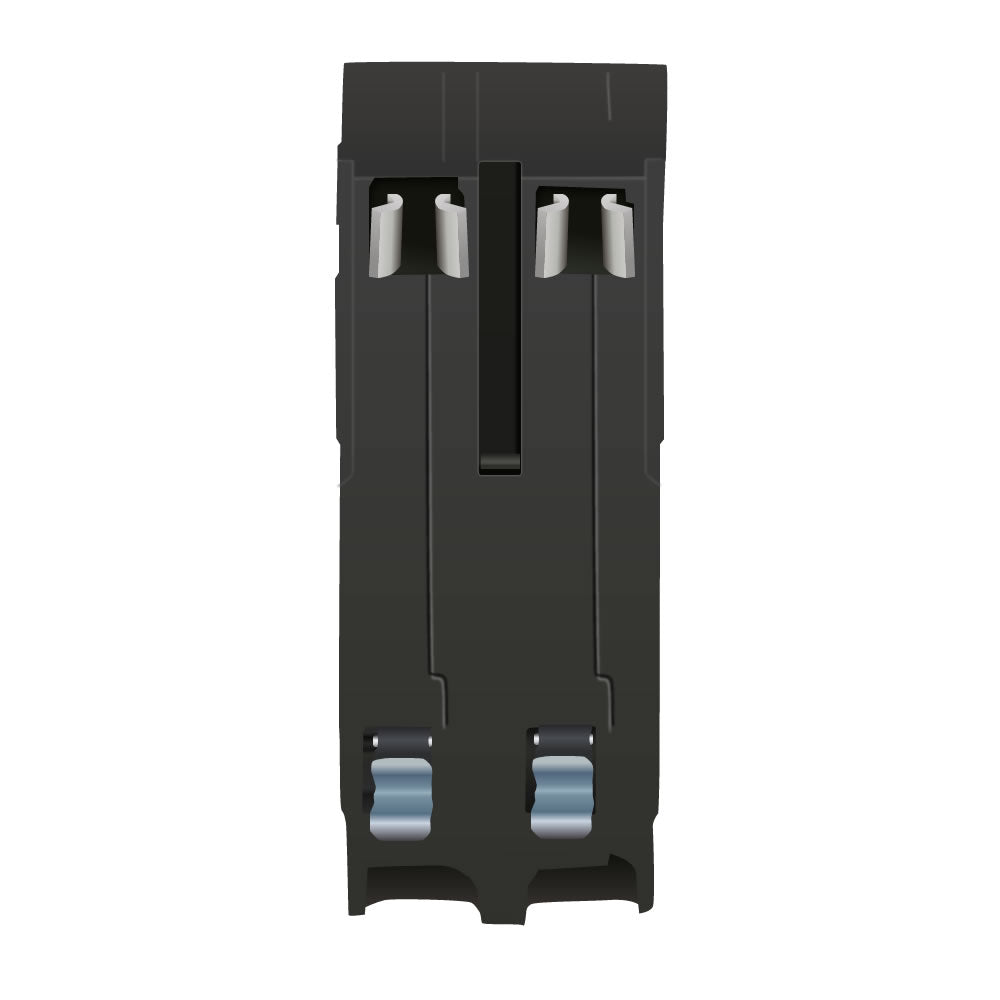

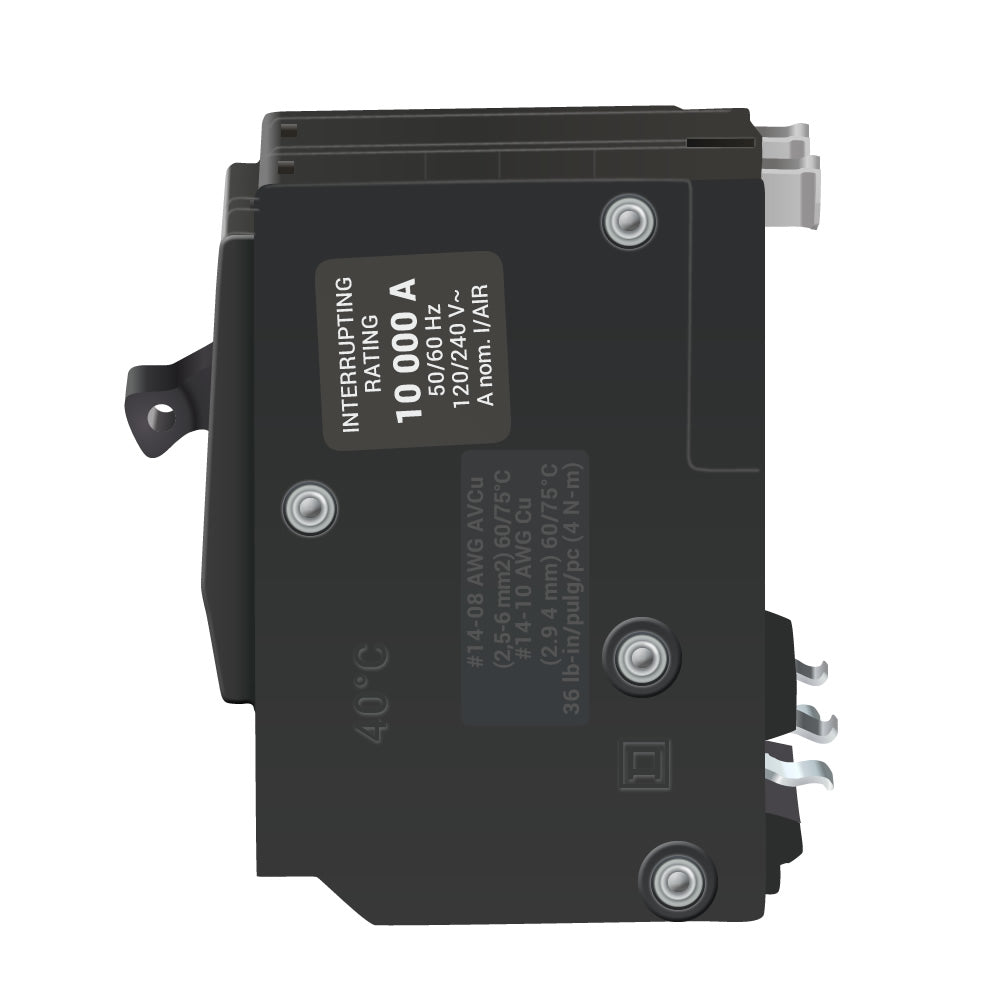

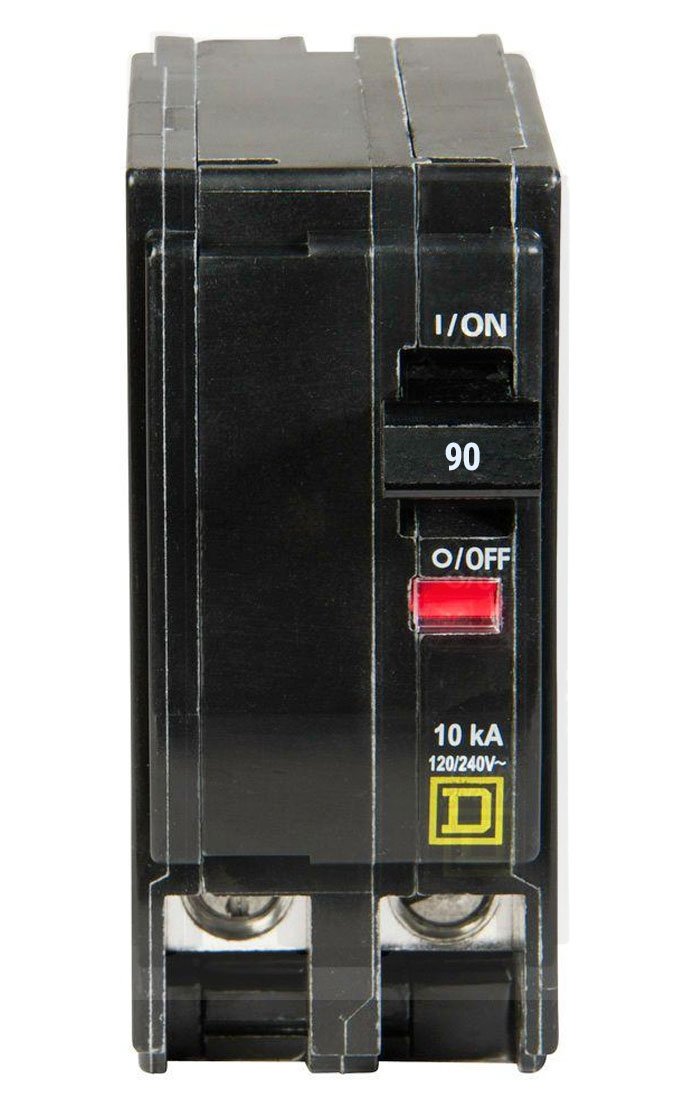

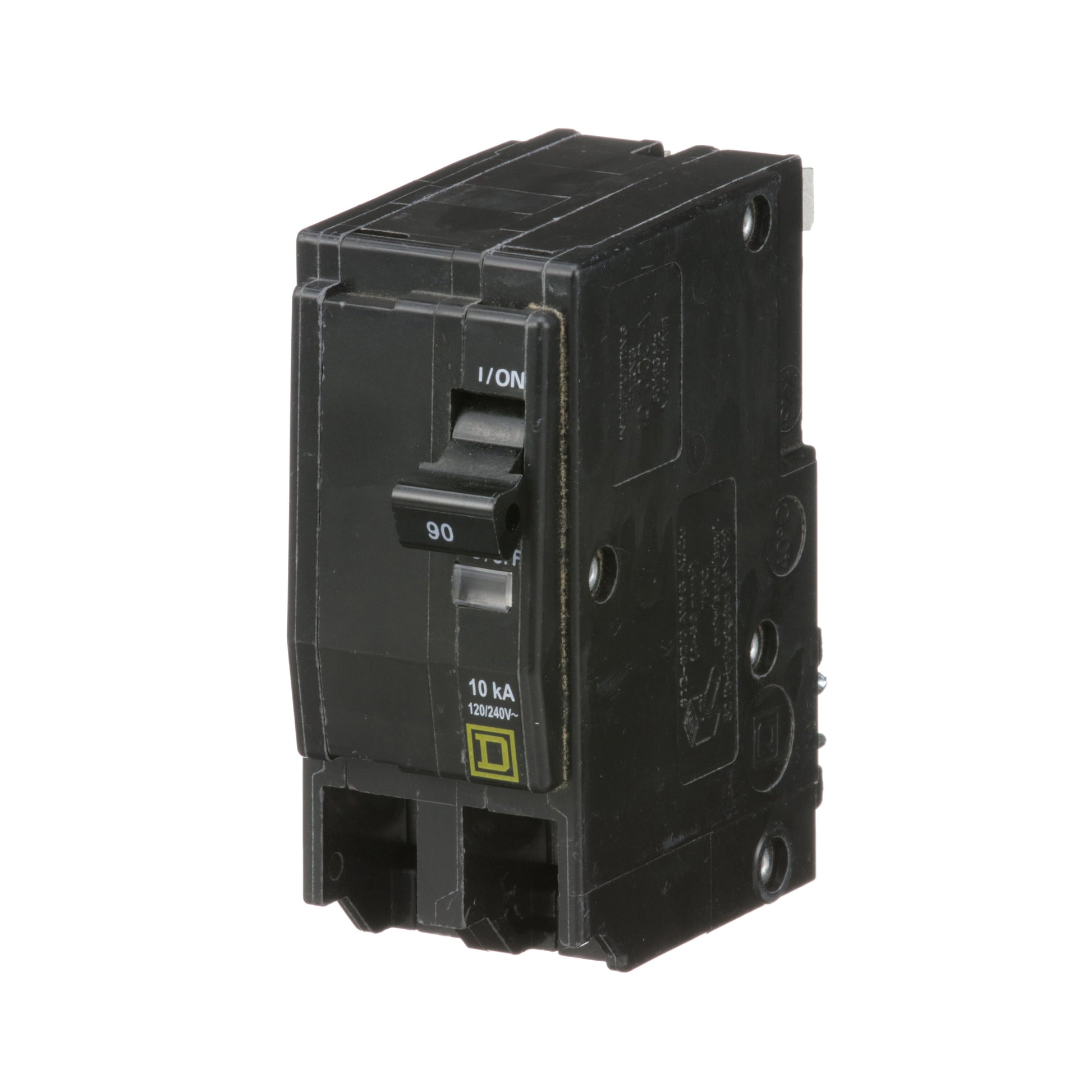

Square D QO290 Circuit Breaker 120/240V 90A 2P 10kA@240V QO Series

Product Description:
The Square D QO290 is a Molded Case Circuit Breaker from the QO Series family. It is a 2-pole, 90 amp breaker rated for 120/240 volts with a 10kA AIC rating at 240V. This model uses a plug-in connection and provides thermal magnetic protection. It is designed for use in QO load centers and NQ panelboards.

Key Features:
✔ Part Number: QO290
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 120/240
✔ Amperage: 90
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 1/0 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 78590150131
✔ GTIN: 00785901501312
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.5 in x 3.5 in
✔ Weight: 1
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: HACR, UL Listed
✔ Wire Size: 4 To 2/0 Awg (Aluminum/Copper)
