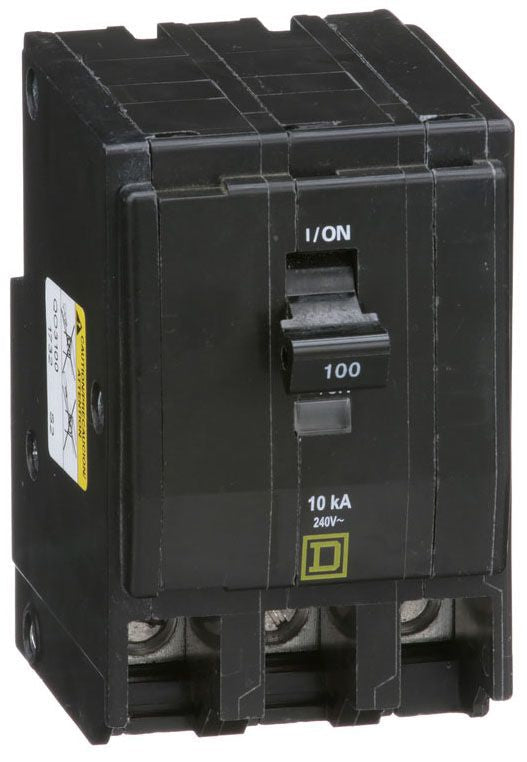

Square D QO3100 Circuit Breaker | 240V 100A 3P 10kA@240V Plug-In QO Series

Product Description:
The Square D QO3100 is a Molded Case Circuit Breaker from the QO Series family. It is a 3-pole, 240 Volt, 100 amp rated breaker with a 10kA@240V AIC rating. This model uses a plug-in connection and provides thermal magnetic protection. It is designed for use in QO Load Centers and NQ Panelboards.

Key Features:
✔ Part Number: QO3100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 240
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901004417
✔ GTIN: 00785901004417
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 3.5 in x 3.5 in
✔ Weight: 1
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA Certified, HACR, UL Listed
✔ Certification: HACR, UL Listed
✔ Wire Size: 4 To 2/0 Awg (Aluminum/Copper)
