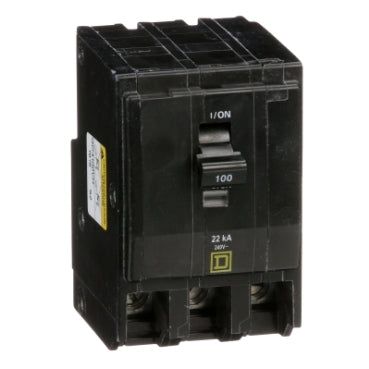

Square D QO3100VH Circuit Breaker | 240V 100A 3P 22kA@240V Plug-In QO Series

Product Description:
The Square D QO3100VH is a Molded Case Circuit Breaker designed for reliable electrical protection. It is a 3-pole, 100 amp breaker rated for 240 volts with a high interrupting capacity of 22kA. This model features thermal magnetic protection and a plug-in connection for easy installation. It is compatible with QO Load Centers and NQ Panelboards.

Key Features:
✔ Part Number: QO3100VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 240
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 2 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901060192
✔ GTIN: 00785901060192
✔ Country of Origin: Mexico
✔ Dimensions: 2.24 in x 3.5 in x 3.5 in
✔ Weight: 1
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: AWG 4 to AWG 2/0 Copper/Aluminum
