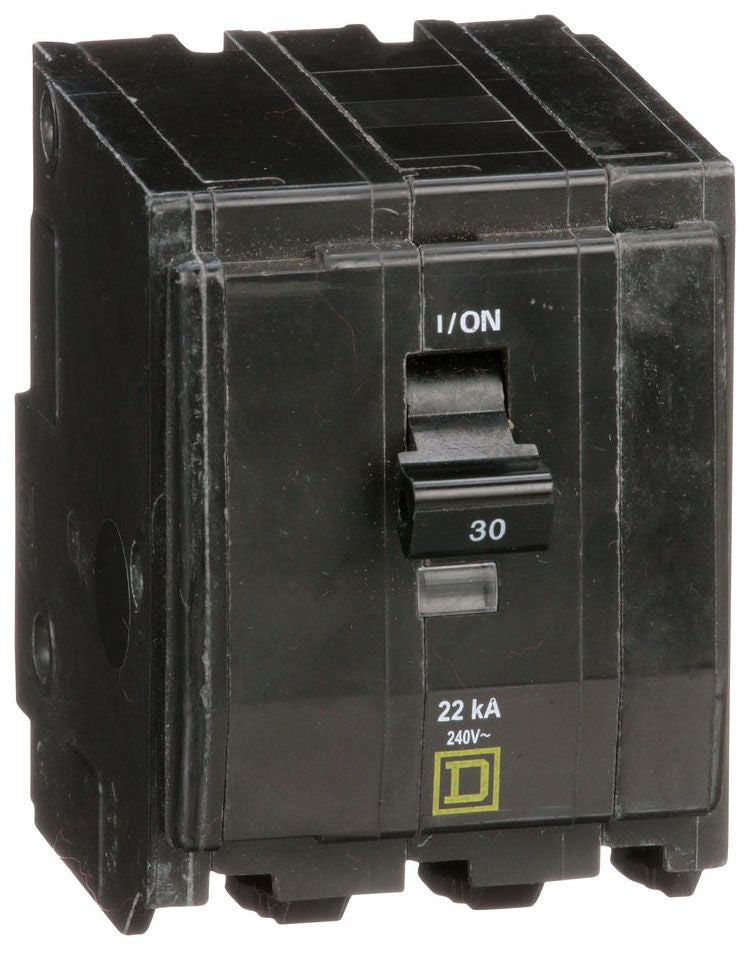

Square D QO330VH Circuit Breaker | 240V 30A 3P 22kA@240V Plug-In QO Series

Product Description:
The Square D QO330VH is a molded case circuit breaker designed for reliable electrical protection. It is a 3-pole, 30-amp breaker rated for 240 volts with a high interrupting capacity of 22kA. This model features thermal magnetic protection and a plug-in connection for easy installation. It is compatible with QO load centers and NQ panelboards.

Key Features:
✔ Part Number: QO330VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QO
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 22kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901371885
✔ GTIN: 00785901371885
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 3 in x 2.99 in
✔ Weight: 0.36
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
