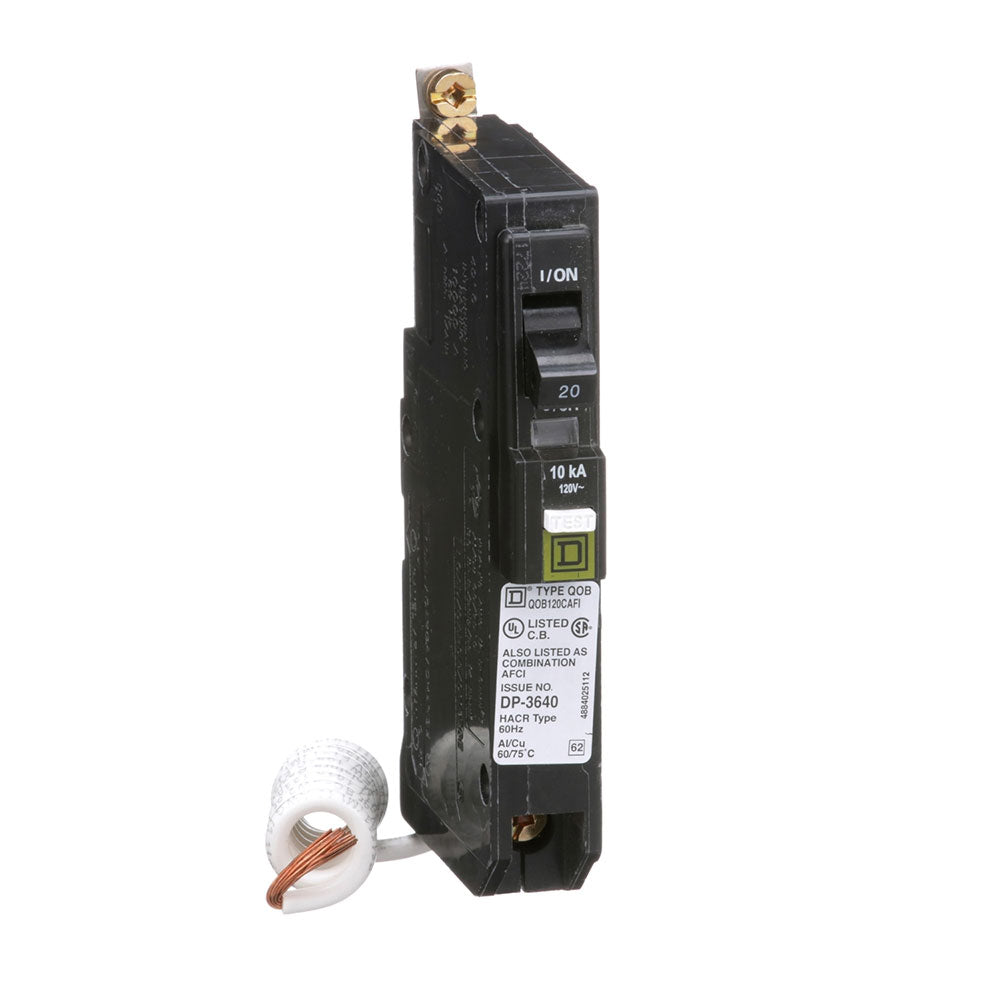

Square D QOB120CAFI Circuit Breaker | 120V 20A 1P 10kA@120V Bolt-On Arc Fault QOB Series

Product Description:
The Square D QOB120CAFI is a 1-pole Molded Case Circuit Breaker rated for 20 amps at 120 volts. It features a bolt-on connection and provides thermal magnetic protection for reliable circuit safety. This AFCI breaker is designed for use in QO Load Centers and NQ Panelboards, meeting UL and CSA standards.

Key Features:
✔ Part Number: QOB120CAFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Arc Fault Circuit Interrupter
✔ Protection: Thermal Magnetic
✔ UPC: 785901530602
✔ GTIN: 00785901530602
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 4.75 in x 4.76 in
✔ Weight: 1
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 14-8 AWG (Al) (2) 14-8 14-10 AWG (Cu)
