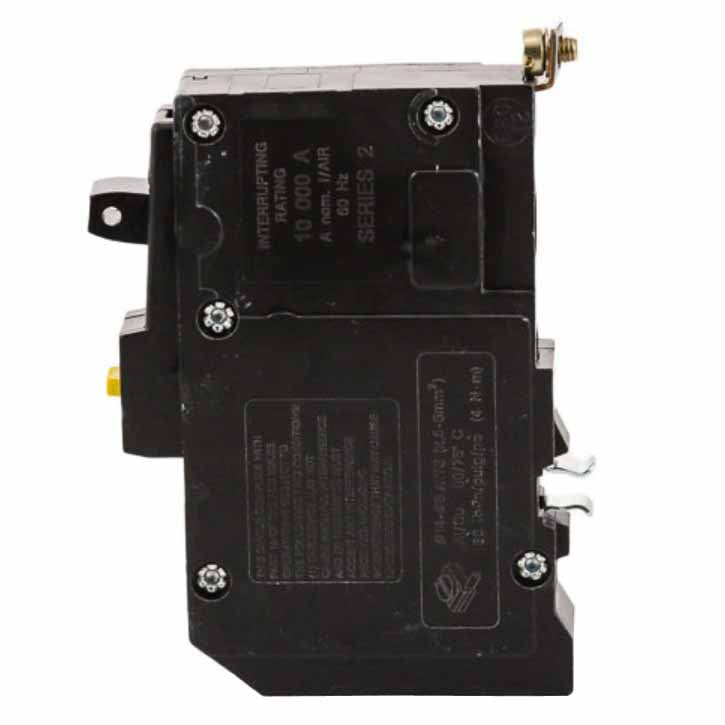

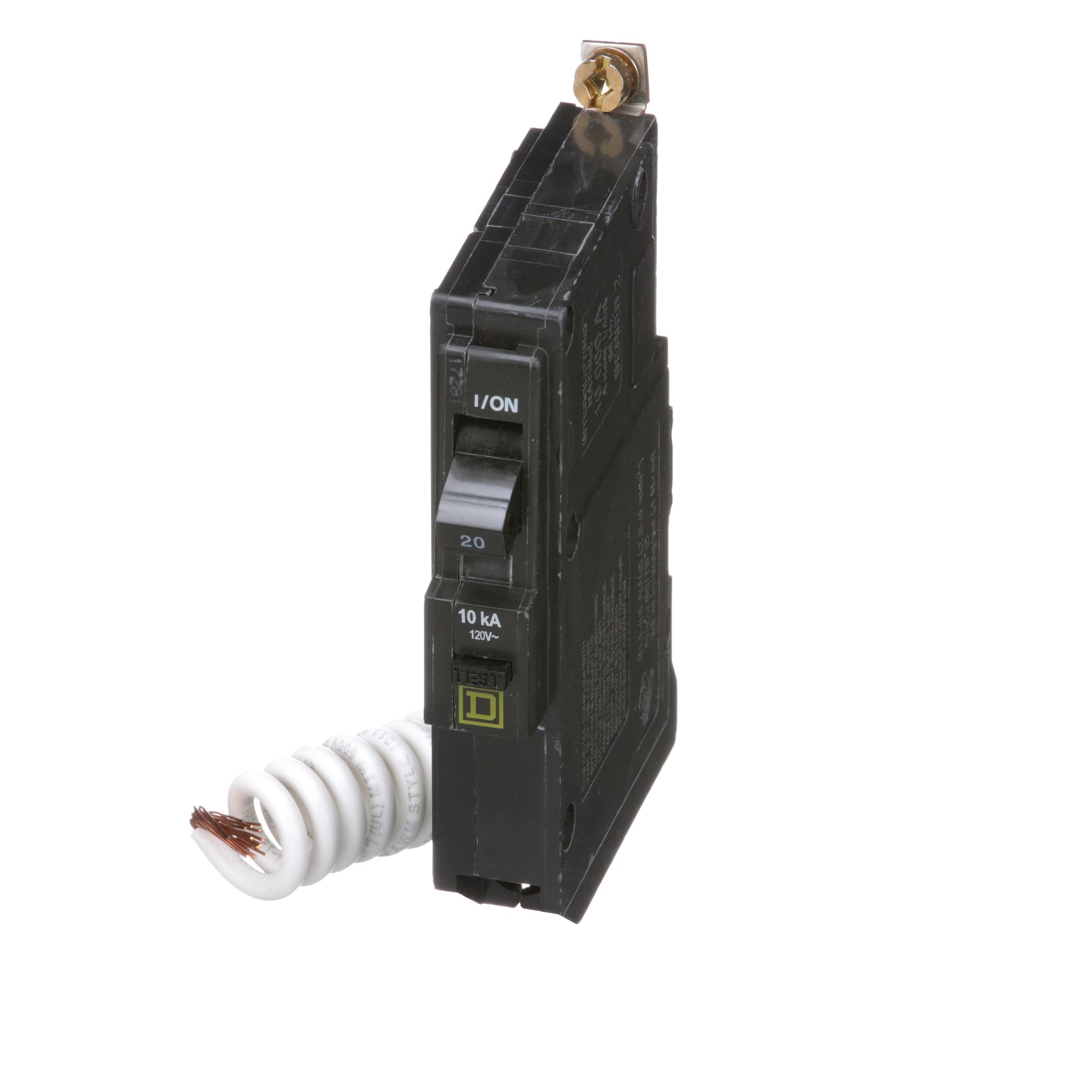

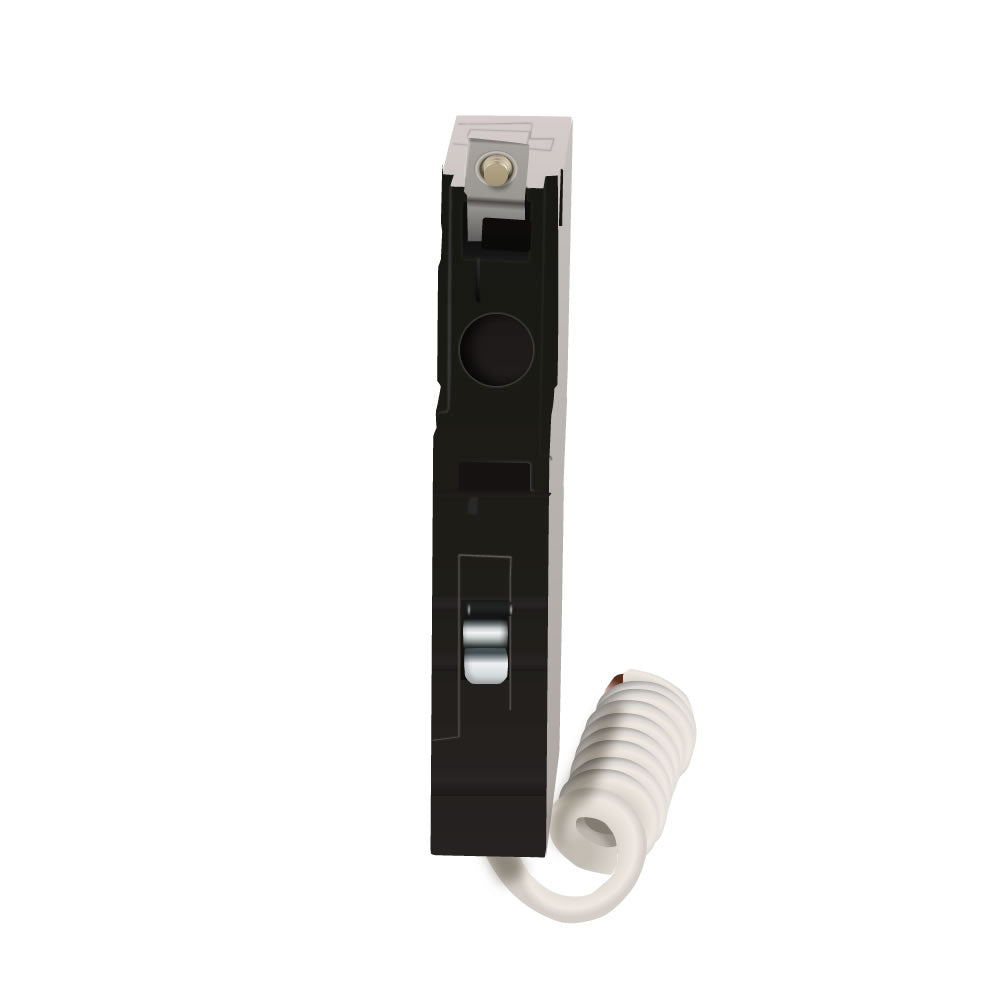

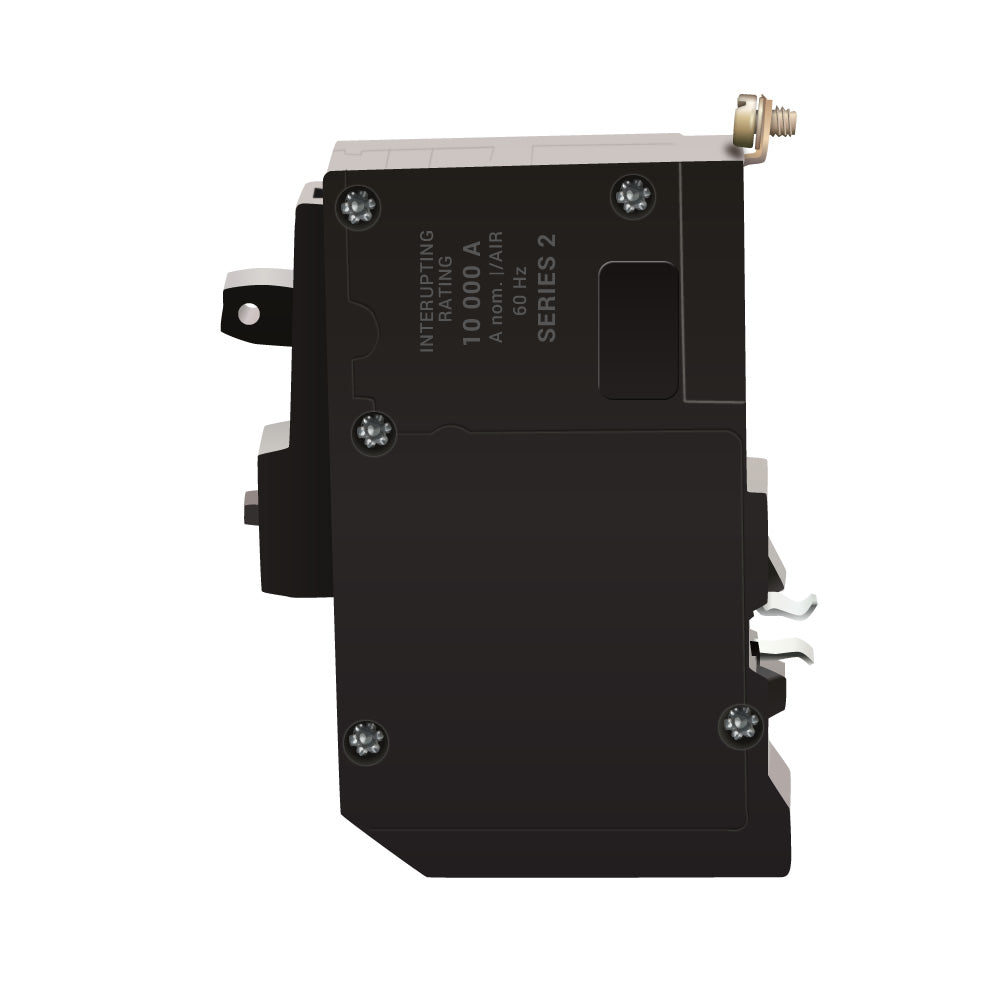

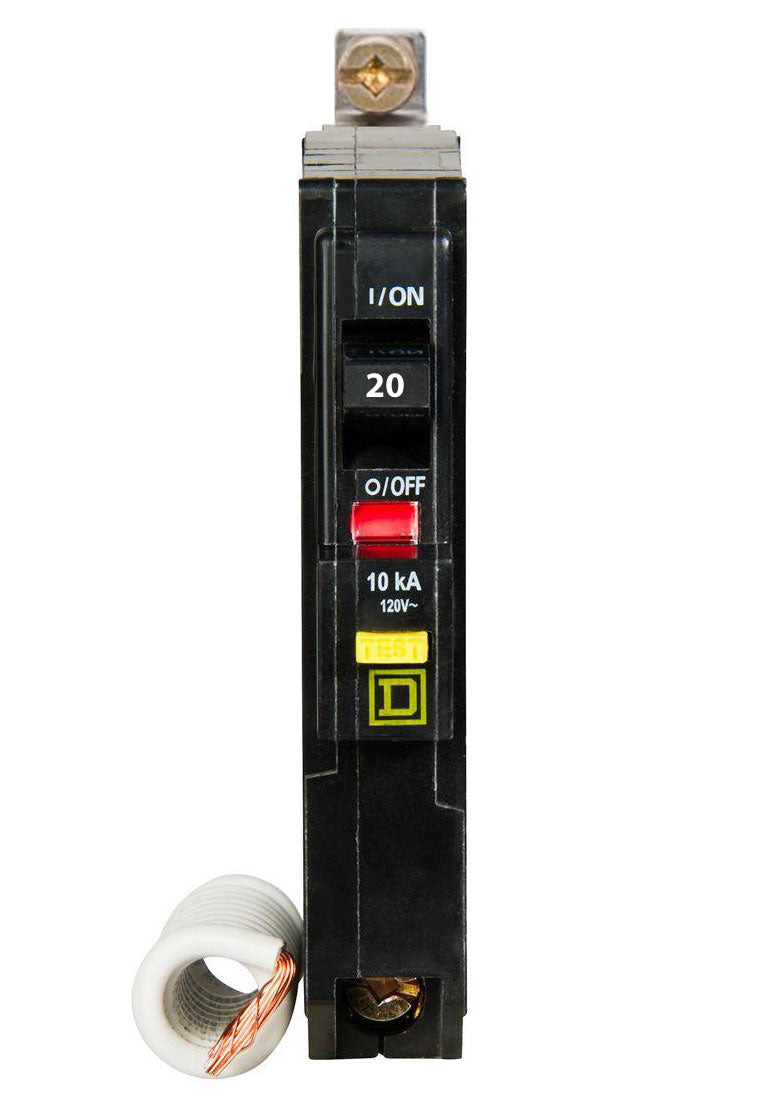

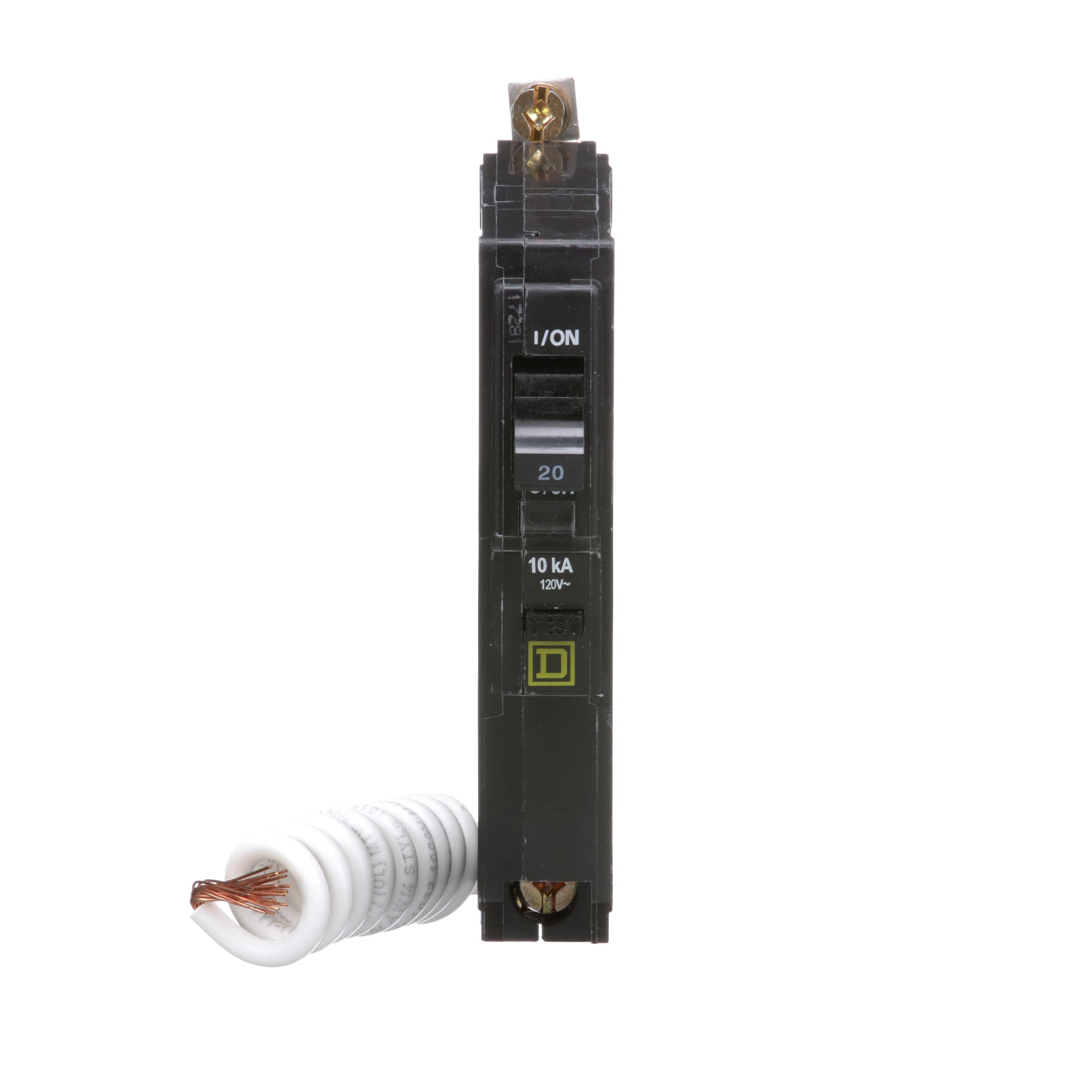

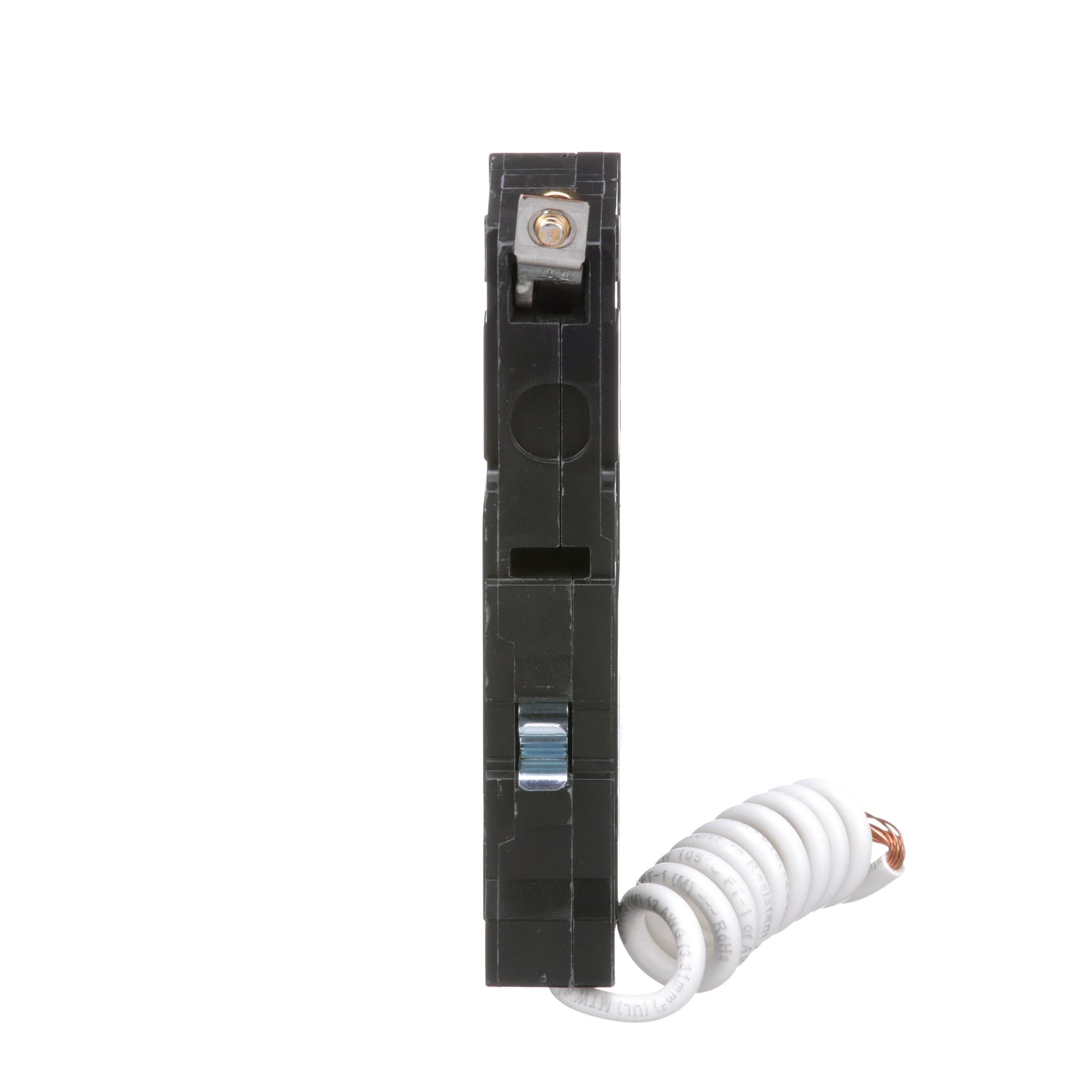

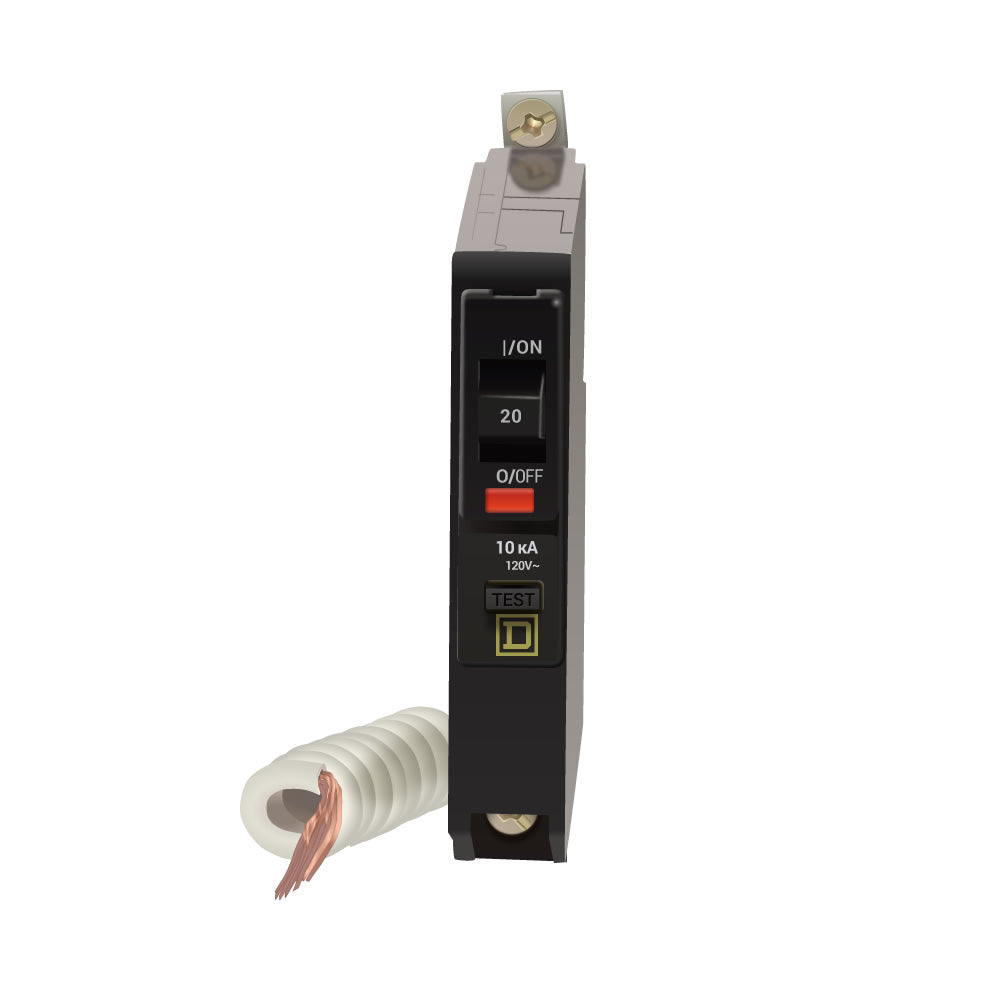

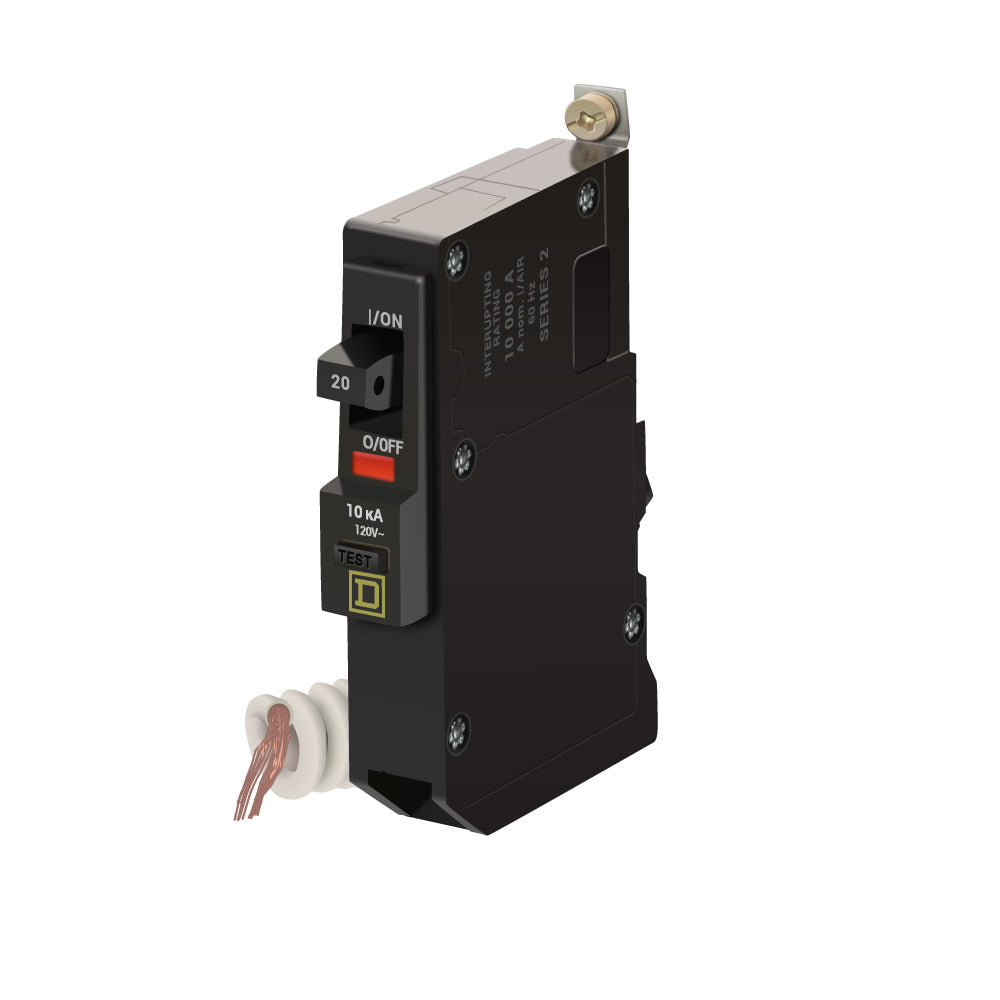

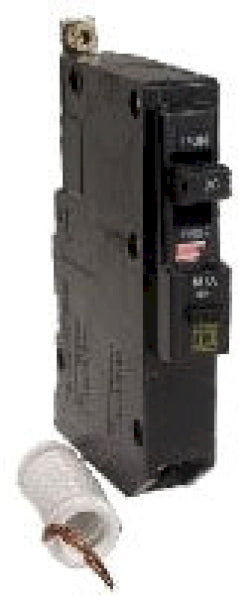

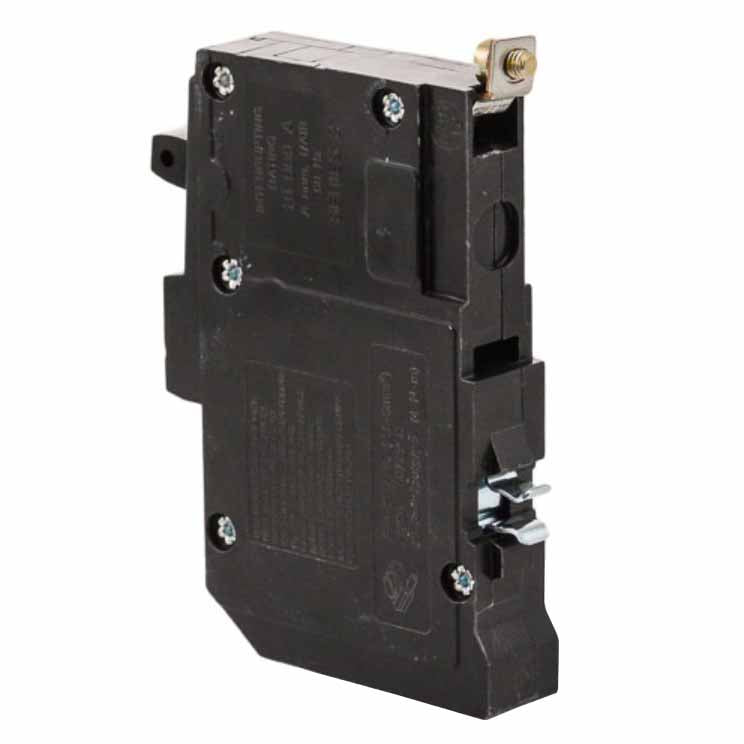

Square D QOB120EPD Circuit Breaker | 120V 20A 1P 10kA@120V Bolt-On QOB Series

Product Description:
The Square D QOB120EPD is a Molded Case Circuit Breaker from the QOB Series. It is a 1-pole, 20 amp breaker rated for 120 volts with a 10kA AIC rating and uses a bolt-on connection. This circuit breaker provides thermal magnetic protection and is designed for use in QO Load Centers and NQ Panelboards.

Key Features:
✔ Part Number: QOB120EPD
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Ground Fault Equipment Protection
✔ Protection: Thermal Magnetic
✔ Trip Type: Equipment Protection
✔ UPC: 785901763697
✔ GTIN: 00785901763697
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 4.12 in x 4.13 in
✔ Weight: 0.45 lb
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 12 To 8 Awg (Aluminum) 14 To 8 Awg (Copper)
