Product Description:

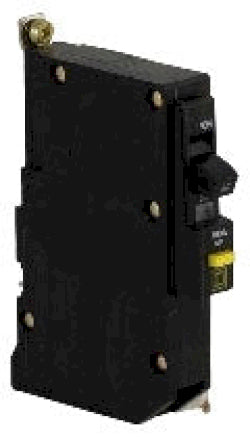

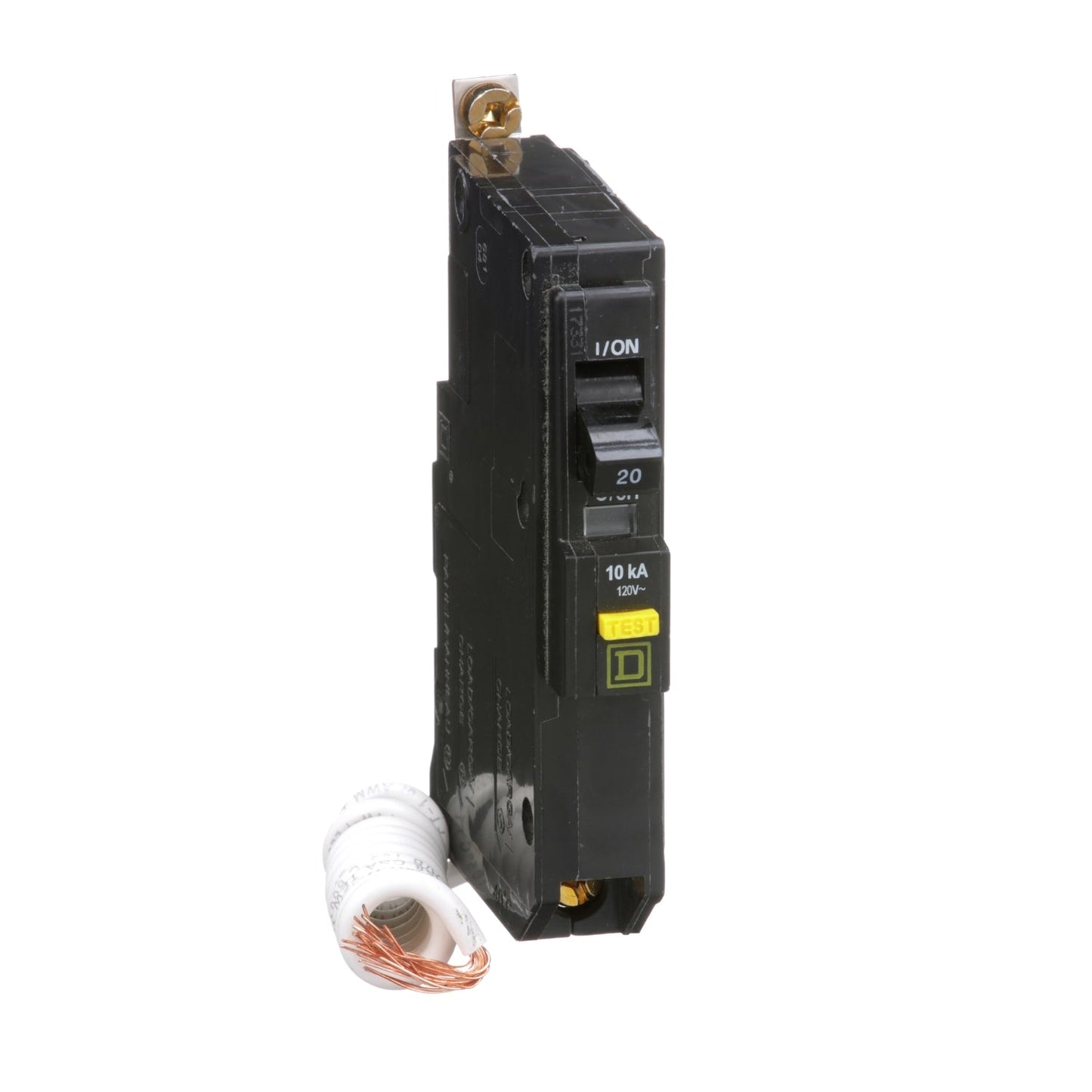

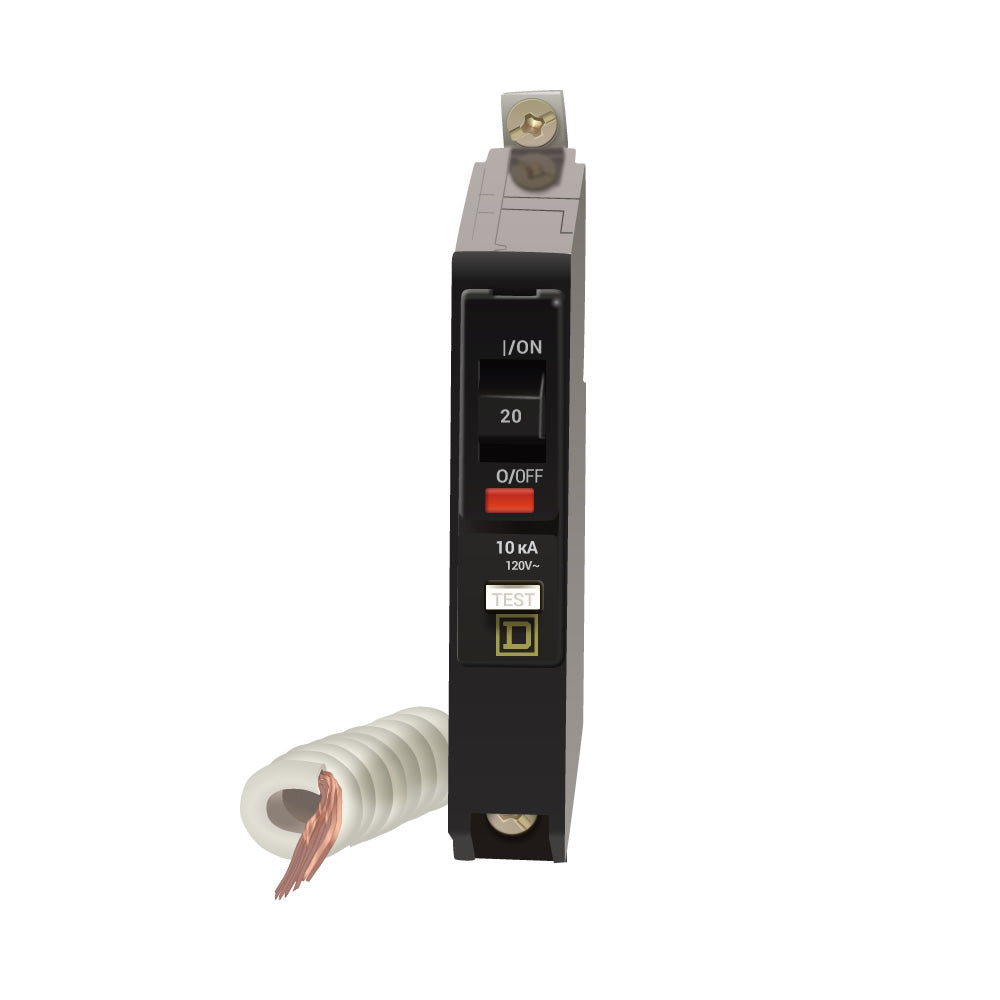

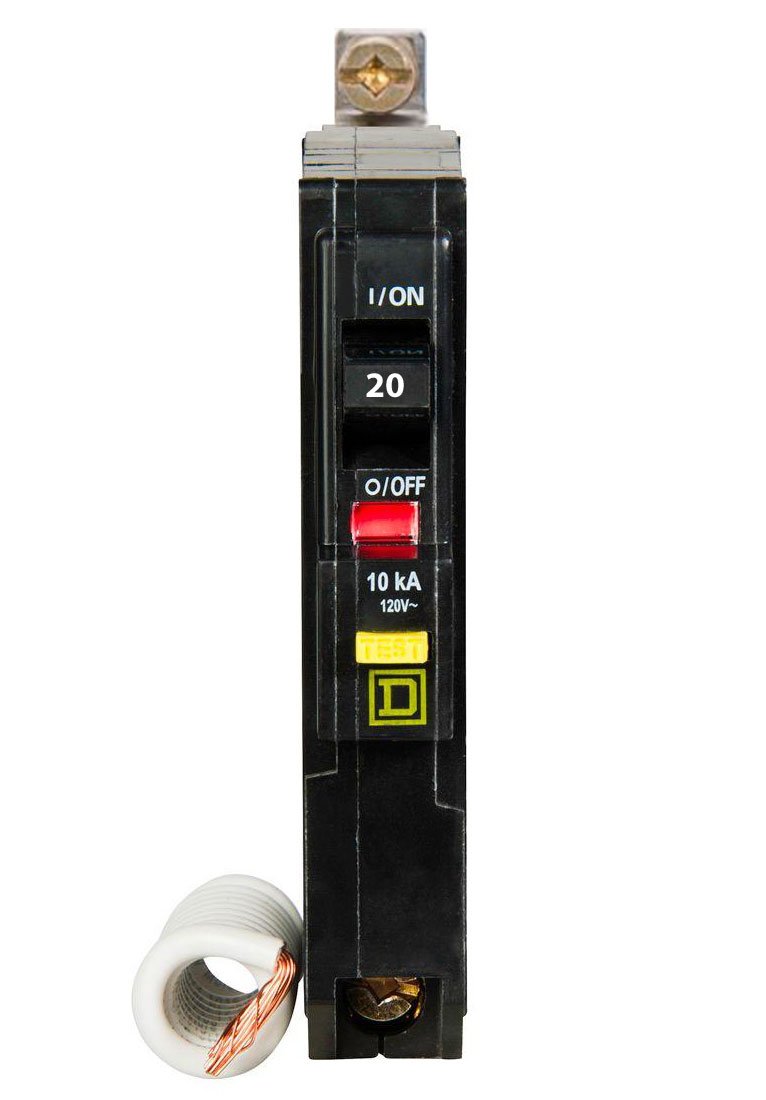

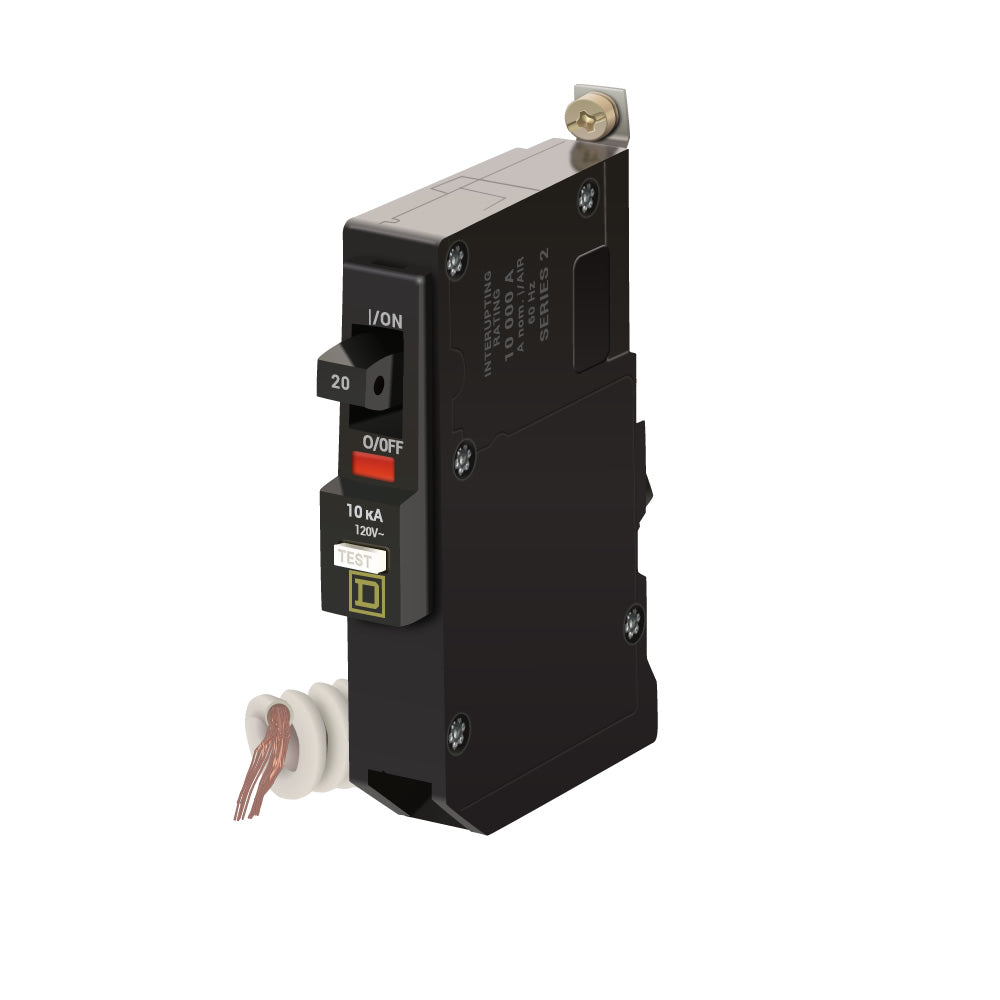

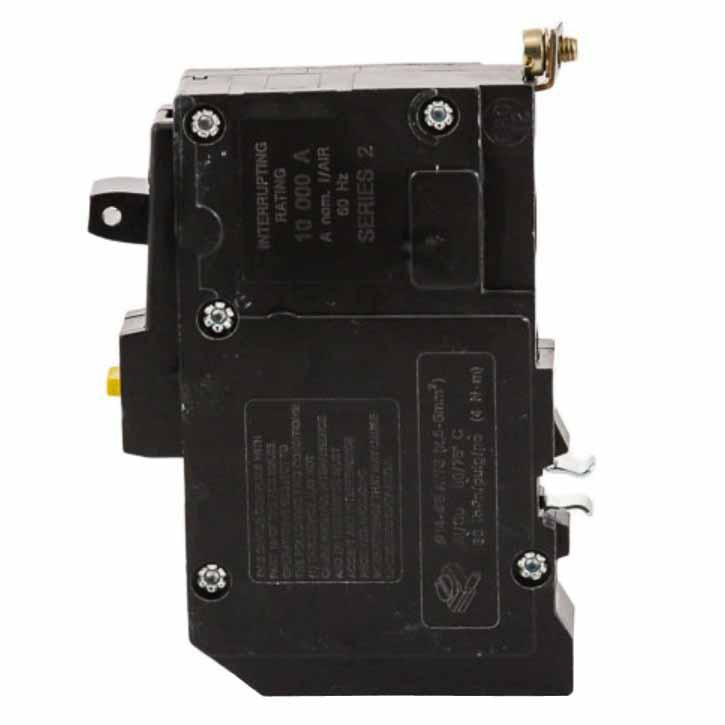

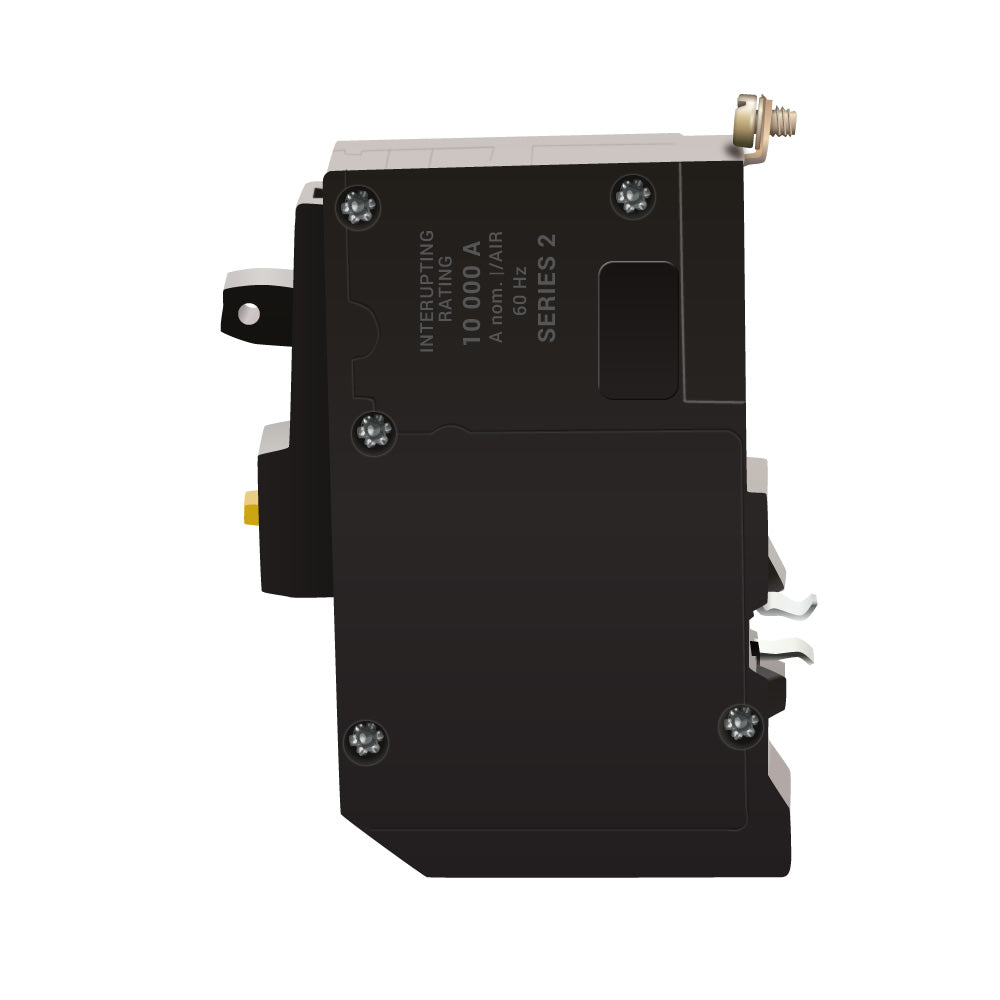

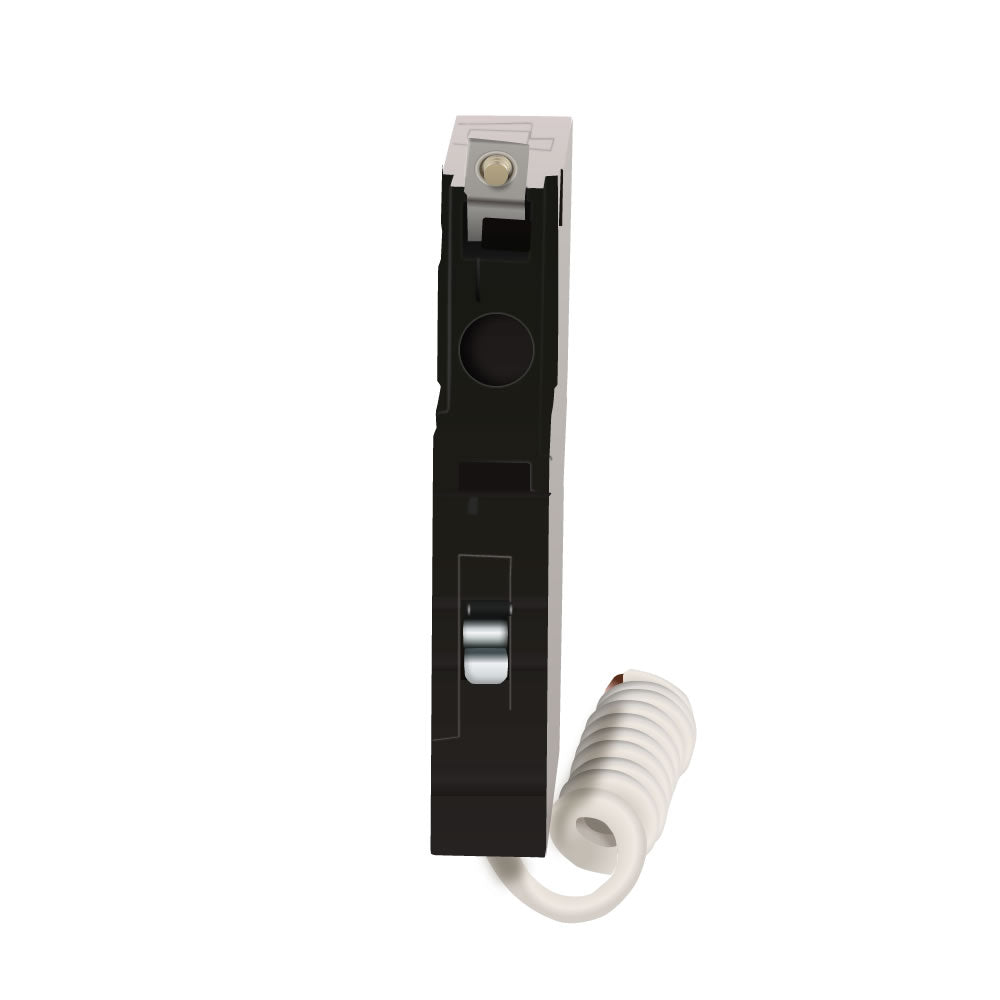

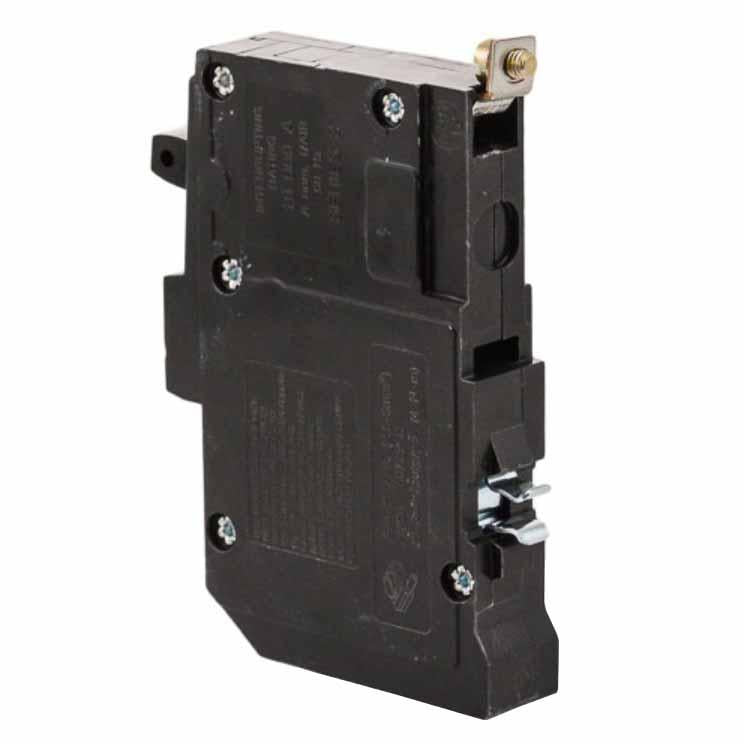

The Square D QOB120GFI is a Molded Case Circuit Breaker from the QOB Series. It features a 1-pole design with 120VAC voltage and 20 amp rating, offering a 10kA@120V AIC rating. This bolt-on connection breaker includes thermal magnetic protection and ground fault circuit interrupter (Class A - 5mA) functionality. It is compatible with QO Load Centers and NQ Panelboards.
Key Features:
✔ Part Number: QOB120GFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120VAC
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 78590136871
✔ GTIN: 00785901368717
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 4.12 in x 4.13 in
✔ Weight: 0.53 lb
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
