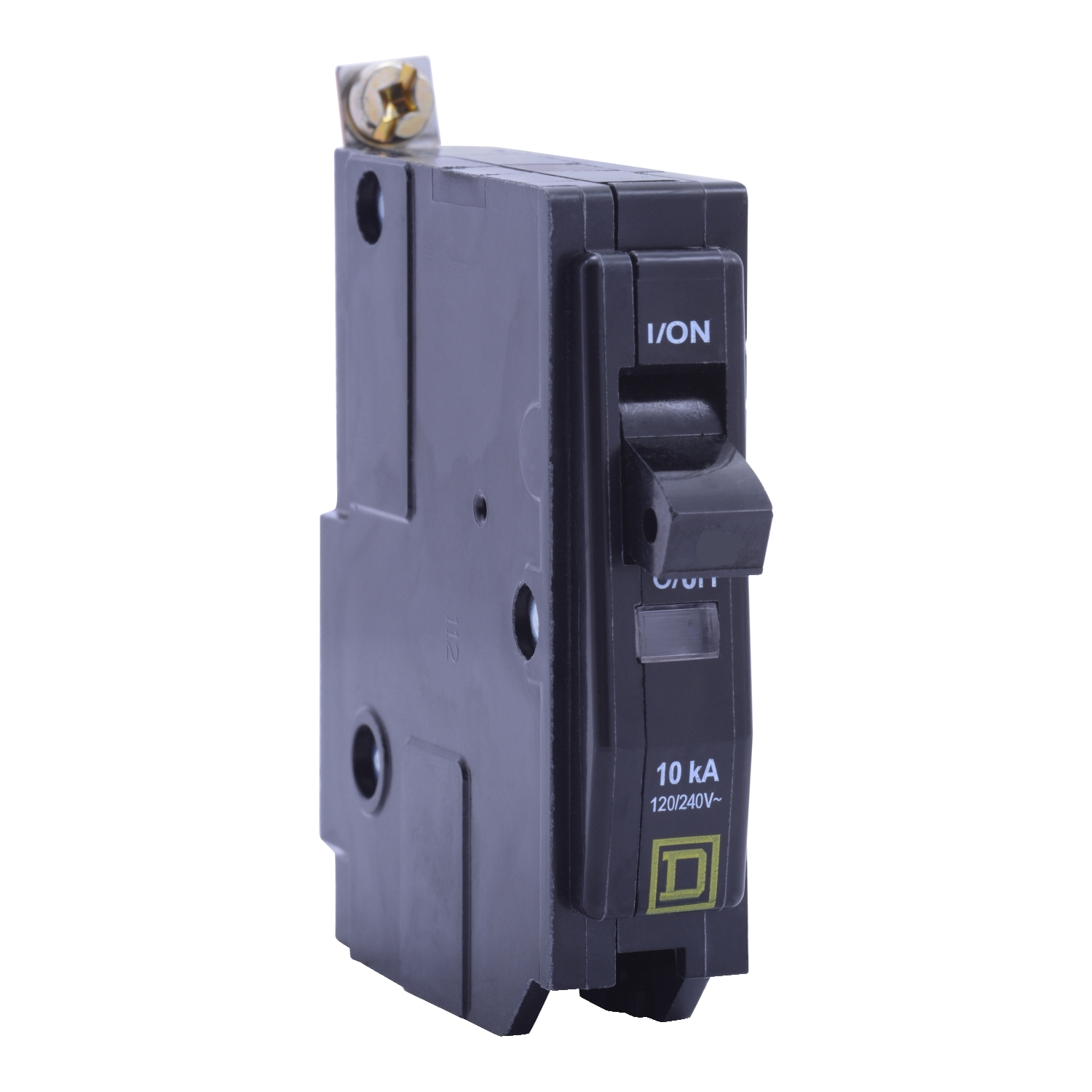

Square D QOB120HID Circuit Breaker | 120V 20A 1P 10kA@120V Bolt-on QOB Series

Product Description:
The Square D QOB120HID is a molded case circuit breaker designed for reliable electrical protection. It features thermal magnetic protection and is rated for 120 volts and 20 amps. This single-pole breaker has a 10kA interrupting capacity and uses a bolt-on connection for secure installation.

Key Features:
✔ Part Number: QOB120HID
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: High Intensity Discharge
✔ Protection: Thermal Magnetic
✔ UPC: 785901543893
✔ GTIN: 00785901543893
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 3 in x 2.99 in
✔ Weight: 0.3
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
