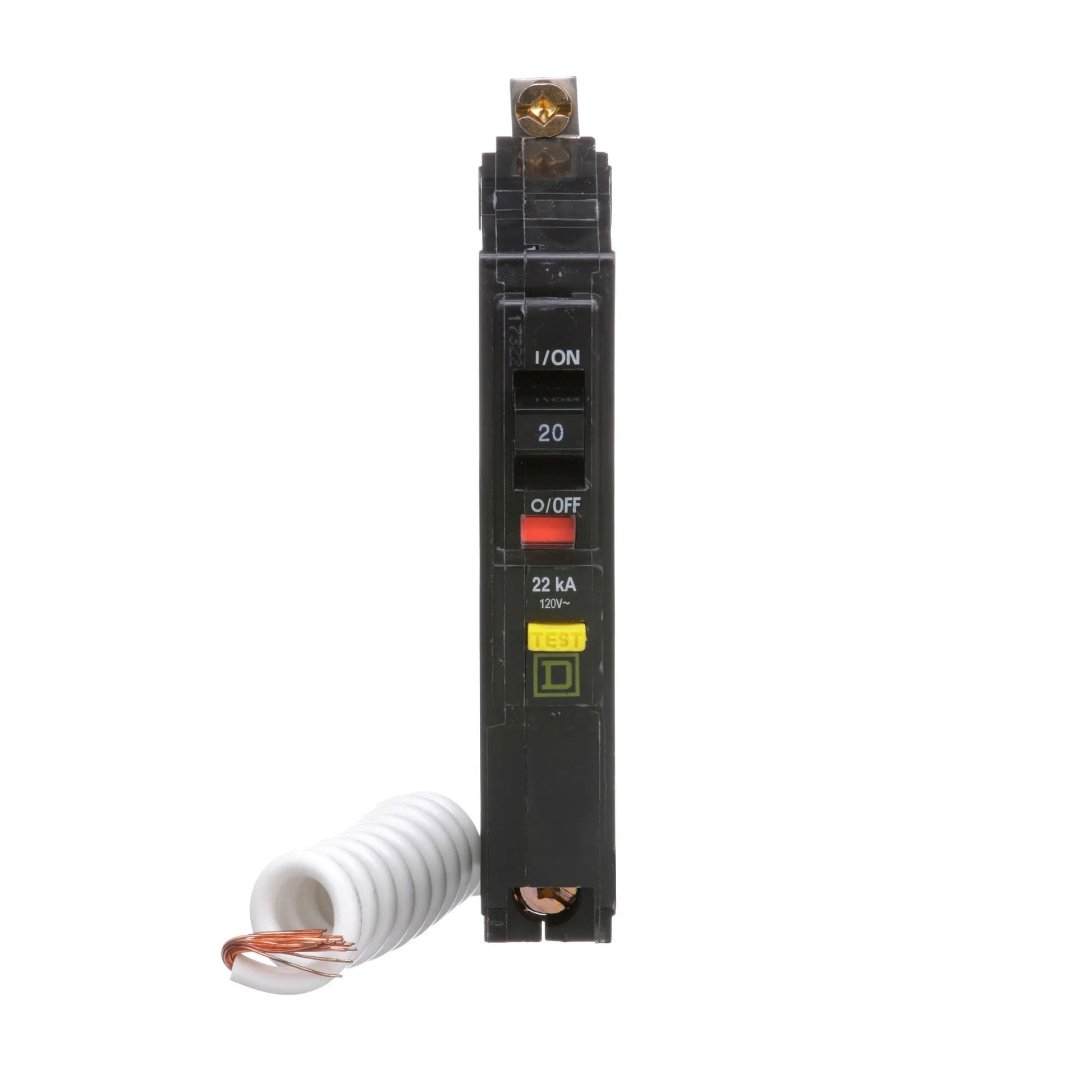

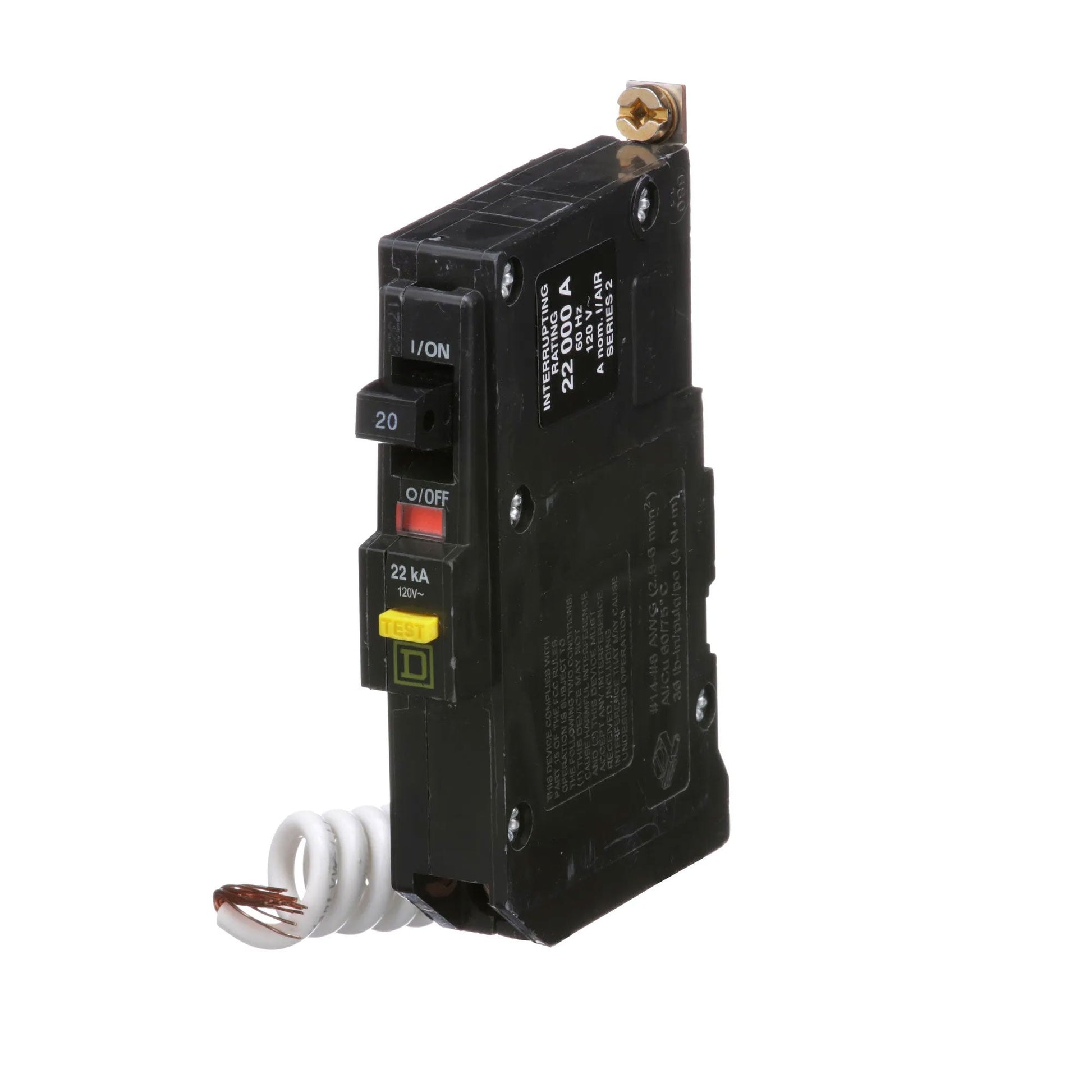

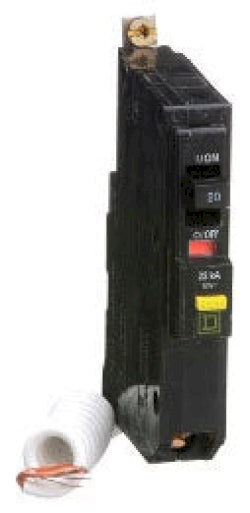

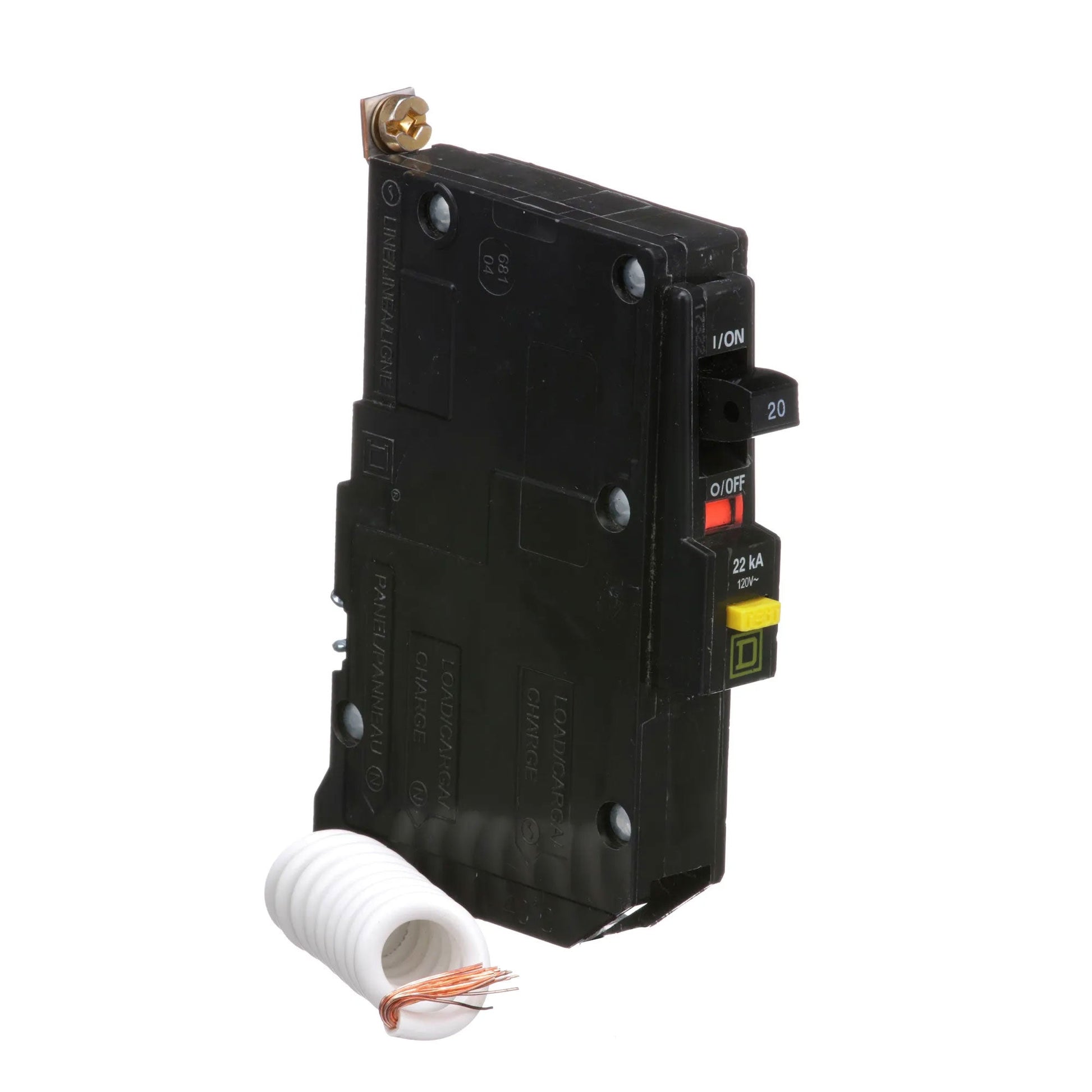

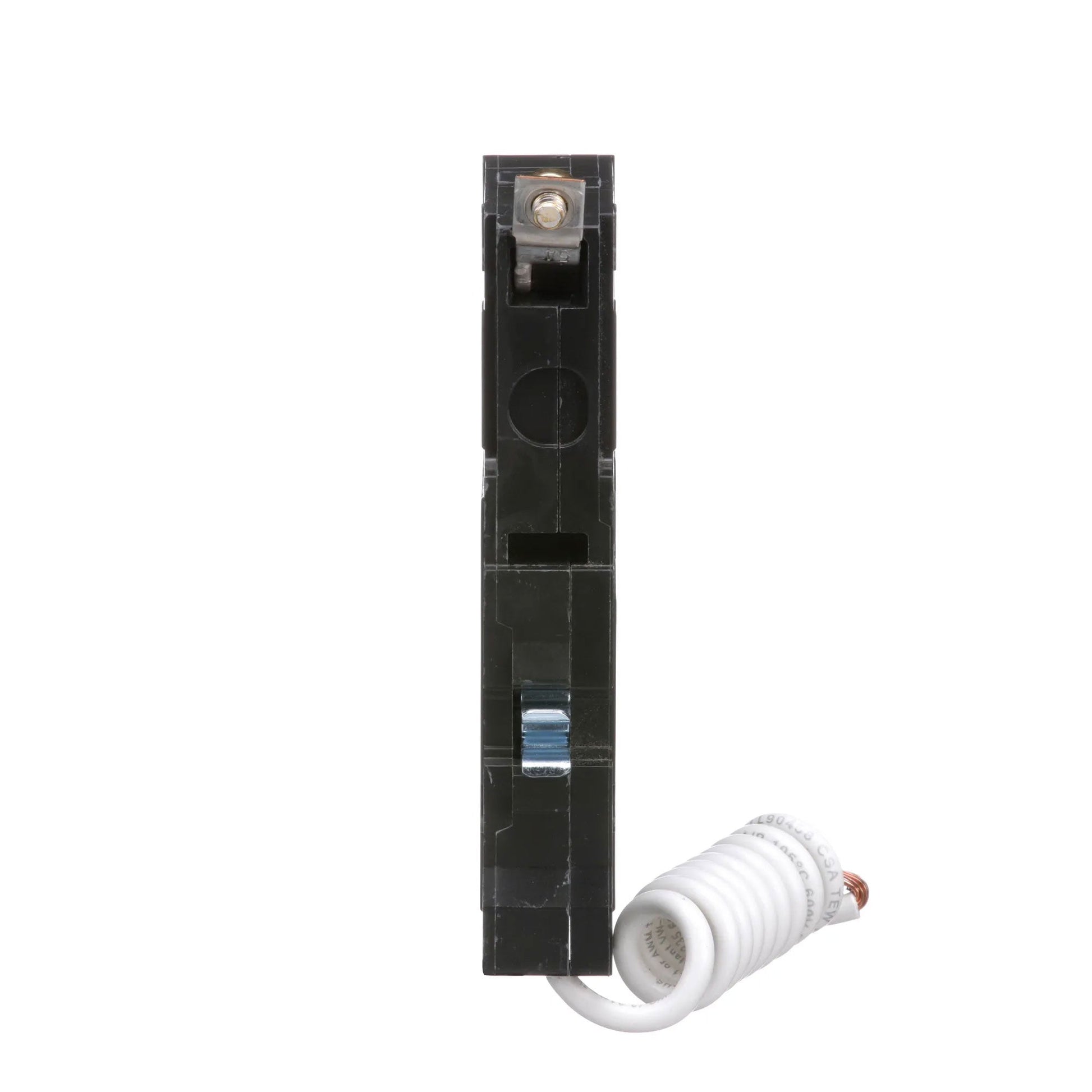

Square D QOB120VHGFI Circuit Breaker | QOB Series QOB 120V 20A

Product Description:
The Square D QOB120VHGFI is a Molded Case Circuit Breaker from the QOB Series. It features a 1-pole design with a 120V, 20A rating and a 22kA@120V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It is UL Listed and CSA certified for safety compliance.

Key Features:
✔ Part Number: QOB120VHGFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120V
✔ Amperage: 20A
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 22kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ MCM Size: Min. Wire Size 14 AWG (Cu), 12 AWG (Al)
✔ Max. Wire Size: 8 AWG (Cu), 8 AWG (Al)
✔ Certification: UL Listed, CSA
✔ UPC: 785901520719
✔ GTIN: 00785901520719
✔ Country of Origin: Mexico

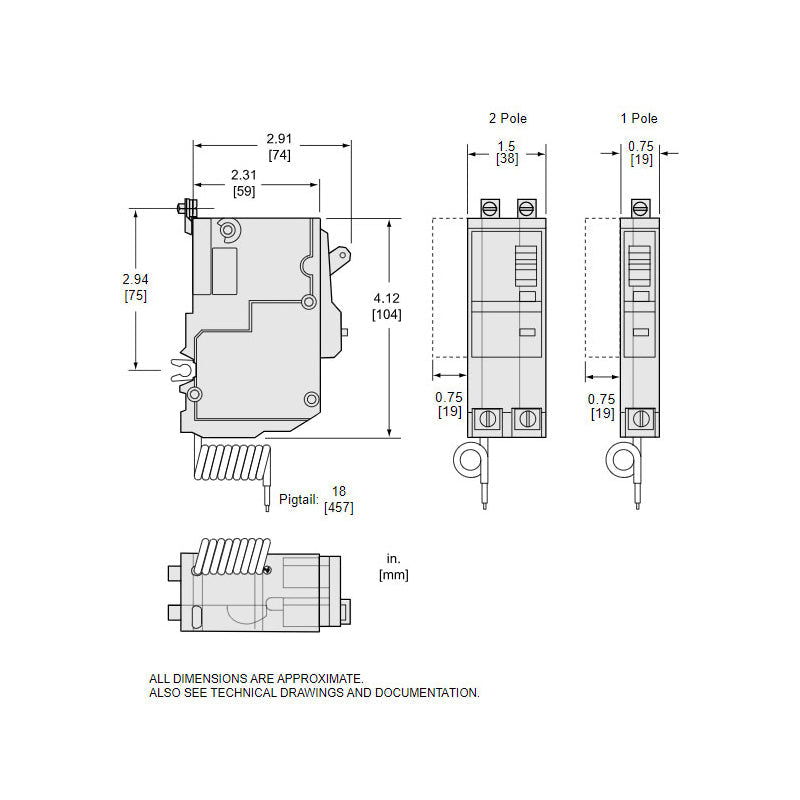

✔ Dimensions: 19 mm x 105 mm
✔ Weight: 0.52 lbs
