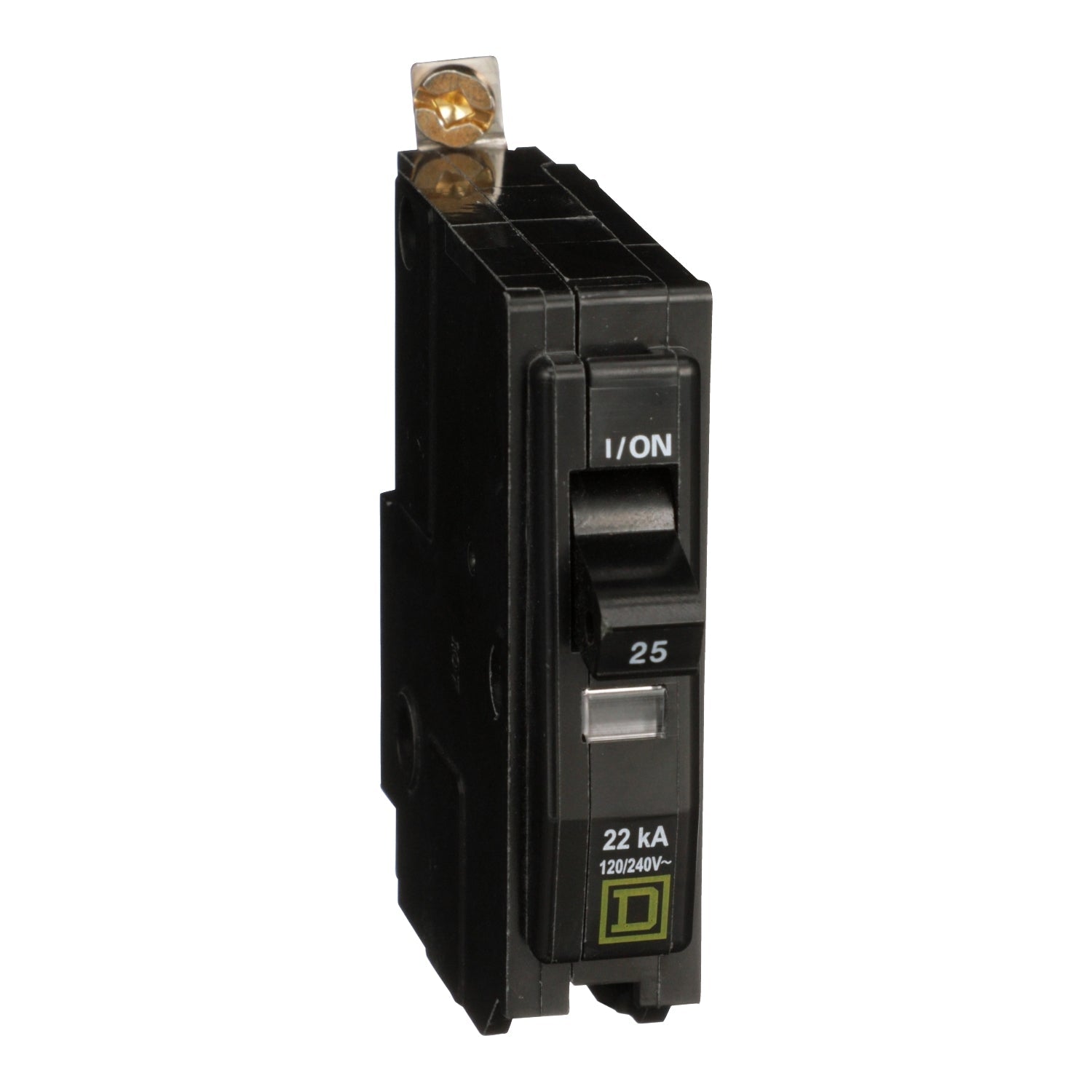

Square D QOB125VH Circuit Breaker | 120V 25A 1P 22kA@120V Bolt-on QOB Series

Product Description:
The Square D QOB125VH is a Molded Case Circuit Breaker from the QOB Series. It is a 1-pole, 25 amp breaker rated for 120V with a 22kA interrupting capacity. This model features a bolt-on connection and provides thermal magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: QOB125VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120
✔ Amperage: 25
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 22kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901371892
✔ GTIN: 00785901371892
✔ Country of Origin: Mexico
✔ Dimensions: Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 0.5
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
