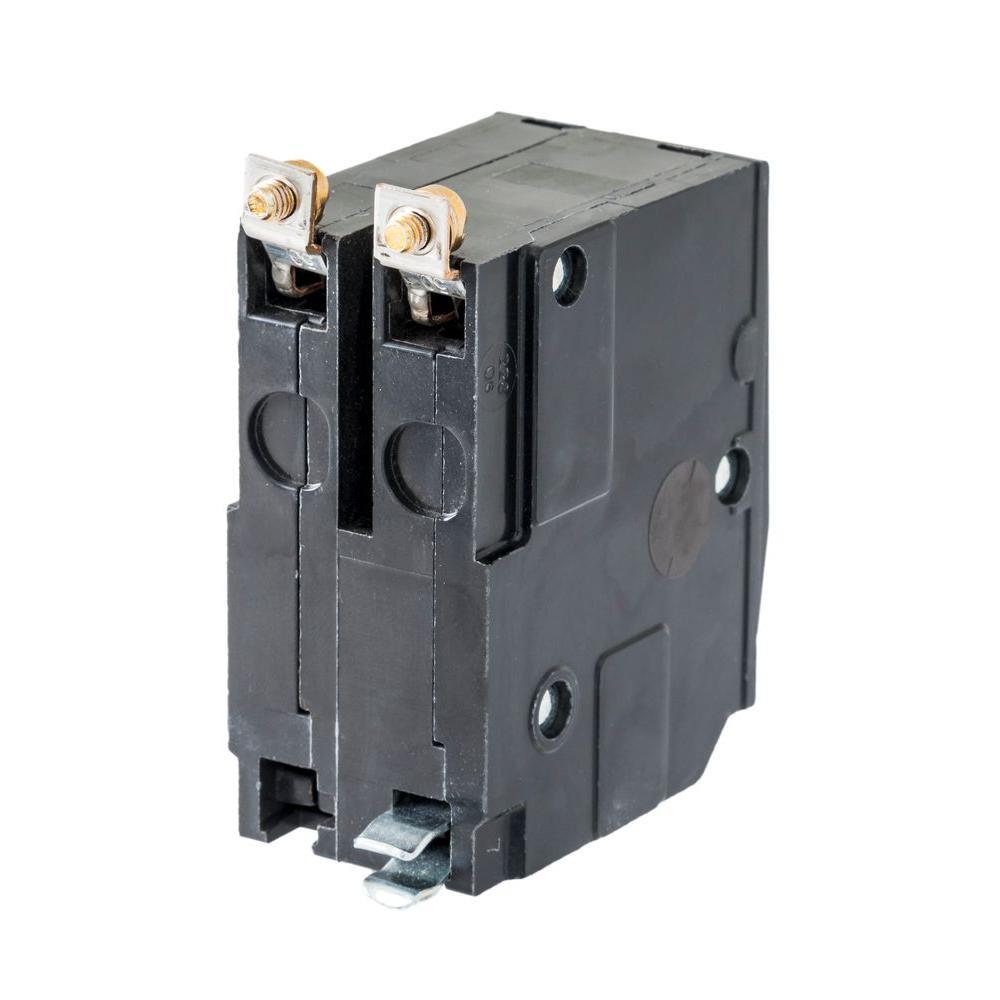

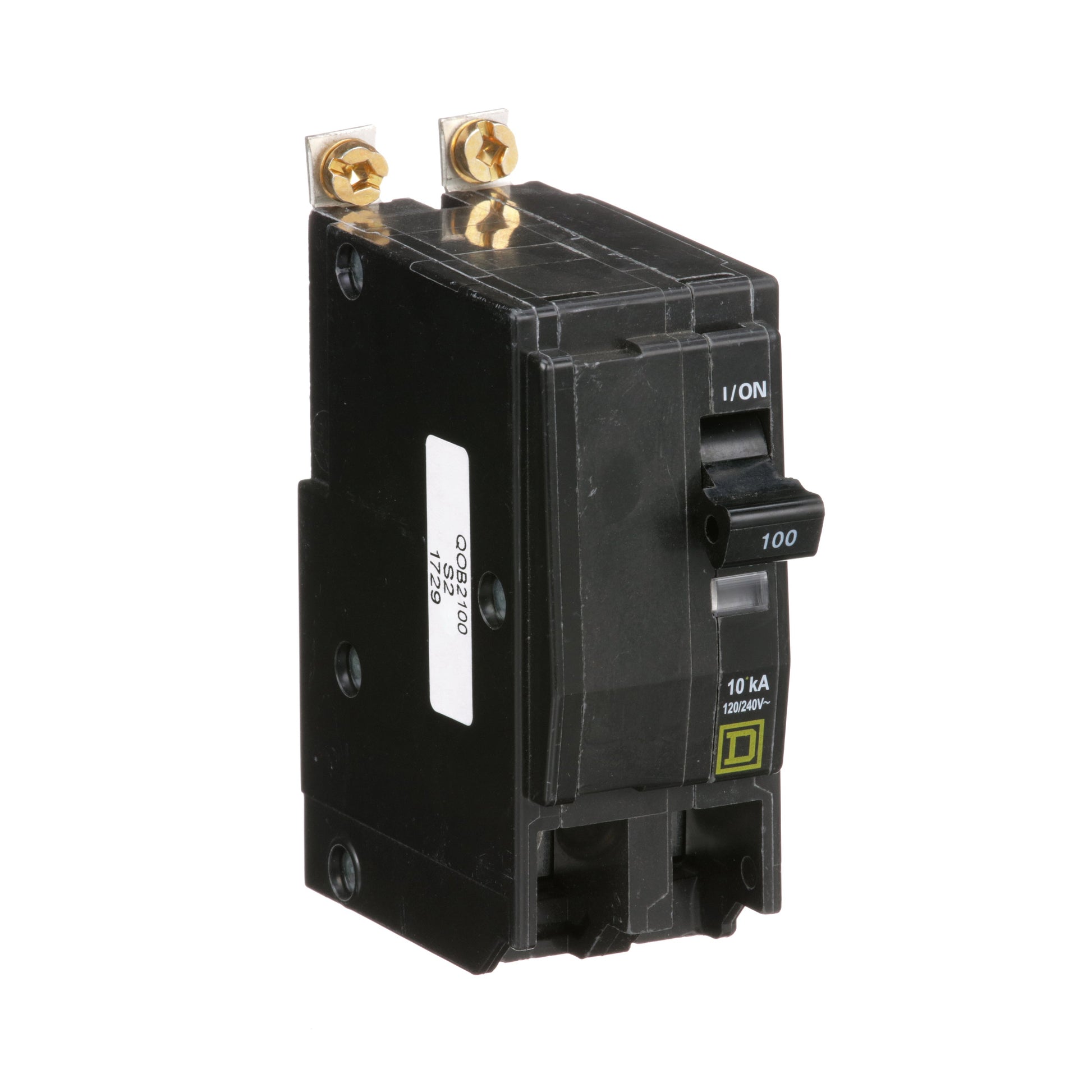

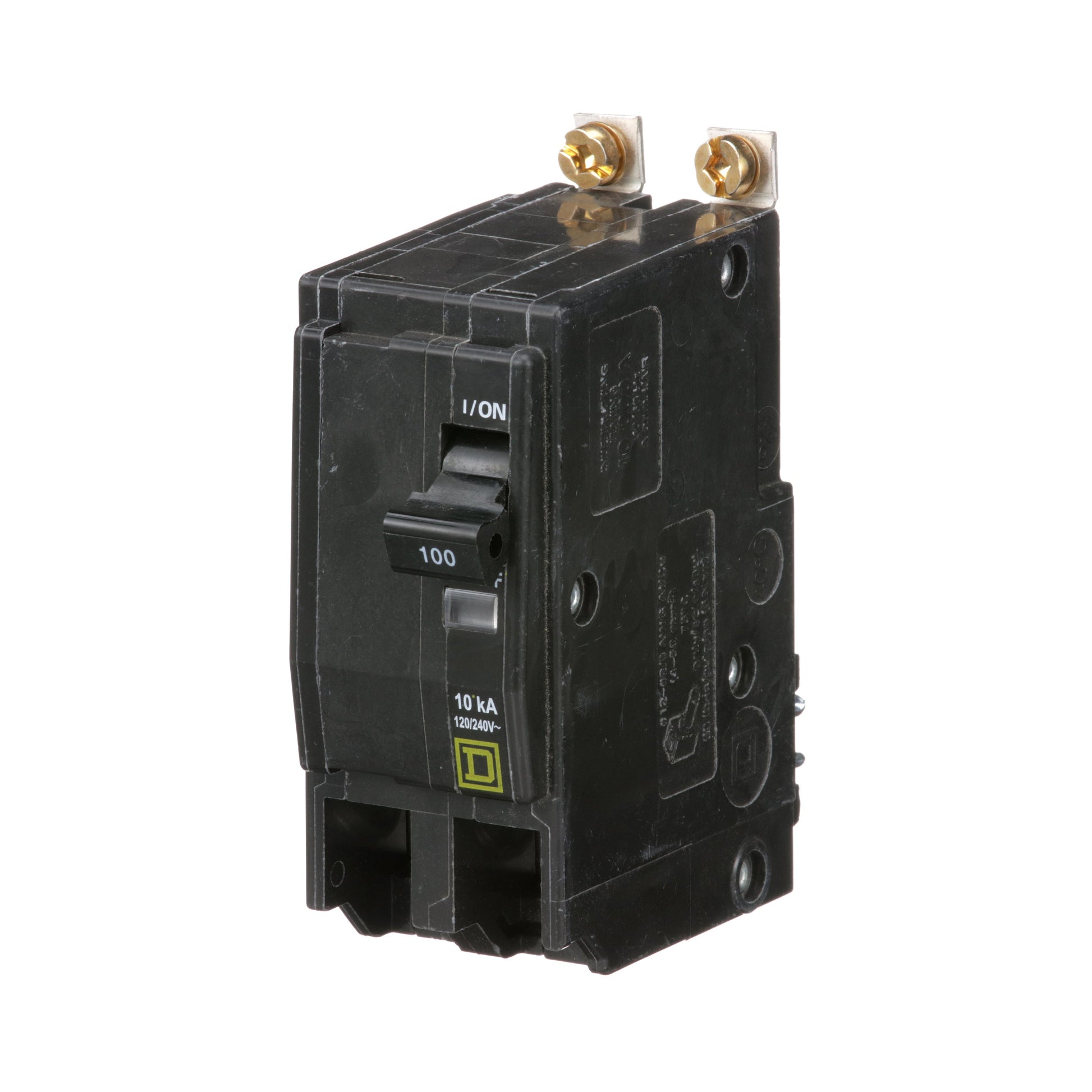

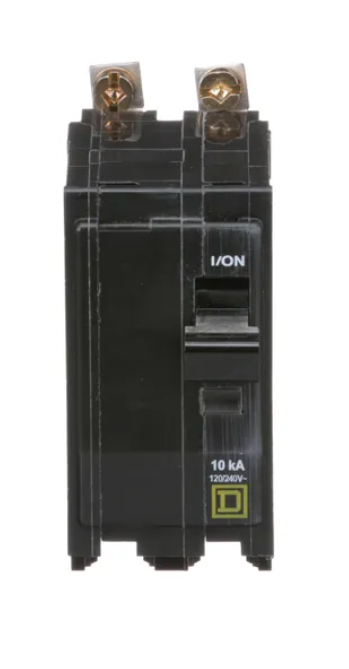

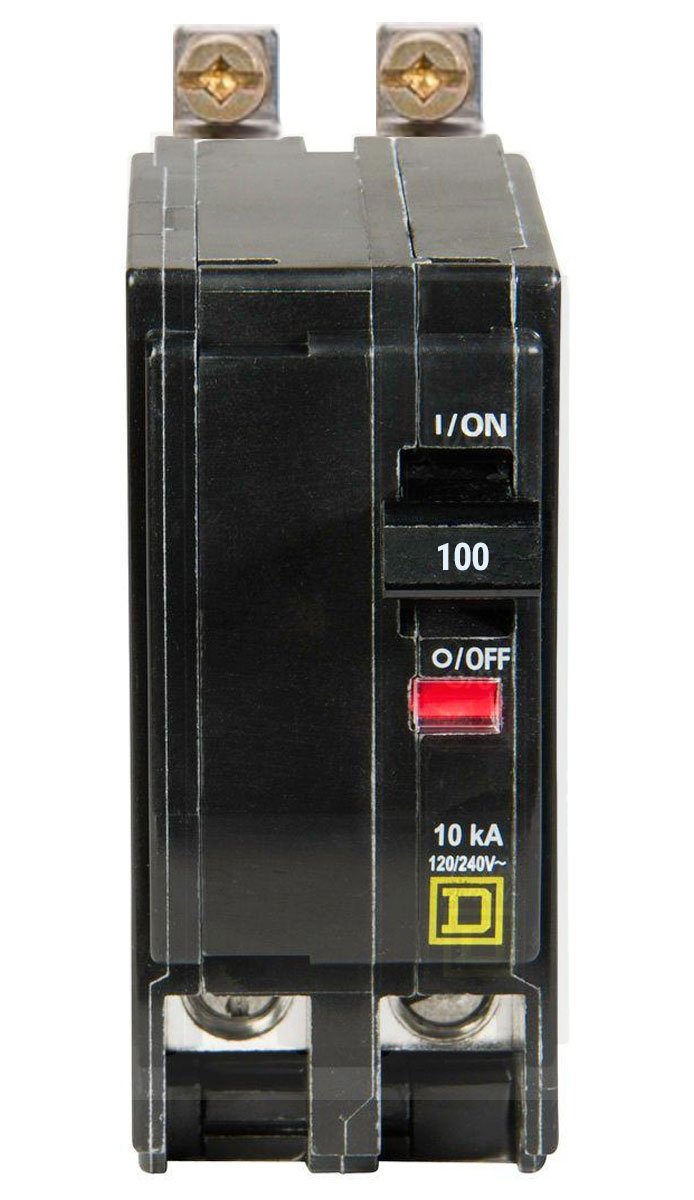

Square D QOB2100 Circuit Breaker | 120/240V 100A 2P 10kA@120V Bolt-On QOB Series

Product Description:
The Square D QOB2100 is a Molded Case Circuit Breaker from the QOB Series. It is a 2-pole, 100 amp breaker rated for 120/240V with a 10kA AIC rating at 120V. This circuit breaker features a bolt-on connection and provides thermal magnetic protection. It is designed for use in Square D NQOD panelboards and is UL Listed and CSA certified.

Key Features:
✔ Part Number: QOB2100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901019688
✔ GTIN: 00785901019688
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.5 in x 3.5 in
✔ Weight: 1
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 4 to 2 AWG, Aluminum/Copper
