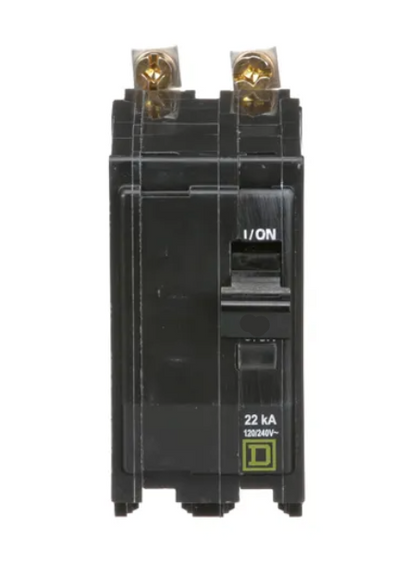

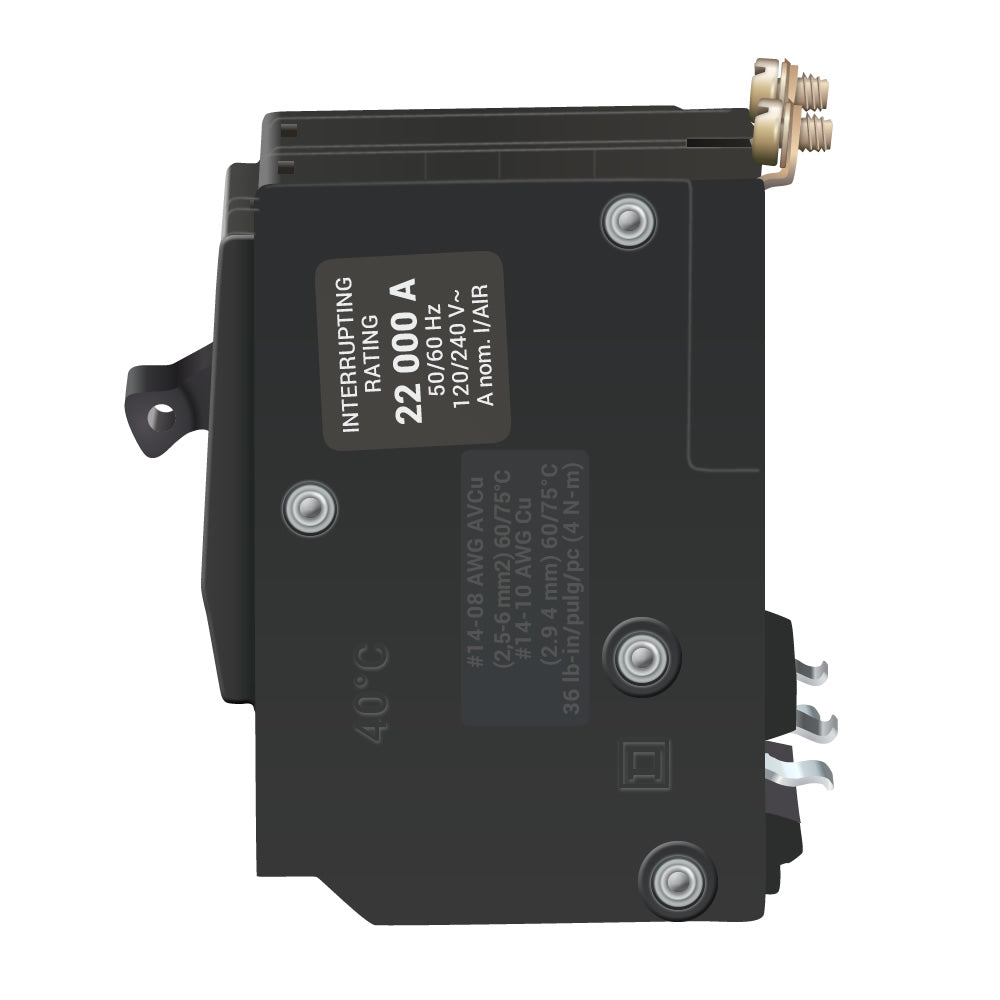

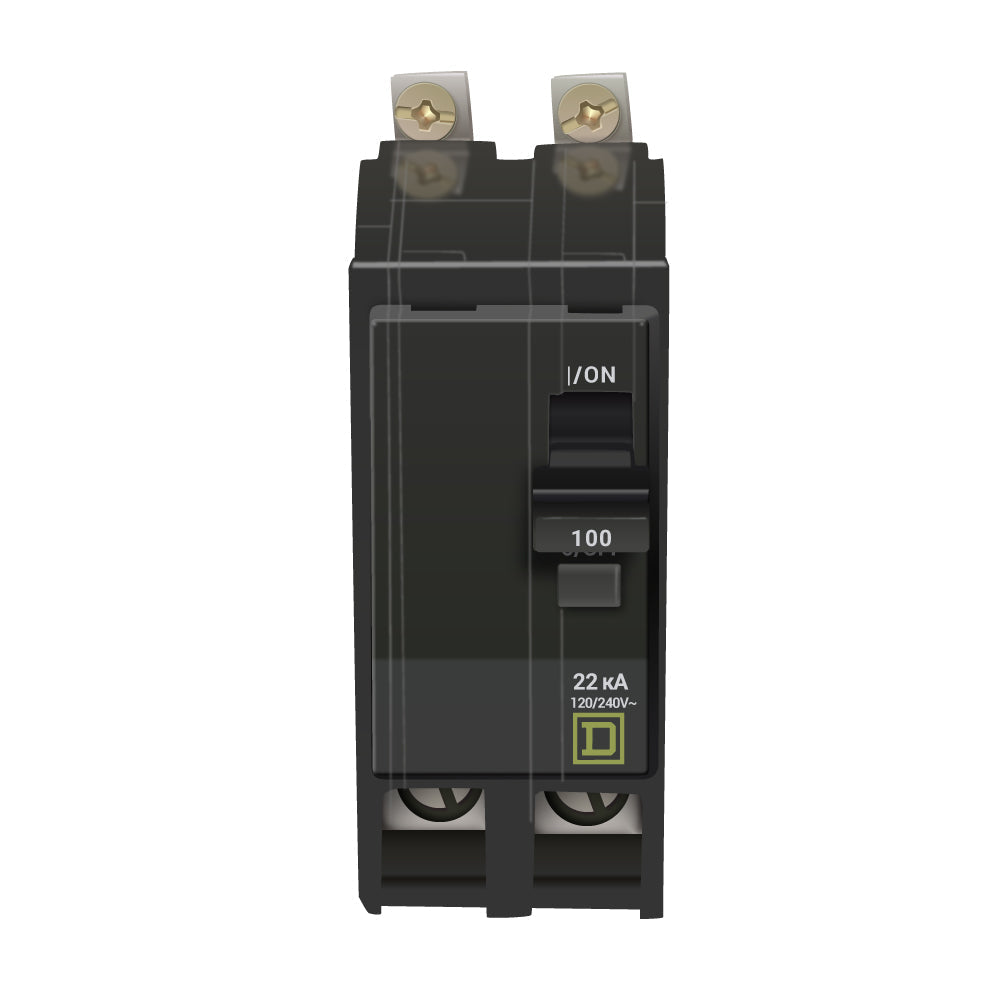

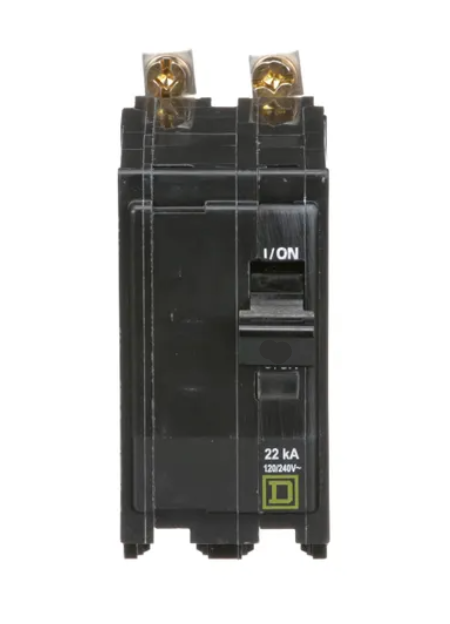

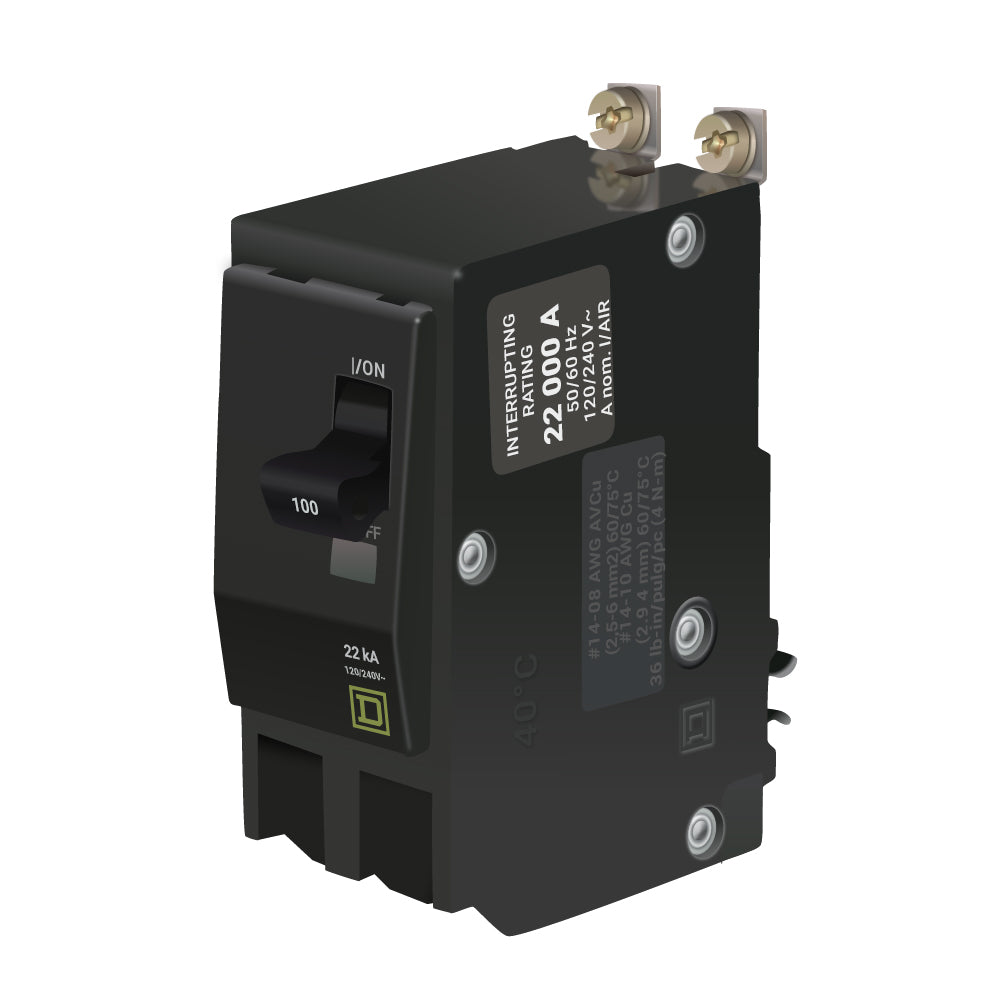

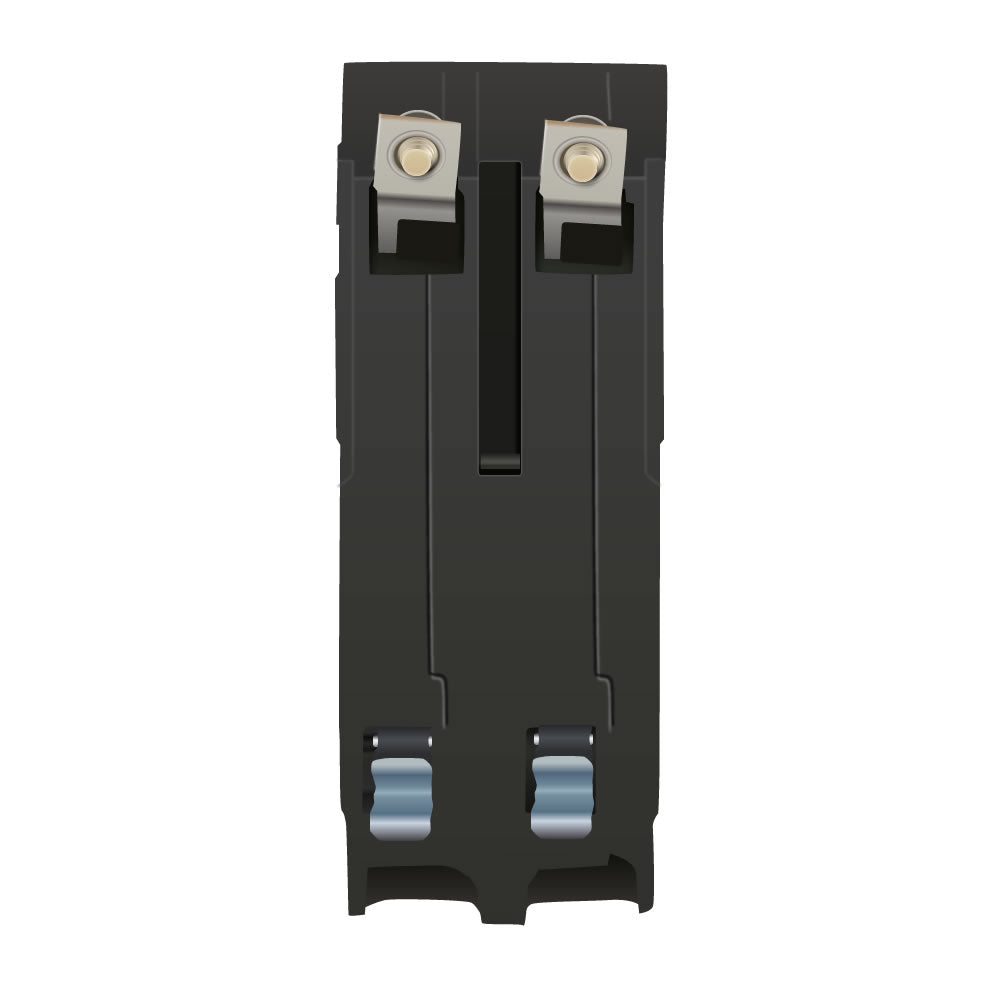

Square D QOB2100VH Circuit Breaker 120/240V 100A 2P 22kA@240V Bolt-on QOB Series

Product Description:
The Square D QOB2100VH is a Molded Case Circuit Breaker from the QOB Series. It is a 2-pole, 100 amp breaker rated for 120/240 volts with an AIC rating of 22kA@240V. This model features thermal magnetic protection and a bolt-on connection for secure installation. It is designed for use in Square D NQOD panelboards and meets CSA and UL standards.

Key Features:
✔ Part Number: QOB2100VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901054757
✔ GTIN: 00785901054757
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.5 in x 3.5 in
✔ Weight: 1
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 4 AWG-300 KCMIL (Aluminum/Copper)
