Product Description:

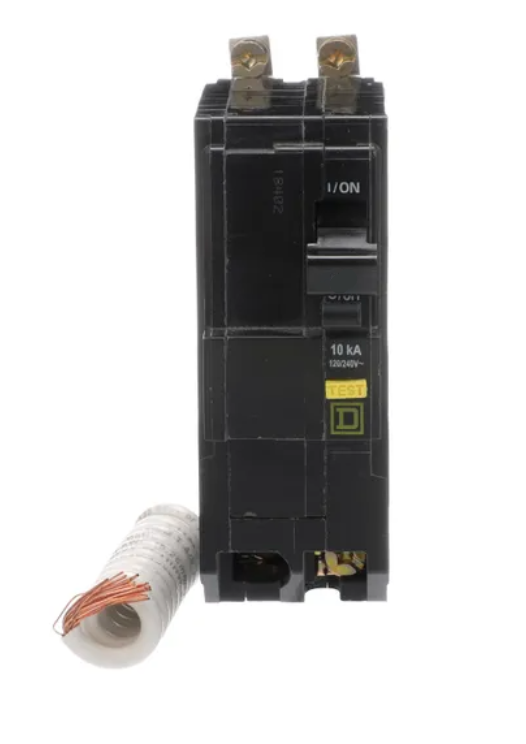

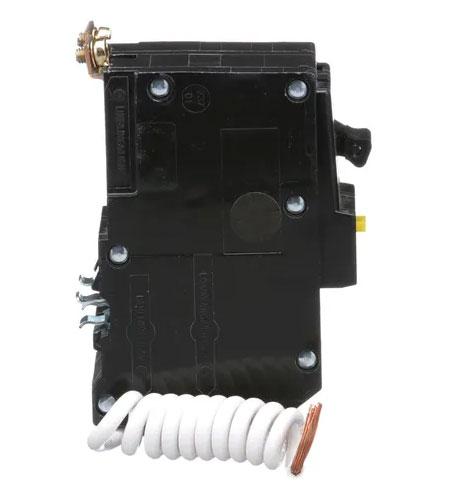

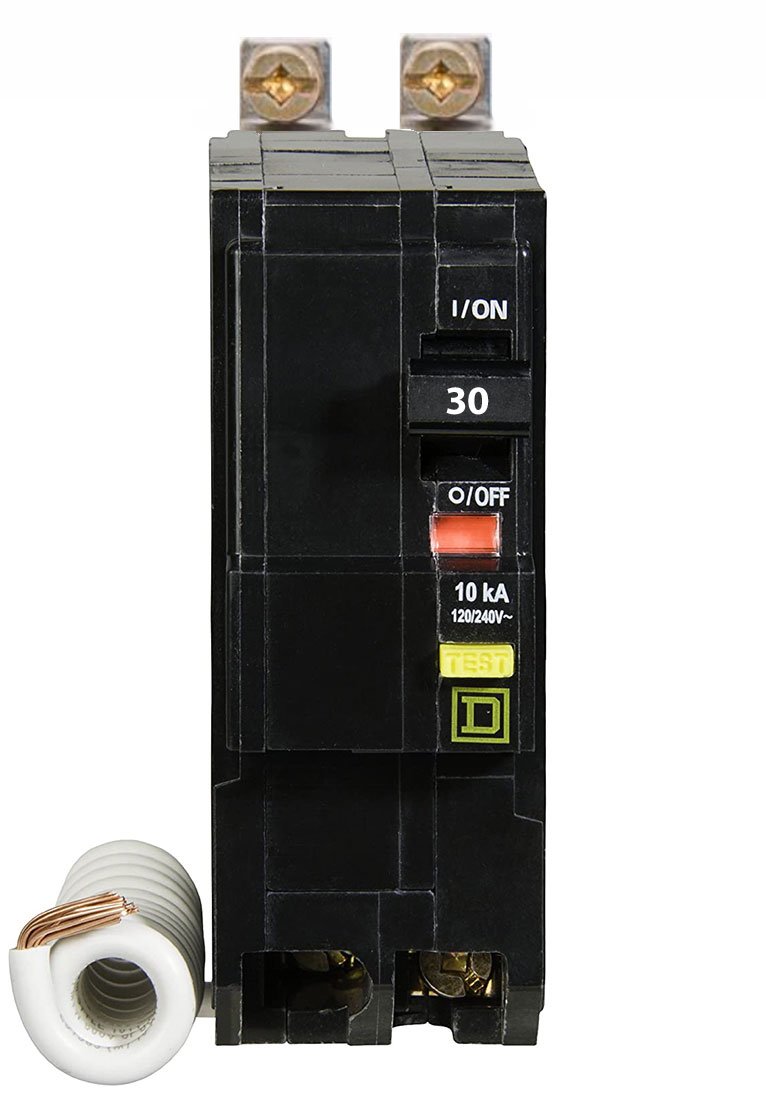

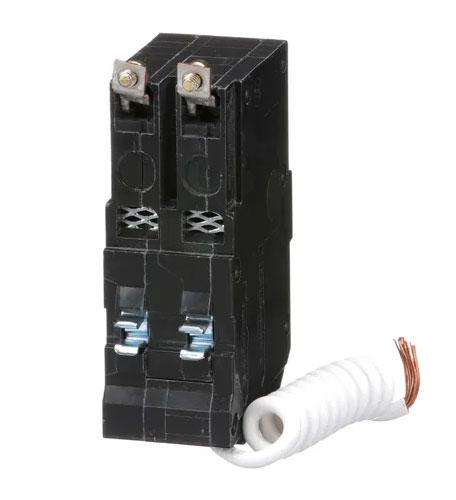

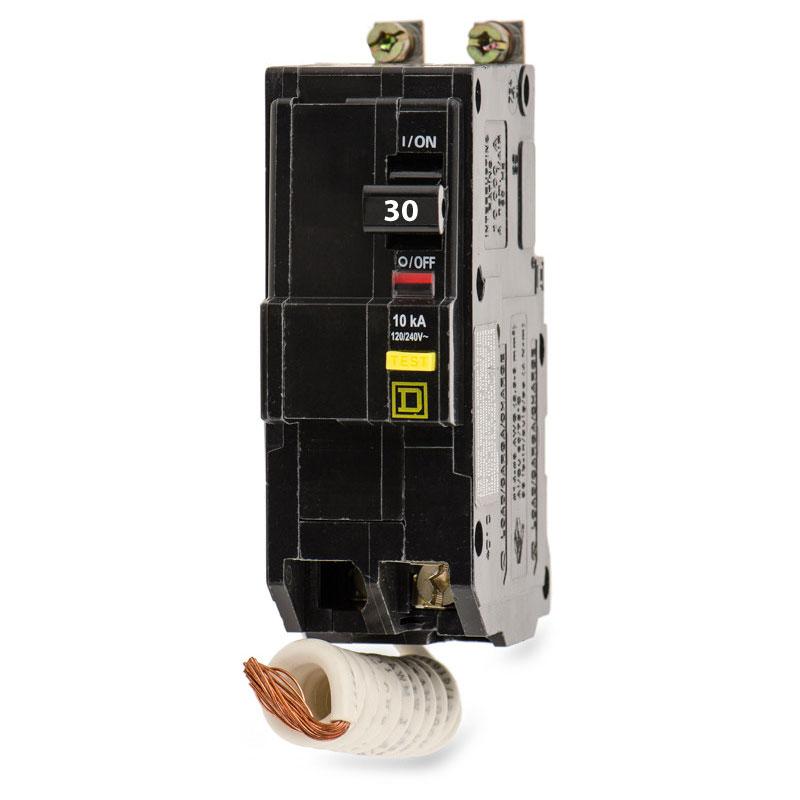

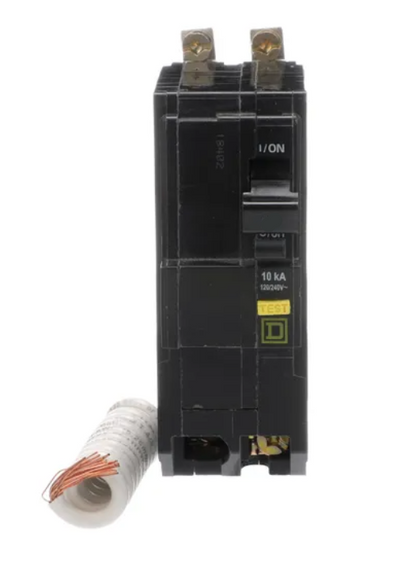

The Square D QOB230GFI is a Molded Case Circuit Breaker from the QOB Series. It is a 2-pole, 30 amp breaker rated for 120/240 VAC with a 10kA@240V AIC rating. This model features thermal magnetic protection and a bolt-on connection type. It is designed for use in QO Load Centers and NQ Panelboards.
Key Features:
✔ Part Number: QOB230GFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240 VAC
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 785901563037
✔ GTIN: 00785901563037
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.12 in x 4.13 in
✔ Weight: 1
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
