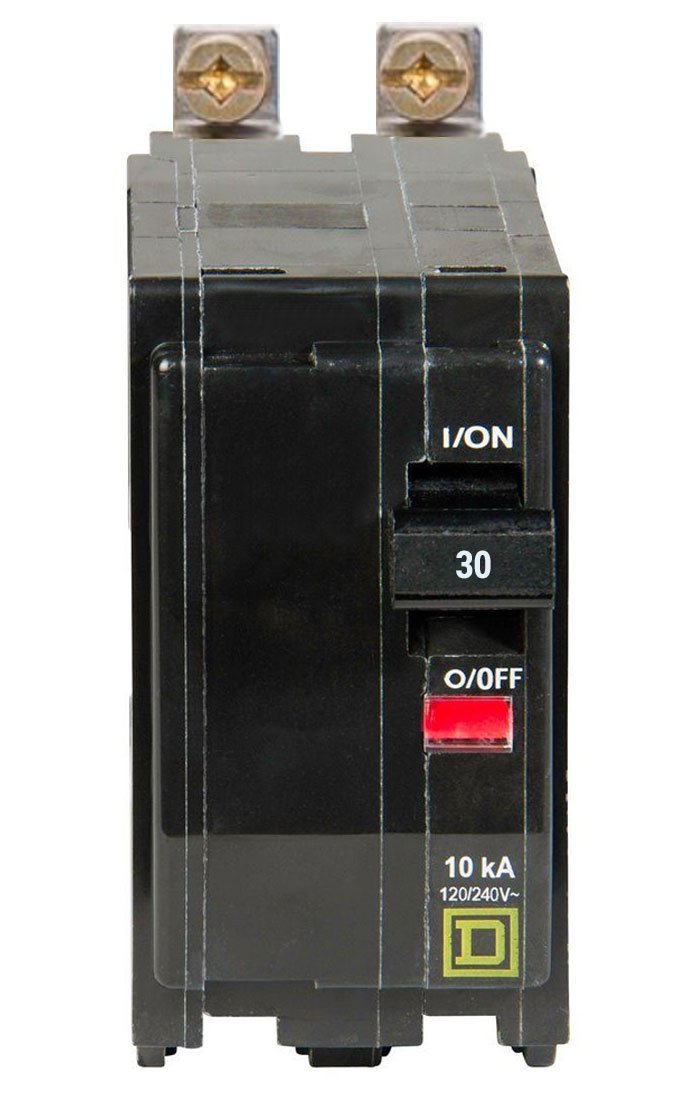

Square D QOB230 Circuit Breaker | 120/240V 30A 2P 10kA@120V Bolt-On QOB Series

Product Description:
The Square D QOB230 is a Molded Case Circuit Breaker from the QOB Series. It is a 2-pole, 30 amp breaker rated for 120/240 volts with a 10kA AIC rating at 120V. This thermal magnetic circuit breaker uses a bolt-on connection and is designed for use in Square D NQOD Panelboards.

Key Features:
✔ Part Number: QOB230
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 30
✔ Poles: 2
✔ AIC Rating: 10kA@120V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Frame Size: 100A/QO
✔ Wire Size: Min. 14 AWG Max. 8 AWG
✔ Certification: UL Listed
✔ Standards: CSA, UL Listed
✔ UPC: 785901416906
✔ GTIN: 00785901416906
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3 in x 2.99 in
✔ Weight: 1 lb
✔ Panel Type: Square D NQOD Panelboards
