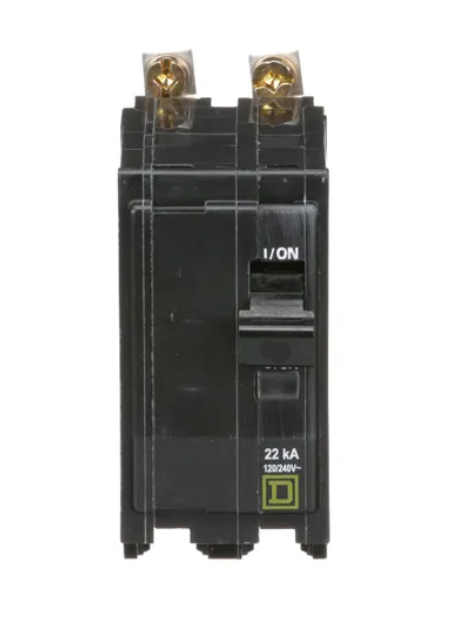

Square D QOB240VH Circuit Breaker | 120/240V 40A 2P 22kA@240V Bolt-on QOB Series

Product Description:
The Square D QOB240VH is a 2-pole molded case circuit breaker designed for 120/240V electrical systems. It provides reliable thermal magnetic protection and is rated for 40 amps with a high interrupting capacity of 22kA at 240V. This bolt-on style breaker is compatible with Square D NQOD panelboards and meets UL and CSA standards.

Key Features:
✔ Part Number: QOB240VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901054764
✔ GTIN: 00785901054764
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.12 in x 3.11 in
✔ Weight: 1
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 8 To 2 Awg (Aluminum/Copper)
