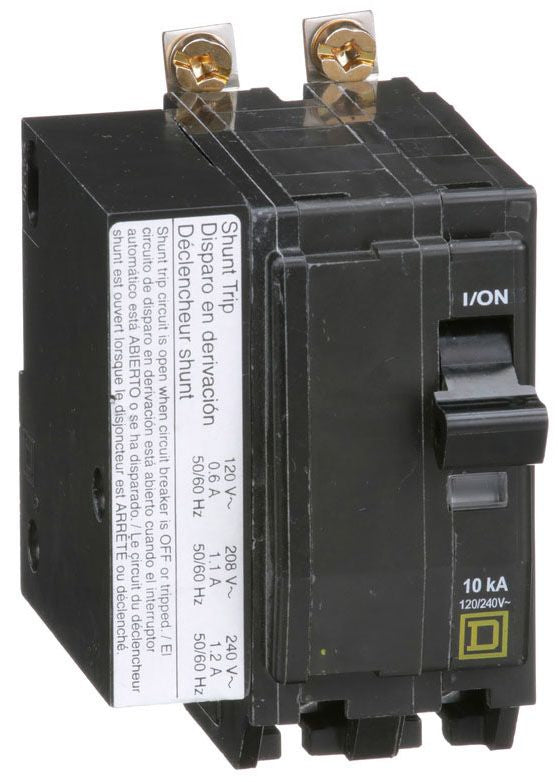

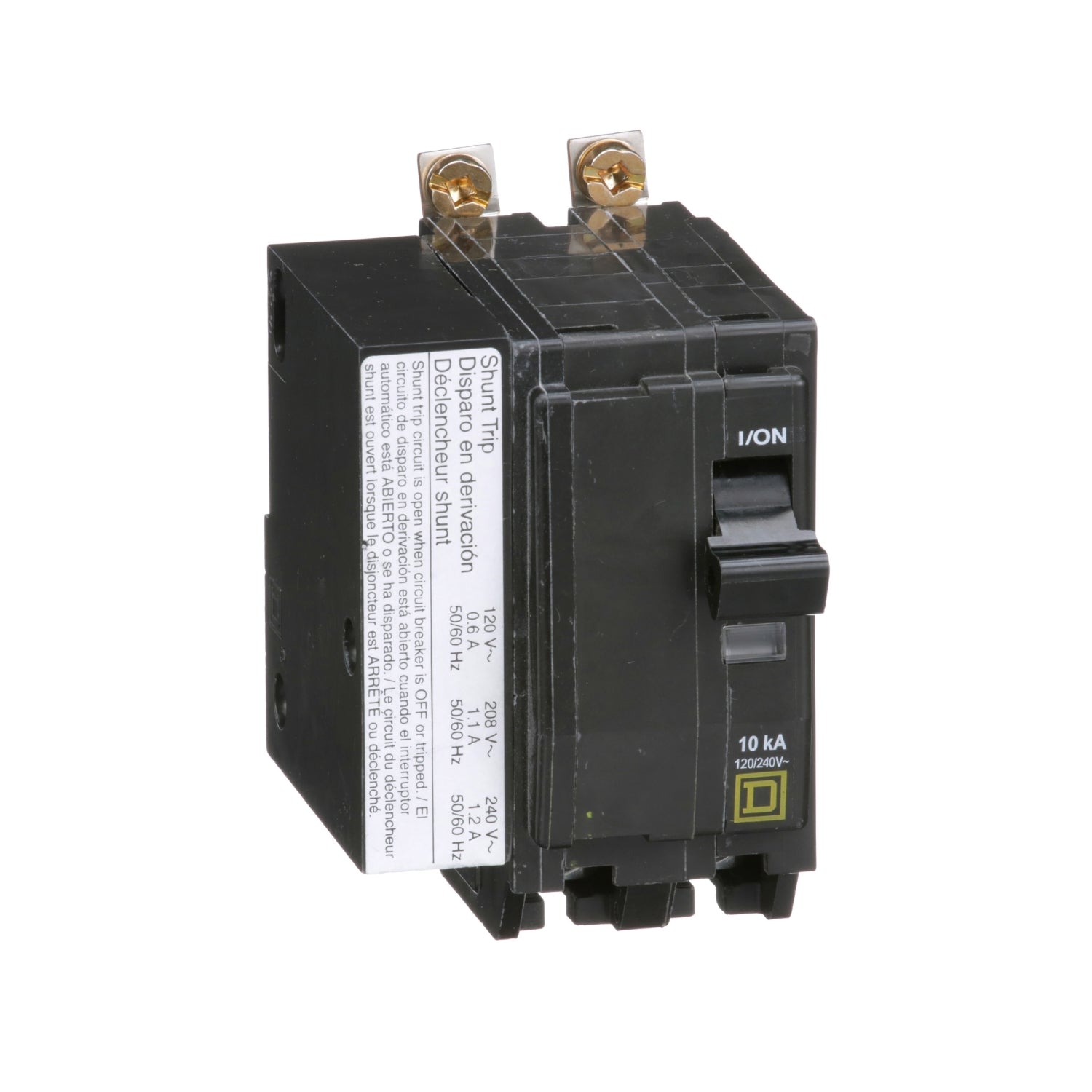

Square D QOB2601021 Circuit Breaker | 120/240V 60A 2P 10kA@120V Bolt-on QOB Series

Product Description:
The Square D QOB2601021 is a Molded Case Circuit Breaker from the QOB Series. It is a 2-pole, 60 amp breaker rated for 120/240V with a 10kA@120V AIC rating. This thermal magnetic circuit breaker uses a bolt-on connection and is designed for reliable protection in electrical systems.

Key Features:
✔ Part Number: QOB2601021
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 60
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 785901494355
✔ GTIN: 00785901494355
✔ Country of Origin: Mexico
✔ Dimensions: 2.24 in x 3.12 in x 3.11 in
✔ Weight: 0.96
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
