Square D QOB260EPD Circuit Breaker | 120V 60A 2P 10kA@120V Bolt-on QOB Series

Product Description:

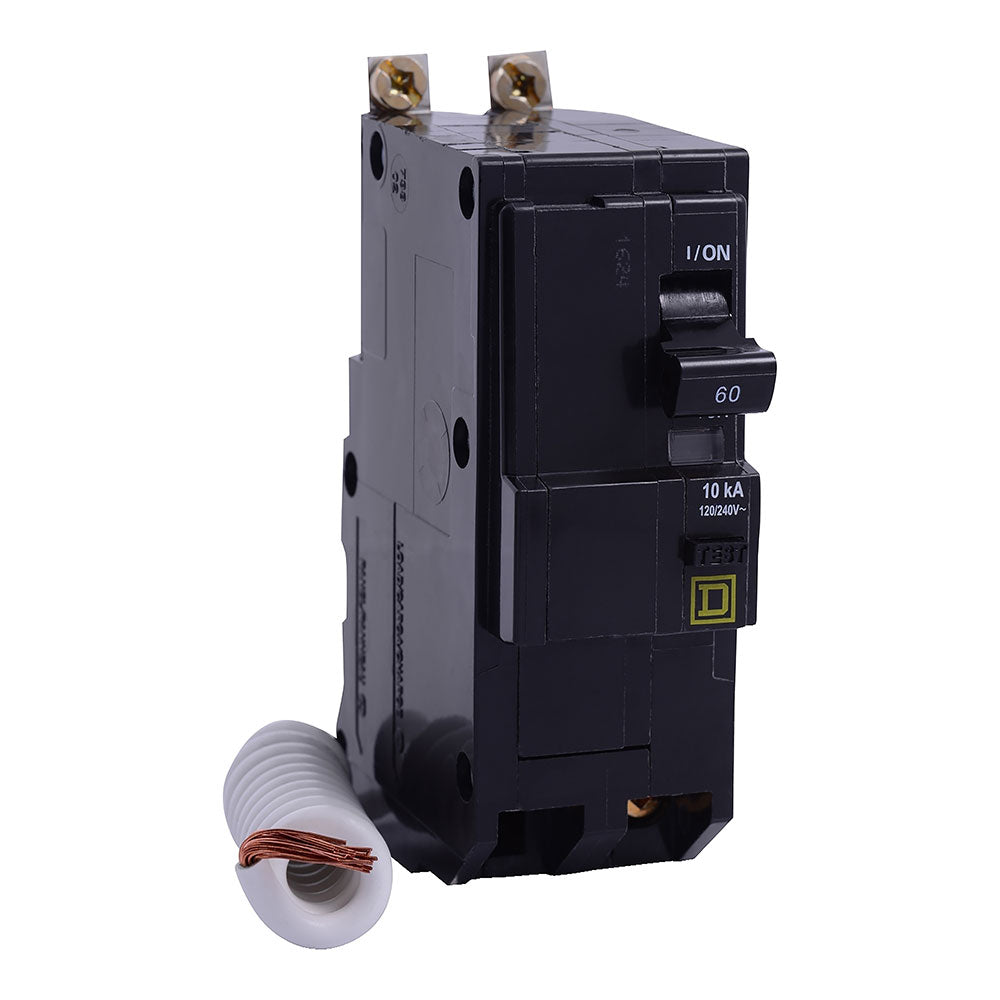

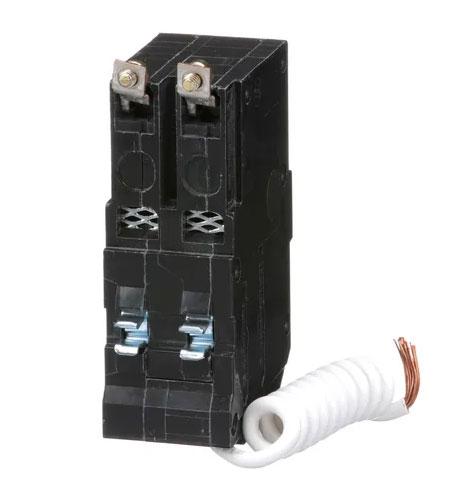

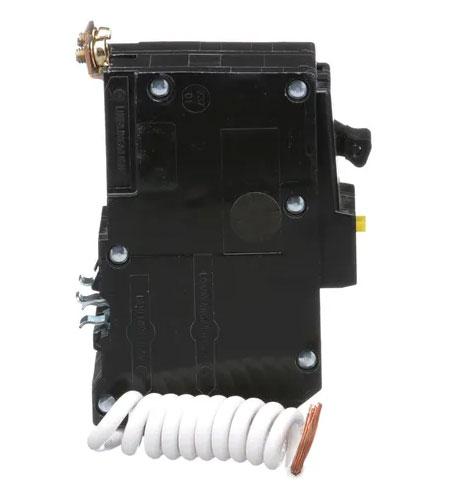

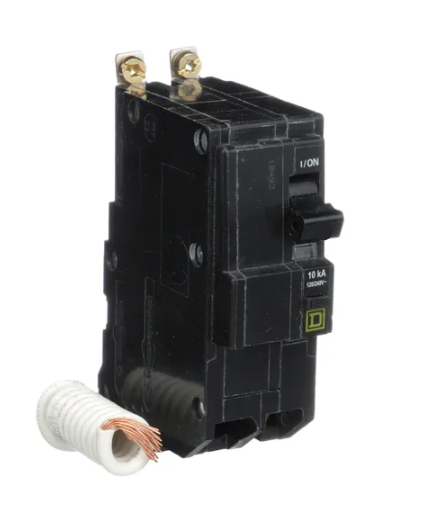

The Square D QOB260EPD is a 2-pole molded case circuit breaker designed for 120V applications. It provides reliable thermal magnetic protection and is rated for 60 amps with a 10kA interrupting capacity. This bolt-on breaker is compatible with QO load centers and NQ panelboards, ensuring secure electrical connections.

Key Features:
✔ Part Number: QOB260EPD
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120
✔ Amperage: 60
✔ Poles: 2
✔ AIC Rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Ground Fault Equipment Protection
✔ Protection: Thermal Magnetic
✔ UPC: 785901272168
✔ GTIN: 00785901272168
✔ Country of Origin: Mexico
✔ Dimensions: Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 0.96
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed; CSA
✔ Wire Size: AWG 12, AWG 4 Aluminium, AWG 14, AWG 6 Copper
