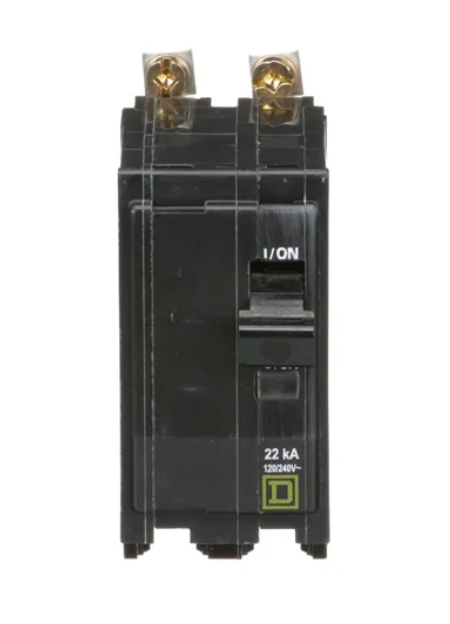

Square D QOB270VH Circuit Breaker | 120/240V 70A 2P 22kA@240V Bolt-on QOB Series

Product Description:
The Square D QOB270VH is a Molded Case Circuit Breaker from the QOB Series family. It is a 2-pole, 70 amp breaker rated for 120/240 volts with a 22kA interrupting capacity at 240V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation. It is designed for use in Square D NQOD panelboards and is UL Listed and CSA certified.

Key Features:
✔ Part Number: QOB270VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 70
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901054795
✔ GTIN: 00785901054795
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.12 in x 3.11 in
✔ Weight: 0.71
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
