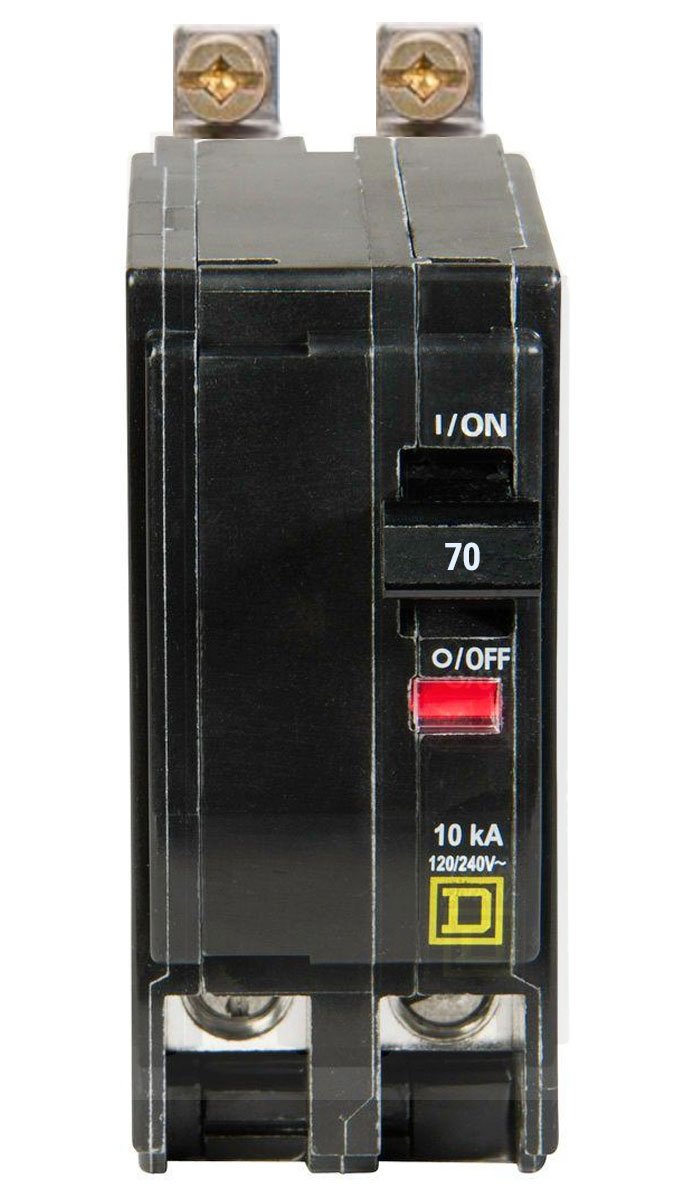

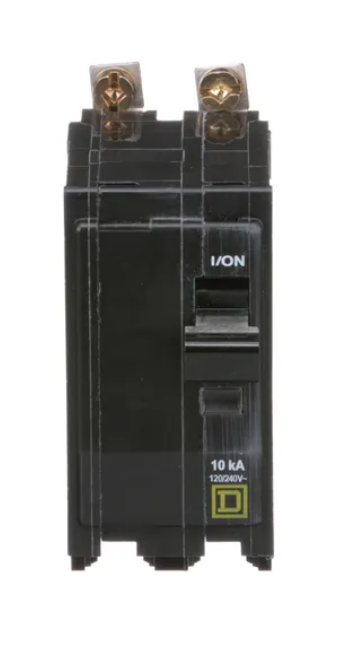

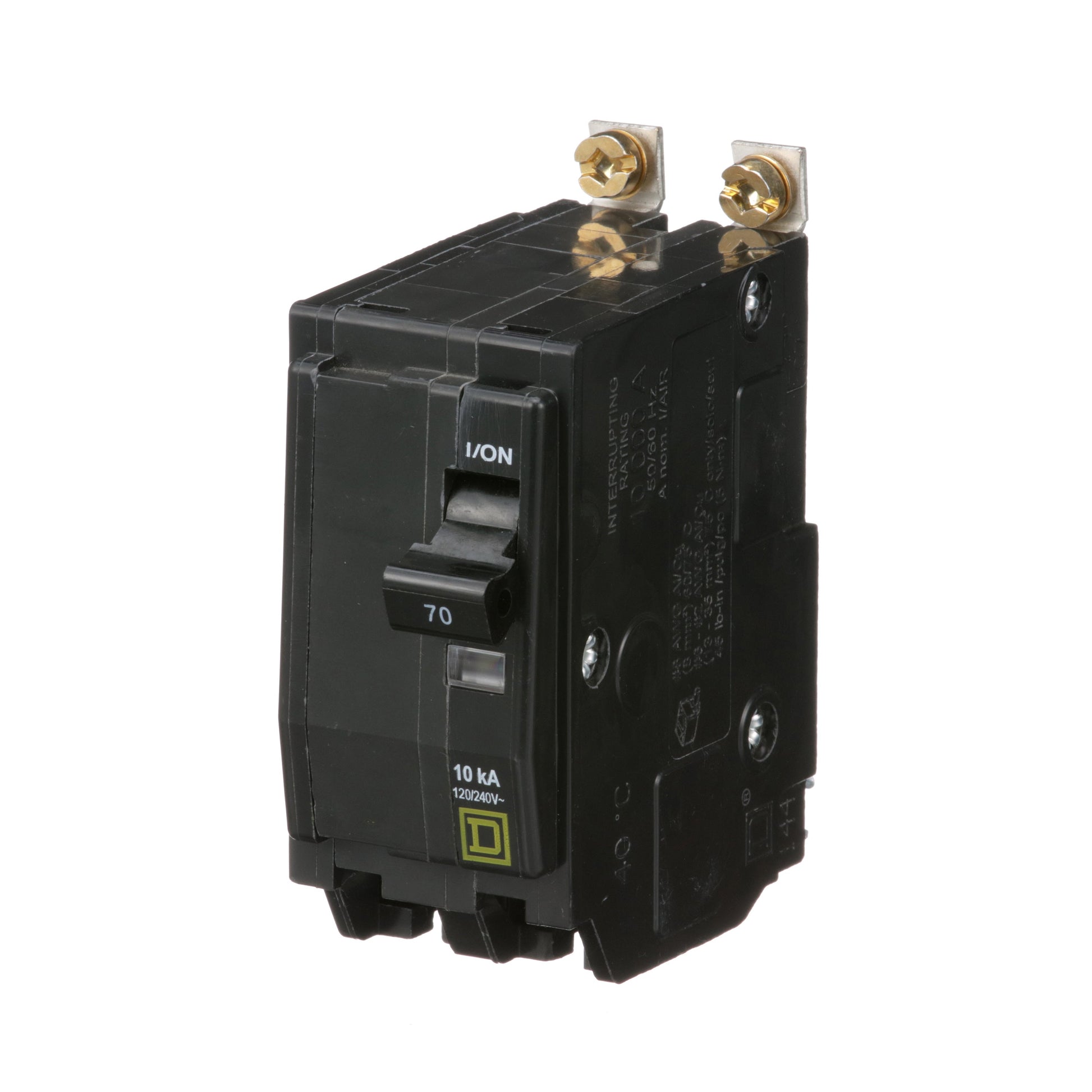

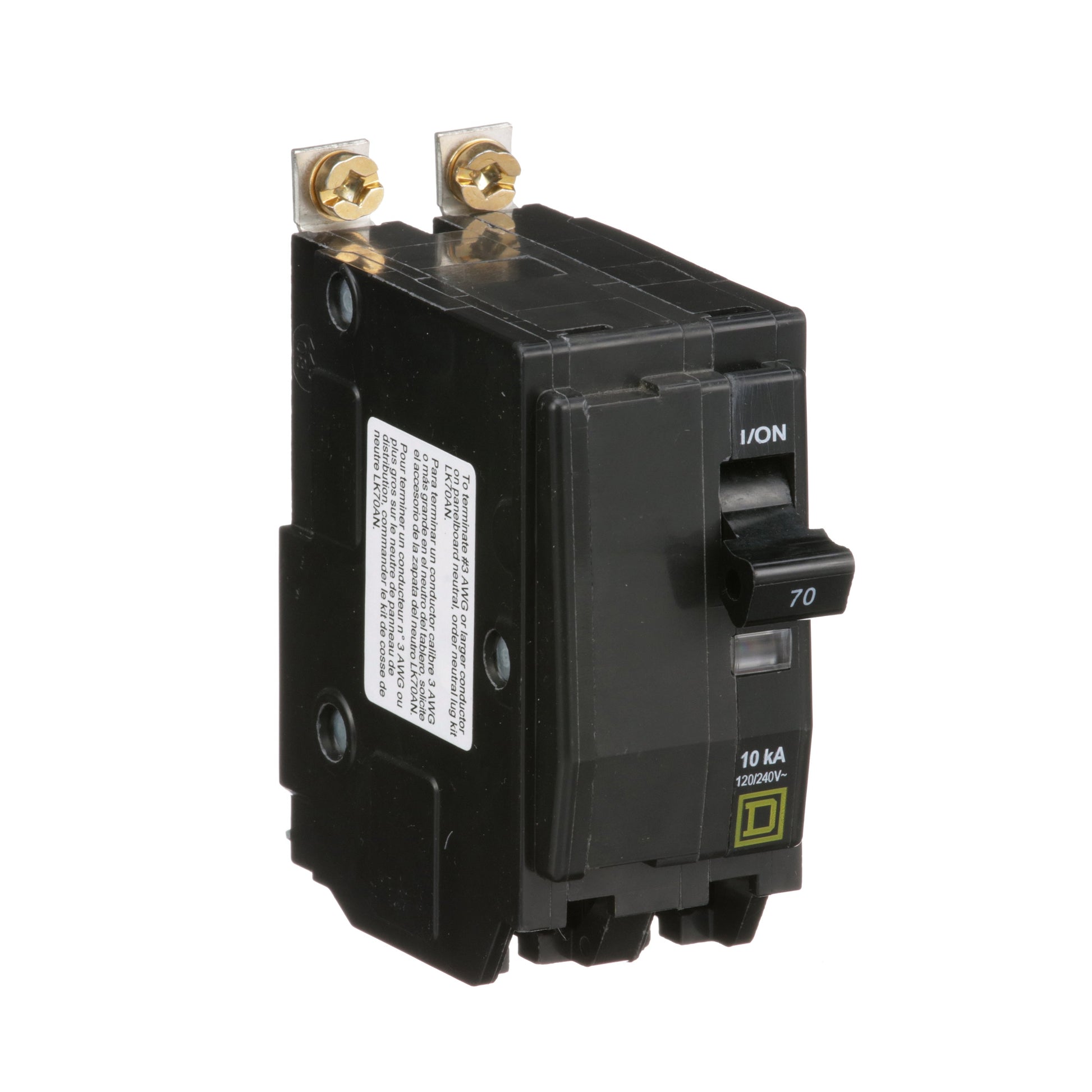

Square D QOB270 Circuit Breaker | 120/240V 70A 2P 10kA@120V Bolt-On QOB Series

Product Description:
The Square D QOB270 is a 2-pole molded case circuit breaker rated for 70 amps and 120/240 volts. It features a bolt-on connection and provides thermal magnetic protection for reliable circuit safety. This breaker is designed for use in Square D NQOD panelboards and is suitable for a variety of residential and light commercial applications.

Key Features:
✔ Part Number: QOB270
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 70
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901417040
✔ GTIN: 00785901417040
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.12 in x 3.11 in
✔ Weight: 0.78
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 8 To 2 Awg (Aluminum/Copper)
