Product Description:

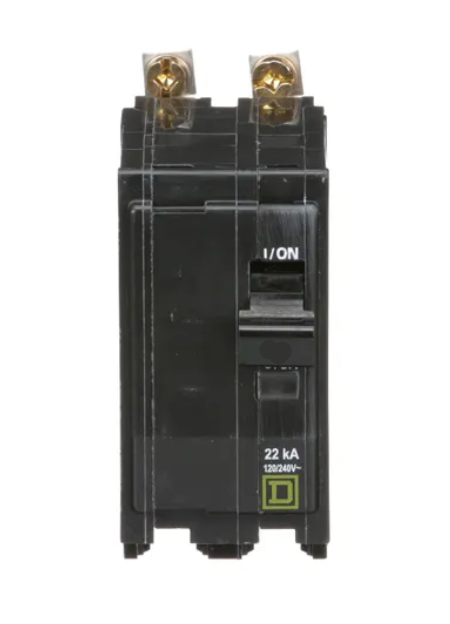

The Square D QOB290VH is a 2-pole molded case circuit breaker designed for 120/240 VAC applications. It offers a 90 amp rating and a high interrupting capacity of 22kA at 240V. This thermal magnetic breaker features a bolt-on connection and is compatible with Square D NQOD panelboards. It meets UL and CSA standards for safety and reliability.
Key Features:
✔ Part Number: QOB290VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240 VAC
✔ Amperage: 90
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901120674
✔ GTIN: 00785901120674
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.5 in x 3.5 in
✔ Weight: 0.71
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: AWG 4 to AWG 2/0, Copper/Aluminum
