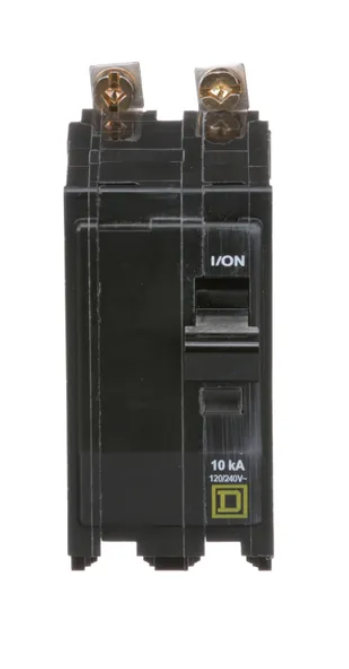

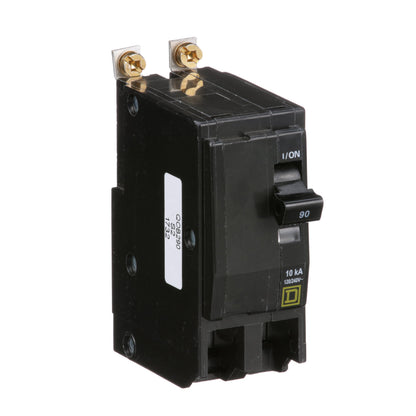

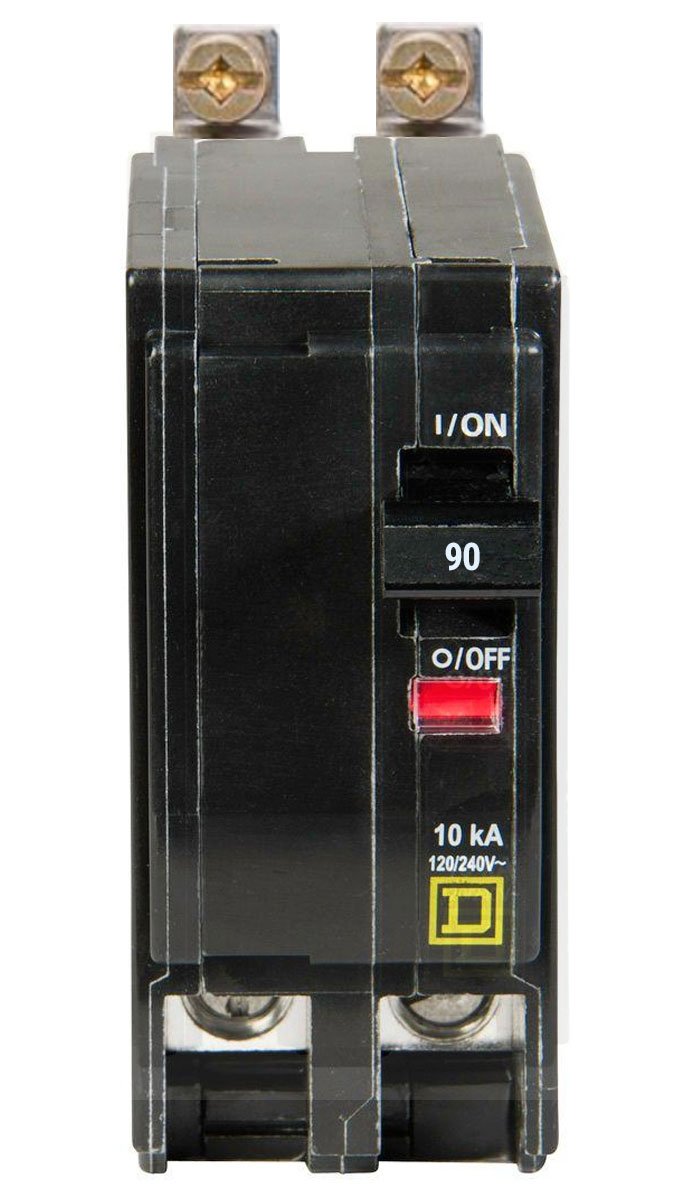

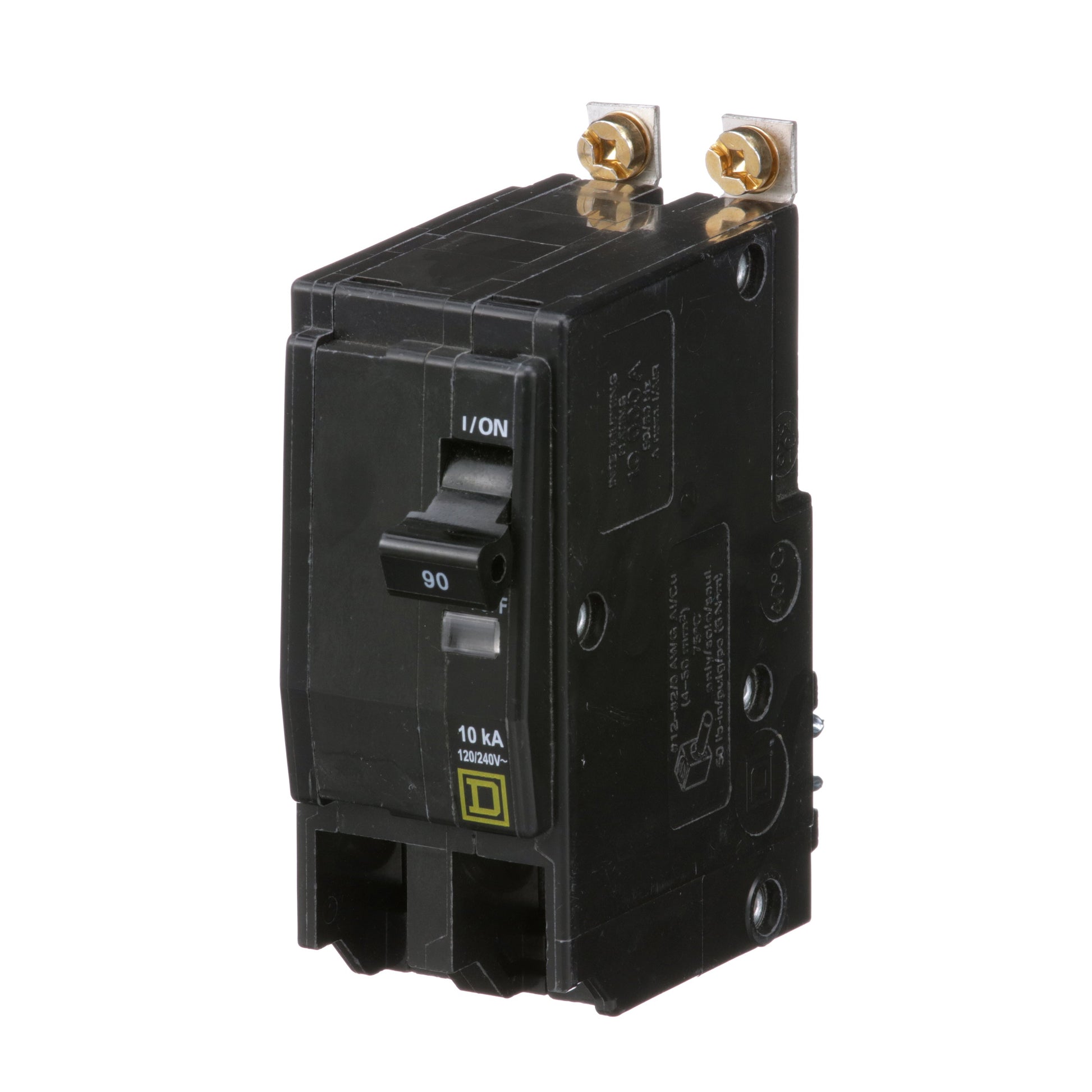

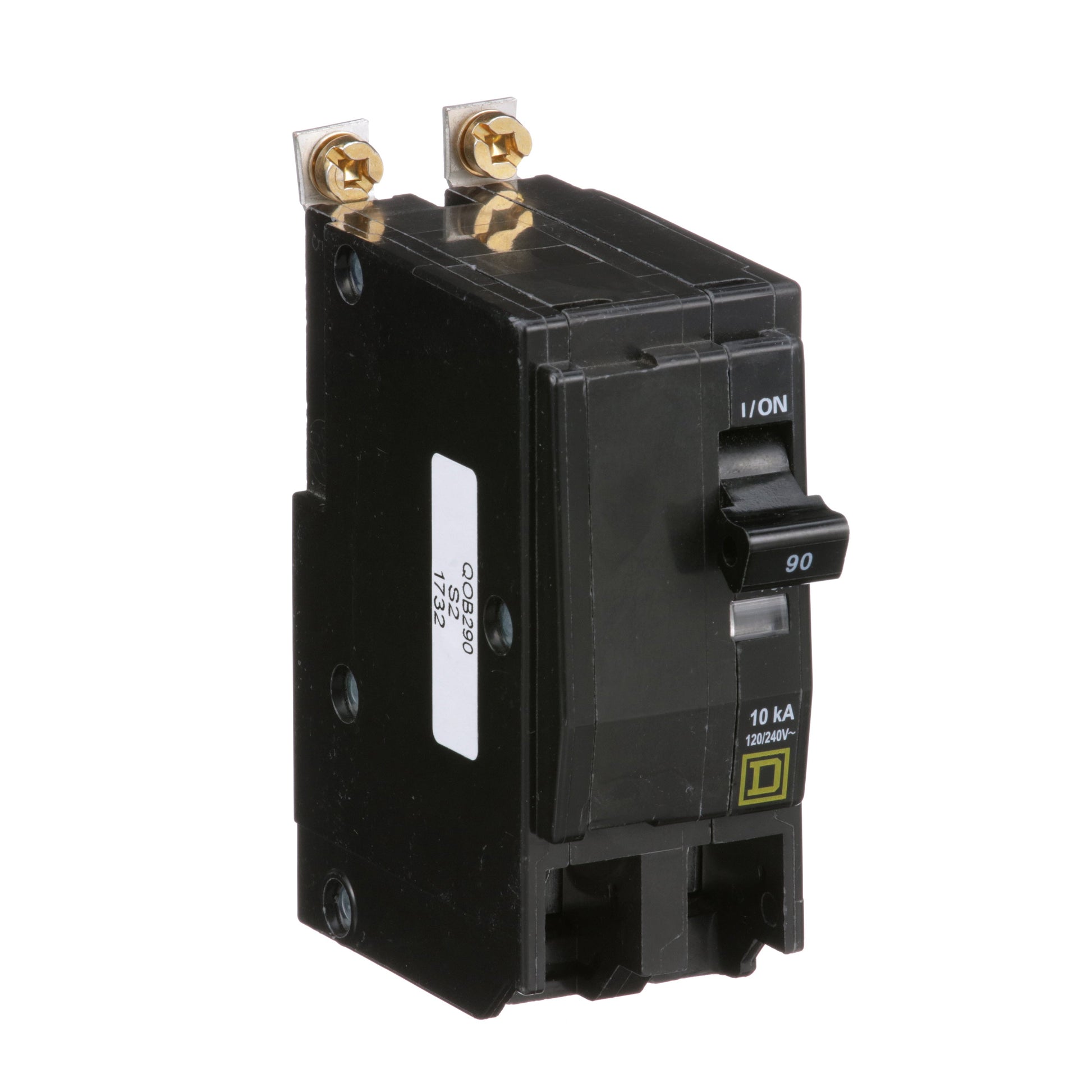

Square D QOB290 Circuit Breaker | 120/240V 90A 2P 10kA@120V Bolt-On QOB Series

Product Description:
The Square D QOB290 is a 2-pole Molded Case Circuit Breaker from the QOB Series. It is rated for 90 amps and 120/240 volts, providing reliable circuit protection with a 10kA interrupting rating. This bolt-on style breaker features thermal magnetic protection for both long-time and instantaneous overcurrent conditions. It is designed for use in Square D NQOD panelboards and is UL Listed and CSA certified.

Key Features:
✔ Part Number: QOB290
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 90
✔ Poles: 2
✔ AIC Rating: 10kA@120V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Certification: UL Listed
✔ Standards: CSA, UL Listed
✔ UPC: 785901019695
✔ GTIN: 00785901019695
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 3.5 in x 3.5 in
✔ Panel Type: Square D NQOD Panelboards
✔ Wire Size: 4 To 2/0 Awg (Aluminum/Copper)
