Product Description:

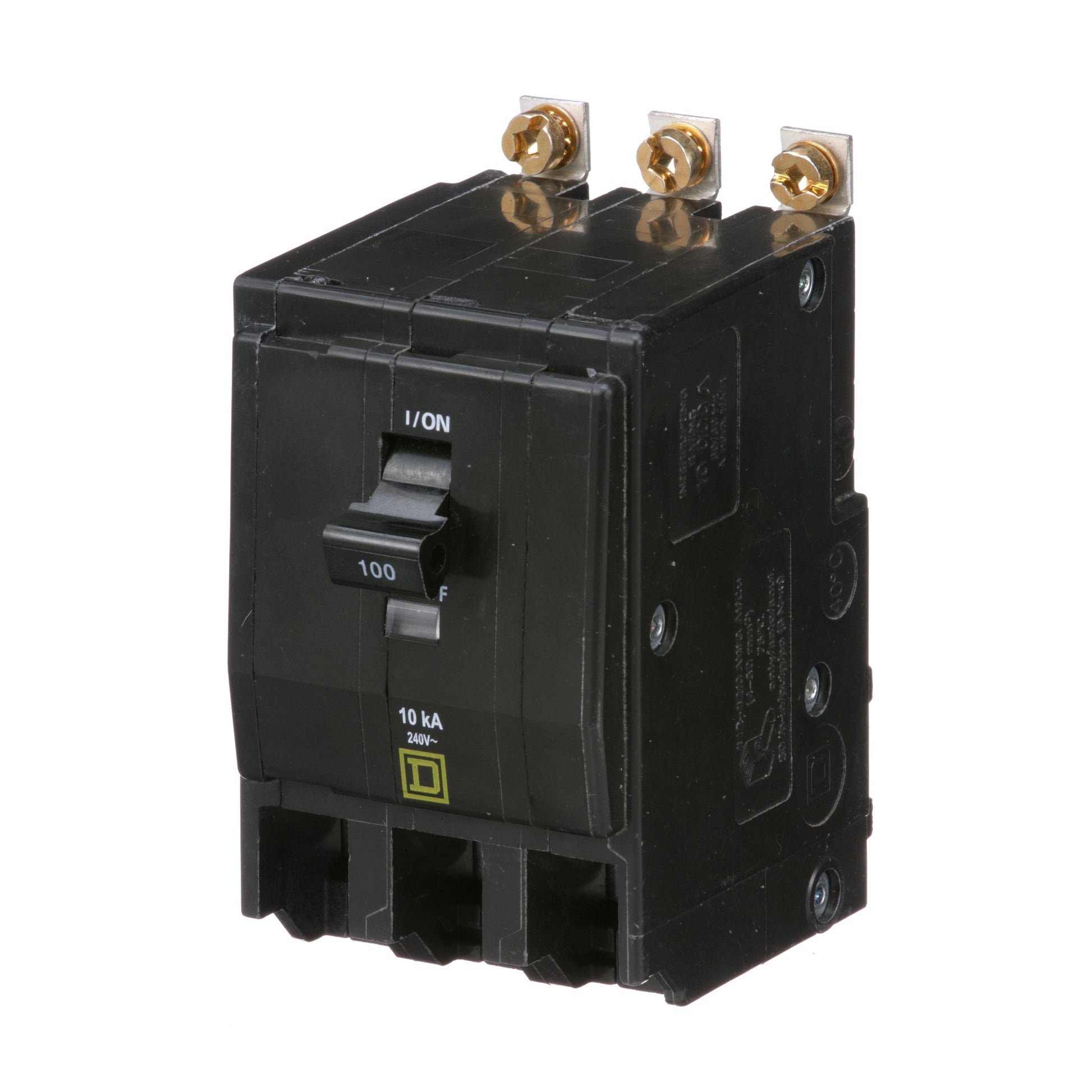

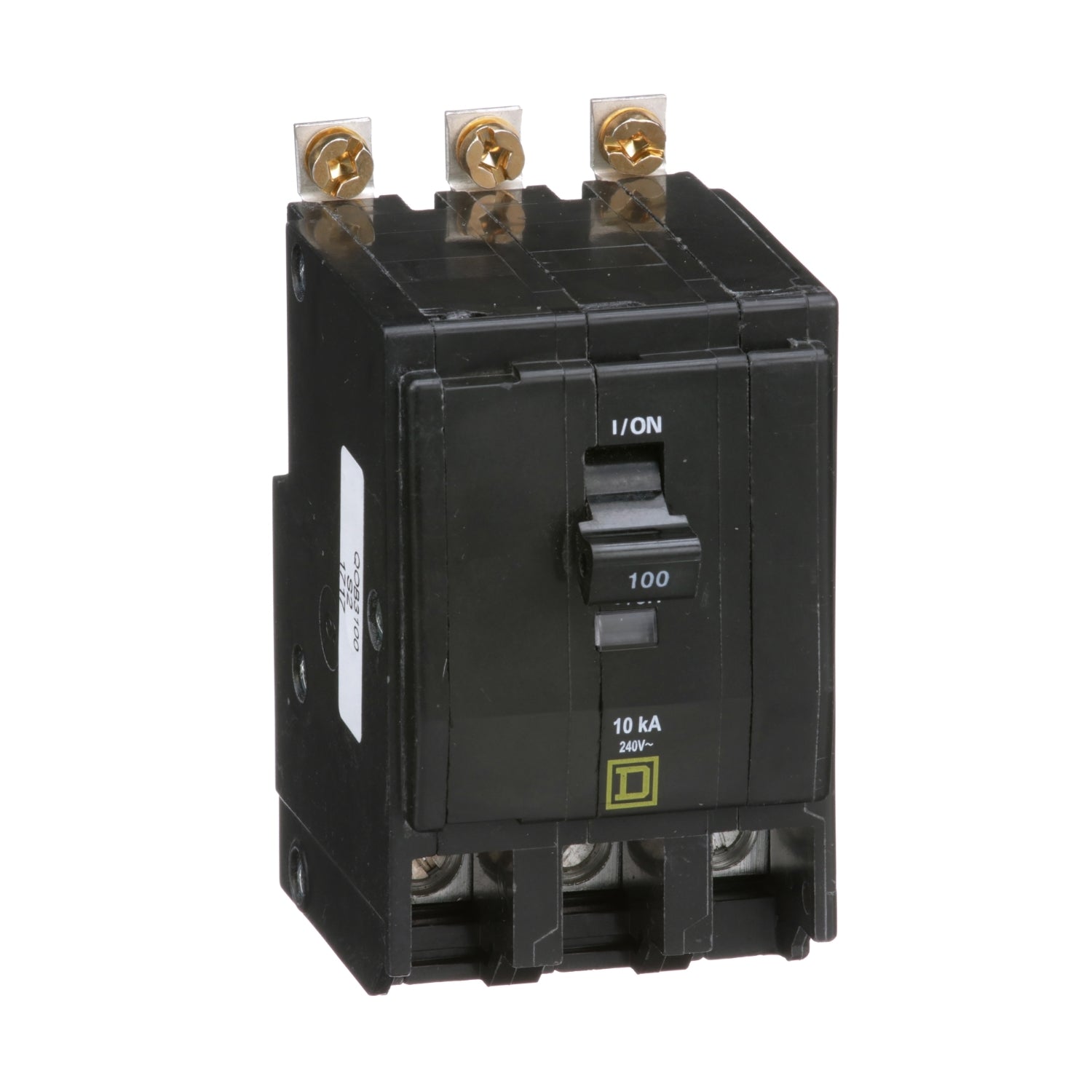

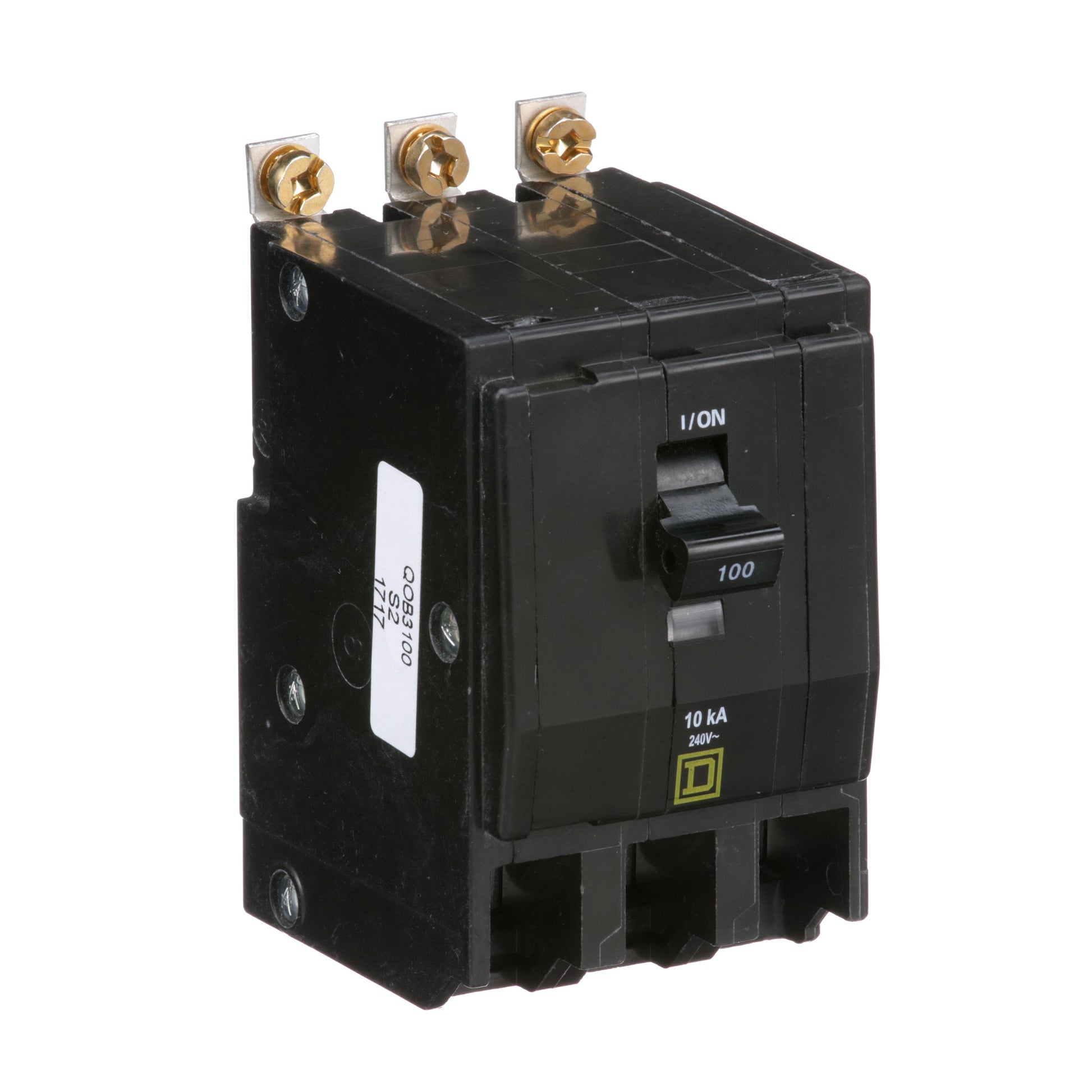

The Square D QOB3100 is a Molded Case Circuit Breaker from the QOB Series. It features a 3-pole design with a 240VAC voltage rating and 100 amp capacity. This breaker offers Thermal Magnetic protection and has an AIC rating of 10kA@240V. It is compatible with Square D NQOD Panelboards and uses a Bolt-On connection.
Key Features:
✔ Part Number: QOB3100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240VAC
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 78590101971
✔ GTIN: 00785901019718
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 3.5 in x 3.5 in
✔ Weight: 0.48 lb
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 4 To 2/0 Awg (Aluminum/Copper)
