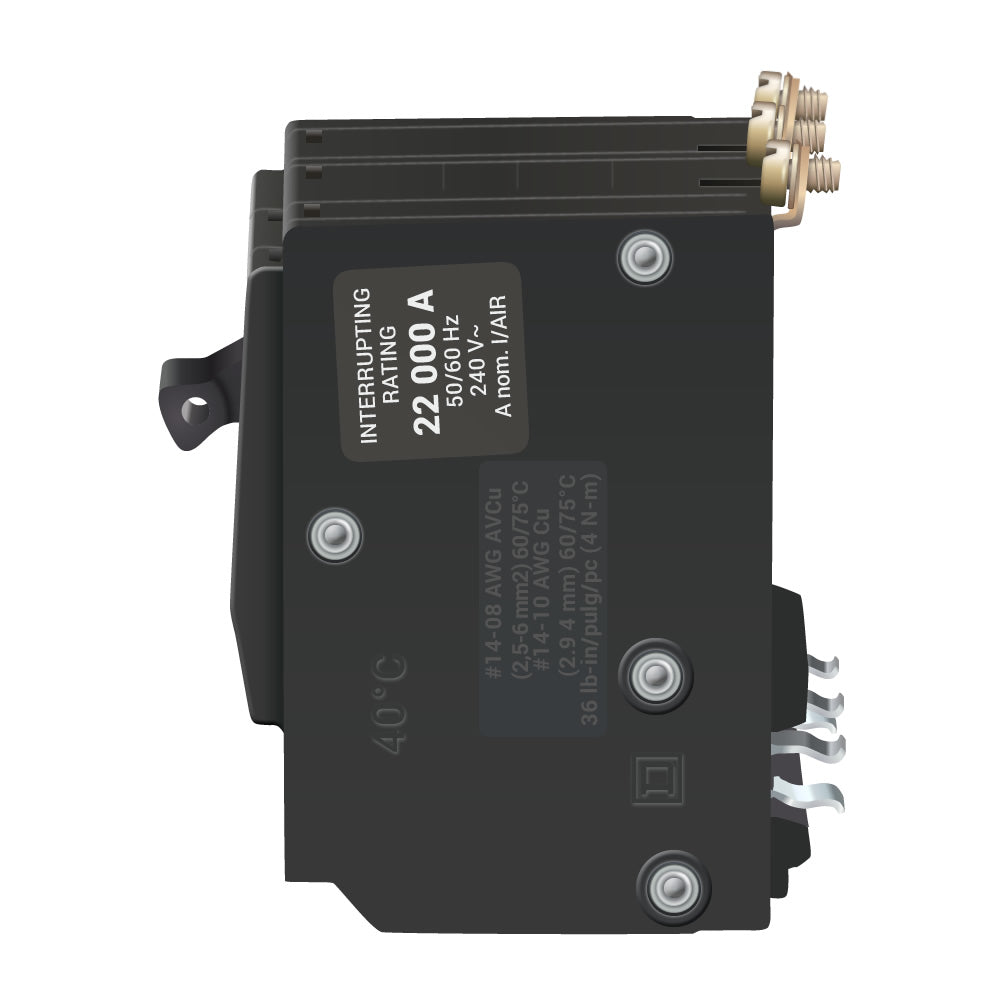

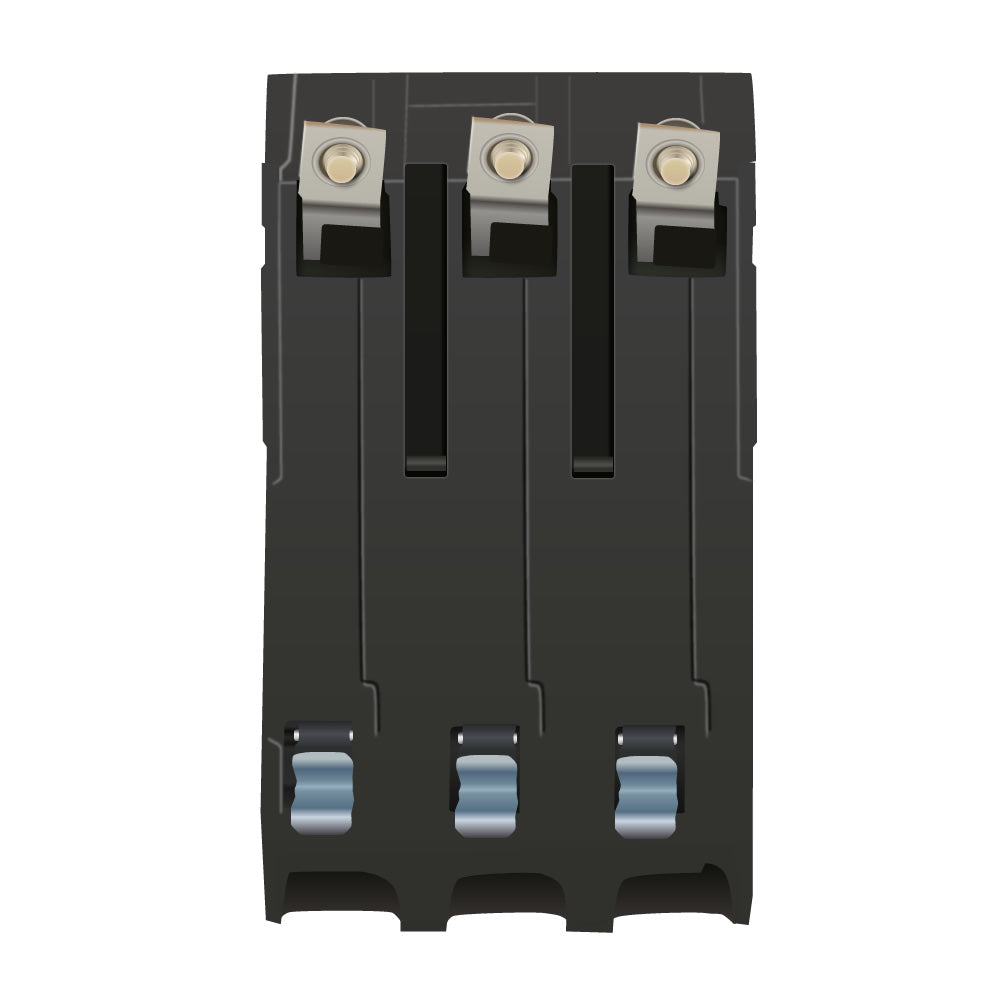

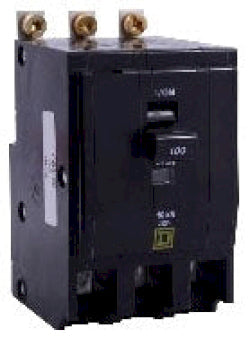

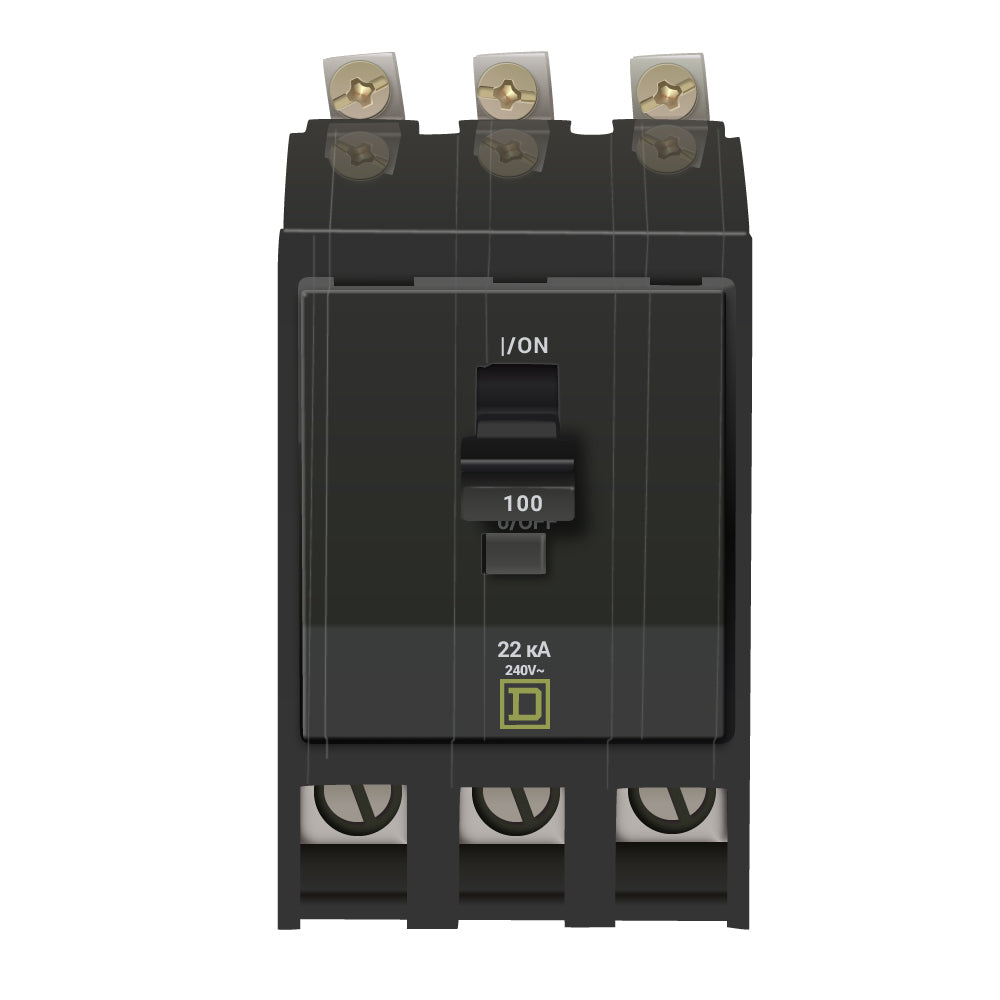

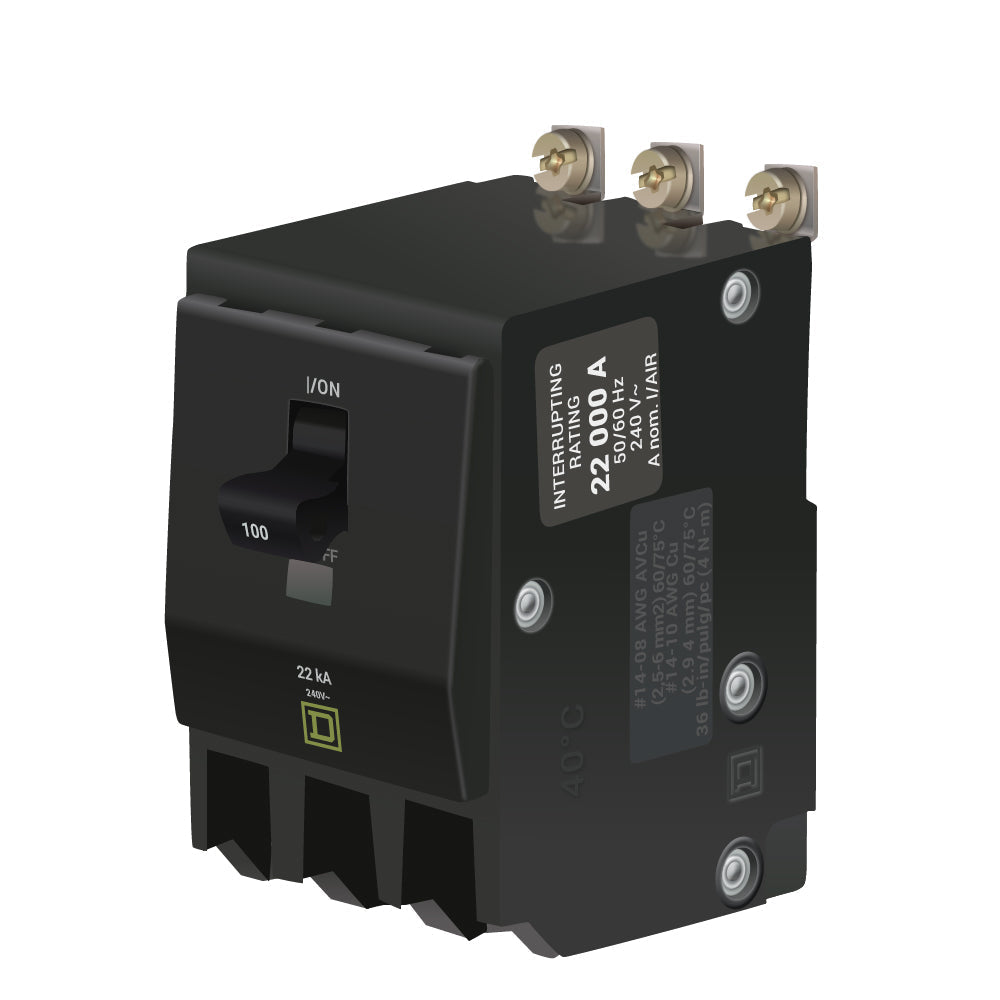

Square D QOB3100VH Circuit Breaker | 240V 100A 3P 22kA@240V Bolt-On QOB Series

Product Description:
The Square D QOB3100VH is a molded case circuit breaker designed for reliable electrical protection. It features a 3-pole configuration with a 240V voltage rating and 100A amperage capacity. This high interrupting capacity breaker includes thermal magnetic protection for enhanced safety. It is compatible with Square D NQOD panelboards and meets UL and CSA standards.

Key Features:
✔ Part Number: QOB3100VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901054801
✔ GTIN: 00785901054801
✔ Country of Origin: Mexico
✔ Dimensions: 2.24 in x 3.5 in x 3.5 in
✔ Weight: 1
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
