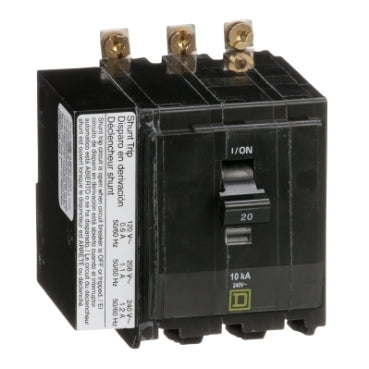

Square D QOB3201021 Circuit Breaker | 240V 20A 3P 10kA@240V Bolt-on QOB Series

Product Description:
The Square D QOB3201021 is a 3-pole molded case circuit breaker designed for 240V applications. It provides reliable thermal magnetic protection and is rated for 20 amps with a 10kA interrupting capacity. This bolt-on breaker is part of the QOB Series and is compatible with Square D NQOD panelboards.

Key Features:
✔ Part Number: QOB3201021
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 785901875925
✔ GTIN: 00785901875925
✔ Country of Origin: United States
✔ Dimensions: Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed; CSA
✔ Wire Size: 14 To 8 Awg (Aluminum/Copper)
