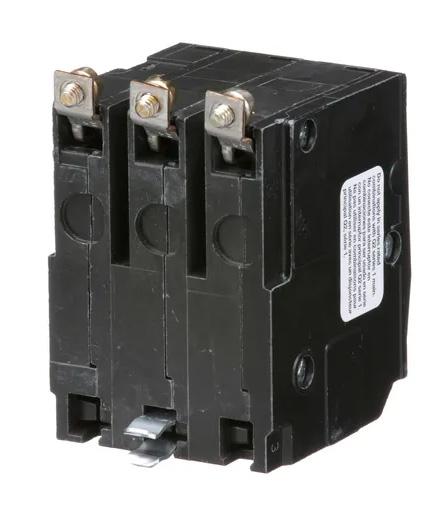

Square D QOB320 Circuit Breaker | 240V 20A 3P 10kA@240V Bolt-On QOB Series

Product Description:
The Square D QOB320 is a Molded Case Circuit Breaker from the QOB Series. It is a 3-pole, 20 amp breaker rated for 240 volts with a 10kA interrupting capacity. This model features thermal magnetic protection and uses a bolt-on connection for secure installation.

Key Features:
✔ Part Number: QOB320
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901417095
✔ GTIN: 00785901417095
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 3 in x 2.99 in
✔ Weight: 1 lb
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 14 To 8 Awg (Aluminum/Copper)
