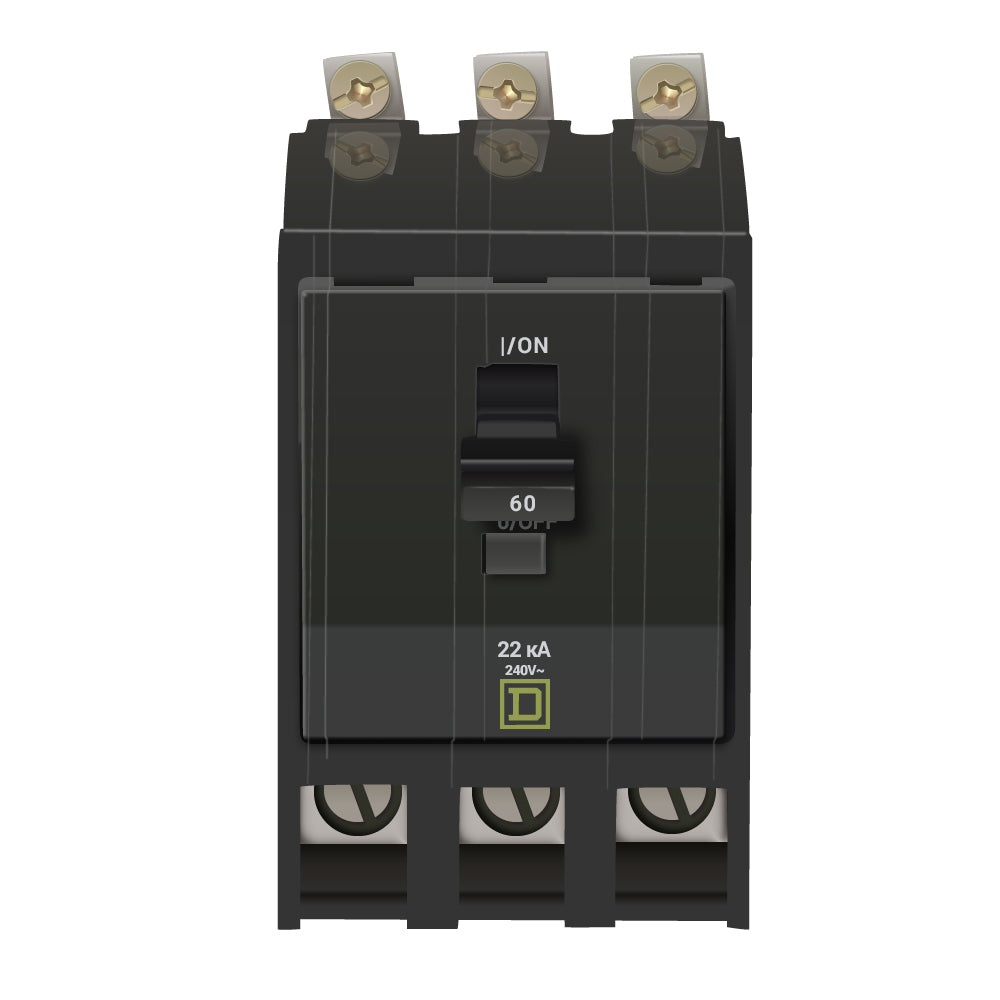

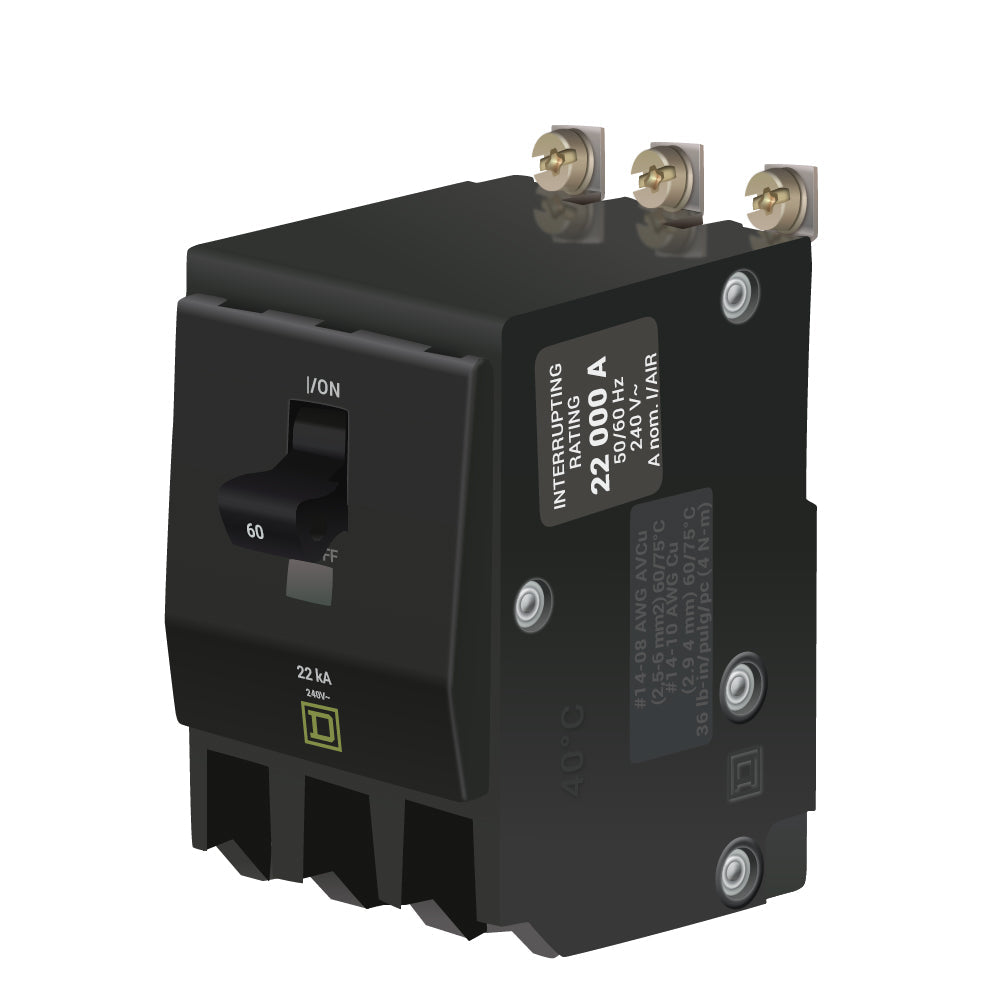

Square D QOB360VH 60A 3-Pole Bolt-On Breaker, 22kA, NQ/NQOD

Square D QOB360VH 60A 3-Pole Bolt-On Breaker, 22kA, NQ/NQOD

Need a direct replacement 60A bolt-on breaker for a Square D NQ or NQOD panel? The QOB360VH drops in and handles 60A loads at 120/240VAC, with a 22kA interrupting rating for jobs where fault current is a concern. Box lug terminals take 8-2 AWG copper or aluminum, and the bolt-on connection gives you a solid, vibration-resistant fit in the bus.

This is the QO frame 3-pole with thermal-magnetic trip, so you get long-time and instantaneous protection in one unit. The Visi-Trip flag pops up when it's tripped, so you're not guessing which breaker to reset when you're working a panel. UL Listed and CSA Certified.

Common Applications

• Direct swap for a failed or aging 60A bolt-on breaker in NQ/NQOD gear
• Panel upgrades and service calls needing 22kA interrupting capacity
• New panel builds spec'ing Square D QO frame breakers
• Commercial and light industrial branch or feeder circuits

Key Features

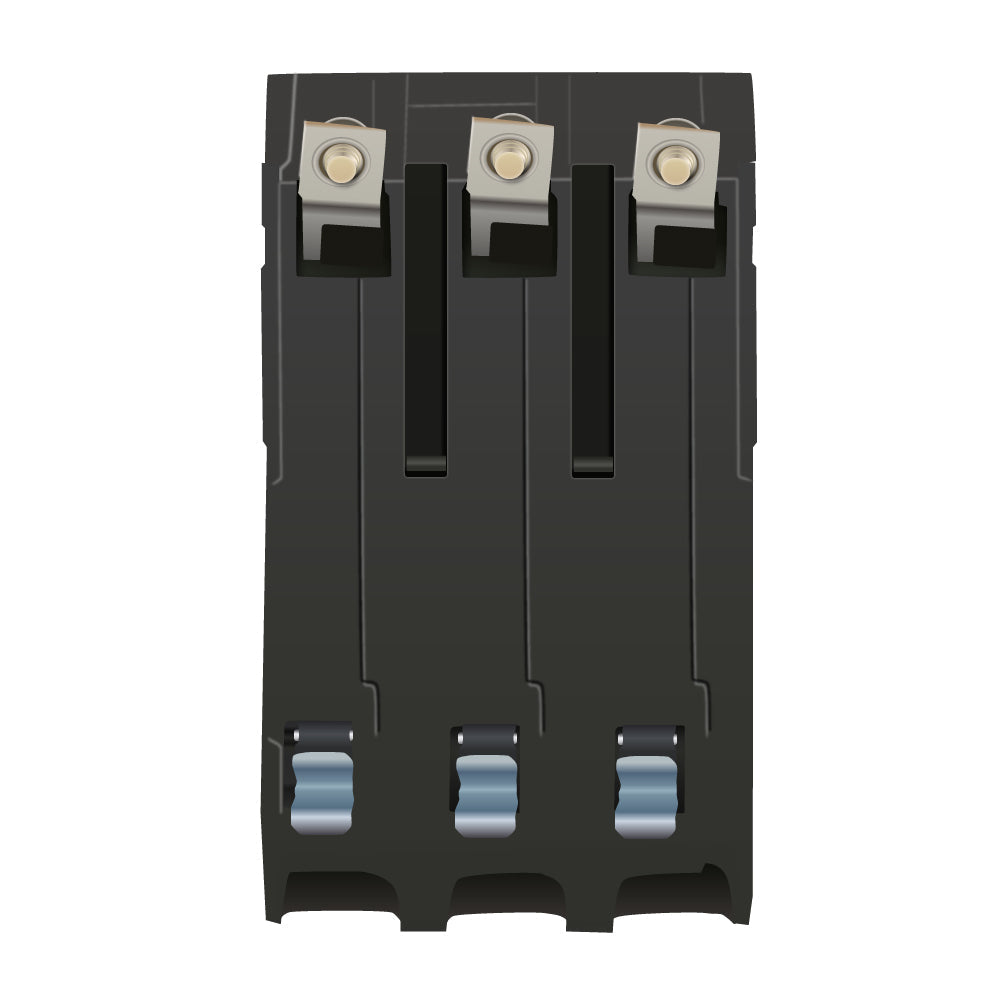

• Bolt-on fit: Locks into the bus for a tight, vibration-resistant connection, no clip-on play
• 22kA interrupting rating: Handles higher fault current jobs at 120/240VAC
• Visi-Trip flag: Spot a tripped breaker fast without testing every handle
• Thermal-magnetic trip: Long-time and instantaneous protection built in
• Box lug terminals: Accepts 8-2 AWG copper or aluminum, no extra lug kit needed

Specifications

• Manufacturer: Square D (Schneider Electric)
• Catalog Number: QOB360VH
• Series: QOB / QO Frame
• Poles: 3
• Amperage: 60A
• Voltage: 120/240VAC
• Interrupting Rating: 22kA at 120/240VAC
• Trip Type: Thermal-Magnetic (Long-Time and Instantaneous)
• Mounting: Bolt-On
• Terminal: Box Lug, 8-2 AWG Cu/Al
• Certifications: UL Listed (File E84967), CSA Certified (Master Contract 153555)

Product Identification

• Country of Origin: Mexico
• Dimensions: 2.24 in W x 3.11 in H x 2.91 in D
• Weight: 1.10 lb (0.499 kg)
• UPC: 785901054832
• GTIN: 00785901054832

FAQ

• What panels does the QOB360VH fit? Square D NQ and NQOD bolt-on panelboards.
• Is this a direct replacement for an existing QOB360VH? Yes, it's the same catalog number, same bolt-on fit and ratings.
• What's the interrupting rating? 22kA at 120/240VAC.
• What wire size does it take? 8-2 AWG copper or aluminum in the box lugs.
• Does it have a trip indicator? Yes, the Visi-Trip flag shows when it's tripped.
• Is it UL and CSA listed? Yes, UL Listed under File E84967 and CSA Certified under Master Contract 153555.
