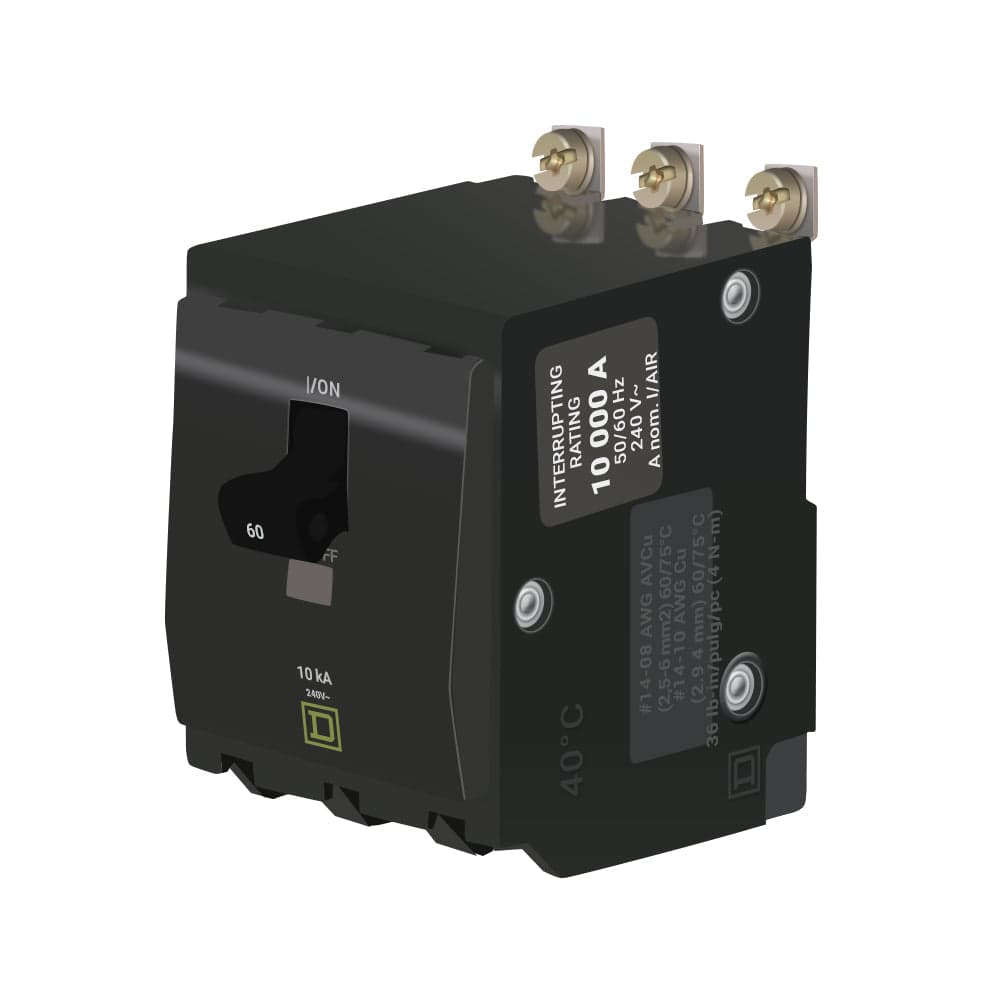

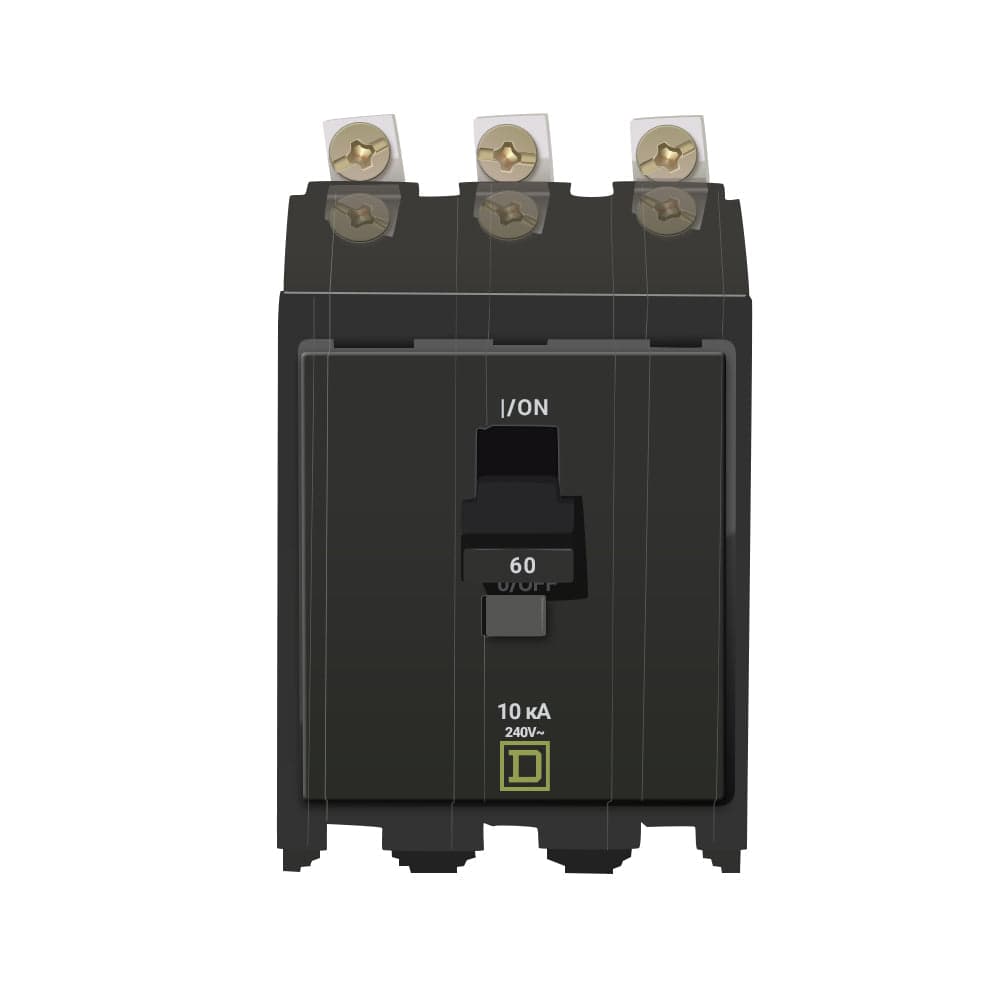

Square D QOB360 Circuit Breaker | 240V 60A 3P 10kA@240V Bolt-On QOB Series

Product Description:
The Square D QOB360 is a Molded Case Circuit Breaker from the QOB Series. It is a 3-pole, 60 amp breaker rated for 240 volts with a 10kA interrupting capacity. This model features Bolt-On connections and provides Thermal Magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: QOB360
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901417187
✔ GTIN: 00785901417187
✔ Country of Origin: Mexico
✔ Dimensions: 2.24 in x 3.12 in x 3.11 in
✔ Weight: 1 lb
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 8 to 2 AWG Aluminum/Copper
