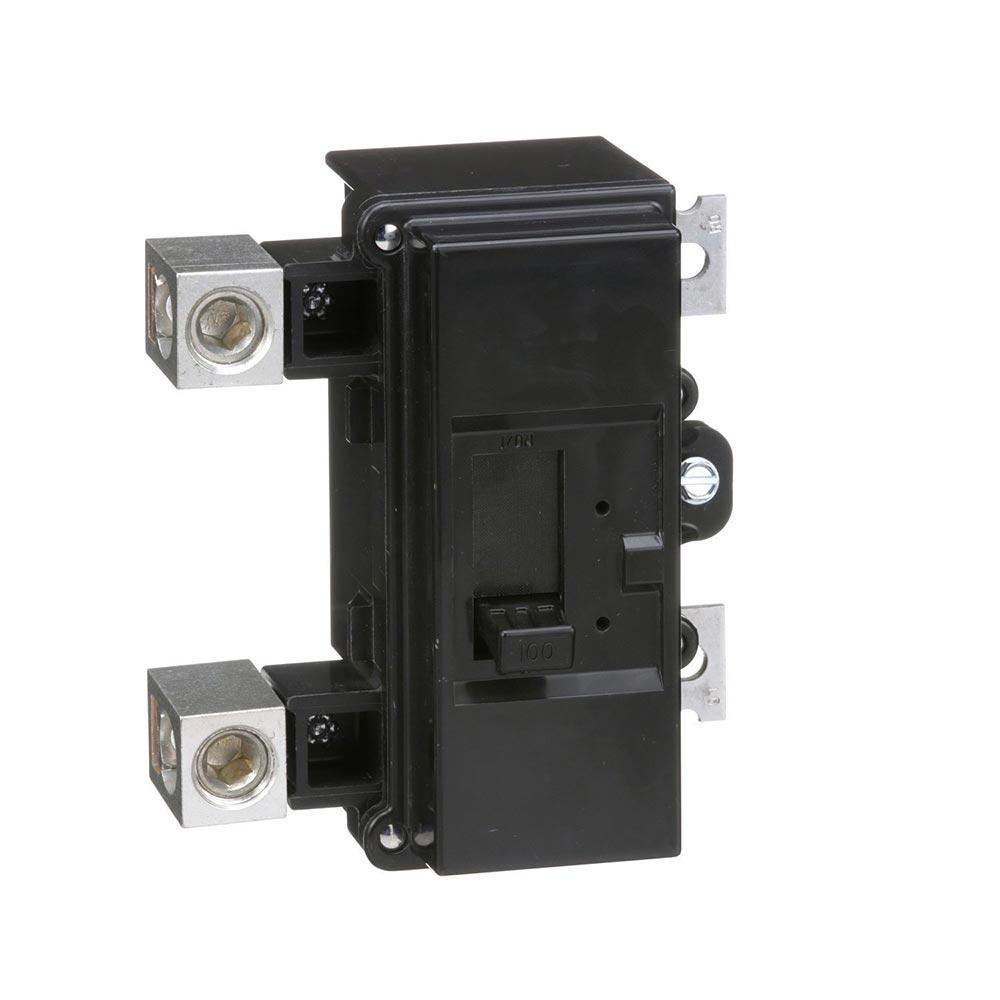

Square D QOM2125VH Circuit Breaker | 120/240V 125A 2P 22kA@240V Bolt-On QOM Series

Product Description:
The Square D QOM2125VH is a Molded Case Circuit Breaker from the QOM Series family. It is a 2-pole, 125 amp breaker rated for 120/240 volts with an interrupting rating of 22kA@240V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation. It is designed for use in Homeline and QO load centers.

Key Features:
✔ Part Number: QOM2125VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOM Series
✔ Type: QOM
✔ Voltage: 120/240
✔ Amperage: 125
✔ Poles: 2
✔ AIC Rating: 22kA@240V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Breaker Type: Main Breaker
✔ Frame Size: 100A/QO
✔ Wire Size: 4 AWG To 300 KCMIL
✔ Certification: UL Listed
✔ Standards: CSA, UL Listed
✔ Panel Type: Homeline Load Center, QO Load Center
✔ UPC: 785901021971
✔ GTIN: 00785901021971
✔ Country of Origin: Mexico
✔ Dimensions: 3.6 in x 5.6 in x 5.59 in
✔ Weight: 1.21
