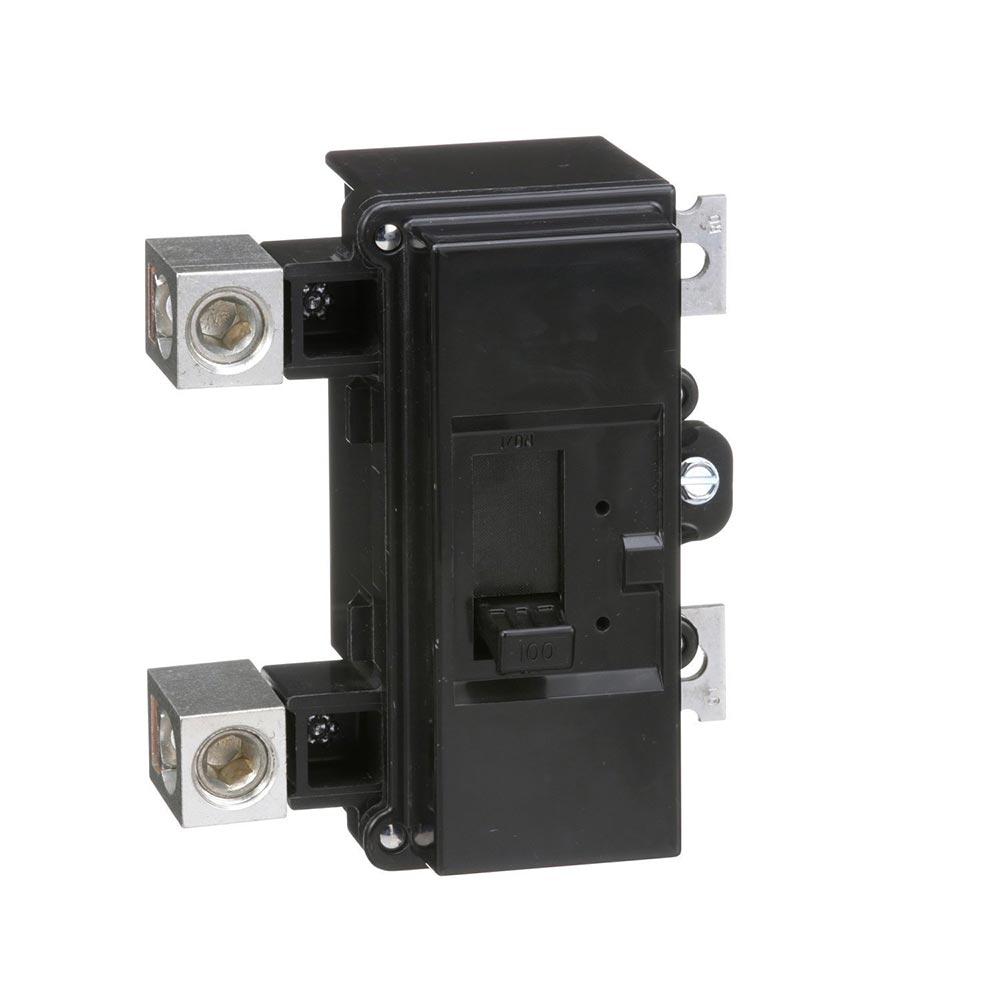

Square D QOM2150VH Circuit Breaker | 120/240V 150A 2P 22kA@240V Bolt-On QOM Series

Product Description:
The Square D QOM2150VH is a Molded Case Circuit Breaker from the QOM Series family. It is a 2-pole, 150 amp breaker rated for 120/240V with an AIC rating of 22kA@240V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation. It is designed for use in Homeline and QO load centers.

Key Features:
✔ Part Number: QOM2150VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOM Series
✔ Type: QOM
✔ Voltage: 120/240
✔ Amperage: 150
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Main Breaker
✔ Protection: Thermal Magnetic
✔ UPC: 785901004059
✔ GTIN: 00785901004059
✔ Country of Origin: Mexico
✔ Dimensions: 3.6 in x 5.6 in x 5.59 in
✔ Weight: 1.2
✔ Panel Type: Homeline Load Center, QO Load Center
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 4 Awg To 300 Kcmil (Aluminum/Copper)
