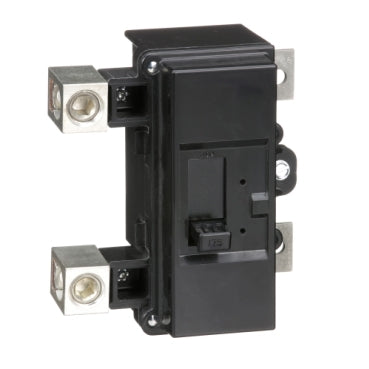

Square D QOM2175VH Molded Case Circuit Breaker | 240V 175A 2P 22kA@240V Bolt-on QOM Series

Product Description:
The Square D QOM2175VH is a Molded Case Circuit Breaker from the QOM Series family. It is a 2-pole, 175 amp breaker rated for 240 volts with an AIC rating of 22kA@240V. This thermal magnetic circuit breaker features a bolt-on connection and is designed for use in QO and Homeline load centers.

Key Features:
✔ Part Number: QOM2175VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOM Series
✔ Type: QOM
✔ Voltage: 240
✔ Amperage: 175
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: QOM2
✔ MCM Size: Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 300 kcmil (Cu/Al)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901848585
✔ GTIN: 00785901848585
✔ Country of Origin: United States
✔ Dimensions: Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 1.2
✔ Panel Type: QO Load Center, Homeline Load Center
✔ Standards: UL Listed, CSA
✔ Certification: UL Listed; CSA
