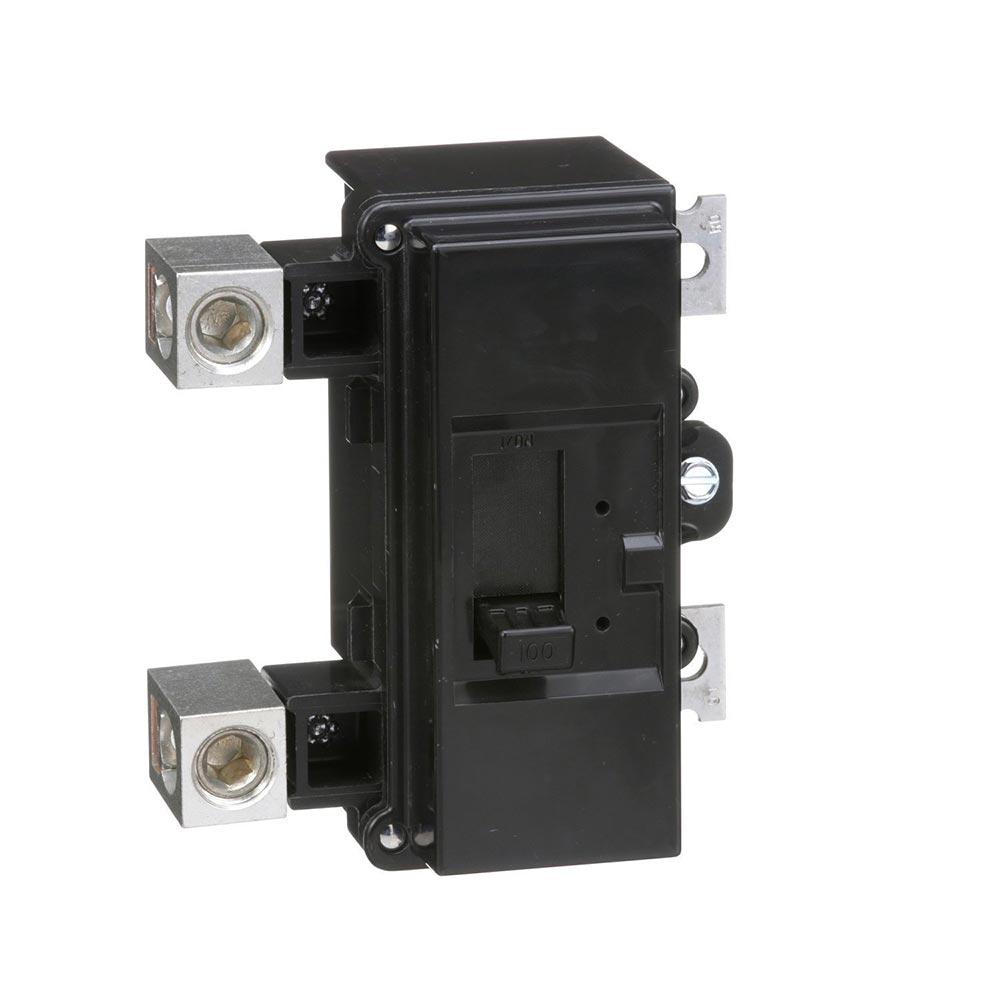

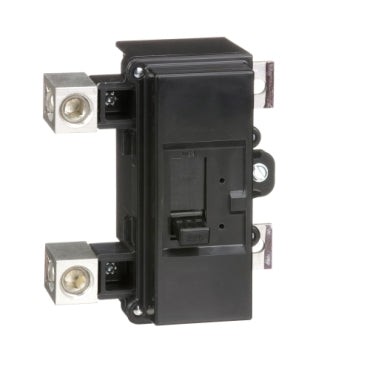

Square D QOM2225VH Circuit Breaker | QOM Series QOM 240V 225A

Product Description:
The Square D QOM2225VH is a robust Molded Case Circuit Breaker designed for reliable electrical protection. It features a 2 pole configuration, operates at 240 volts, and has a 225 amp rating. With a high AIC rating of 22kA@240V, it ensures safety and efficiency in electrical systems. The breaker includes thermal magnetic protection and uses a Bolt-On connection for secure installation.

Key Features:
✔ Part Number: QOM2225VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOM Series
✔ Type: QOM
✔ Voltage: 240
✔ Amperage: 225
✔ Certification: UL Listed, CSA
✔ UPC: 785901004073
✔ GTIN: 00785901004073
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: QOM2
✔ MCM Size: Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 300 kcmil (Cu/Al)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Dimensions: Depth 5.08 in (129 mm) Width 3.58 in (91 mm) Height 5.59 in (142 mm)
✔ Weight: 2.64
✔ Panel Type: QO Load Center, Homeline Load Center
✔ Wire Size: 4 Awg To 300 Kcmil (Aluminum/Copper)
