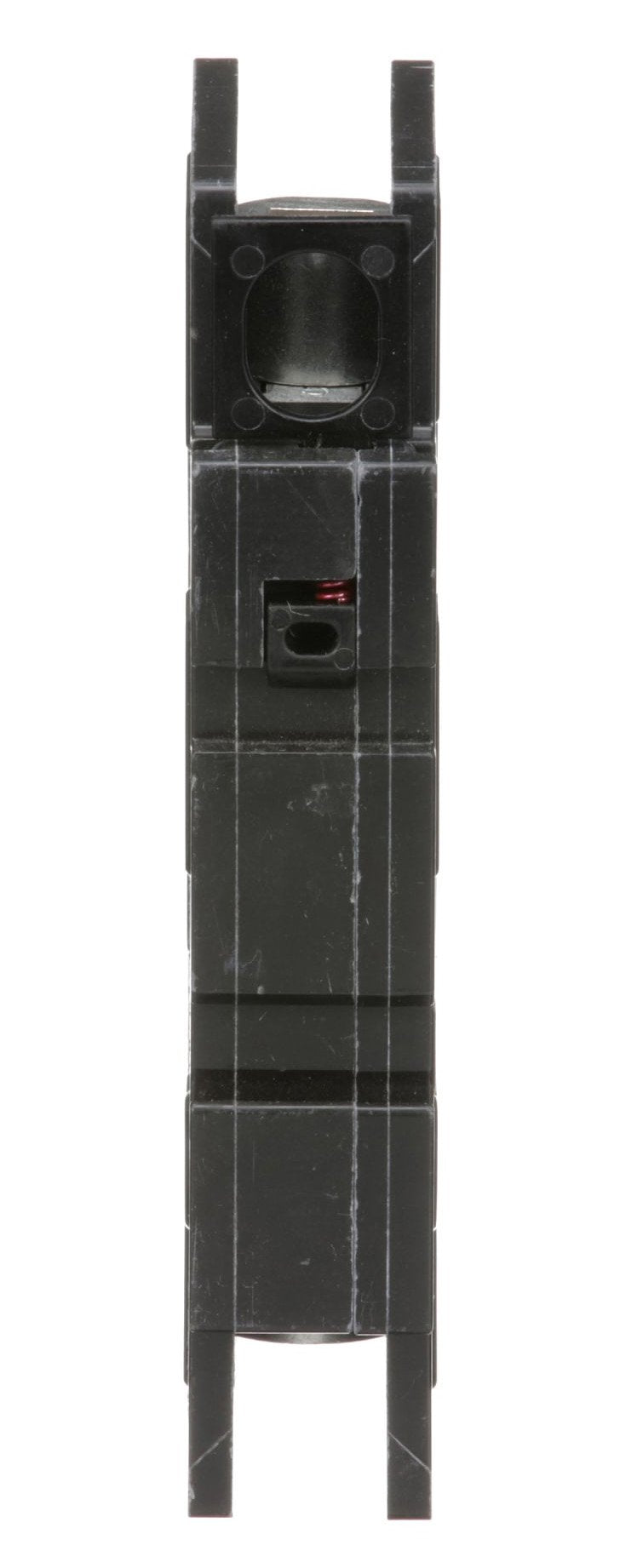

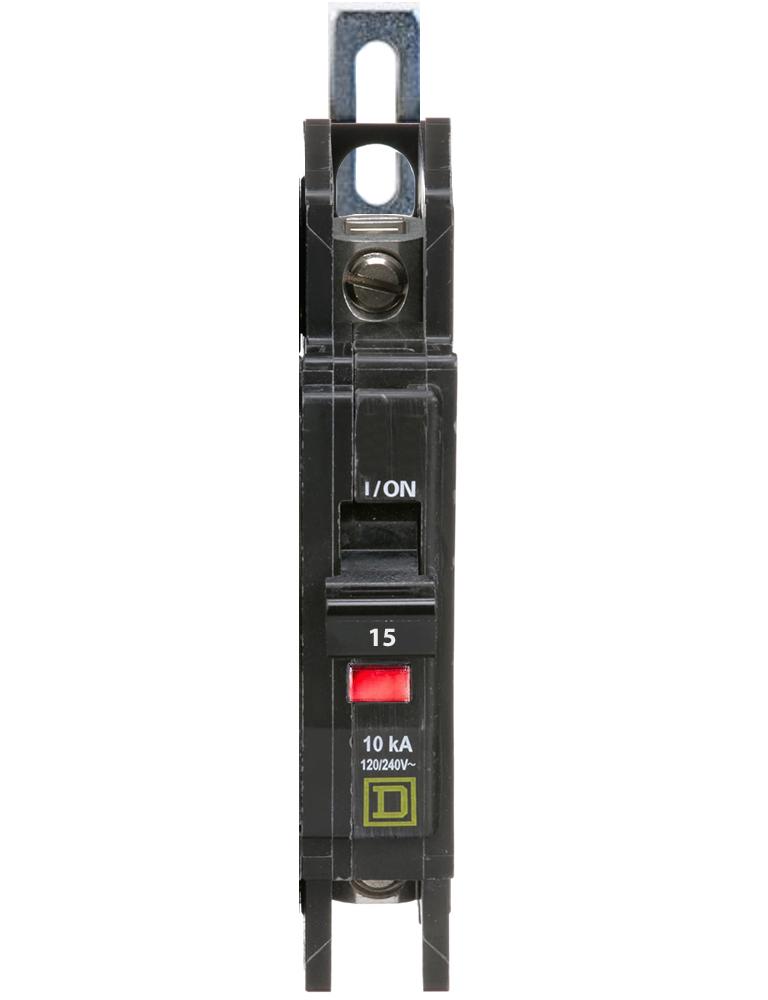

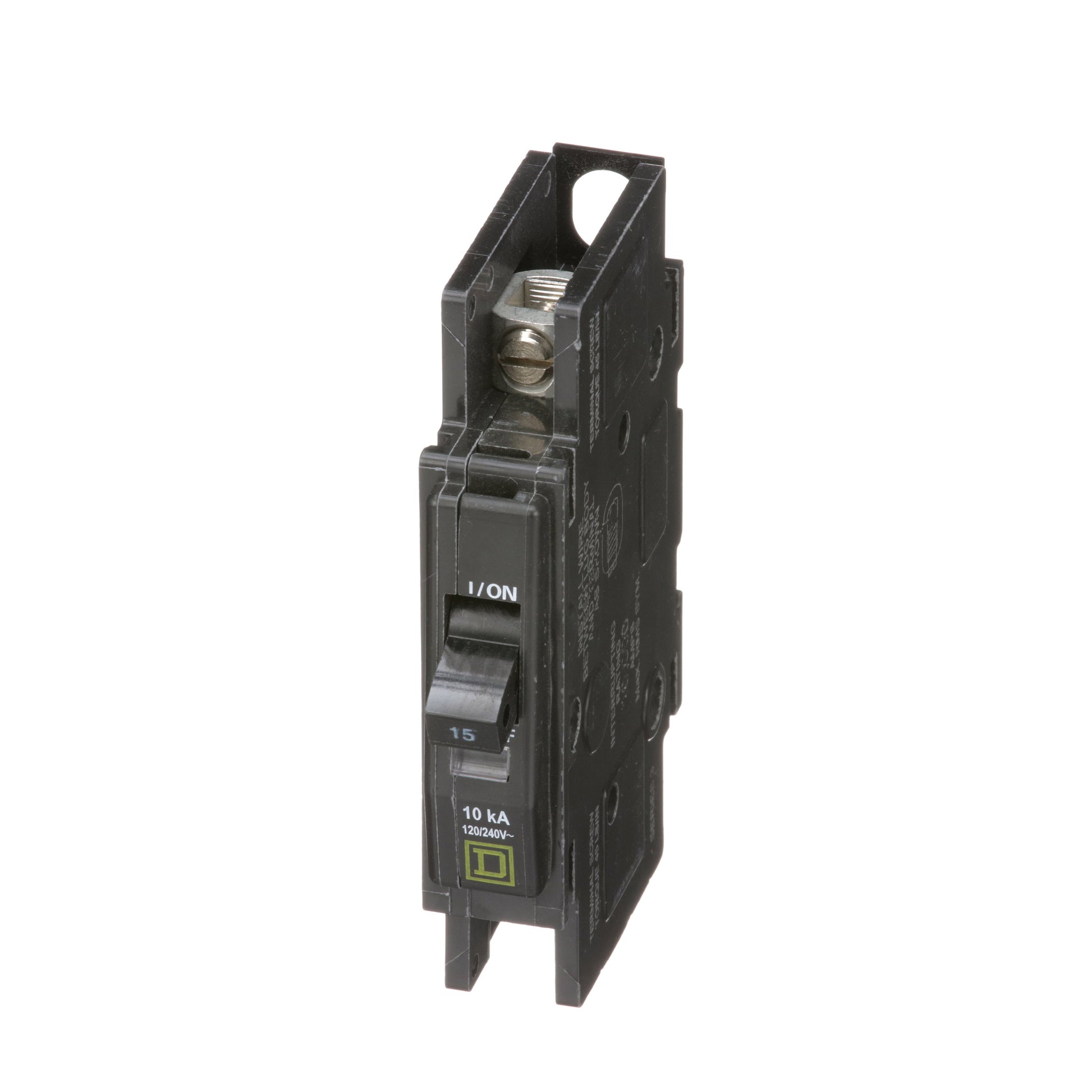

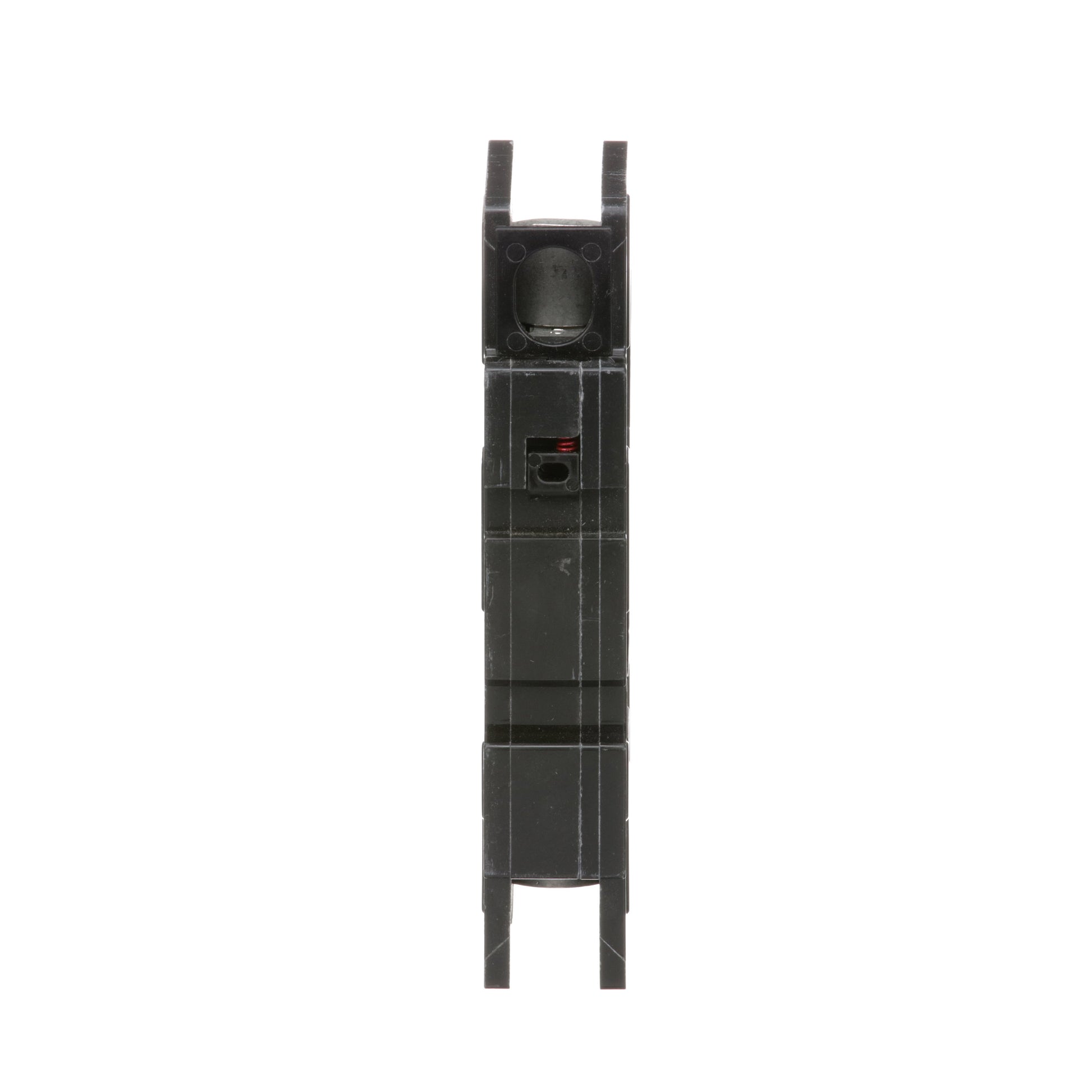

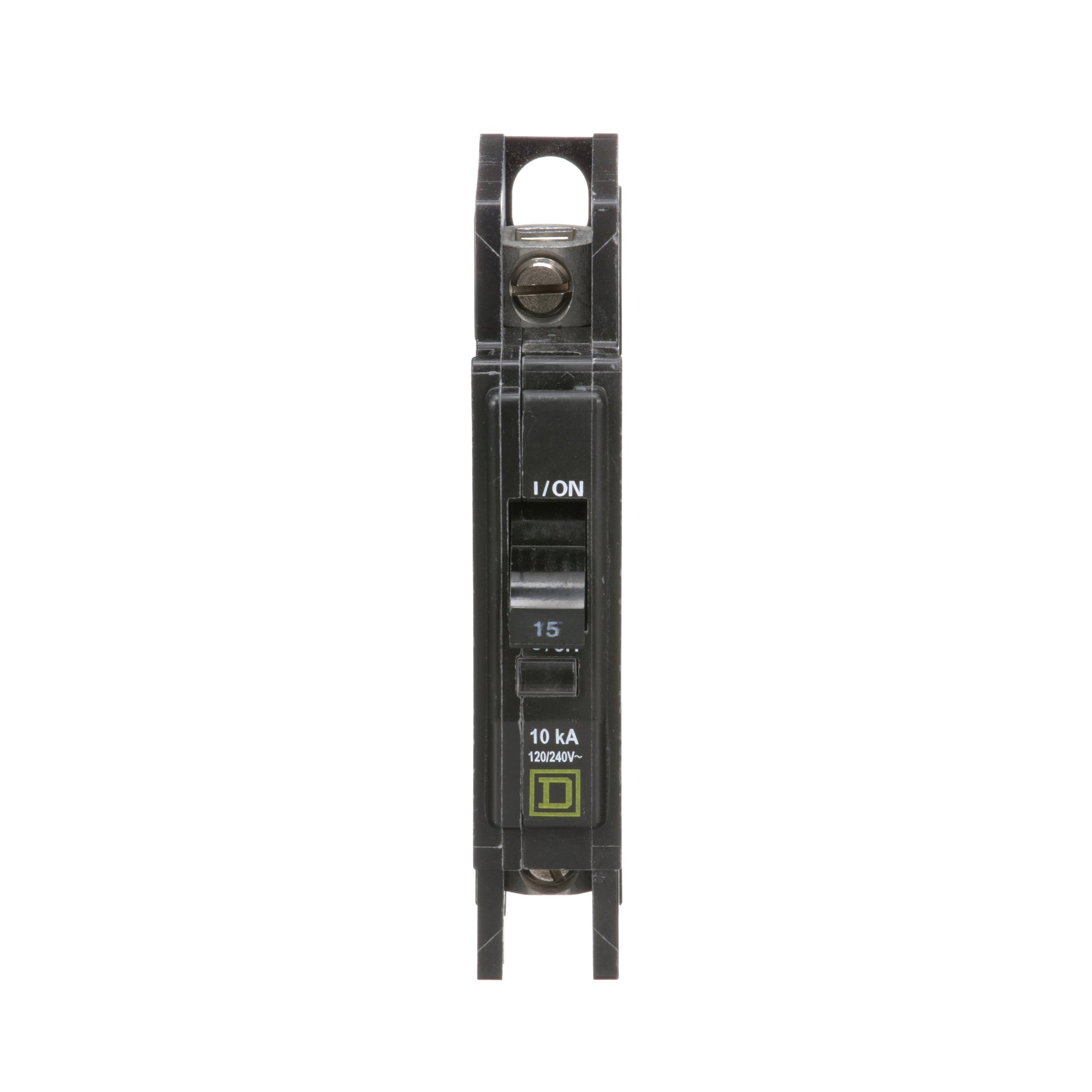

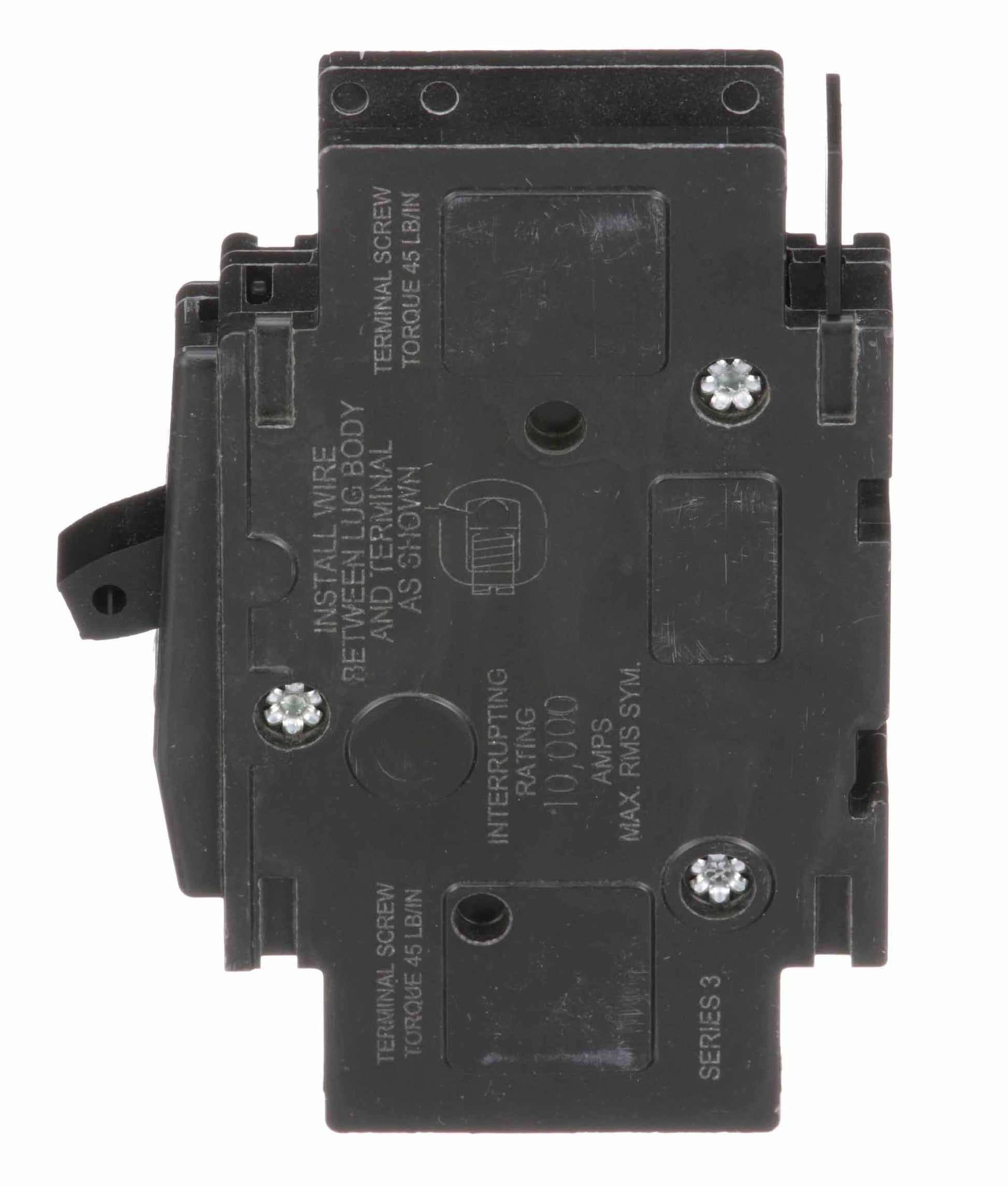

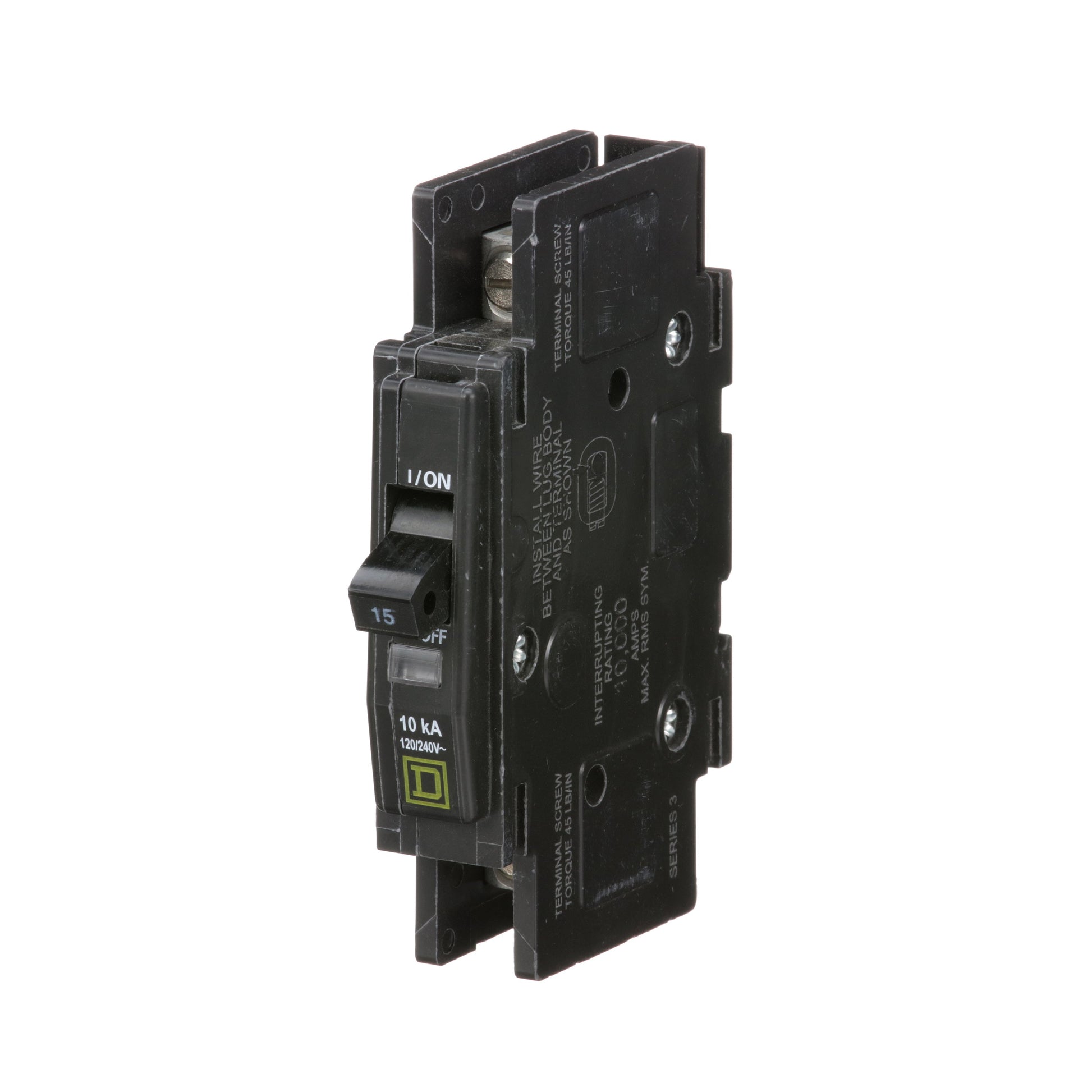

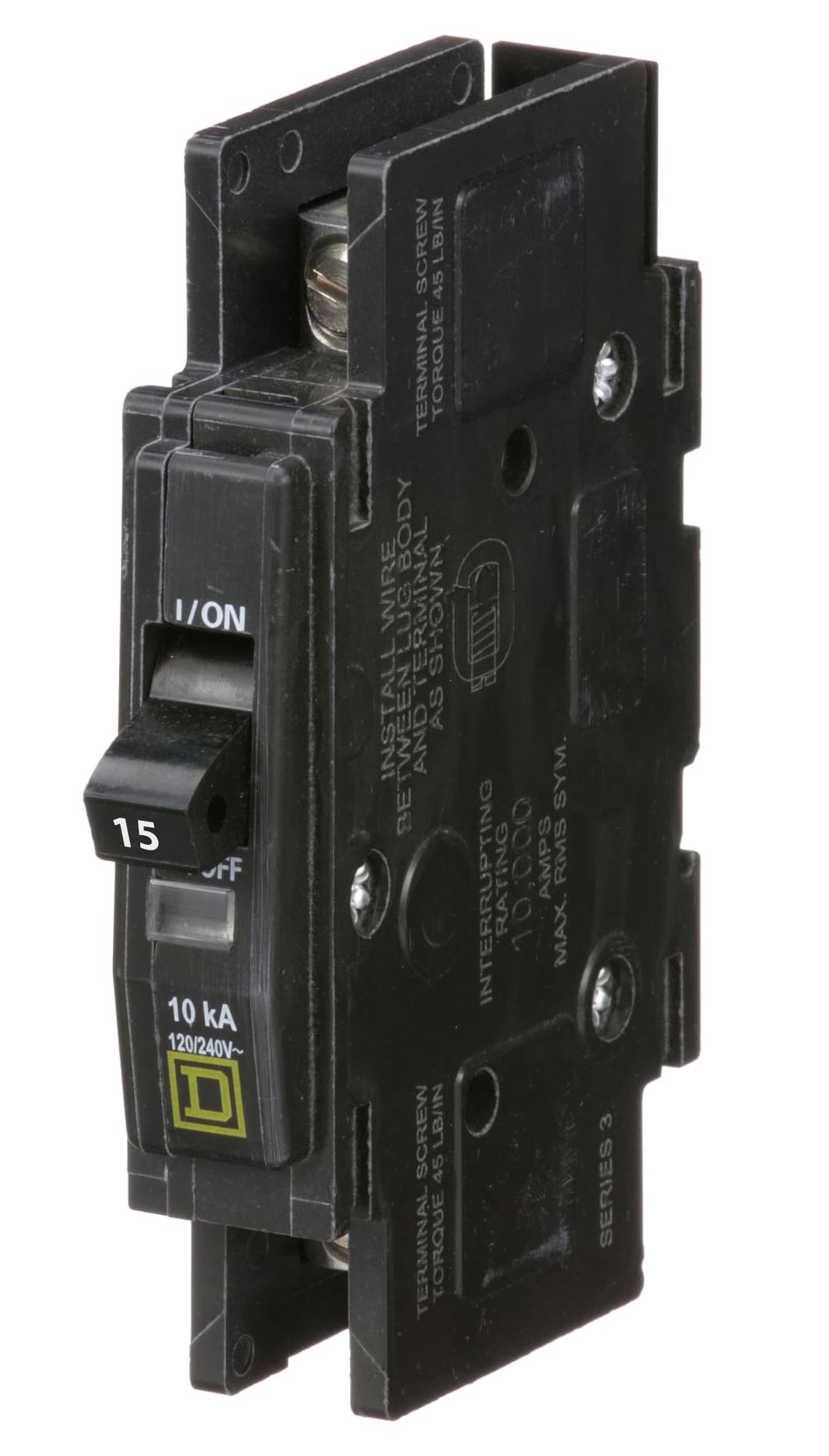

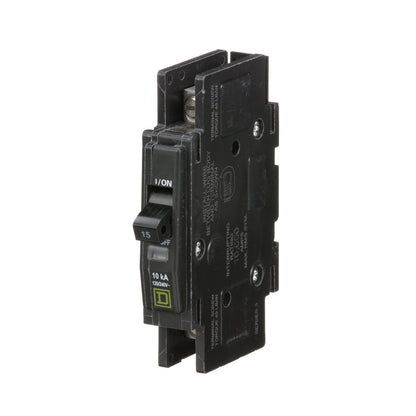

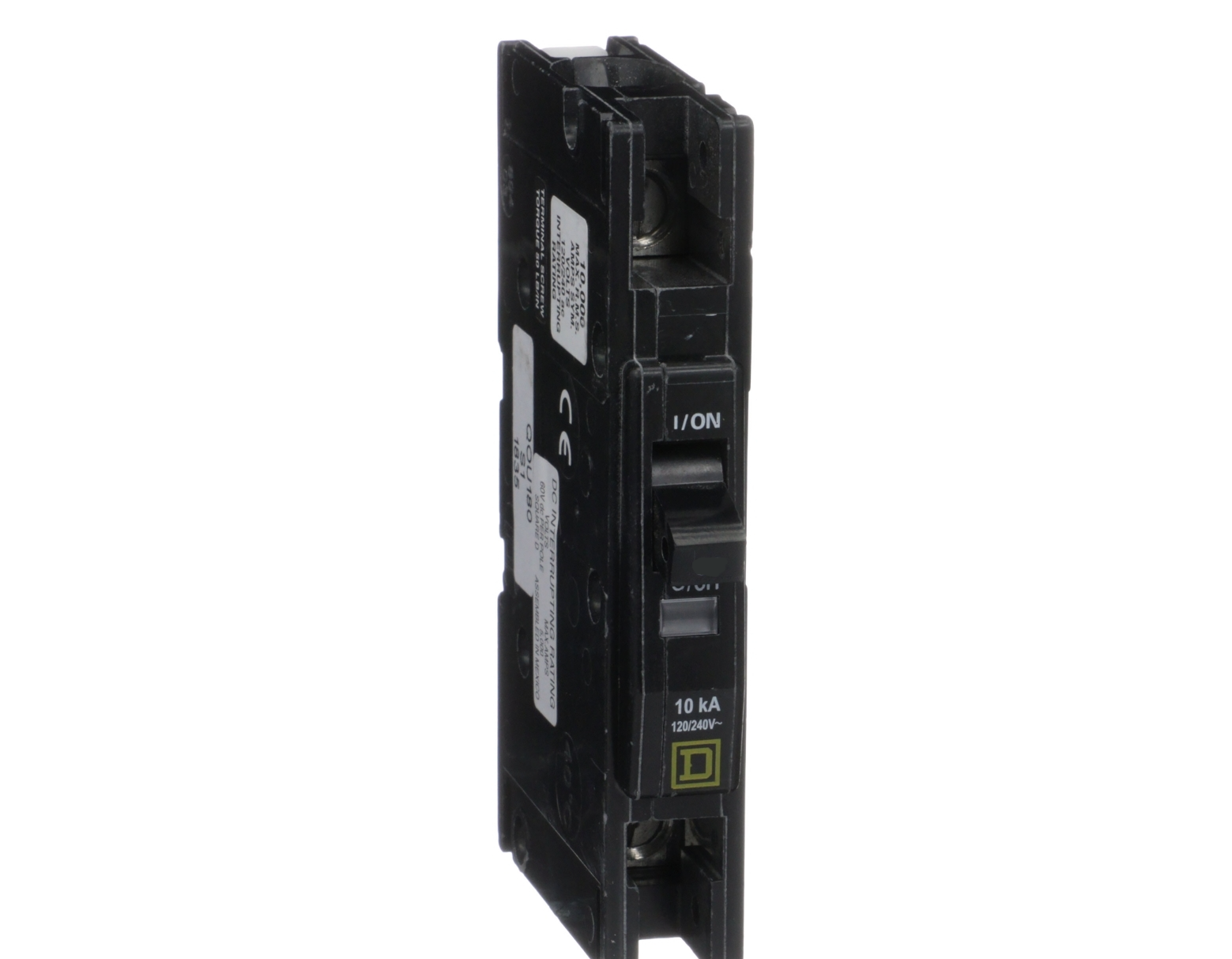

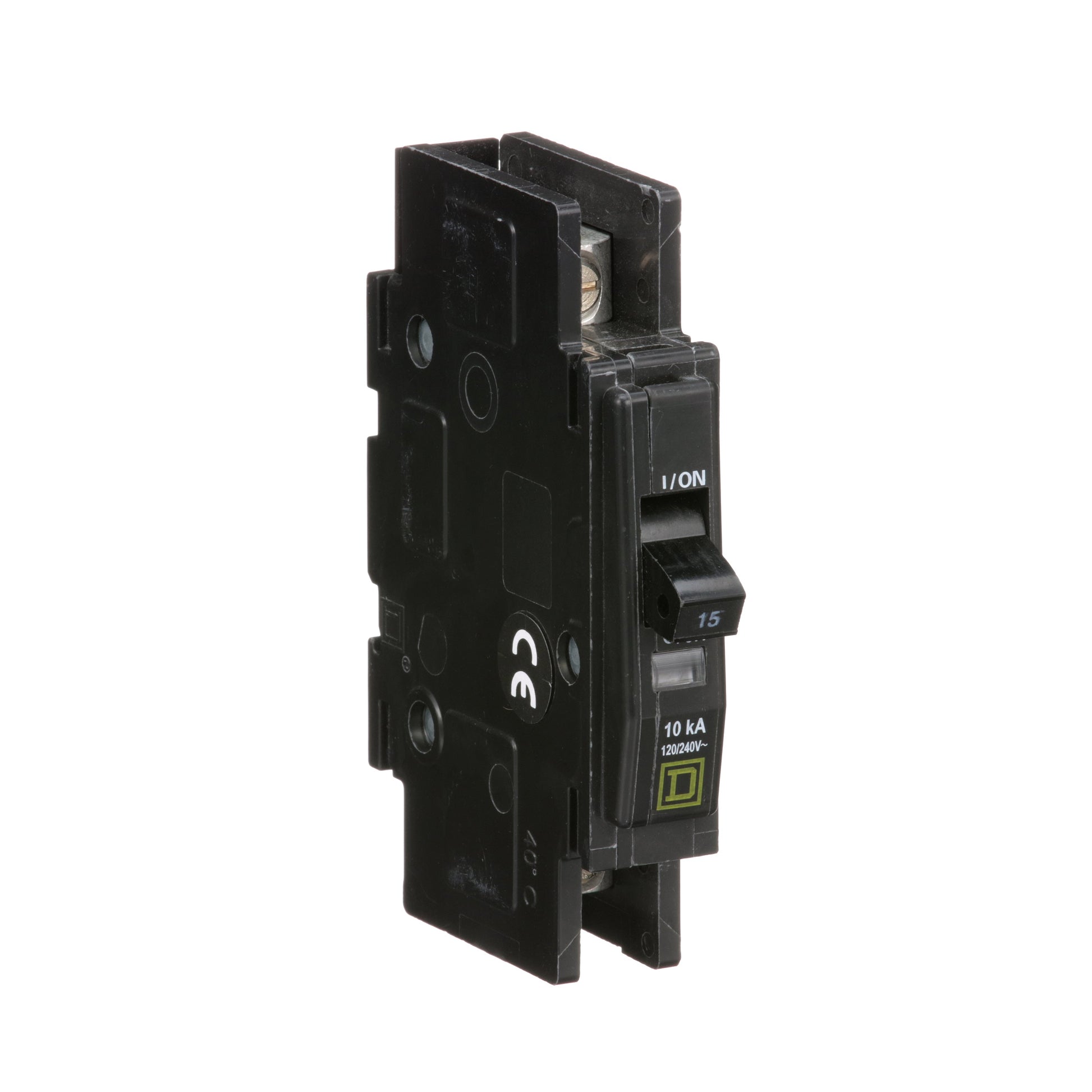

Square D QOU115 Circuit Breaker | 120/240V 15A 1P 10kA@120V Bolt-On QOU Series

Product Description:
The Square D QOU115 is a Molded Case Circuit Breaker designed for reliable electrical protection. It is rated for 120/240 volts and 15 amps, with a 10kA interrupting capacity at 120V. This single-pole breaker features thermal magnetic protection and a bolt-on connection for secure installation. It is suitable for use in air conditioning, refrigeration, and heating equipment panels.

Key Features:
✔ Part Number: QOU115
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901418504
✔ GTIN: 00785901418504
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 4.05 in x 4.05 in
✔ Weight: 1
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
