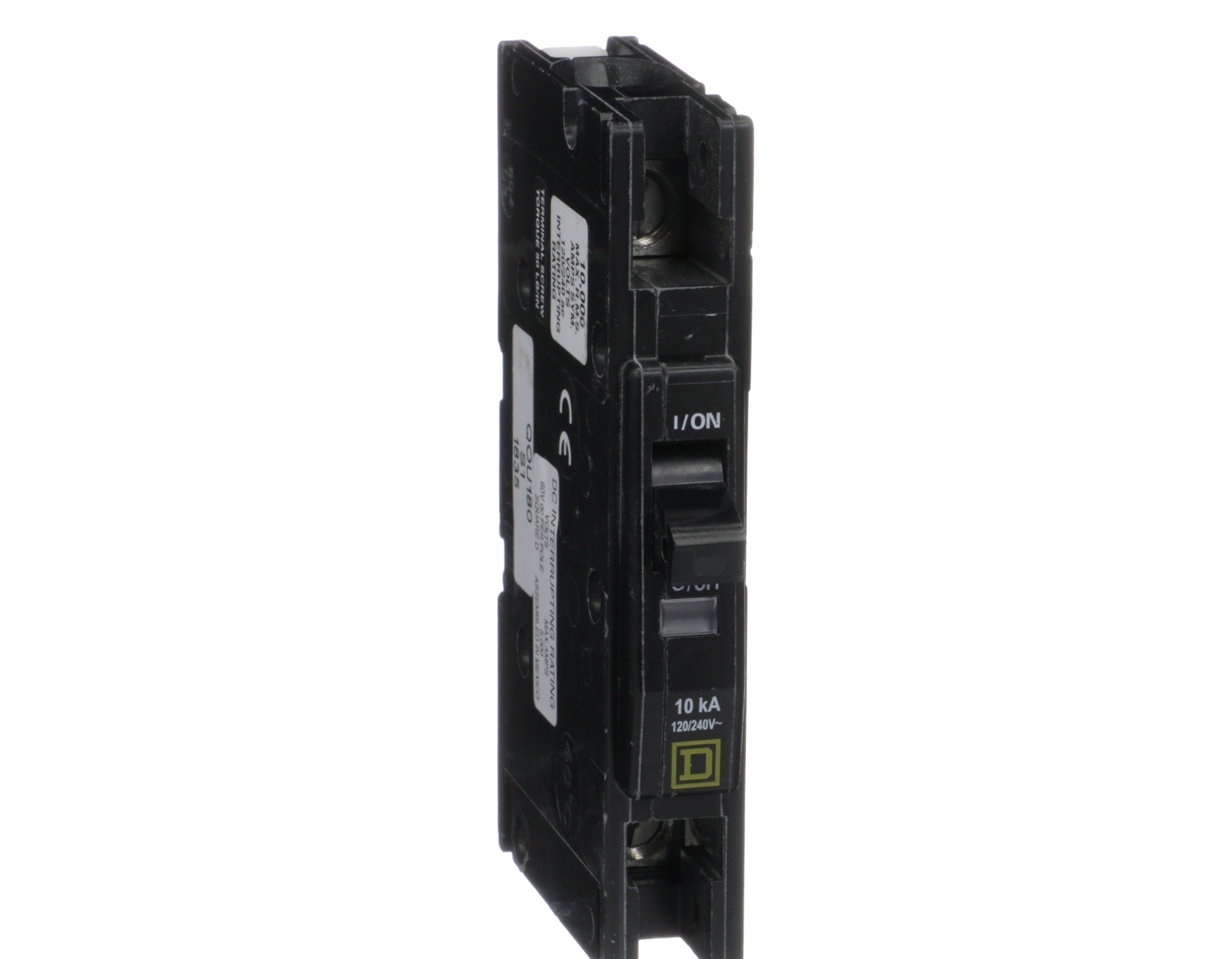

Square D QOU120HM Circuit Breaker | 120/240V 20A 1P 10kA@120V Bolt-On QOU Series

Product Description:
The Square D QOU120HM is a Molded Case Circuit Breaker from the QOU Series. It is a 1 pole, 20 amp breaker rated for 120/240 volts with a 10kA AIC rating at 120V. This model features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: QOU120HM
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: High Magnetic
✔ Protection: Thermal Magnetic
✔ UPC: 785901371458
✔ GTIN: 00785901371458
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 4.05 in x 4.05 in
✔ Weight: 0.37
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
