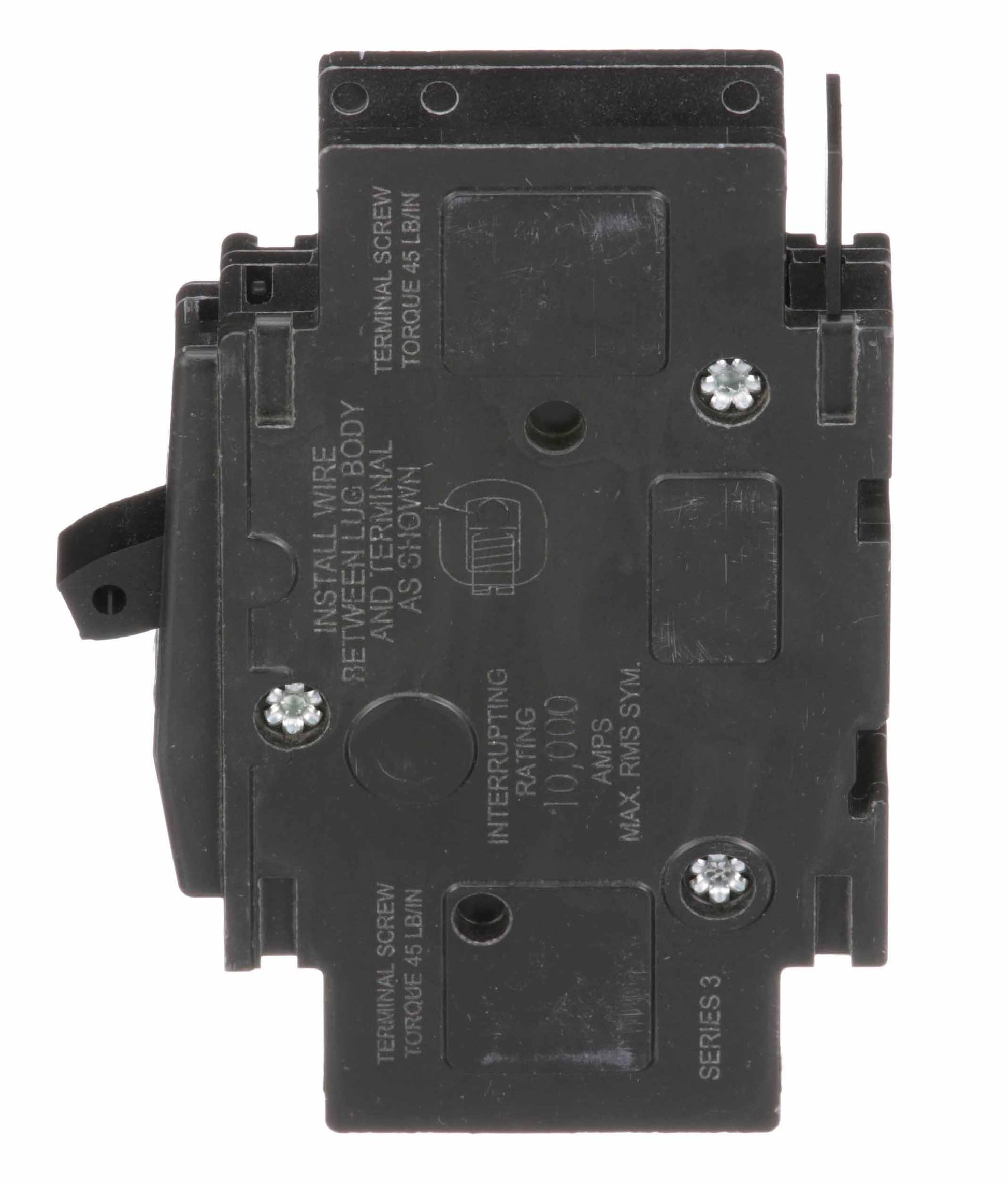

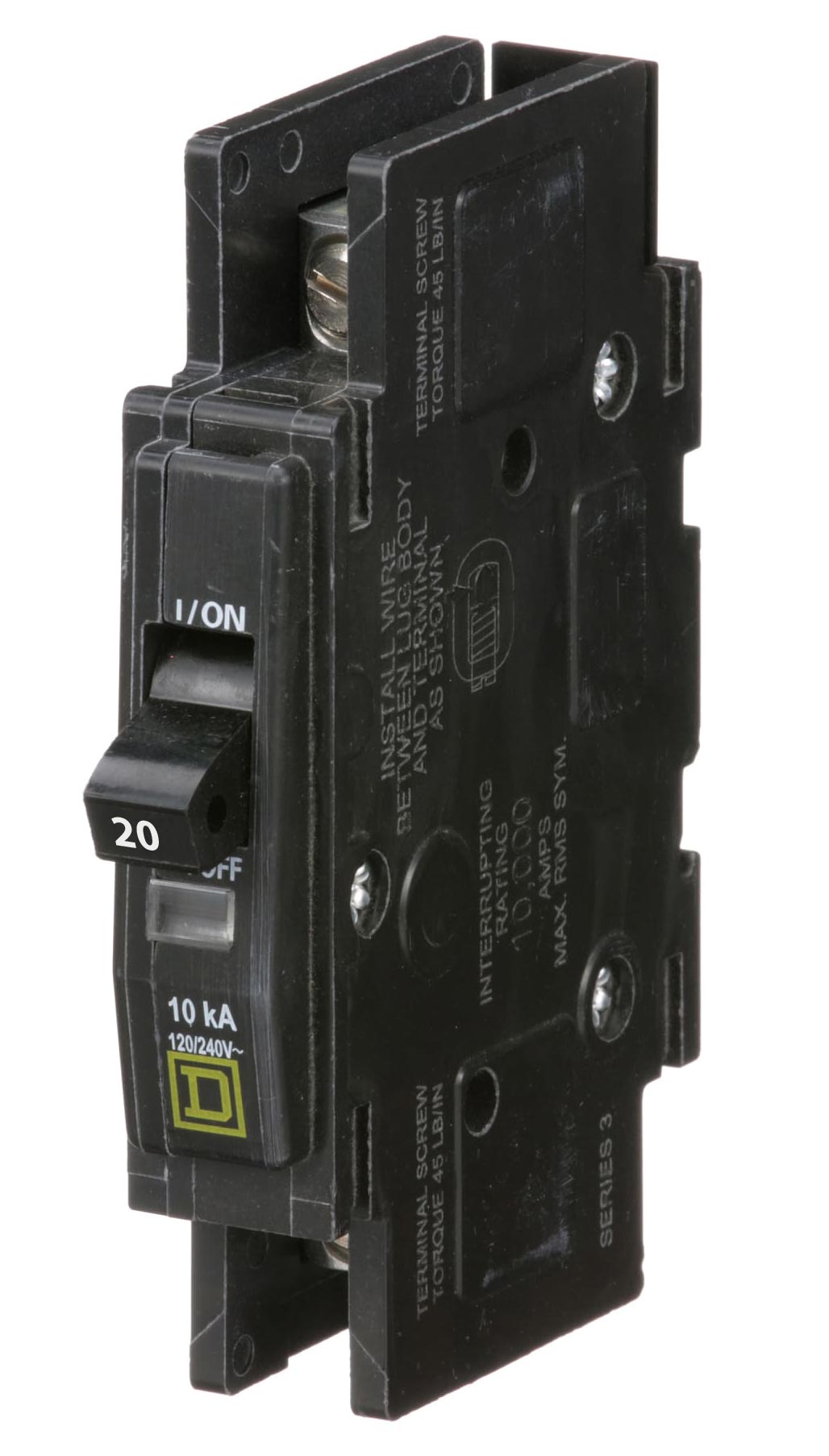

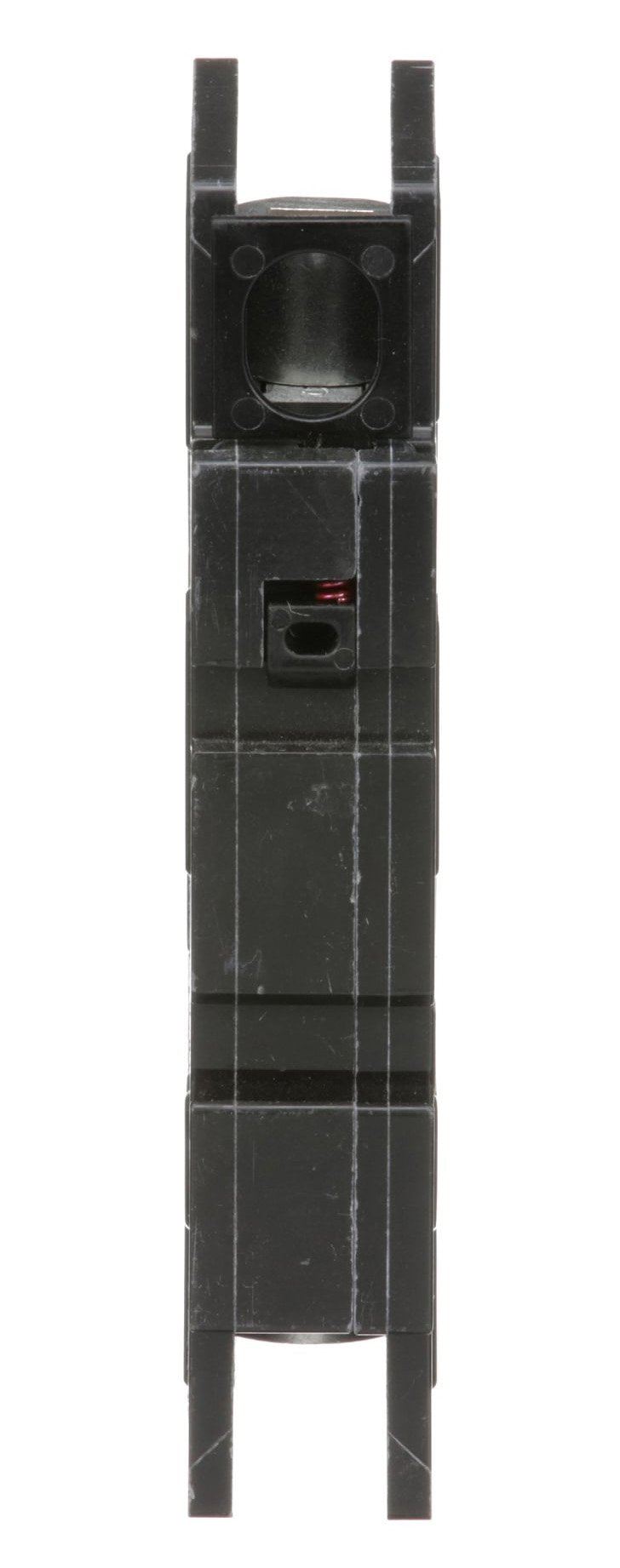

Product Description:

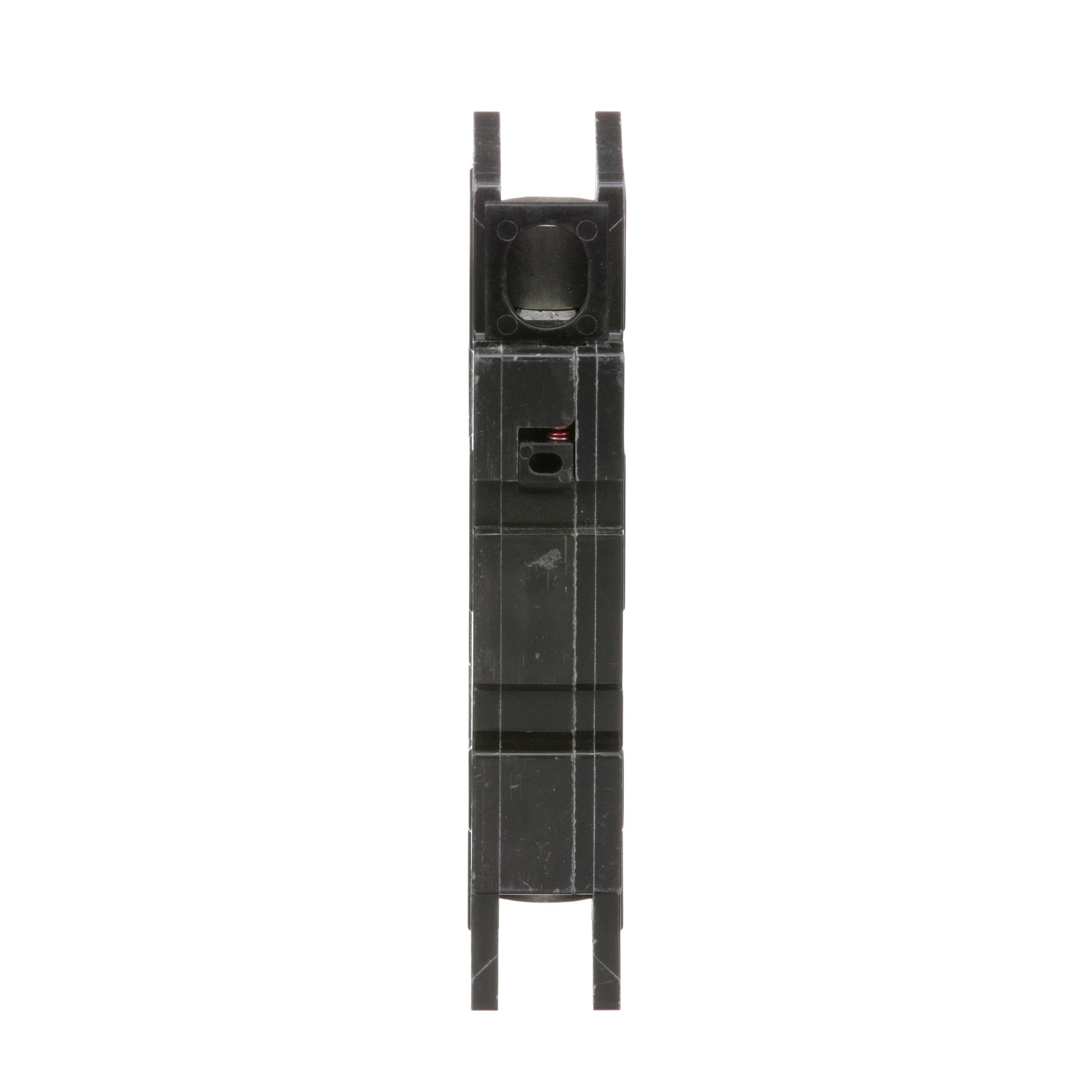

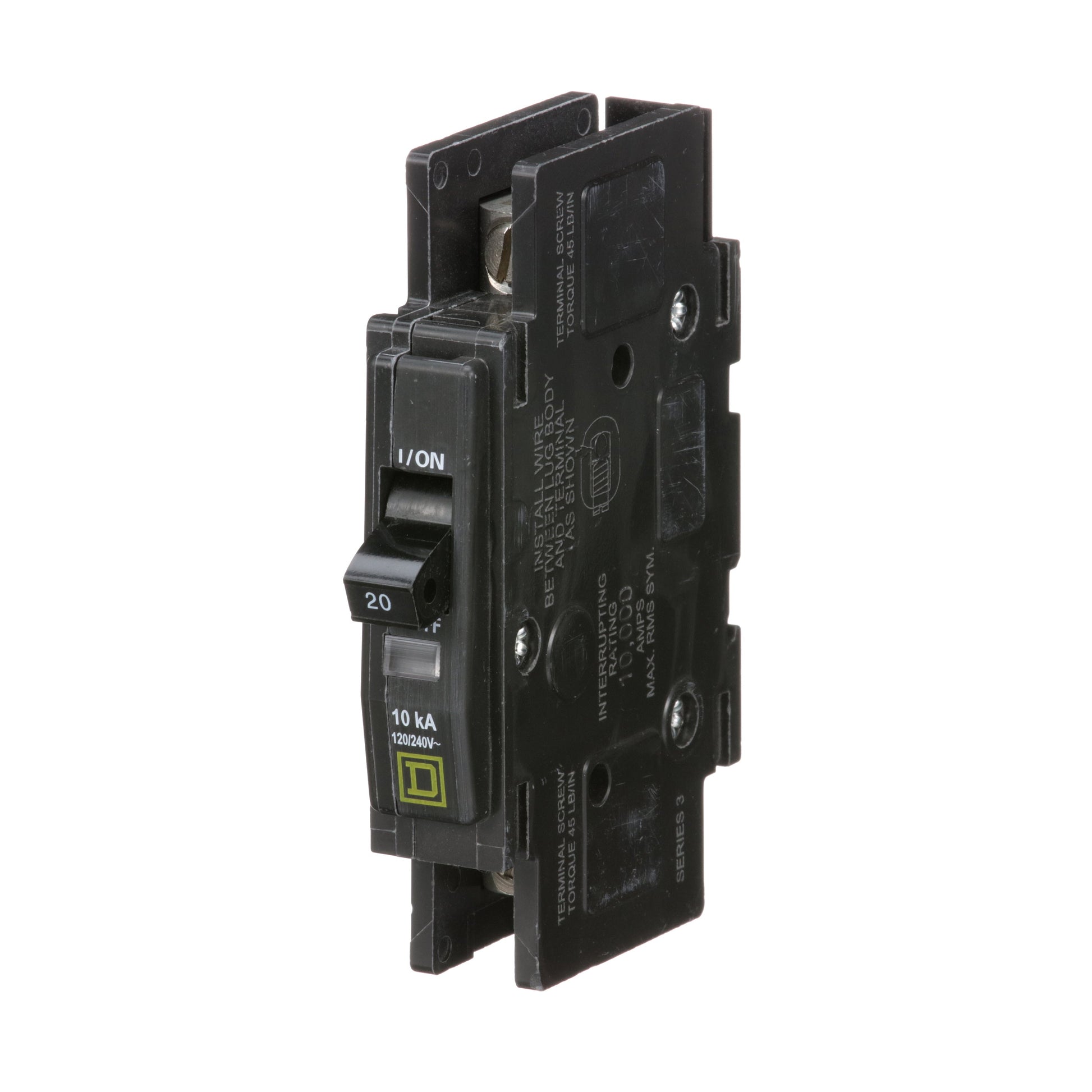

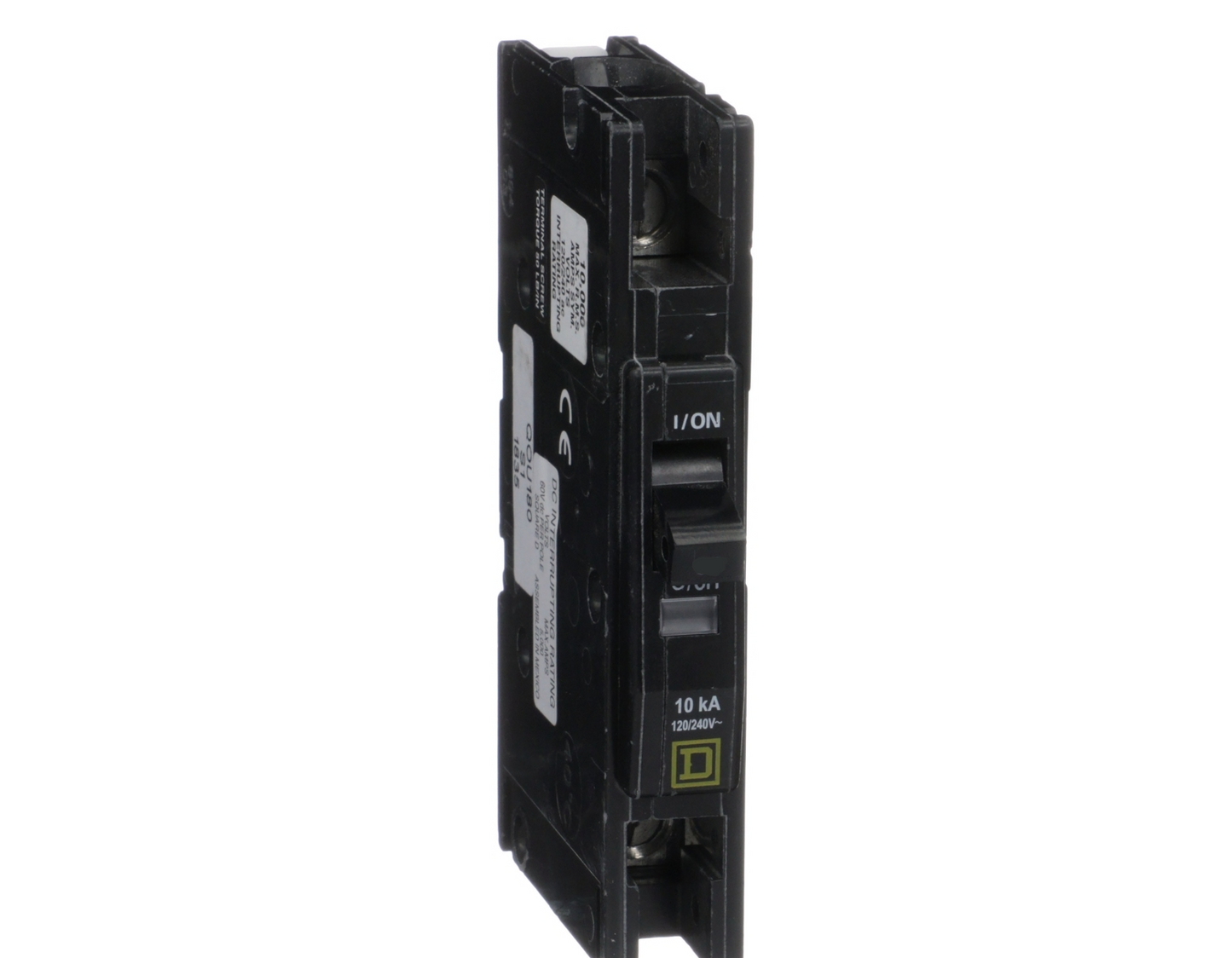

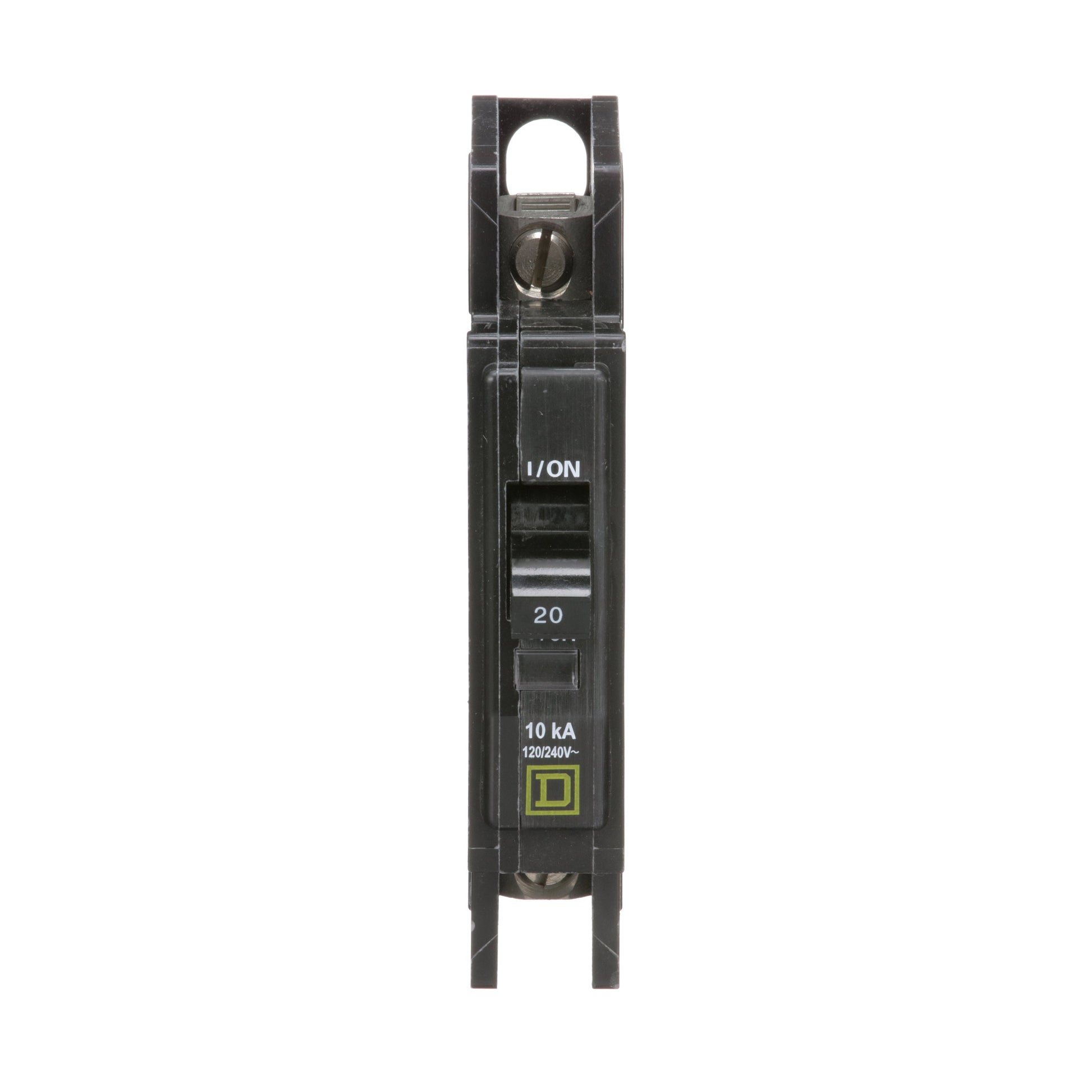

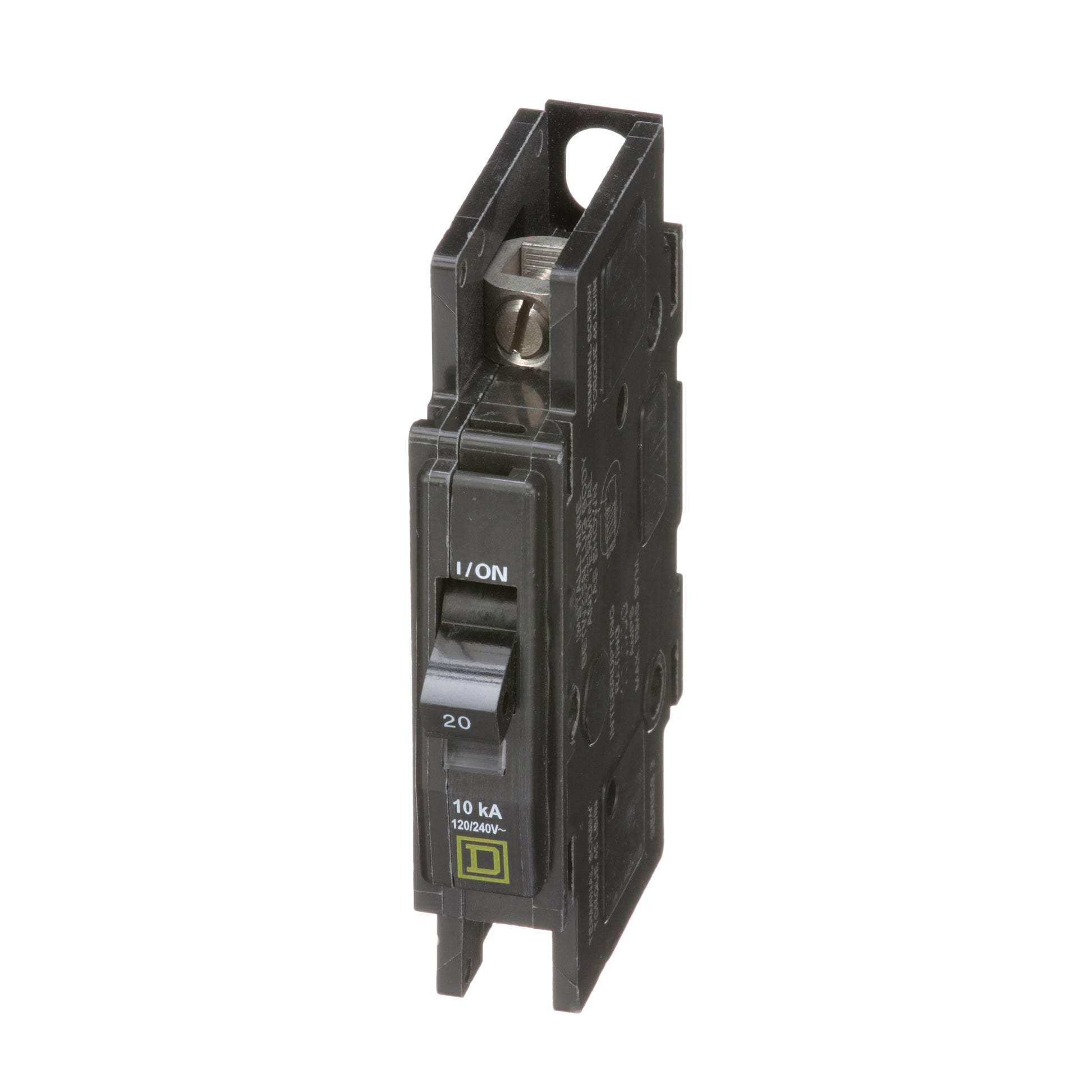

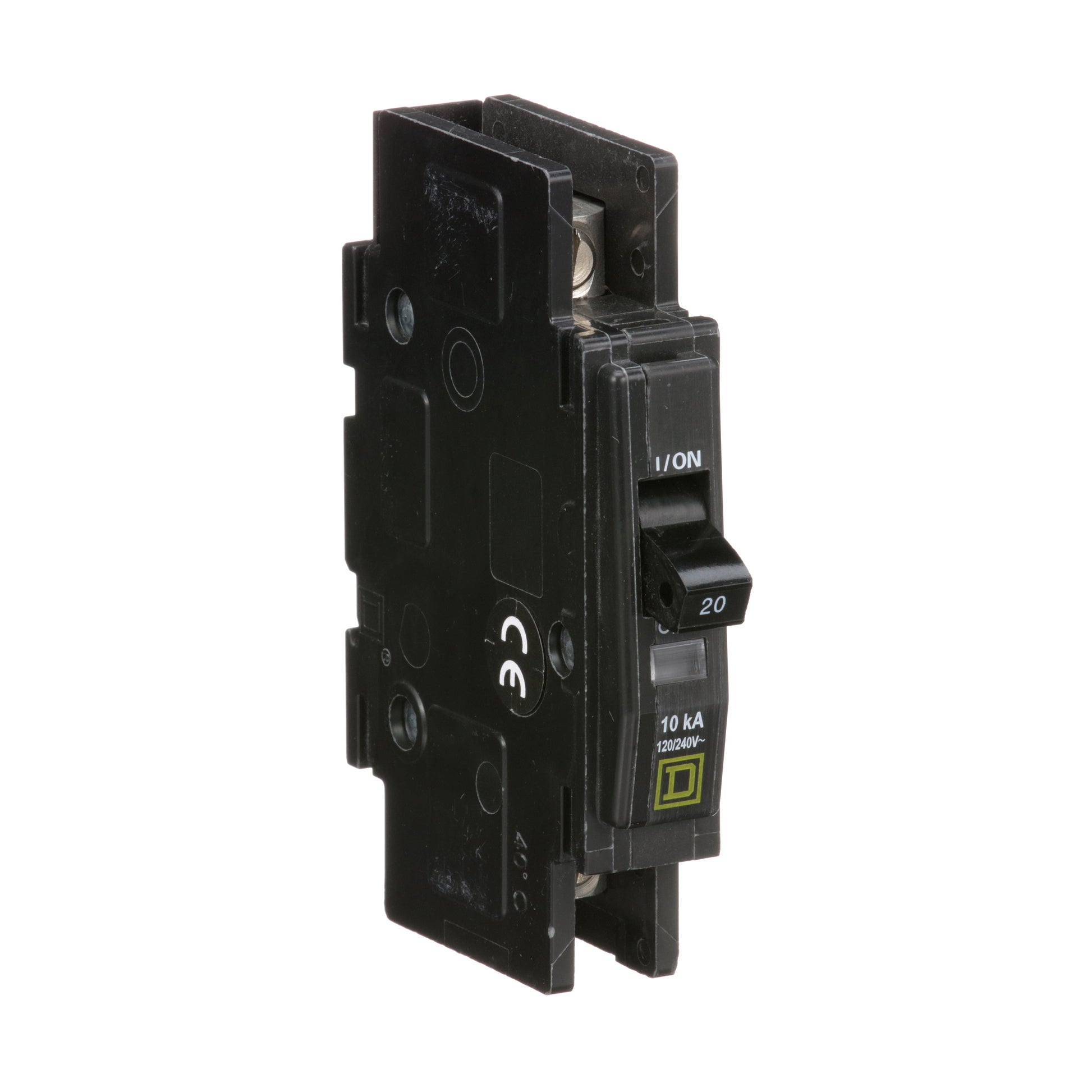

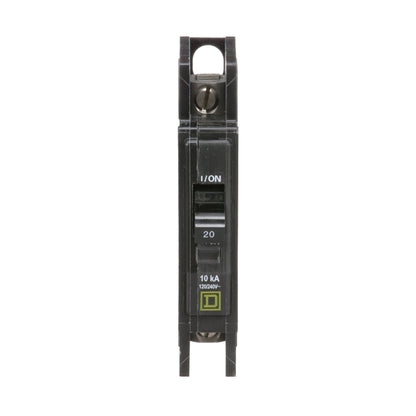

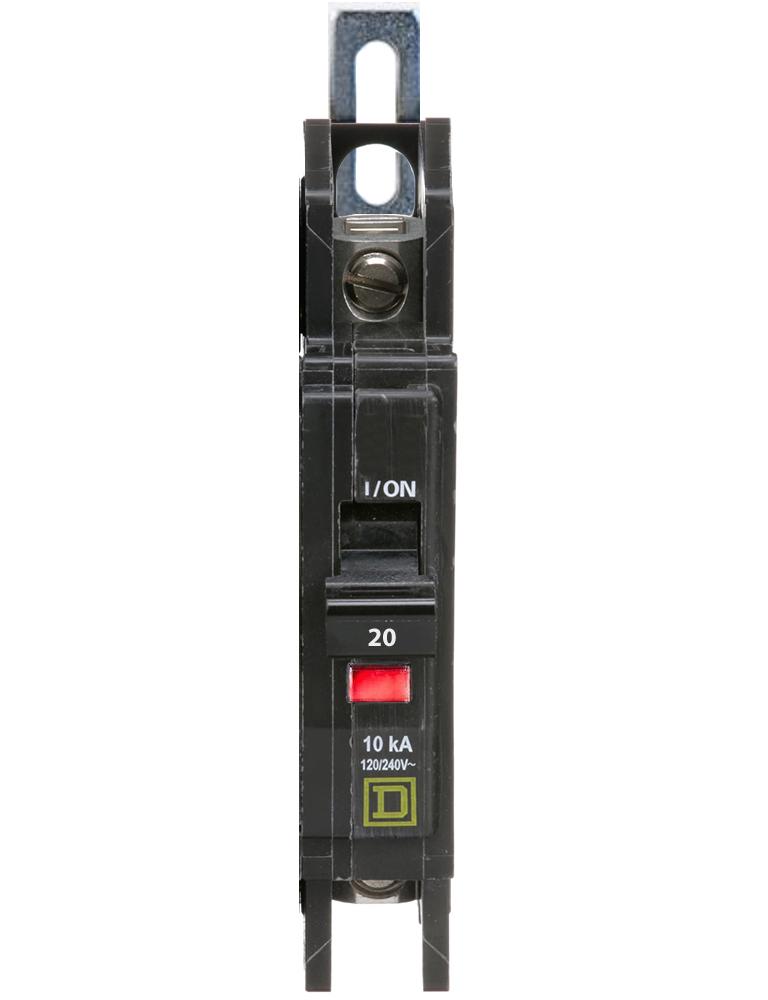

The Square D QOU120 is a Molded Case Circuit Breaker from the QOU Series. It features a 1-pole design with 120/240 VAC voltage and a 20-amp rating. This breaker offers Thermal Magnetic protection and has an AIC rating of 10kA@120V. It is suitable for air conditioning, refrigeration, and heating applications.
Key Features:
✔ Part Number: QOU120
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240 VAC
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Unit Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
✔ Protection: Thermal Magnetic
✔ UPC: 785901418535
✔ GTIN: 00785901418535
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 4.05 in x 4.05 in
✔ Weight: 0.35
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
