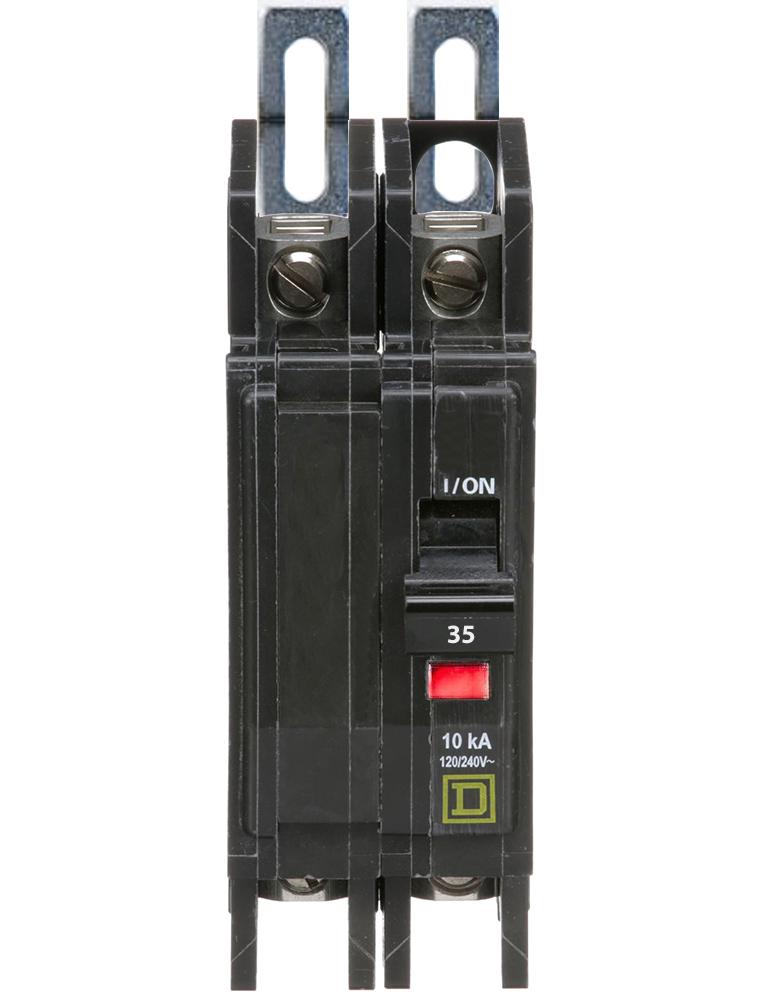

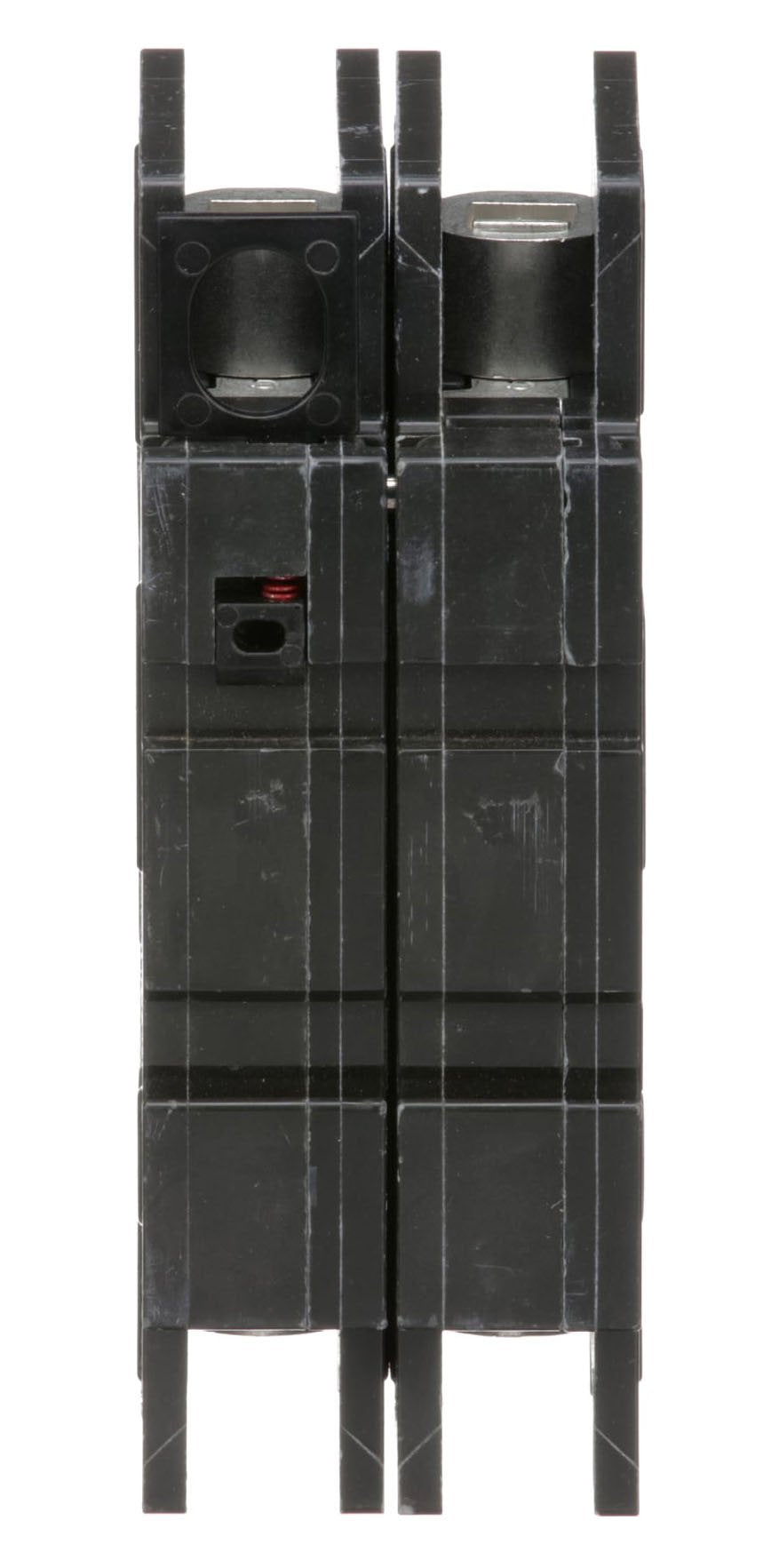

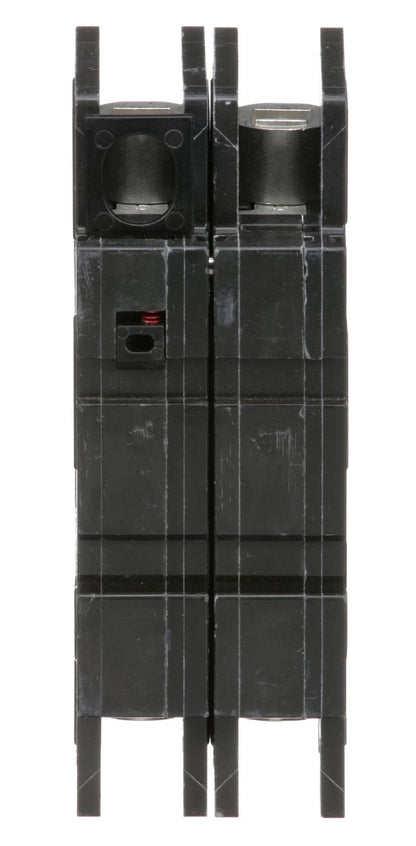

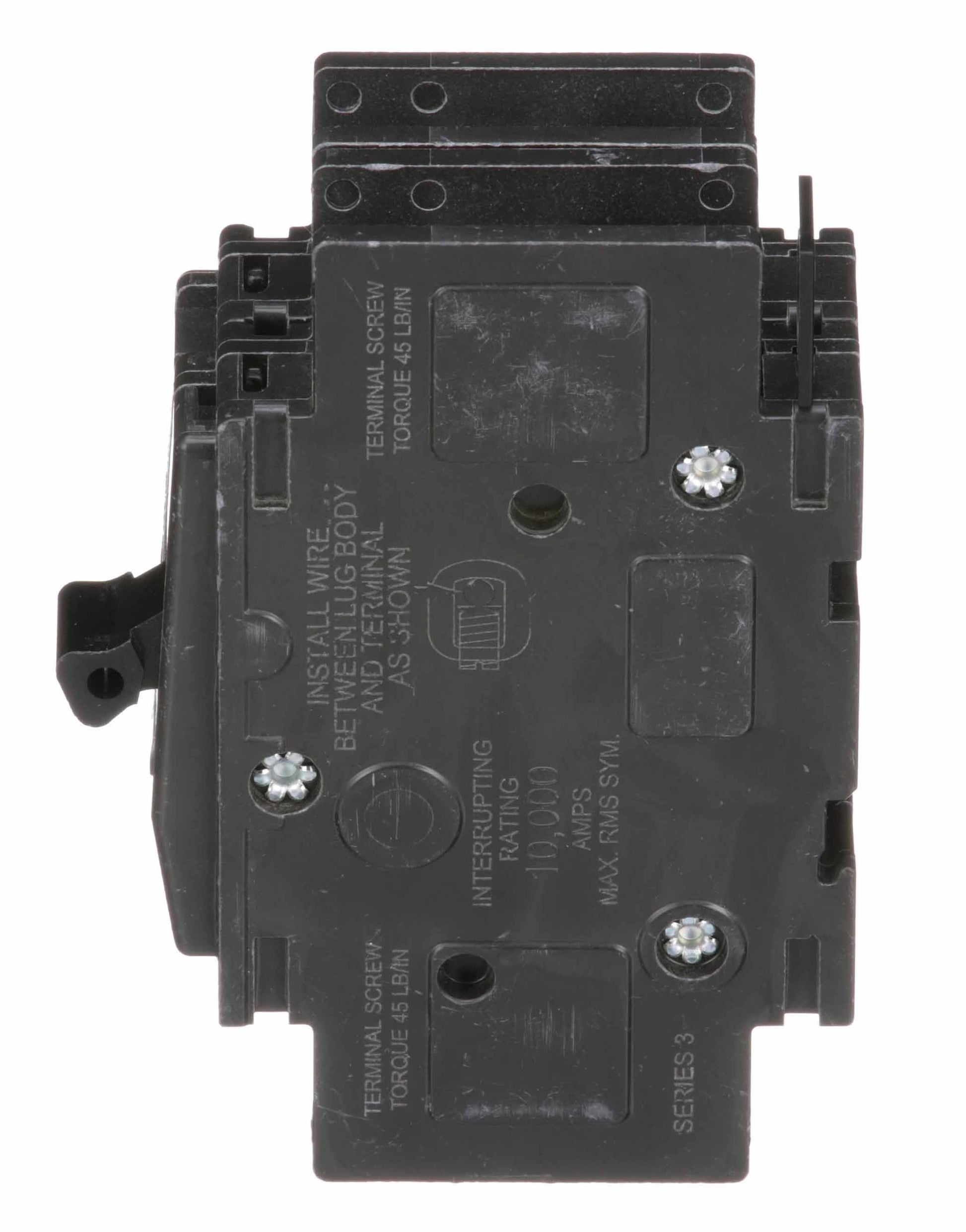

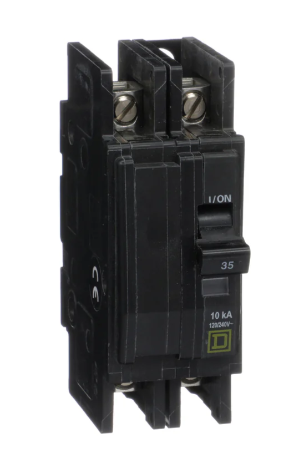

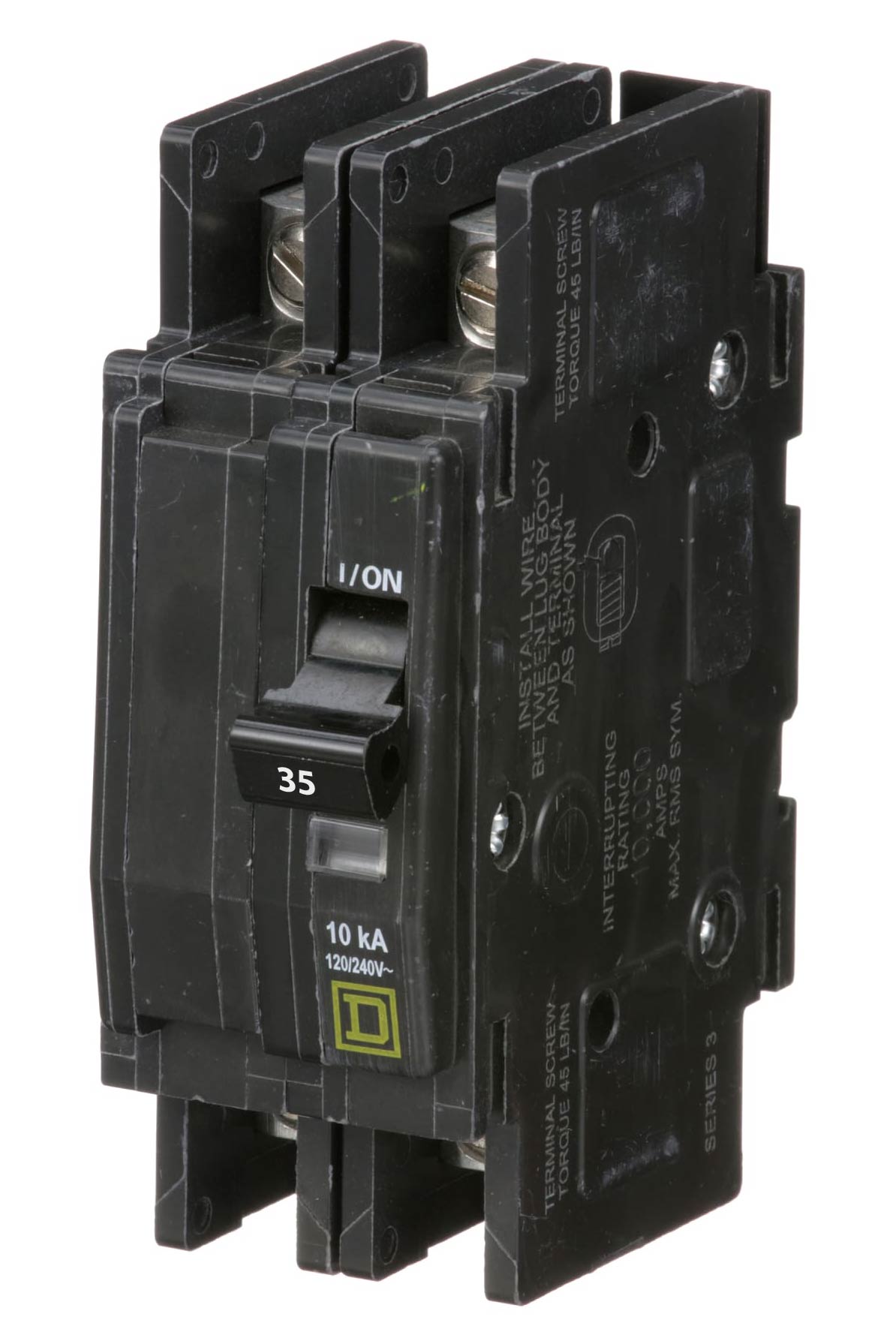

Square D QOU235 Circuit Breaker | 120/240V 35A 2P 10kA@240V Unit Mount QOU Series
Square D QOU235 Circuit Breaker | 120/240V 35A 2P 10kA@240V Unit Mount QOU Series
Price:
Sale
Sold out
Regular price
$39.74 USD
Regular price
$92.46 USD
Sale price
$39.74 USD
Unit price
per
Shipping calculated at checkout.
Stock:
41 in stock
Couldn't load pickup availability
Product Description:
The Square D QOU235 is a Molded Case Circuit Breaker from the QOU Series. It is a 2-pole, 35 amp breaker rated for 120/240 volts with a 10kA interrupting capacity at 240V. This unit features thermal magnetic protection and uses a unit mount connection for secure installation.
Key Features:
✔ Part Number: QOU235
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240
✔ Amperage: 35
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Unit Mount
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ Wire Size: Min. 14 AWG Max. 2 AWG
✔ Certification: CSA, IEC, UL listed
✔ UPC: 785901489153
✔ GTIN: 00785901489153
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.05 in x 4.05 in
✔ Weight: 0.92
The Square D QOU235 is a Molded Case Circuit Breaker from the QOU Series. It is a 2-pole, 35 amp breaker rated for 120/240 volts with a 10kA interrupting capacity at 240V. This unit features thermal magnetic protection and uses a unit mount connection for secure installation.
Key Features:
✔ Part Number: QOU235
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240
✔ Amperage: 35
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Unit Mount
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ Wire Size: Min. 14 AWG Max. 2 AWG
✔ Certification: CSA, IEC, UL listed
✔ UPC: 785901489153
✔ GTIN: 00785901489153
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.05 in x 4.05 in
✔ Weight: 0.92
