Product Description:

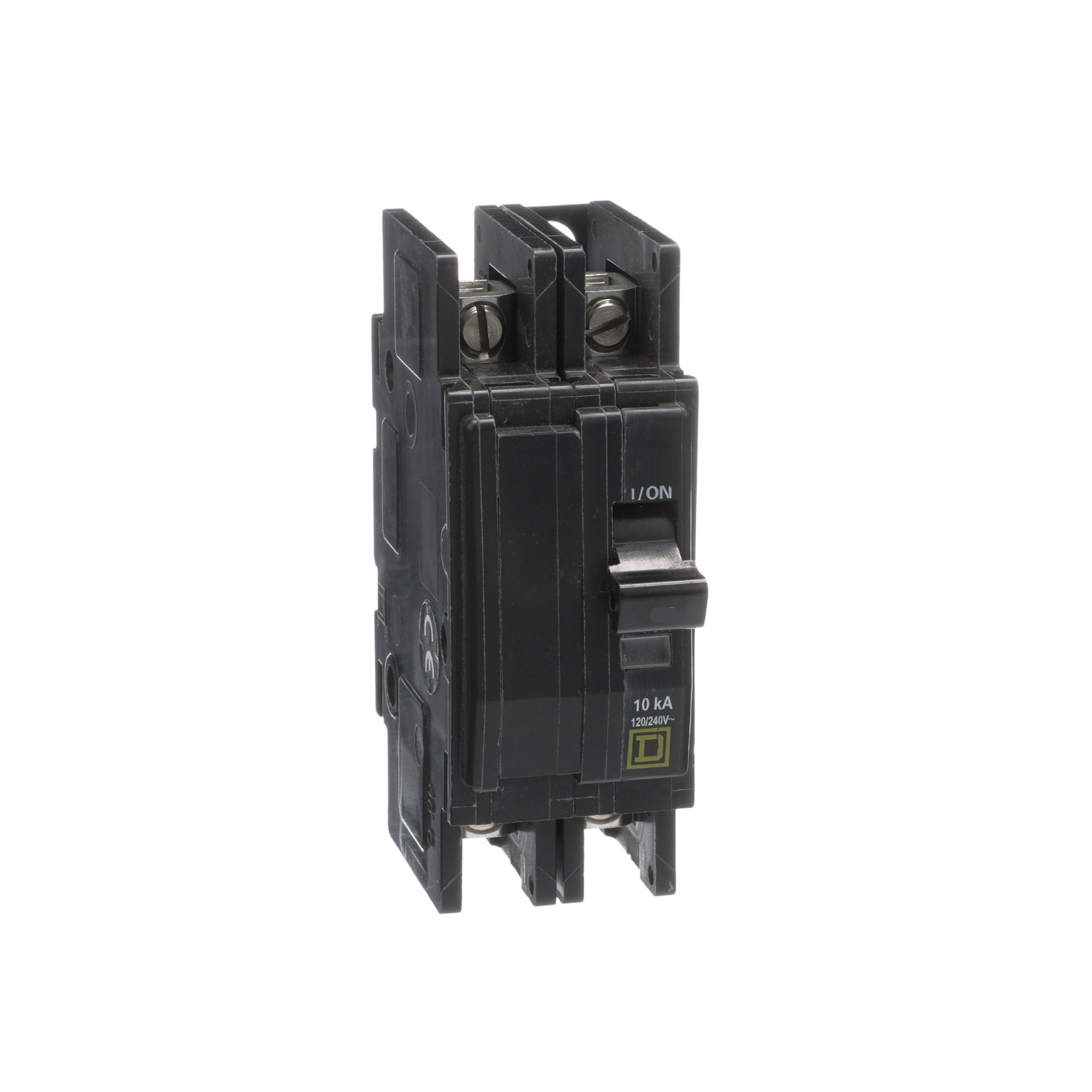

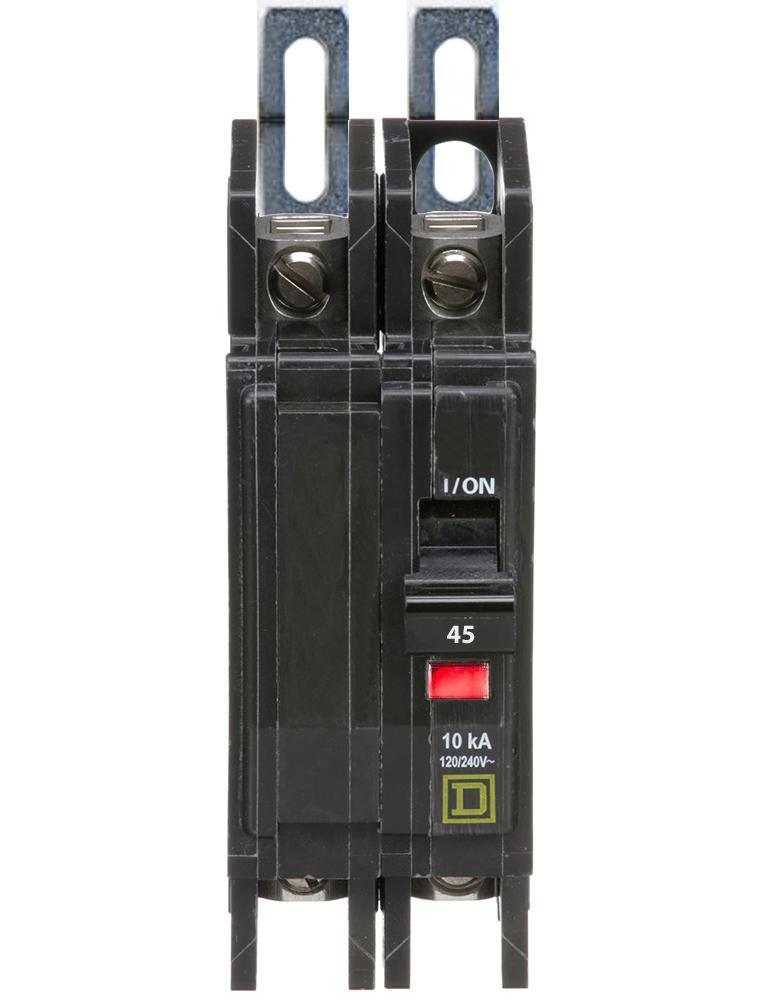

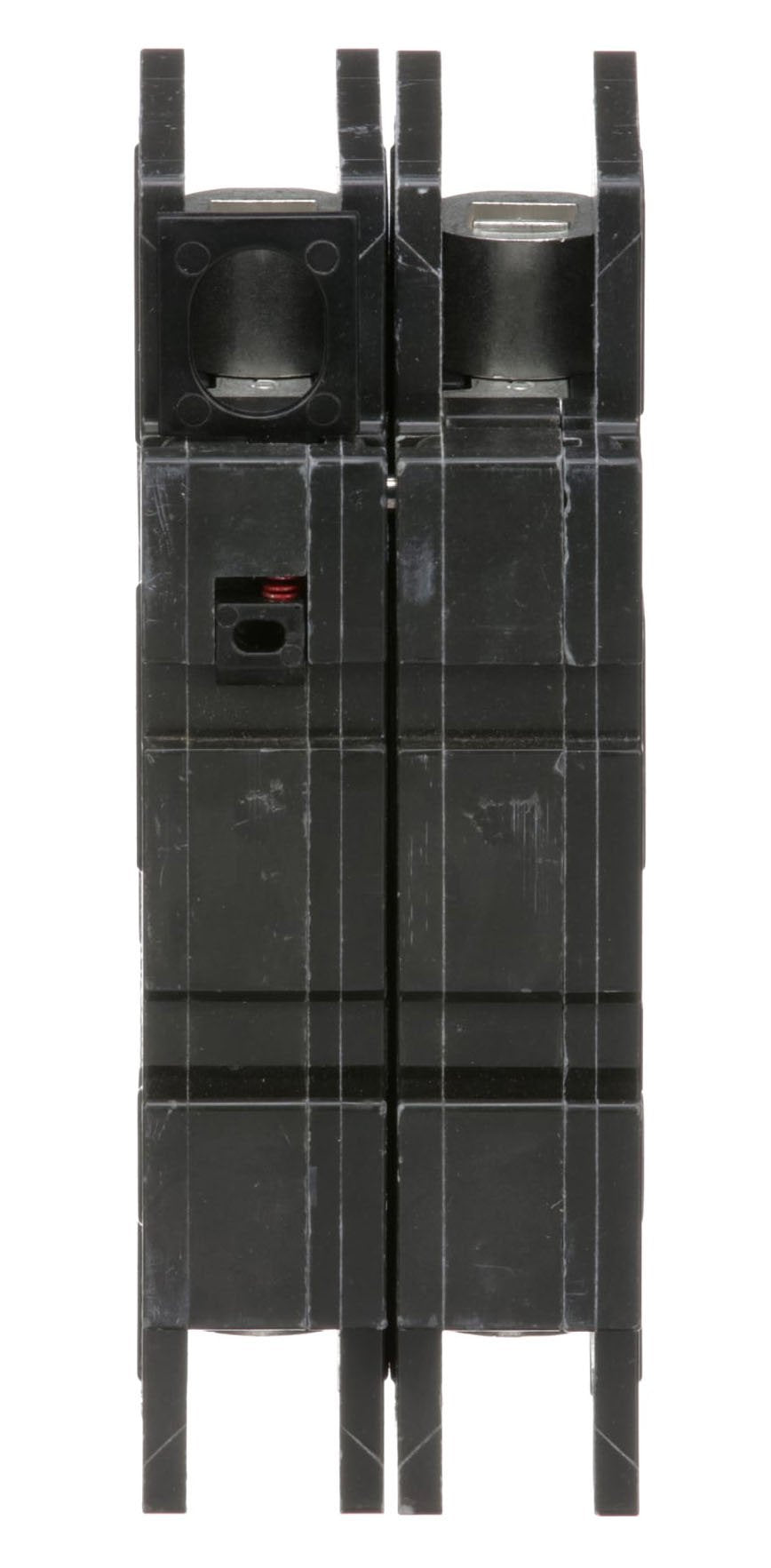

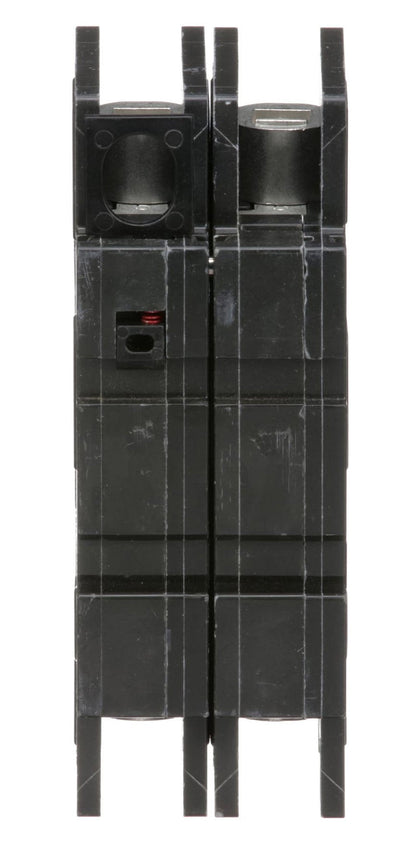

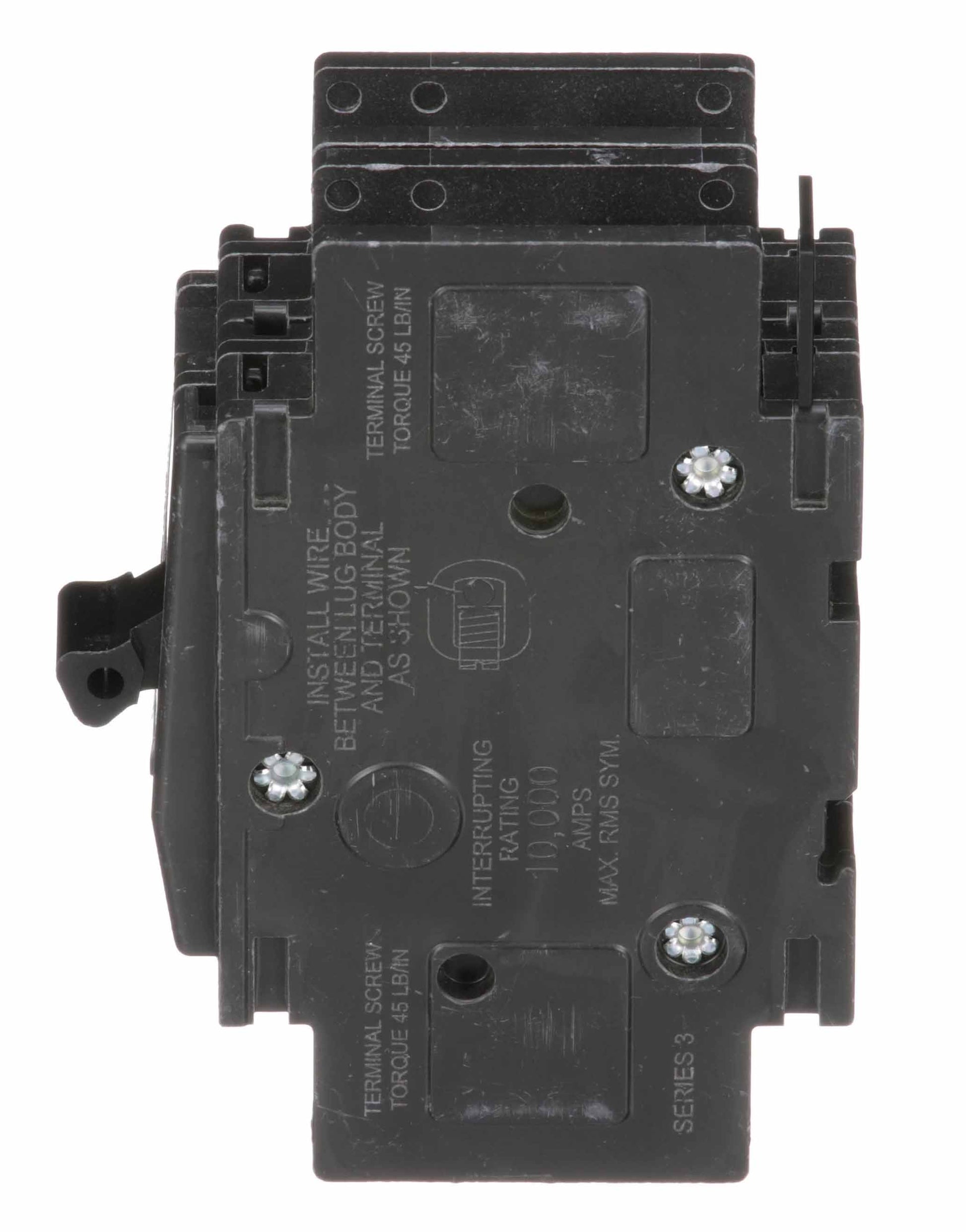

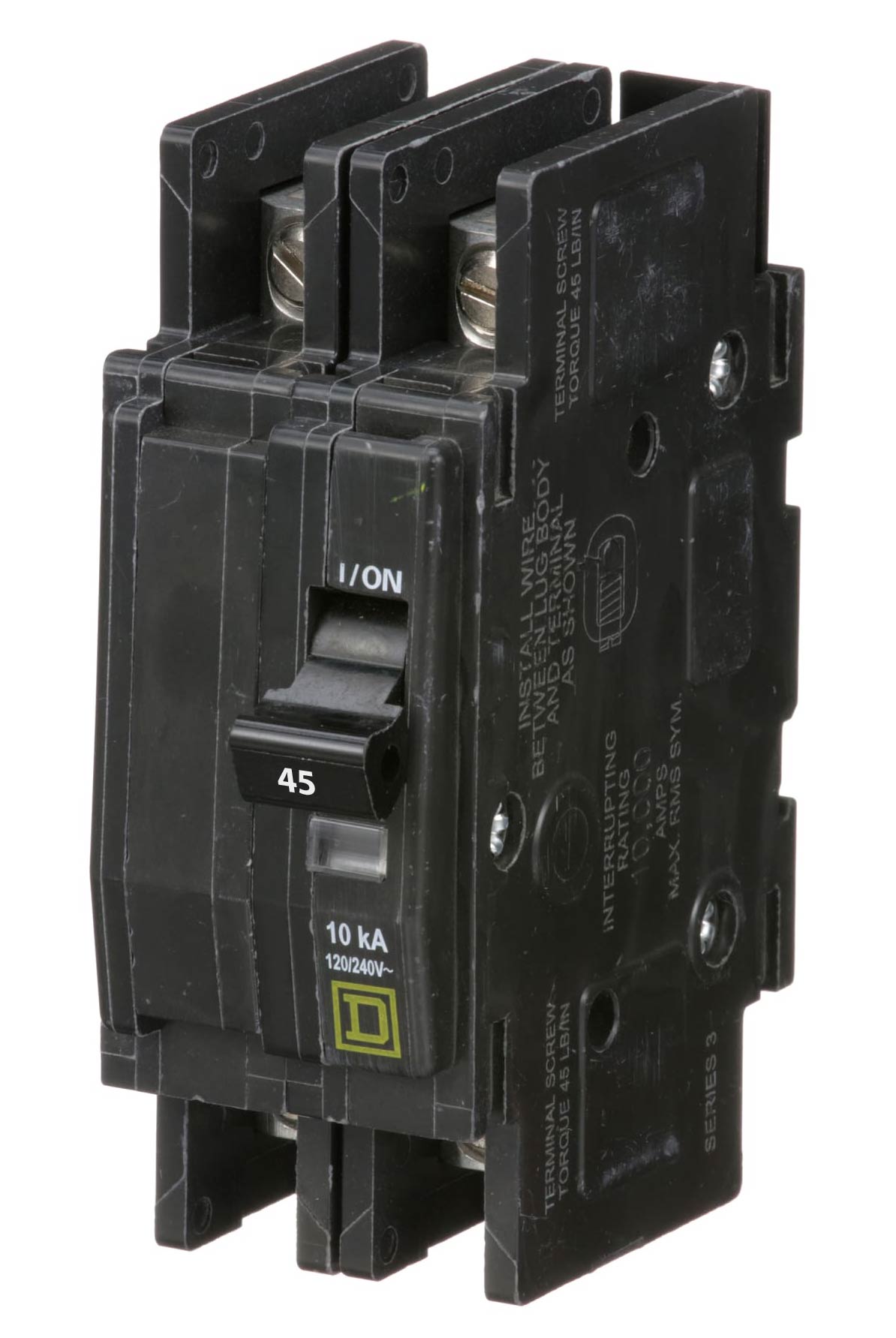

The Square D QOU245 is a 2-pole molded case circuit breaker designed for 120/240 VAC applications. It features a 45 amp rating and a 10kA@240V AIC rating with thermal magnetic protection. This breaker uses a bolt-on connection and is part of the QOU Series family. It is suitable for air conditioning, refrigeration, and heating equipment.
Key Features:
✔ Part Number: QOU245
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240 VAC
✔ Amperage: 45
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
✔ Protection: Thermal Magnetic
✔ UPC: 785901489160
✔ GTIN: 00785901489160
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.05 in x 4.05 in
✔ Weight: 0.97
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
