Product Description:

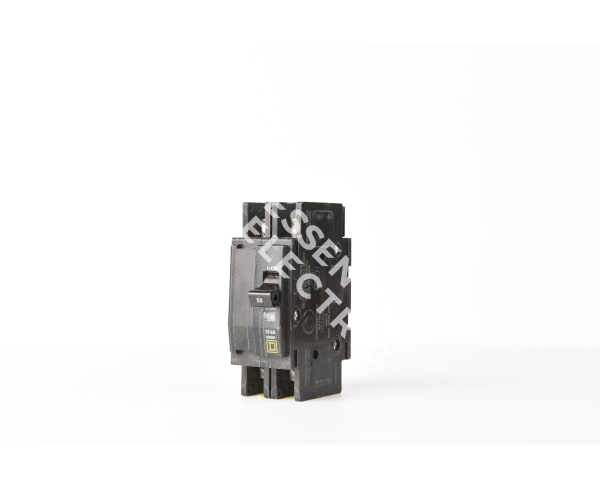

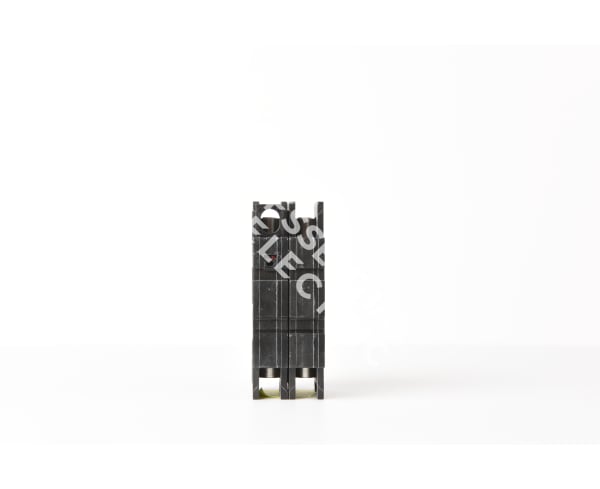

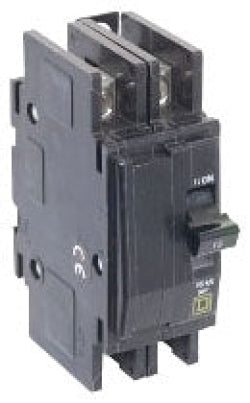

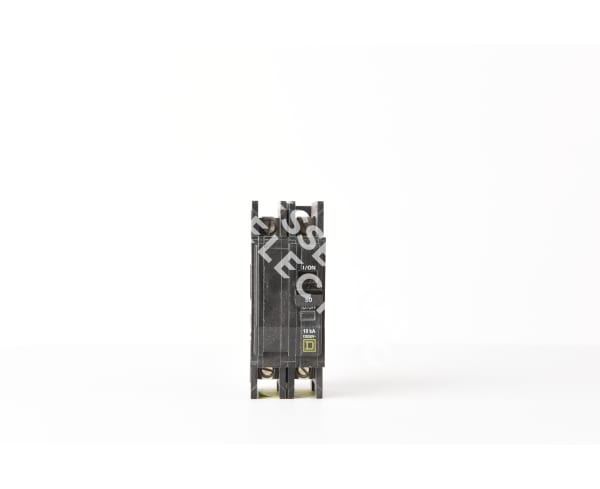

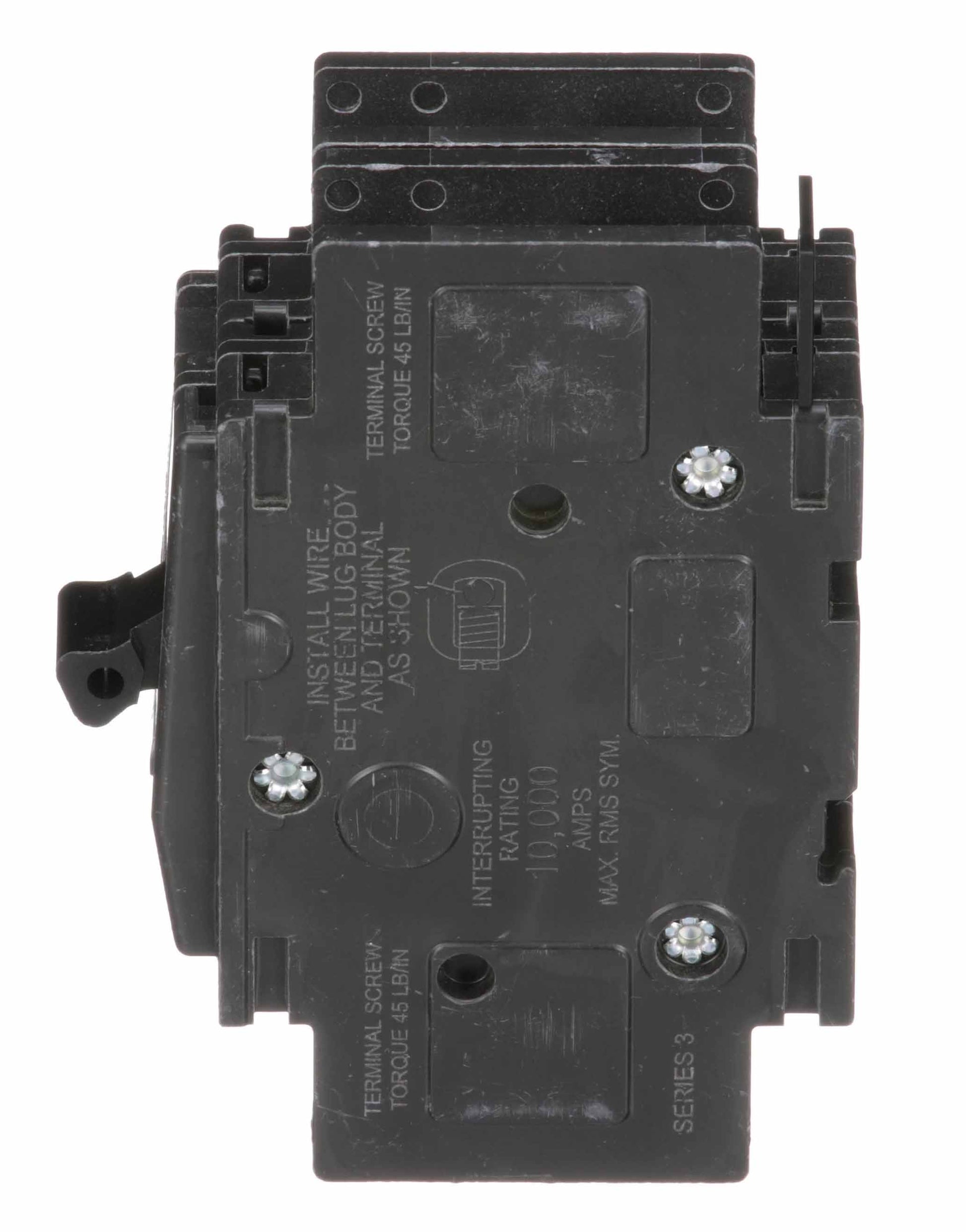

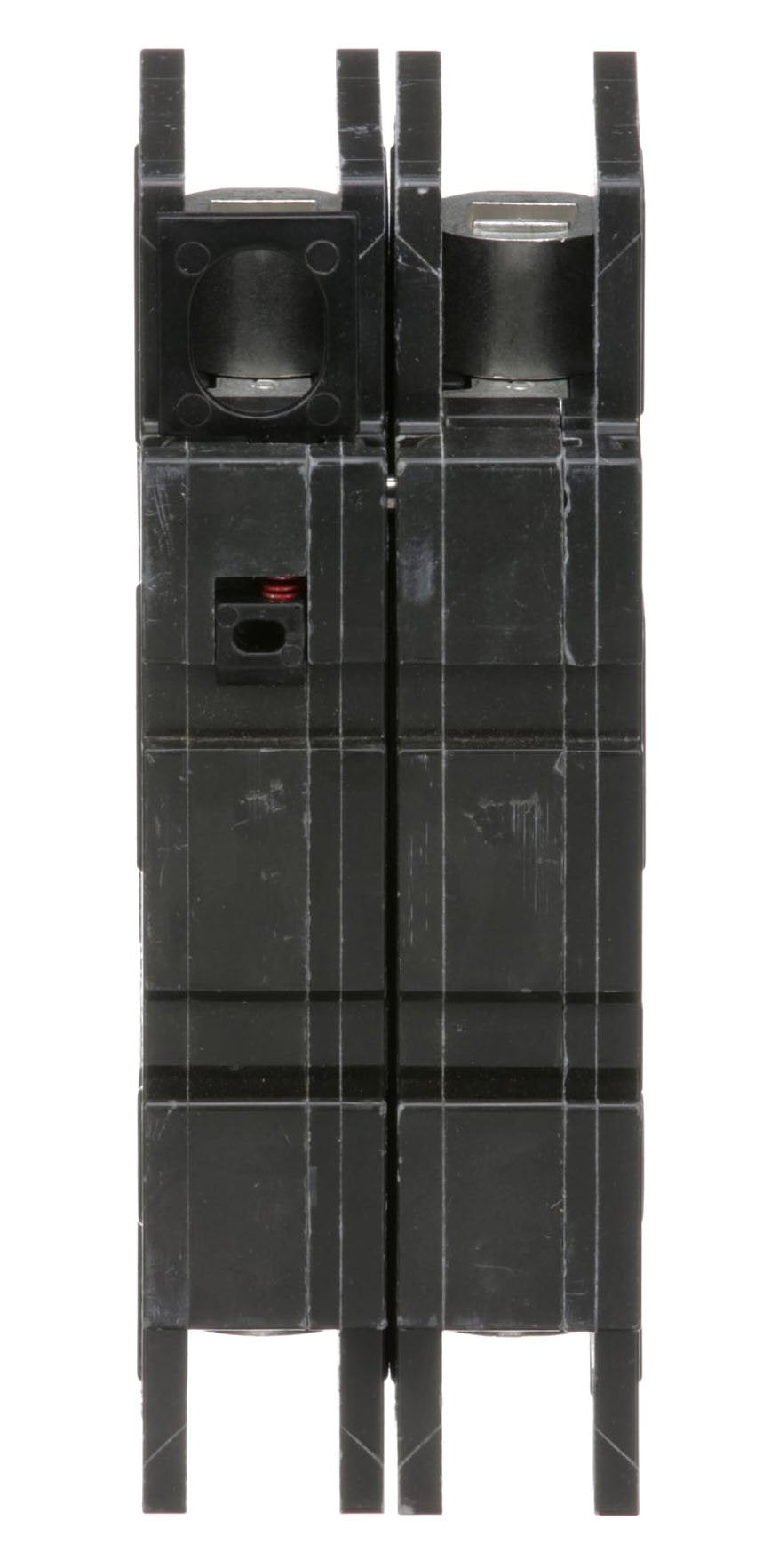

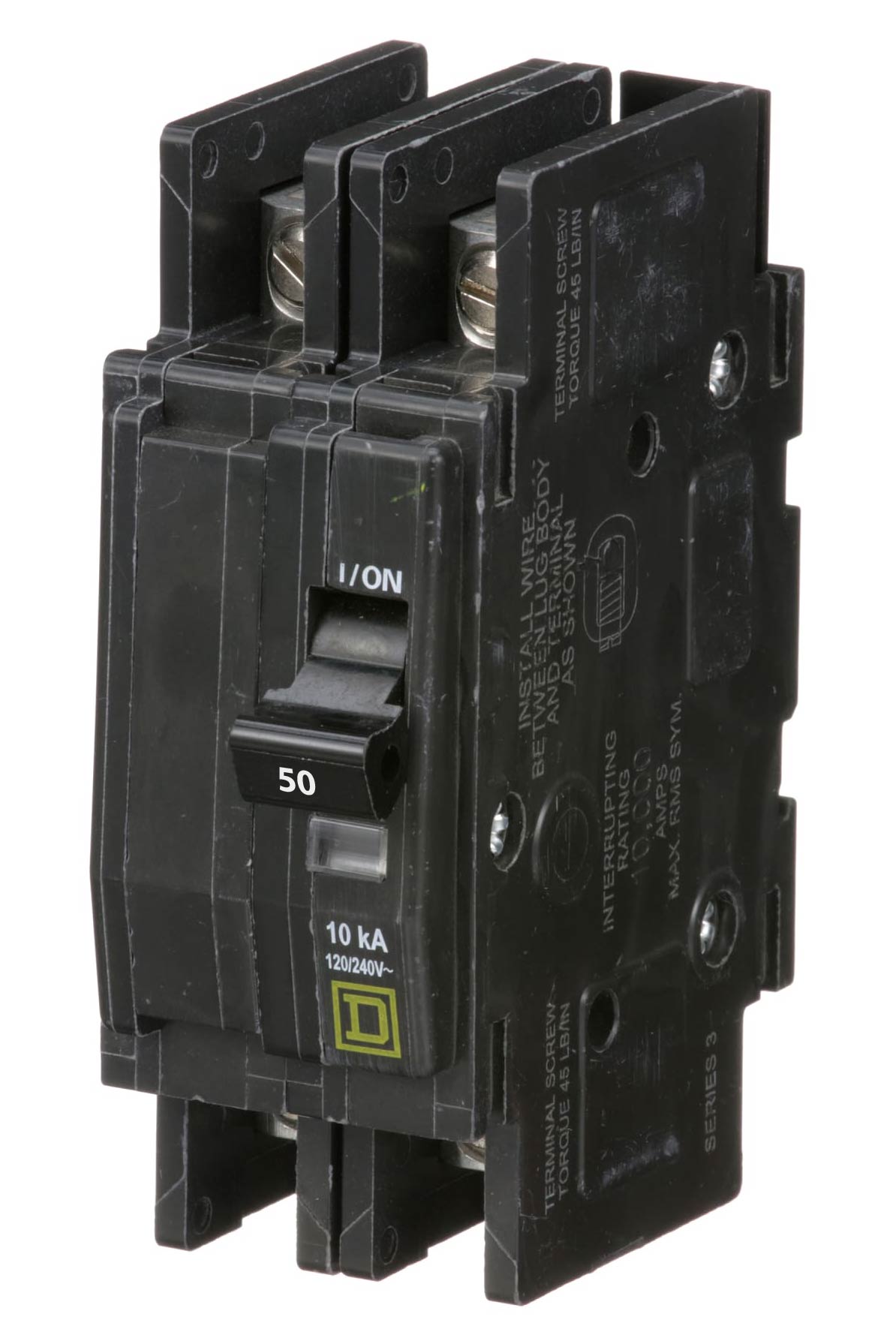

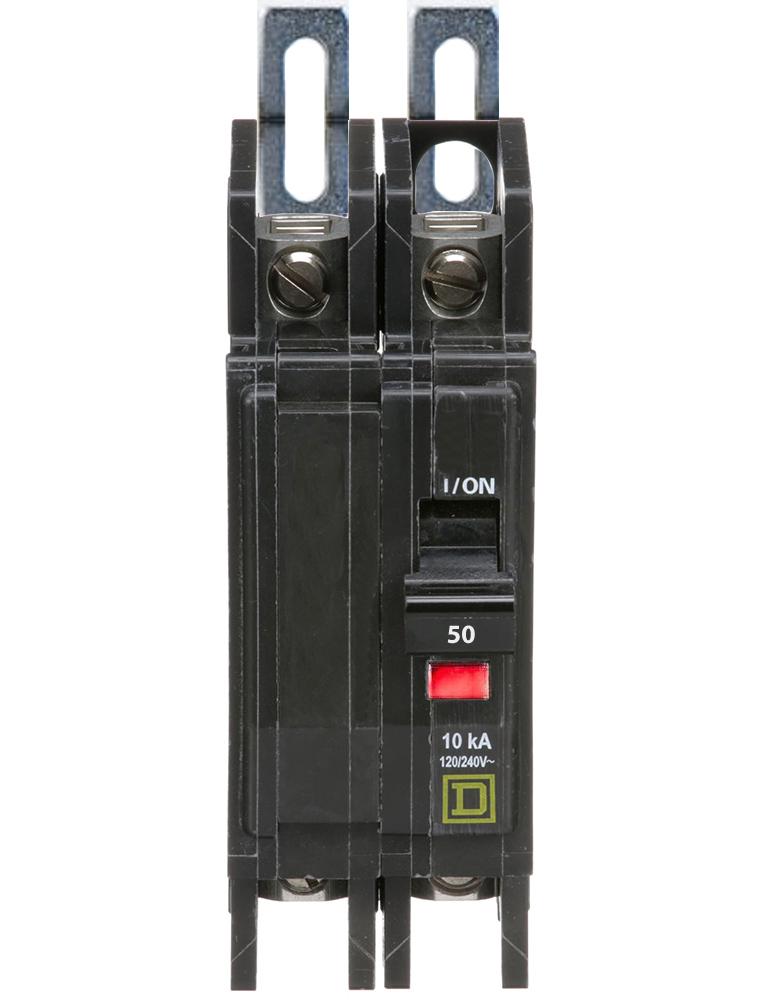

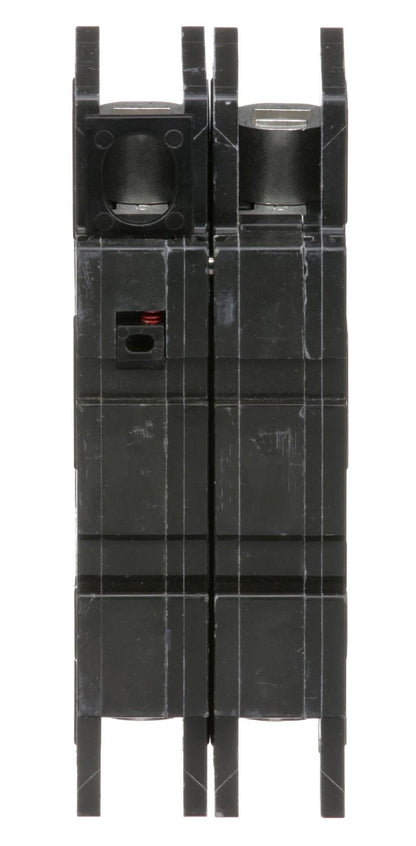

The Square D QOU250 is a Molded Case Circuit Breaker from the QOU Series. It features a 2-pole design with 120/240 VAC voltage and a 50 amp rating, suitable for various electrical applications. This breaker includes Thermal Magnetic protection and has an AIC rating of 10kA@240V. It uses a Bolt-On connection for secure installation.
Key Features:
✔ Part Number: QOU250
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240 VAC
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ Wire Size: 14 AWG to 2 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 785901418771
✔ GTIN: 00785901418771
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.05 in x 4.05 in
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
